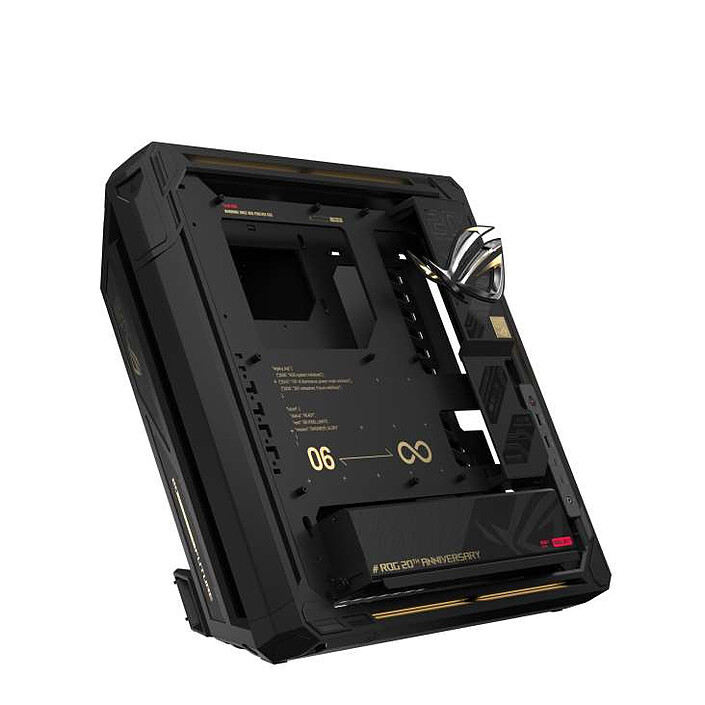

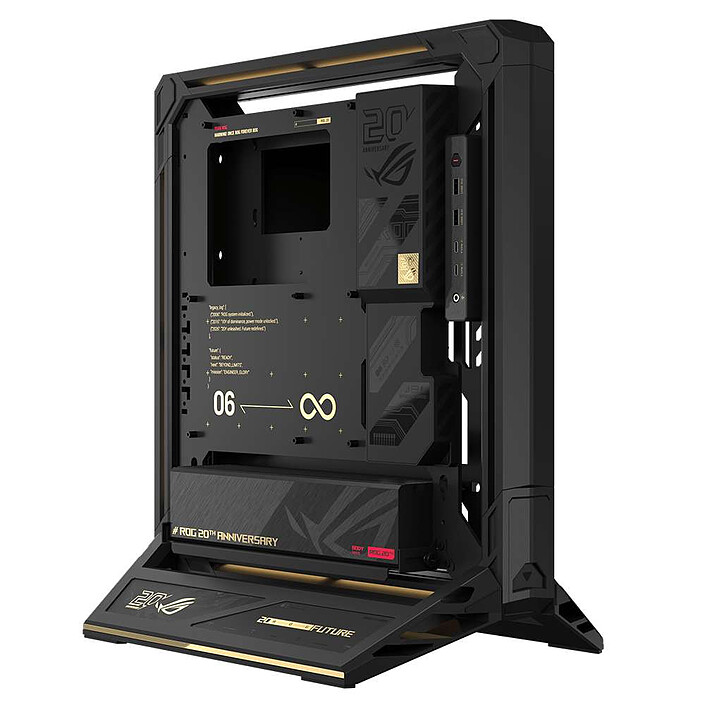

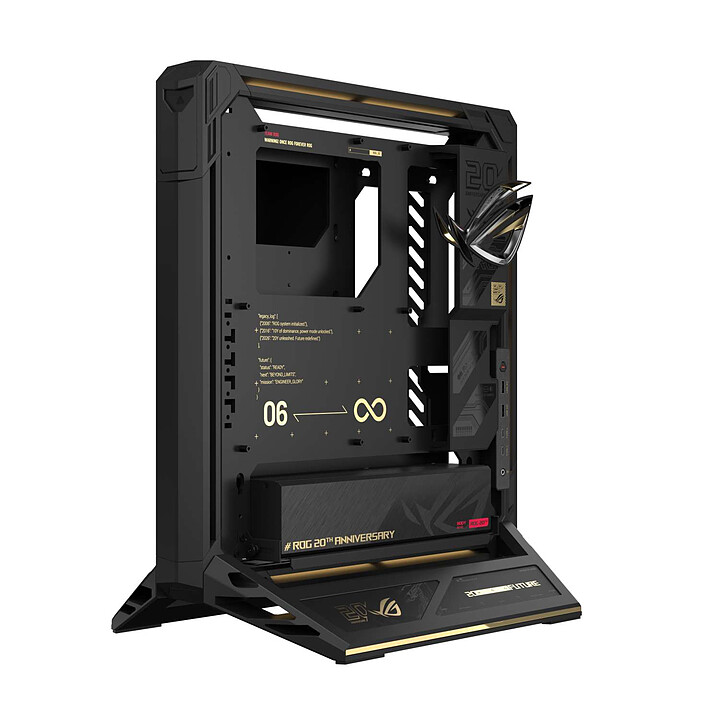

ASUS ROG GR20 Edition 20
Modular Mid Tower Gaming PC Case with open chassis
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
High-end PC case for optimal customization
The ROG GR20 Edition 20 case embodies ASUS excellence in design and performance. Designed in aluminum with an open-frame structure, it combines refined aesthetics, robustness and flexibility for PC enthusiasts. Ideal for advanced builds, it supports EATX motherboards, graphics cards up to 368 mm and radiators of 360 mm, while providing optimal airflow.
Modular design and innovative cooling

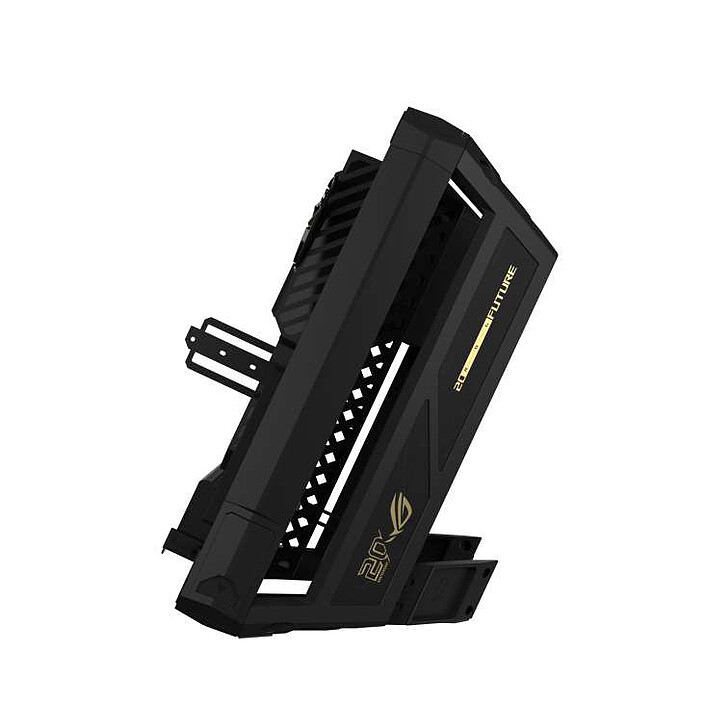

The ROG GR20 stands out for its versatility with three placement options: vertical, angled or horizontal, adapting to all spaces and needs. Its integrated cross-flow fan provides broad airflow coverage, optimizing the cooling of key components, including SSDs. The chassis in 4 mm aluminum alloy ensures exceptional rigidity and increased durability, while the reinforced graphics card support reduces movement and sagging for NVIDIA GeForce RTX 50 cards (354–368 mm).
Advanced features and refined aesthetics

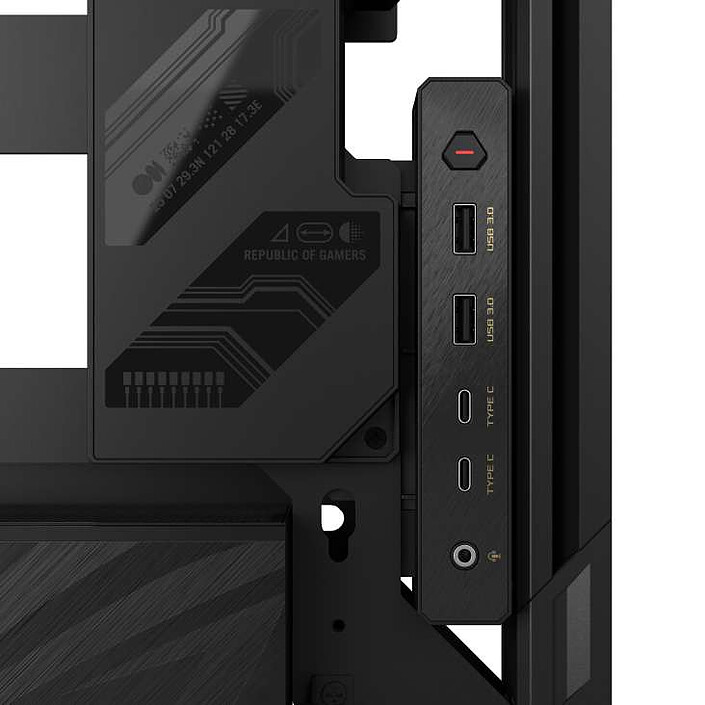

The ROG GR20 includes a modular I/O panel with two USB Type-C 20 Gbps ports (60W fast charging), a 36 mm compartment for organized cable management, and customizable ambient lighting. Every detail, from the metal ROG logo to the precise structures, combines performance and elegance. The thoughtful connector design makes component integration easier, while the optimized space ensures a smooth and aesthetic user experience.
Main features:
- Structure: open-frame aluminum (4 mm thick)
- Compatibility: EATX motherboards (12 x 10.9 inches), graphics cards up to 368 mm, radiators up to 360 mm
- Cooling: integrated cross-flow fan (up to 2500 RPM, PWM control)
- Graphics card support: reinforced for NVIDIA GeForce RTX 50 (354–368 mm)
- Connectivity: 2 USB Type-C 20 Gbps ports (60W fast charging), modular I/O panel
- Design: 3 placement options (vertical, angled, horizontal), ambient lighting, metal ROG logo
- Cable management: 36 mm compartment behind the motherboard
Select your criteria
General information |
Product name |
ASUS ROG GR20 Edition 20 |
Brand |
ASUS | |
Model |
90DC0100-B09000 | |
Main characteristics |
Graphic card max. length |
368 mm |
Power supply max. length |
190 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Material |
ABS (Plastic) | |
| Aluminum | ||
| Metal | ||
Motherboard format |
ATX | |
| E-ATX | ||
| Micro ATX | ||
| Mini ITX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
Yes |
Case color |
Black | |
Front color |
Black | |
Integrated display |
No | |
Mesh front |
No | |
Glass |
No | |
Tempered glass |
No | |
Fish tank (panoramic view) |
No | |
LED RGB |
No | |
ARGB LED |
No | |
Motherboard connector location |
Standard connectors (on the motherboard) | |
Expansion slots |
Number of PCI slots |
5 |
Low profile |
No | |
Front connectivity |
Location of expansion ports |
Side |
Connector(s) available |
1 X 3.5mm Jack Female Stereo | |
| 2 X USB 3.2 Type C | ||
| 2 X USB 3.0 | ||
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 240mm radiator | ||
| 360mm radiator | ||
Side AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
| 360mm radiator | ||
Physical characteristics |
Width |
285 mm |
Height |
513 mm | |
Depth |
470 mm | |
Weight |
9.3 kg | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
ASUS Computer GmbH |
Postal address |
Harkort STR. 21-23, 40880 RATINGEN, GERMANY | |
Electronic Address |
ProducSafety@asus.com |
