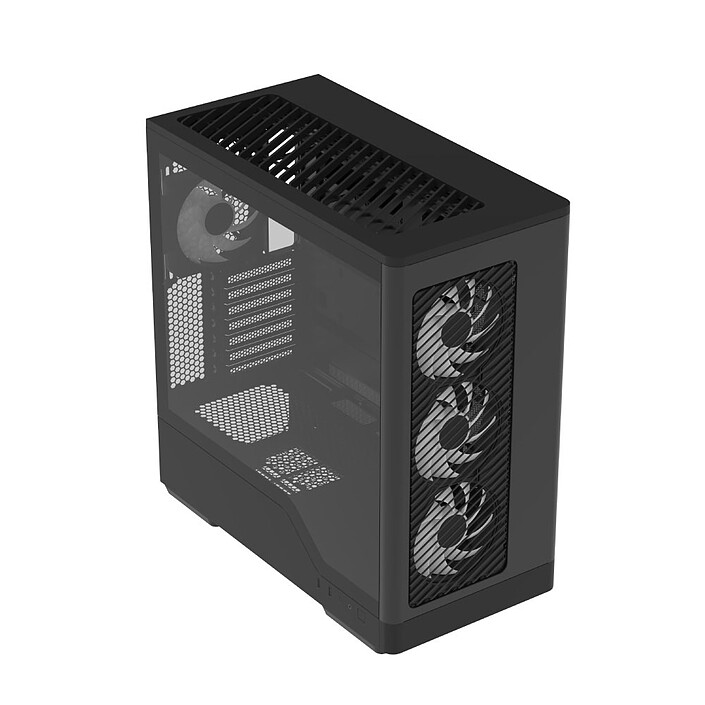

Aerocool D520A

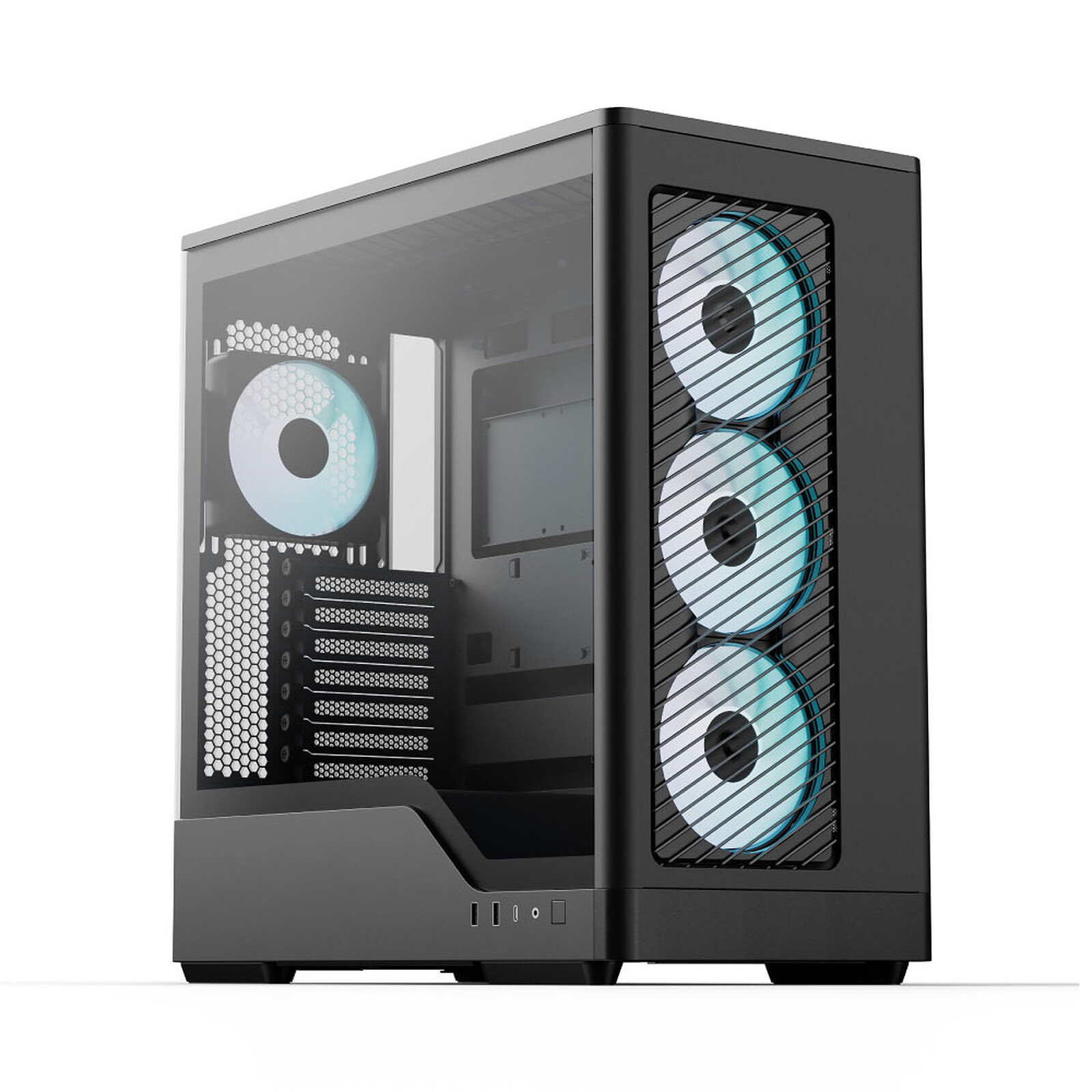

Mid-tower case with window and 4 ARGB fans
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

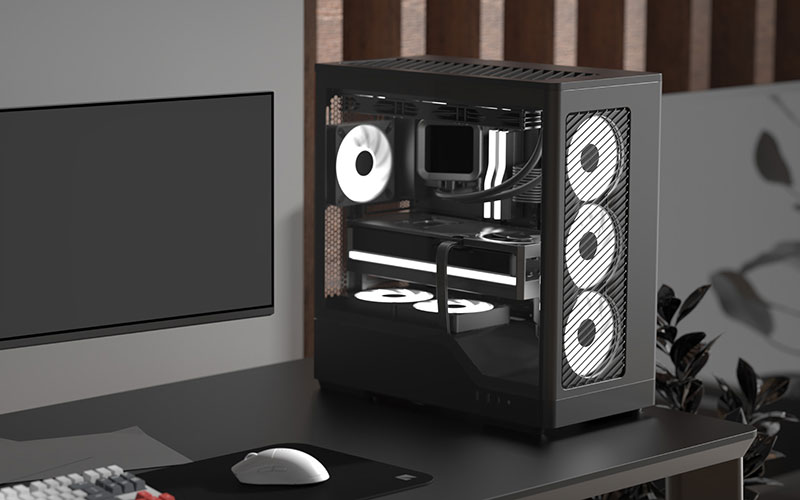

A bright and well-ventilated PC case
The AeroCool D520A is a mid-tower PC case designed to assemble a modern ATX configuration with careful airflow and simplified access to components. Its ventilated metal mesh front panel, removable dust filters and numerous ventilation slots make it a suitable base for gaming, creative work and compact workstations. It also ensures a clean installation thanks to its compatibility with motherboards with reverse connectors and optimised cable management.
Compatibility and connectivity
The D520A supports ATX, Micro ATX and Mini-ITX motherboards in a 460 x 235 x 480 mm (49 L) chassis made of SPCC steel (0.6 to 0.8 mm). It accepts a graphics card up to 400 mm (without a radiator in the front right position), a CPU cooler up to 180 mm and an ATX power supply up to 280 mm (cables included). The front I/O panel features 1 USB 3.2 Type-C port, 2 USB 3.0 Type-A ports and HD Audio & Mic jacks for everyday peripherals.

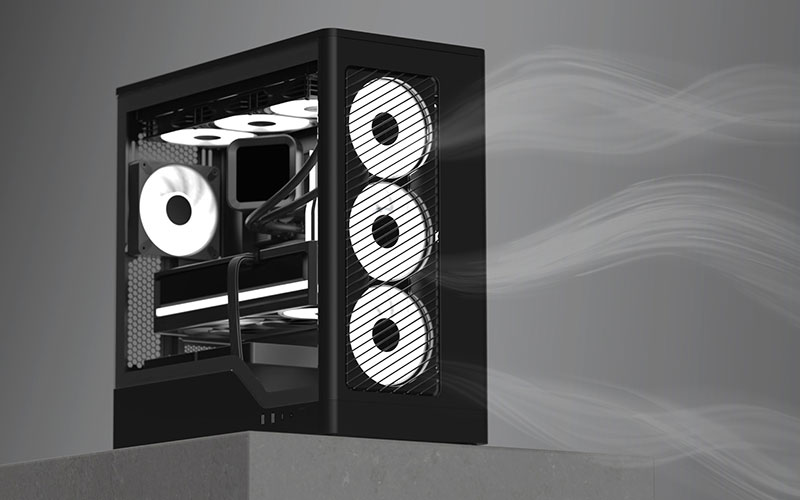

Scalable cooling
Designed around airflow, this case combines a ventilated metal mesh front panel with up to 12 fan slots. It comes with 4 x 120 mm ARGB PWM fans (3 at the front, 1 at the rear). You can supplement the ventilation with up to 3 x 120mm on the side, up to 3 x 120mm or 2 x 140mm on the top, and 2 x 120mm on the power supply cover. For liquid cooling, the top can accommodate a 120/140/240/280/360 mm radiator (optional). Removable nylon filters (front, top, bottom) simplify cleaning while limiting dust ingress.
Removable panels

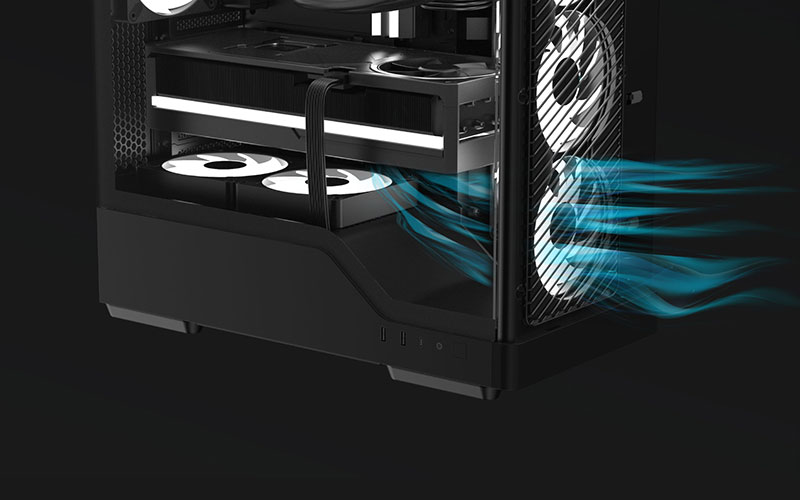

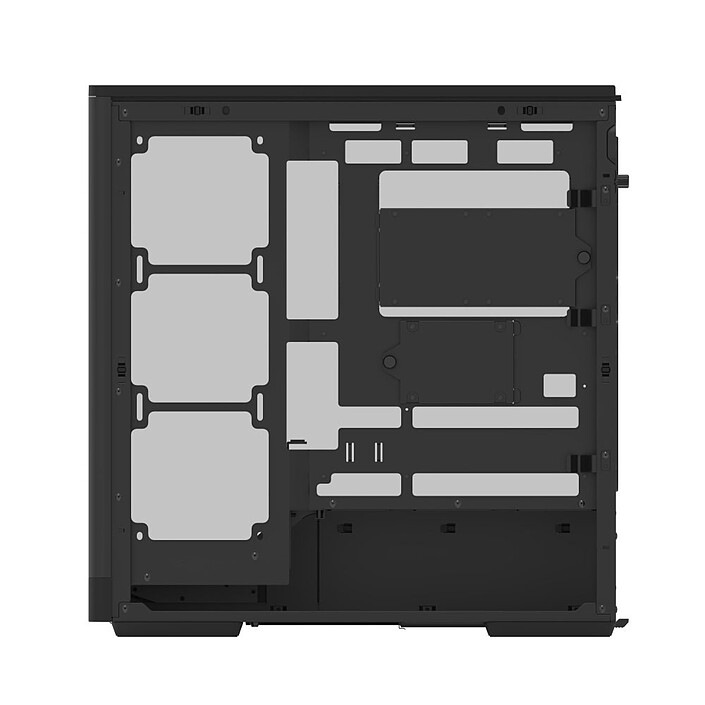

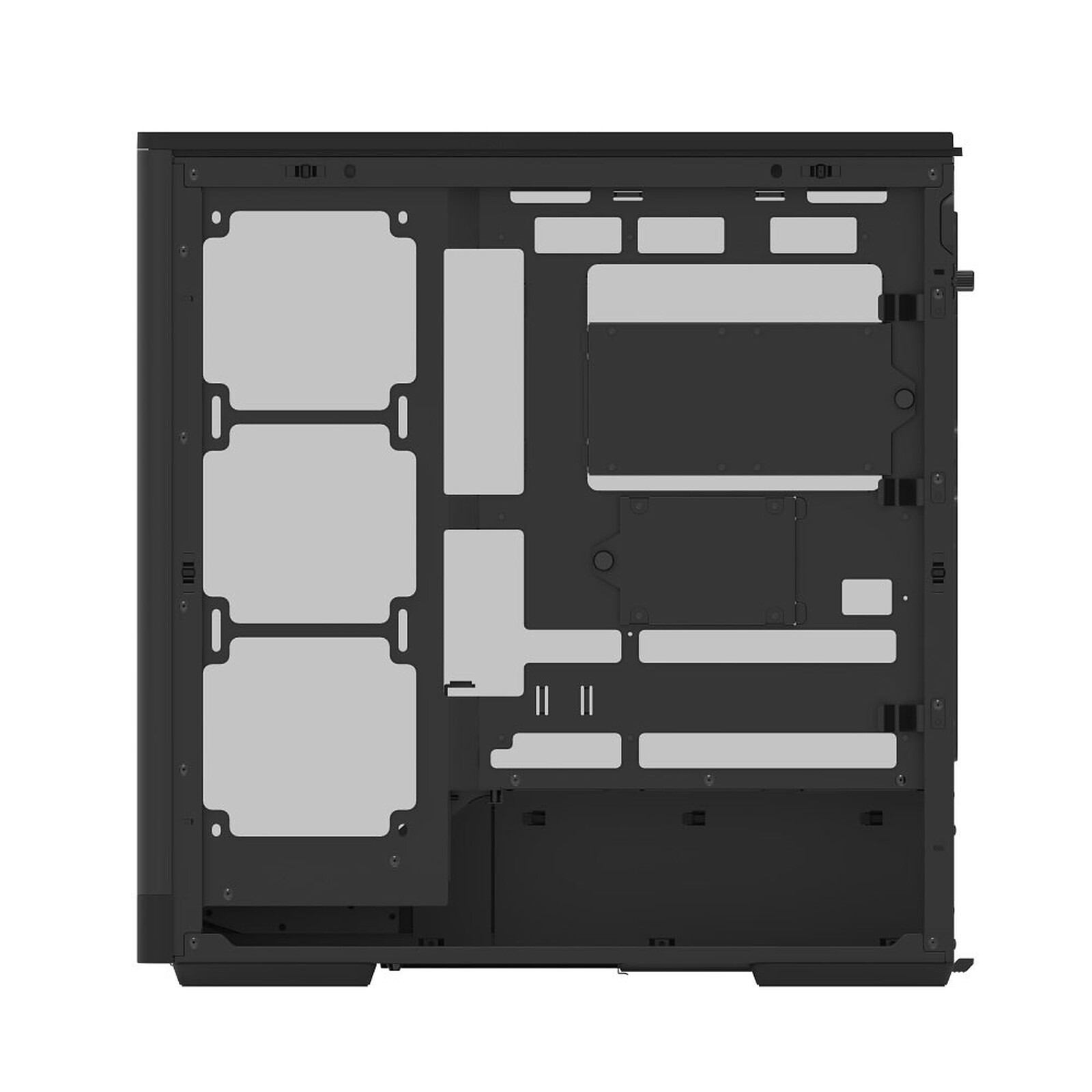

The D520A is designed for easy assembly and component access: the front, top and side panels (left and right) are removable without tools. Compatibility with motherboards with reverse connectors (BTF type) helps to conceal cables behind the motherboard tray for a tidier interior. The advertised cable management space is 30 mm, which is useful for organising power supplies and cables. An optimised power supply cover helps channel air to the GPU area, and an adjustable GPU bracket is integrated to stabilise heavy graphics cards and limit sagging over time.
Key features:
- Mid-tower case compatible with ATX / Micro ATX / Mini-ITX
- Ventilated metal mesh front panel, removable nylon filters (front/top/bottom)
- Up to 12 fan slots, with 4 120mm ARGB PWM fans included
- Top radiator support up to 360 mm (optional)
- Compatible with motherboards with reverse connectors for hidden cables
- Integrated adjustable GPU support + 7 expansion slots
- Connectivity: USB 3.2 Type-C x1, USB 3.0 Type-A x2, HD Audio & Mic
- Space: GPU up to 400 mm, CPU cooler up to 180 mm, ATX PSU up to 280 mm
Select your criteria
General information |
Product name |
Aerocool D520A |
Brand |
AeroCool | |
Model |
ACCM-DS05143.11 | |
Main characteristics |
Graphic card max. length |
400 mm |
Max height CPU fan |
180 mm | |
Power supply max. length |
280 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Material |
ABS (Plastic) | |
| Steel | ||
Motherboard format |
Mini ITX | |
| ATX | ||
| Micro ATX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
Black | |
Front color |
Black | |
Integrated display |
No | |
Mesh front |
Yes | |
Glass |
Yes | |
Fish tank (panoramic view) |
No | |
LED RGB |
Yes | |
ARGB LED |
Yes | |
Water cooling compatible |
Yes | |
Motherboard connector location |
Connectors under the motherboard | |
| Standard connectors (on the motherboard) | ||
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of invisible 3.5" slots |
1 | |
Number of 2.5" slots |
3 | |
Front connectivity |
Location of expansion ports |
Side |
Connector(s) available |
2 X USB 3.0 | |
| 1 X 3.5mm Jack Female Stereo | ||
| 1 X USB 3.2 Type C | ||
Cooling |
Fan(s) included |
Yes |
Number of rear fan(s) slots |
1 X 120 or 140mm | |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
3 X 120mm | |
Quantity of front fan(s) supplied |
3 | |
Number of side fan(s) slots |
3 X 120mm | |
Quantity of side fan(s) supplied |
0 | |
Number of above fan(s) slots |
1 X 120mm | |
| 2 X 120 or 140mm | ||
Quantity of above fan(s) supplied |
0 | |
Number of underneath fan(s) slots |
2 X 120mm | |
Quantity of underneath fan(s) supplied |
0 | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 140mm radiator | ||
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Front AIO slot(s) |
N/A | |
Above AIO slot(s) |
120mm radiator | |
| 140mm radiator | ||
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Side AIO slot(s) |
N/A | |
Rear AIO slot(s) |
N/A | |
Physical characteristics |
Width |
235 mm |
Height |
460 mm | |
Depth |
480 mm | |
Volume |
49 l | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
1foTrade |
Postal address |
93 Cours de la République 76600 Le Havre, France | |
Electronic Address |
contact@1fotrade.com |
See all AeroCool products
Product referenced on 16 Dec 2025
