Pictures may differ from actual products
Give your configuration an elegant, efficient and high-performance mid-tower case with MSI MAG PANO 110R PZ. Featuring tempered glass on both the front and sides, it's the ideal showcase for your components. Four ARGB fans are fitted as standard, with the added bonus of a control hub that can manage 1 to 5 ARGB fans! Other major advantages: the case is compatible with motherboards with inverted connectors in ATX/Micro-ATX format and will allow you to install AiO watercooling systems up to 360 mm.
Select your criteria
General information |
Product name |
MSI MAG PANO 110R PZ Black |
Brand |
MSI | |
Model |
306-7G28R21-JA4 | |
Main characteristics |
Graphic card max. length |
400 mm |
Max height CPU fan |
160 mm | |
Power supply max. length |
200 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Material |
Steel | |
| Tempered glass | ||
Motherboard format |
Micro ATX | |
| Mini ITX | ||
| ATX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
Black | |
Front color |
Black | |
Dust filters |
2 | |
Integrated display |
No | |
Mesh front |
No | |
Glass |
Yes | |
Tempered glass |
Yes | |
Fish tank (panoramic view) |
Yes | |
LED RGB |
Yes | |
ARGB LED |
Yes | |
ARGB hub included |
Yes | |
Water cooling compatible |
Yes | |
Motherboard connector location |
Connectors under the motherboard | |
| Standard connectors (on the motherboard) | ||
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of invisible 3.5" slots |
2 | |
Number of 2.5" slots |
2 | |
Number of 2.5"/3.5" slots |
2 | |
Front connectivity |
Location of expansion ports |
Side |
Connector(s) available |
1 X USB 3.2 Type C | |
| 3.5mm Jack Female Stereo | ||
| 2 X USB 3.0 | ||
Cooling |
Fan(s) included |
Yes |
Number of rear fan(s) slots |
1 X 120mm | |
Quantity of rear fan(s) supplied |
1 | |
Number of side fan(s) slots |
3 X 120mm | |
Quantity of side fan(s) supplied |
3 | |
Number of above fan(s) slots |
2 X 120 or 140mm | |
| 1 X 120mm | ||
Number of underneath fan(s) slots |
3 X 120mm | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 240mm radiator | ||
| 360mm radiator | ||
| 140mm radiator | ||
| 280mm radiator | ||
Front AIO slot(s) |
N/A | |
Above AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
| 360mm radiator | ||
| 140mm radiator | ||
| 280mm radiator | ||
Side AIO slot(s) |
N/A | |
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
225 mm |
Height |
485 mm | |
Depth |
420 mm | |
Volume |
45.8 l | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
MSI Computer Europe B.V |
Postal address |
Science Park Eindhoven 5706 5692 ER Son, the Netherlands | |
Electronic Address |
gpsr@msi.com |
See all MSI products
Product referenced on 24 Jul 2025
Hello,
I purchased this case a little while ago, I recommend this one for its aesthetic beauty, and its spacious room to fit everything you want inside.
I wasn't bothered with cable management or installing all my parts. It's big.
Very good case, nice, with easy cable management, big, big, big, big plus, MSI used long screws, to allow fitting 3 fans at the bottom very easily
I recently ordered two new PCs from your LDLC store.
I am completely satisfied with the products, which work very well. The welcome is very satisfactory and the advice is truly appropriate.
You can tell that the team is not trying to sell something bigger than what we needed.
I thank the Langueux team and recommend this store.
Have a nice day
I admit that the design is great, it takes up a bit more space than the old one, but it's very quiet, doesn't heat up, and I'm completely satisfied. Plus, the team is really friendly and professional. I recommend it, even if it's just for information.

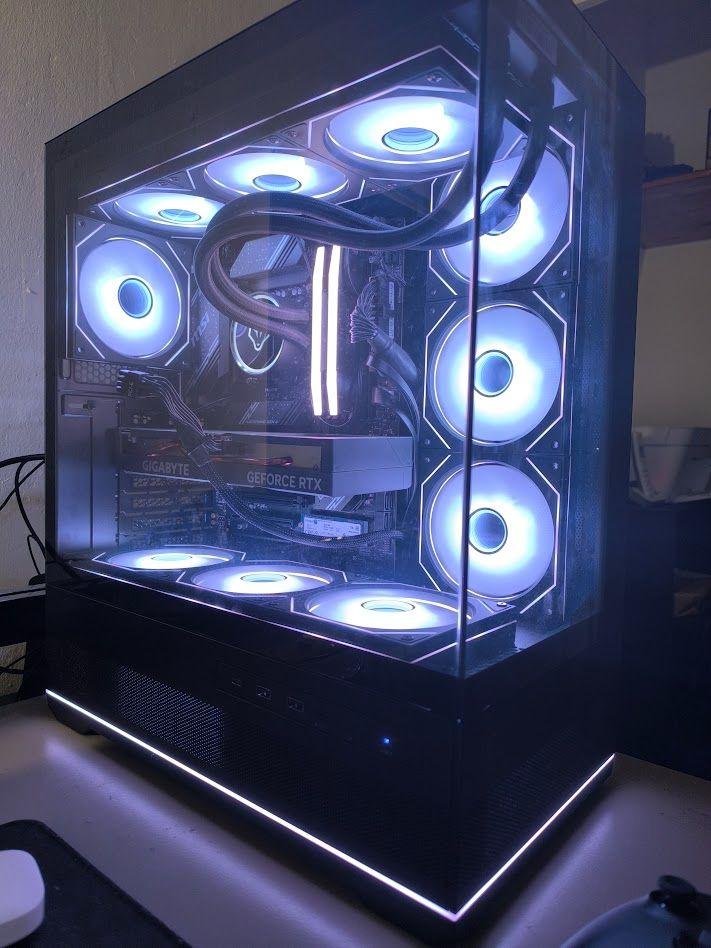

Beautiful case! Modern and elegant design, excellent build quality. Very practical for assembly, efficient airflow. My setup looks great thanks to it. I love it!
Absolutely perfect experience! Clear website, smooth navigation and very simple ordering process. Everything arrived in excellent condition. A huge congratulations and thank you to the customer service team, who are simply exceptional: responsive, professional, pleasant and really attentive. You feel supported and confident from start to finish.
I am completely satisfied with my purchase and would recommend LDLC without hesitation. A serious and reliable brand!
