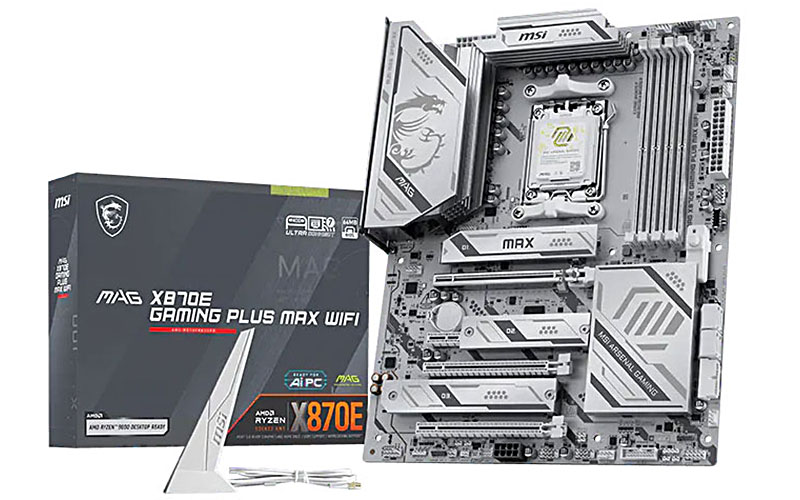

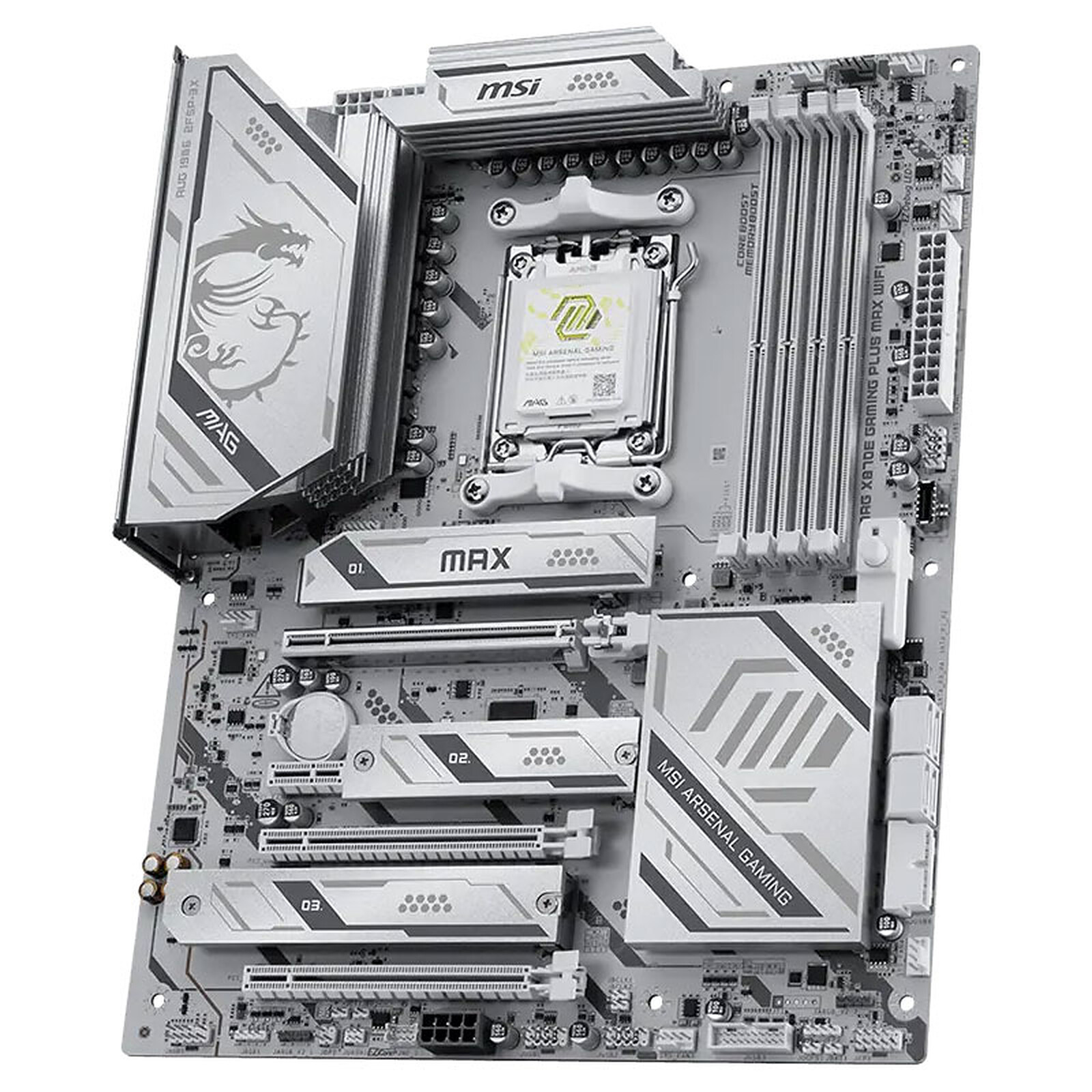

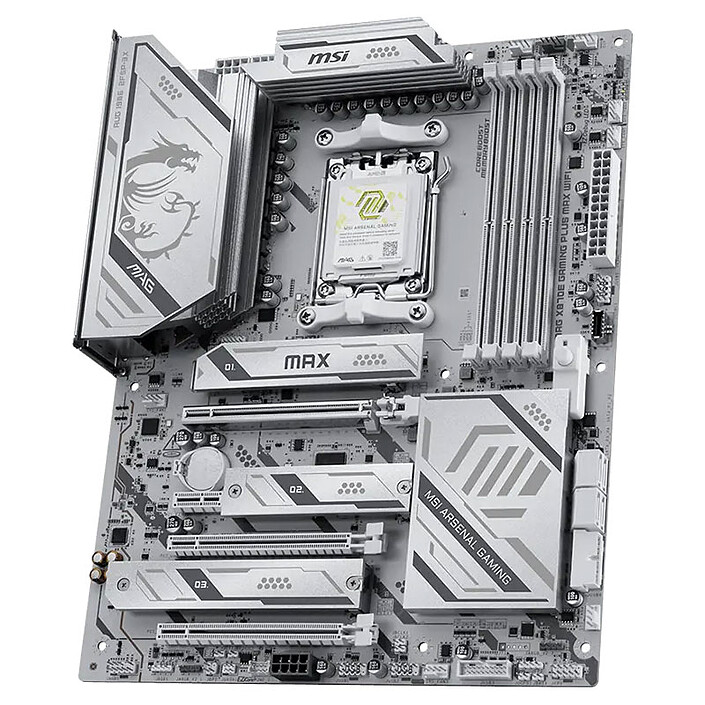

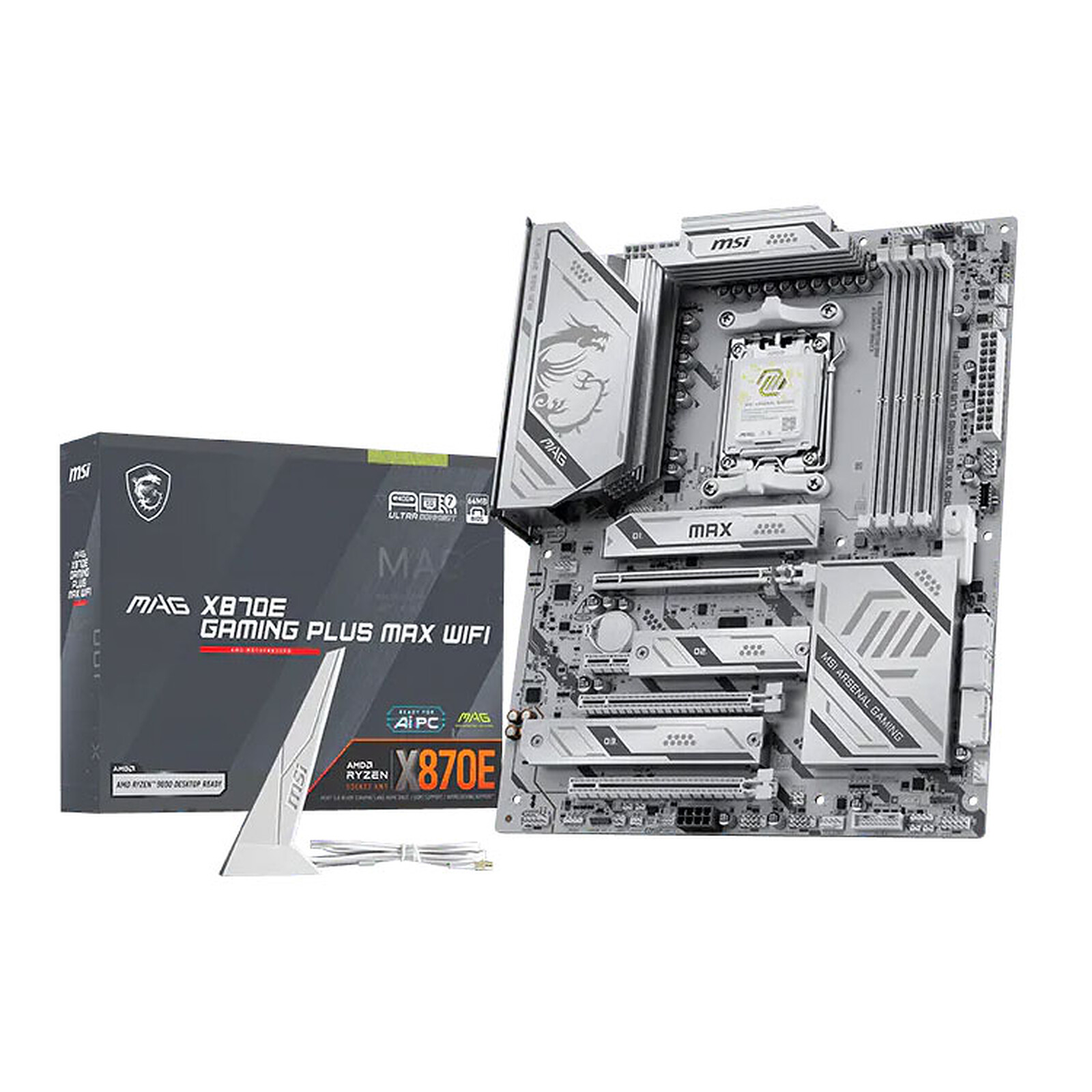

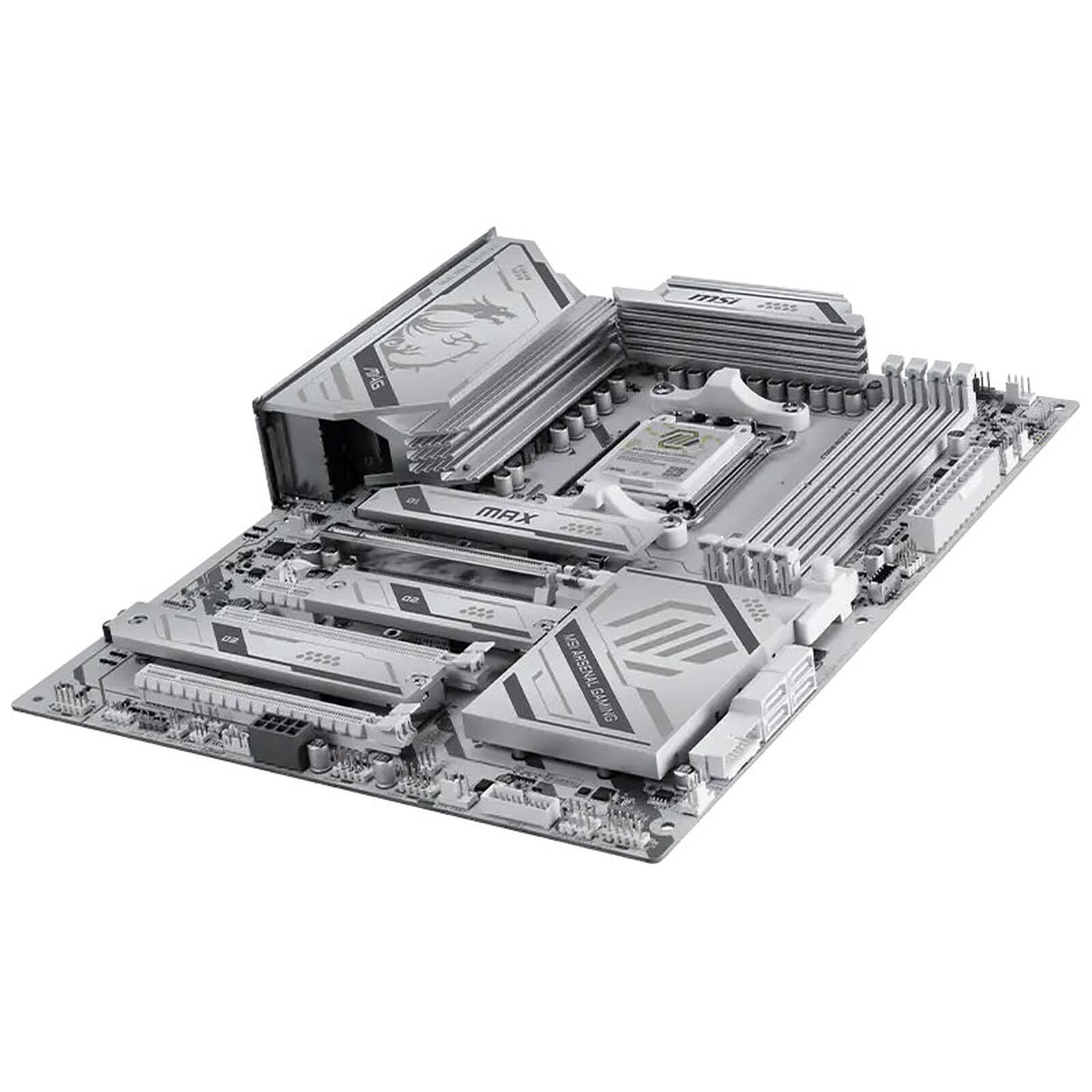

MSI MAG X870E GAMING PLUS MAX WIFI
ATX Motherboard Socket AM5 AMD X870E - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - LAN 5 GbE - Wi-Fi 7/Bluetooth 5.4
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
MSI MAG X870E GAMING PLUS MAX WIFI: performance for Gamers
The MSI MAG X870E GAMING PLUS MAX WIFI motherboard is built around the AMD X870E chipset, which supports AMD Ryzen processors on socket AM5, more specifically the 7000/8000/9000 series. From the MSI GAMING range, the MSI MAG X870E GAMING PLUS MAX WIFI will be the heart of your gaming PC thanks to support for graphics cards and NVMe M.2 SSDs with the PCI-Express 5.0 standard for increased performance.
On the networking side, the MSI MAG X870E GAMING PLUS MAX WIFI features comprehensive connectivity with a 5 GbE LAN port and Wi-Fi 7 / Bluetooth 5.4 for the wireless part. For data transfers, the motherboard notably includes a USB4 port (40 Gbps) and a USB-C 20 Gbps port.
MSI MAG X870E GAMING PLUS MAX WIFI
- Support for AMD Ryzen desktop processors, series 7000/8000/9000
- 14+2+1 phase CPU power delivery
- Support for DDR5 8200 MHz (OC) memory
- Ultra-fast data transfers with PCIe 5.0, M.2 Lightning Gen5 x4 and USB4 connectors
- 5 GbE LAN connector and Wi-Fi 7 for a fast and stable connection
- Easy component installation with EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ PCIe
- Efficient heat dissipation with Frozr Guard
Play in the best conditions
The high frequencies of AMD Ryzen processors are a real advantage in games. Choose the right components and build an ultra-powerful Gaming PC, with no lag and ready to go when needed. Gain the edge over your opponents and reach new heights thanks to AMD Ryzen 9000/8000/7000 processors and AMD AM5 motherboards.
AMD Ryzen 9000 processors deliver performance in every area. They will let you create faster, reach your goals more quickly and save time continuously. Whether it's 3D rendering or exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, many processing threads and dedicated video accelerators.
Select your criteria
General information |
Product name |
MSI MAG X870E GAMING PLUS MAX WIFI |
Brand |
MSI | |
Model |
MAG X870E GAMING PLUS MAX WIFI | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 3600 MHz | |
| DDR5 8200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 4.0 x16 (x4) | |
| 1 X PCI Express x1 | ||
| 1 X PCI Express 3.0 x16 (x1) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8126 |
Network standard(s) |
Bluetooth 5.4 | |
| 5 Gbps Gigabit Ethernet (5 GbE) | ||
| Wi-Fi 7 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
10 | |
| 0 | ||
| 5 | ||
| 1 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

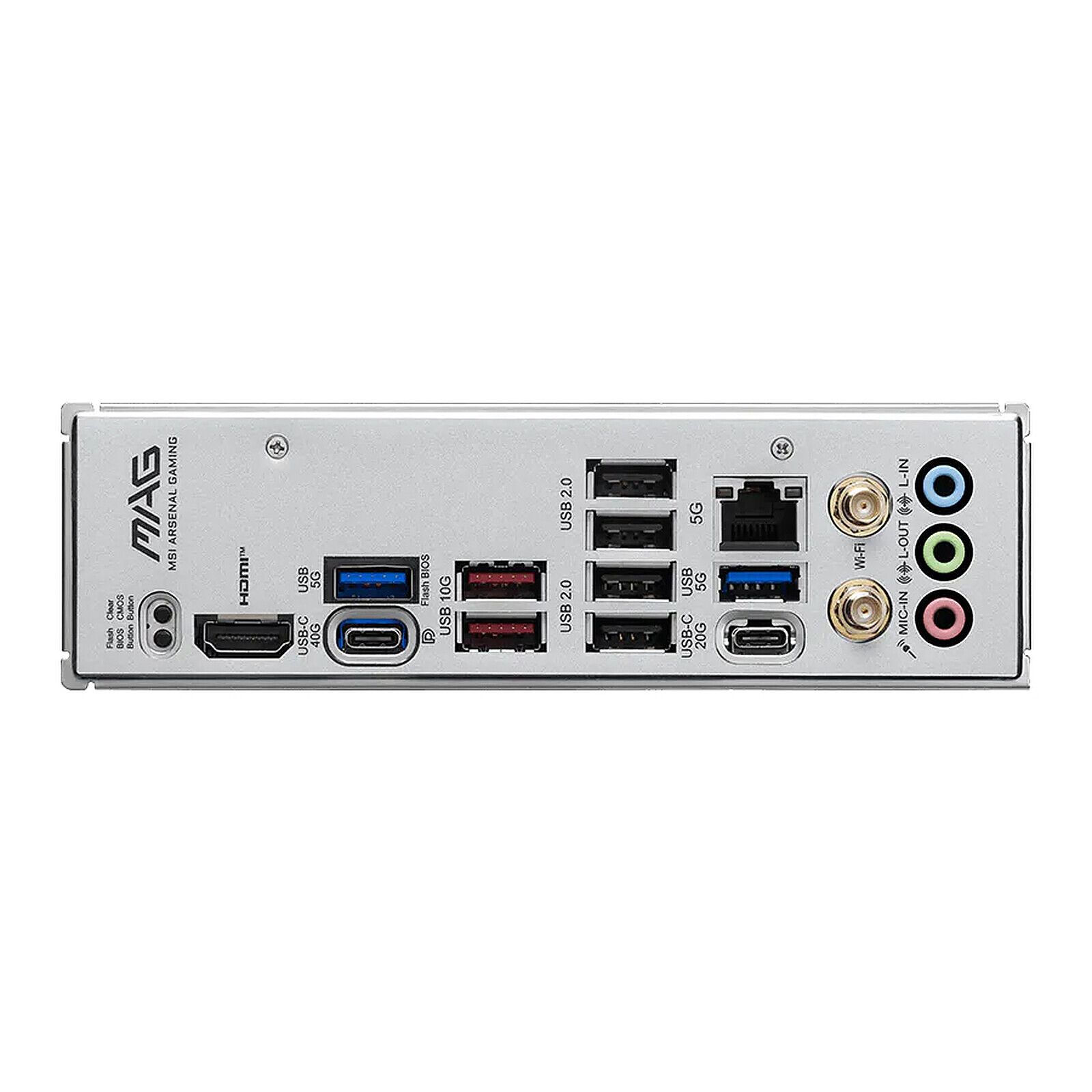

Rear panel connectors |
2 X SMA | |
| 3 X 3.5mm Jack Female Stereo | ||
| BIOS Flash Update | ||
| 1 X RJ45 Female | ||
| 2 X USB 3.0 | ||
| 2 X USB 3.1 | ||
| 1 X USB 3.2 Type C | ||
| 1 X HDMI Female | ||
| 4 X USB 2.0 | ||
| 1 X USB4 (Type-C) | ||
Additional connectors |
1 X PCI Express 8 Pin | |
| 1 X Internal USB 3.1 Type C | ||
| Chassis intrusion | ||
| 4 X Internal USB 3.0 | ||
| 6 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| Front panel audio | ||
| 3 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
304.8 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
MSI Computer Europe B.V |
Postal address |
Science Park Eindhoven 5706 5692 ER Son, the Netherlands | |
Electronic Address |
gpsr@msi.com |
