Pictures may differ from actual products

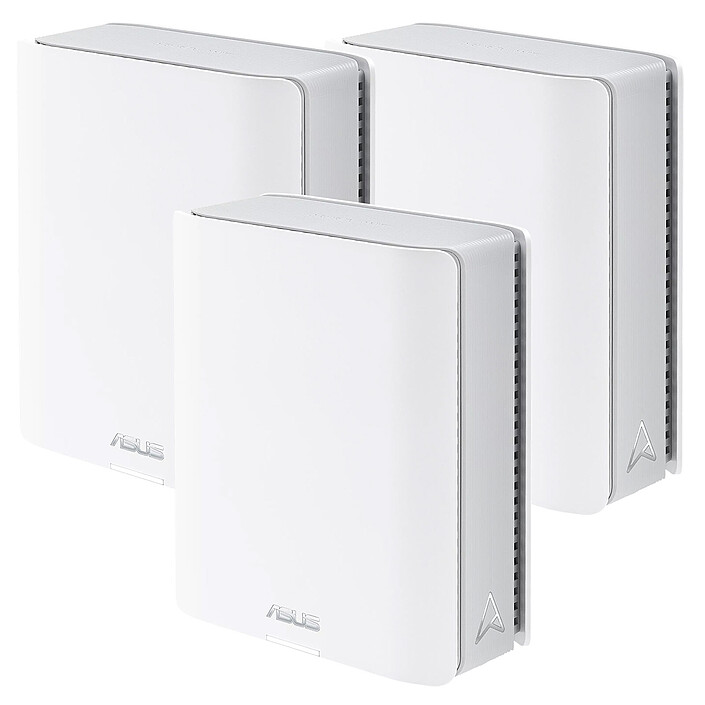

ASUS ZenWiFi BT8 x3
3x Tri-Band Wi-Fi 7 BE14000 Wireless Routers (8643 Mbps + 4328 Mbps + 688 Mbps) MU-MIMO with 1 WAN port 2.5 Gbps + 1 LAN port 2.5 Gbps + 2 LAN ports 1 Gbps
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
ZenWiFi BT8: High-performance Wi-Fi 7
The ASUS ZenWiFi BT8 is a next-generation mesh WiFi system designed to deliver a fast, stable, and seamless connection throughout the home. Compatible with WiFi 7 (802.11be), it leverages a tri-band architecture (2.4 GHz, 5 GHz, and 6 GHz) capable of reaching an aggregate throughput of up to 14 Gb/s, enabling you to fully enjoy the most demanding uses such as 8K streaming, cloud gaming, or content creation. Thanks to Smart AiMesh technology, the network can be easily expanded with other compatible ASUS routers to ensure wide coverage with no dead zones, reaching around 548 m² with a two-module pack. Featuring seven internal antennas and high-power modules, the ZenWiFi BT8 guarantees a strong, stable signal for many connected devices. It also integrates key WiFi 7 innovations such as MLO (Multi-Link Operation), 4K-QAM modulation and 320 MHz channels, which optimize speed and data transmission efficiency. On the connectivity side, two 2.5 Gb/s Ethernet ports provide ultra-fast wired backhaul to make the most of fiber connections. Finally, the system emphasizes security and network management thanks to AiProtection Pro, advanced parental controls, VPN features, and SSIDs dedicated to IoT devices, offering a complete and reliable solution for the modern connected home.
Advanced connectivity
- Tri-band WiFi 7 (802.11be) mesh WiFi system
- Aggregate WiFi throughput up to 14 Gb/s
- 2.4 GHz, 5 GHz, and 6 GHz frequency bands
- Advanced WiFi 7 technologies: MLO (Multi-Link Operation), 4K-QAM and 320 MHz channels
- Coverage up to around 548 m² with a pack of two units
- Smart AiMesh technology to easily extend the network with other compatible ASUS routers
- Seven internal antennas and high-power modules for stable, consistent coverage
- Two 2.5 Gigabit Ethernet ports for a very fast wired connection
- Supports a large number of devices connected simultaneously (up to around 200 devices)
- 24/7 professional-grade AiProtection Pro network security
- Advanced VPN features (e.g., WireGuard, OpenVPN)
- Built-in parental controls and advanced network management
- Dedicated SSIDs for IoT devices via Smart Home Master
- 4G/5G Mobile Tethering compatibility to maintain Internet access in the event of an outage
- Simplified setup and management via web interface or mobile app
- USB port enabling, in particular, the connection of a 5G dongle or additional peripherals
- WPA3/WPA2 WiFi encryption and MU-MIMO support
Security & ease of use
- The intuitive ASUSWRT interface in the ASUS Router mobile app simplifies managing your mesh Wi-Fi system from your smartphone.
- The AiMesh technology ensures that your whole-home WiFi stays protected under the same SSID.
- Up to three configurable SSIDs with Smart Home Master for simple setup and management of IoT devices, instant VPN connections, and convenient parental controls.
- ASUS Safe Browsing offers lightweight DNS-based filtering that blocks harmful content without affecting your router's performance.
- Stay secure with AiProtection Pro by Trend Micro, one-click security scanning, full VPN support, and a site-to-site VPN.
- ASUS Network Security includes practical network tools such as one-click security scanning to diagnose network health, refined configuration options, and real-time notifications.
- Advanced parental controls that promote digital well-being through instant monitoring, simple presets, and customizable scheduling.
- 3x ZenWiFi BT8
- 3x network cables (RJ-45)
- 3x power adapters
- 1x quick start guide
- 1x warranty card
Select your criteria
General information |
Product name |
ASUS ZenWiFi BT8 x3 |
Brand |
ASUS | |
Model |
90IG0930-MO3B40 | |
Router |
Modem/Router type |
WIFI Router |
Network standard(s) |
Wi-Fi 7 | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
Wireless |
Yes | |
Mesh Wi-Fi (mesh/multiroom network) |
Yes | |
IPv6 compatible |
Yes | |
Network connector(s) |
1 X WAN or LAN - Gigabit Ethernet - RJ45 | |
| 1 X LAN - 2.5 GbE - RJ45 | ||
| 1 X WAN - 2.5 GbE - RJ45 | ||
| 2 X LAN - Gigabit Ethernet - RJ45 | ||
Modem |
Integrated Modem |
No |
Interface with the computer |
RJ45 Female | |
| Wi-Fi | ||
| USB 3.0 | ||
Physical characteristics |
Width |
159 mm |
Height |
186 mm | |
Depth |
42 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
ASUS Computer GmbH |
Postal address |
Harkort STR. 21-23, 40880 RATINGEN, GERMANY | |
Electronic Address |
ProducSafety@asus.com |
See all ASUS products
Product referenced on 10 Mar 2026
For the moment, there are no customer reviews.Write a review
