Aten VM0808HB.
HDMI 4K 8x8 Matrix Switcher.
Pictures may differ from actual products
ATEN's VM0808HB is a range of True 4K HDMI matrix switchers that offer an easy and affordable way to route one of 8 HDMI video sources to one of 8 HDMI displays.
HDMI 4K 8x8 Matrix Switcher.
An easy and affordable way to route one of 8 HDMI video sources
ATEN' s VM0808HB is a range of True 4K HDMI matrix switchers that offer an easy and affordable way to route one of 8 HDMI video sources to one of 8 HDMI displays. With superior video resolutions up to 4096 x 2160 at 60 Hz (4:4:4), the VM0808HB offers robust signal routing and ultra-fast digital video switching, making it ideal for applications requiring True 4K digital signal routing, such as event venues, digital classrooms, auditoriums, department stores, and more.
For flexible configuration
The VM0808HB's intuitive GUI design allows users to flexibly configure any input to output connections, eliminating the need for frequent physical configuration changes. In addition to the integrated web-based GUI, the VM0808HB can be operated via front-panel pushbuttons, IR remote control, RS-232 control and Telnet via the Internet. RS-232 and Telnet control via Ethernet connections, offering users the ultimate convenience while keeping the system available with video switching efficiency at all times.
Key features:
- Connects one of 8 HDMI sources to one of 8 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 at 60 Hz (4:4:4)
- Supports HDR10+

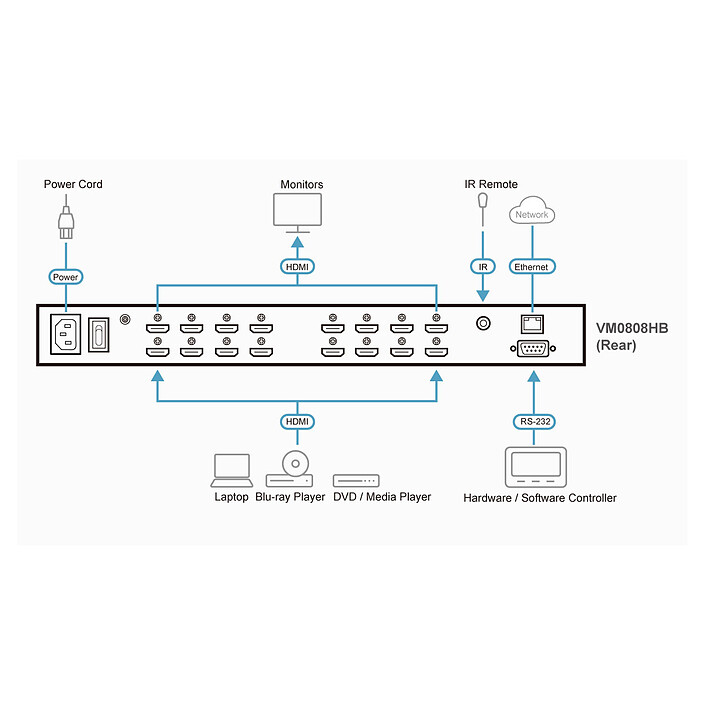

- Multiple control methods - system management via front panel push buttons, IR remote control, RS-232 control and Telnet/Web GUI via Ethernet connections
- View and control via the ATEN Video Matrix Control app quickly and agilely
- EDID Expert - selects optimal EDID settings for smooth power-up, high-quality display and best video resolution across multiple displays
- Bit rates up to 6 Gbits for pristine True 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compliant
- Supports CEC (Consumer Electronics Control)
- Power-on detection - switches to the next powered source when a source is switched off
- ESD protection for HDMI
- Supports ATEN LockPro HDMI anti-theft cable (sold separately) for secure HDMI cable connections
- Firmware upgradeable
- Rack mountable (1U design)
- 1x VM0808HB HDMI True 4K 8 x 8 matrix switcher
- 1x LIN2-418K-E12G Power cord
- 1x 2XRT-0106G IR remote control
- 1x 2XRT-0003G IR receiver
- 1x Rack mounting kit
- 1x User instructions
Select your criteria
General information |
Product name |
Aten VM0808HB. |
Brand |
Aten | |
Model |
VM0808HB-AT-G | |
Main characteristics |
Cable type |
HDMI switch |
| HDMI switch | ||
HDMI standard |
HDMI 2.0 | |
| HDMI 2.0 | ||
Connectivity |
Connector |
8 X HDMI Female |
| 8 X HDMI Female | ||
Connector (other side) |
1 X 3.5mm Jack Female Stereo | |
| Serial (RS-232) | ||
| 1 X RJ45 Female | ||
| 8 X HDMI Female | ||
| 1 X 3.5mm Jack Female Stereo | ||
| Serial (RS-232) | ||
| 1 X RJ45 Female | ||
| 8 X HDMI Female | ||
Aspect |
Color |
Black |
| Black | ||
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Aten products
