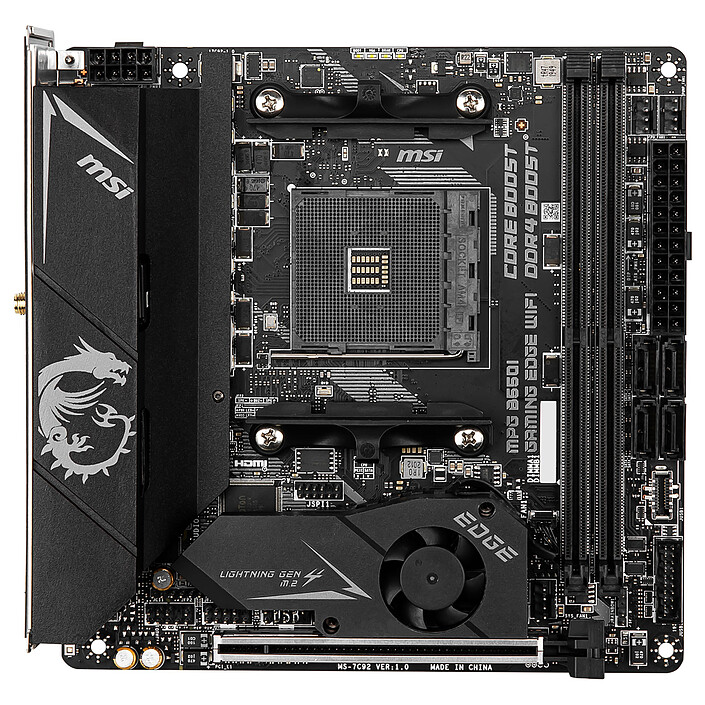

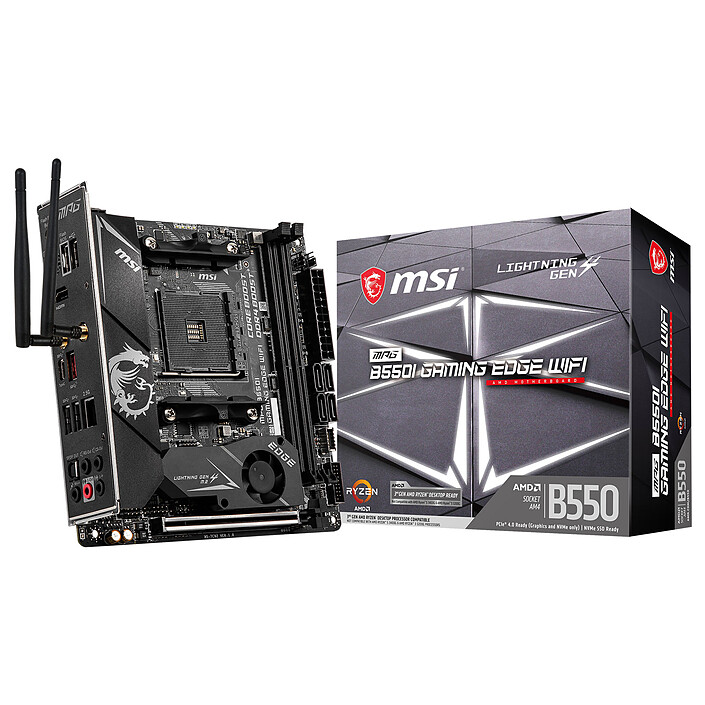

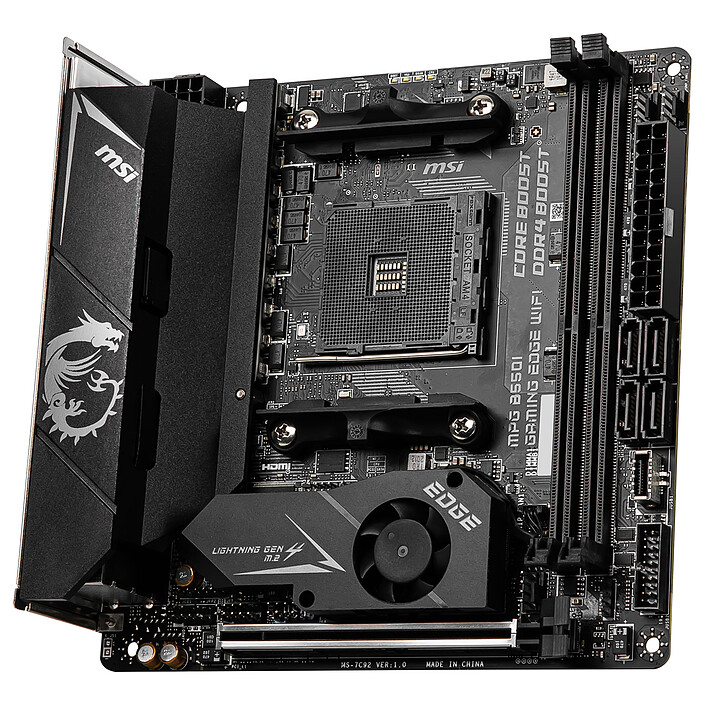

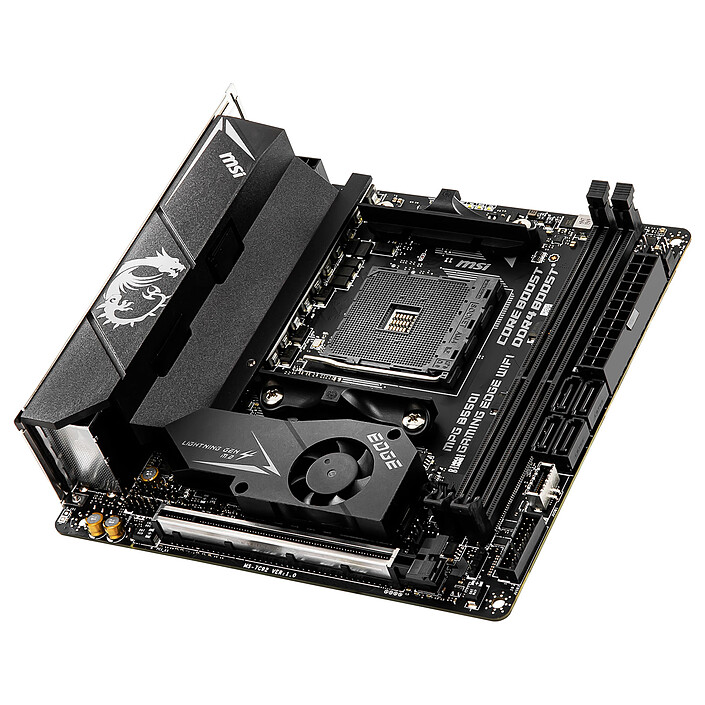

MSI MPG B550I GAMING EDGE WIFI
Mini ITX Socket AM4 AMD B550 motherboard - 2x DDR4 - SATA 6Gb/s M.2 - USB 3.1 - PCI-Express 4.0 16x - Wi-Fi 6 AX LAN 2.5 GbE
Last price 234€95
MSI MPG B550I GAMING EDGE WIFI : PCI-Express 4.0 Gaming Motherboard
The MSI MPG B550I GAMING EDGE WIFI motherboard with its AM4 socket is designed to accommodate 3rd generation AMD Ryzen processors. It will allow you to compose a configuration Gaming It will allow you to build a configuration with the latest technological advances: PCI-Express 4.0 for graphics cards and M.2 SSDs, management of 64 GB of DDR4 RAM. It's all there for an exhilarating gaming experience, it's up to you!
MSI MPG B550I GAMING EDGE WIFI :
MSI's MPG series motherboard range ushers in a new era in the world of gaming. With a unique look and a host of features that outperform all others, these gaming motherboards are designed to deliver an experience you won't soon forget.
- AMD AM4 socket for AMD Ryzen 3rd generationprocessor
- 2 x DDR4 4600+ MHz (OC) Dual-Channel memory slots
- 1 x M.2 PCIe 4.0 x4 / SATA 6 Gbit/s + 1 x M.2 PCIe 3.0 x4 with Frozr heatsink
- 1 x PCI-Express 4.0 16x port
- USB 3.1 ports, including type C
- 2.5 GbE LAN + 6 AX Wi-Fi + Bluetooth 5.1
- Mystic Light
Add colour to your machine
Connect RGB LED ribbons to your PC and synchronise colours and effects with compatible devices using a single application: Mystic Light Sync. This application allows you to instantly customise the look of your PC by choosing from a wide range of colours and lighting effects. You'll be able to change the colours via the Mystic Light app installed on a smartphone or the Gaming App installed on the PC.
Select your criteria
General information |
Product name |
MSI MPG B550I GAMING EDGE WIFI |
Brand |
MSI | |
Model |
MPG B550I GAMING EDGE WIFI | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B550 |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 4600 MHz | |
| DDR4 4533 MHz | ||
| DDR4 4466 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4133 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3066 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 1866 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
None | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1200 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8125B |
Network standard(s) |
Wi-Fi 6 AX | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.1 | ||
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 1 X M.2 - PCI-E 3.0 x4 | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

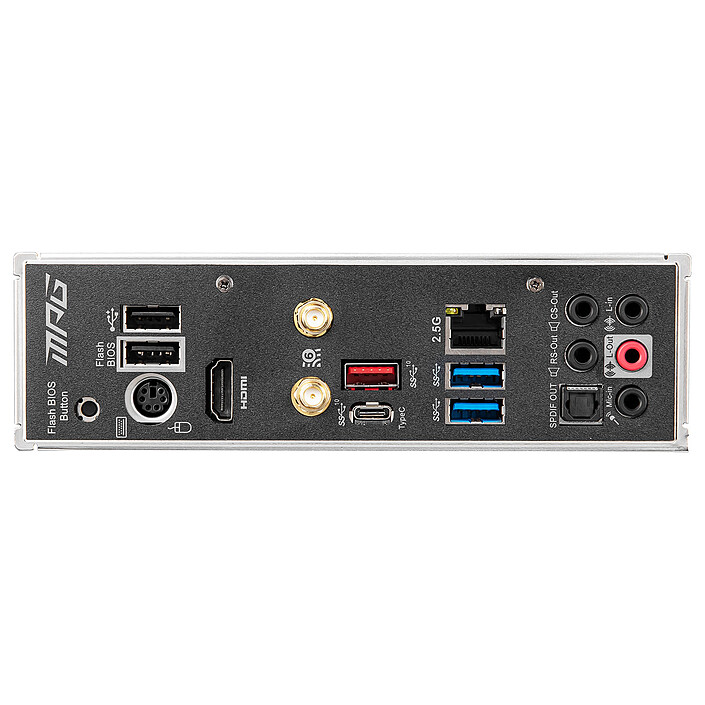

Rear panel connectors |
1 X HDMI Female |
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.1 | ||
| 2 X USB 3.0 | ||
| 1 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| BIOS Flash Update | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
3 X Internal USB 3.0 | |
| 2 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 1 X +12V (Power supply P8) | ||
| Chassis intrusion | ||
| Front panel audio | ||
| 1 X Addressable LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
Mini ITX |
Length |
170 mm | |
Width |
170 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all MSI products
Product referenced on 25 Jun 2020
