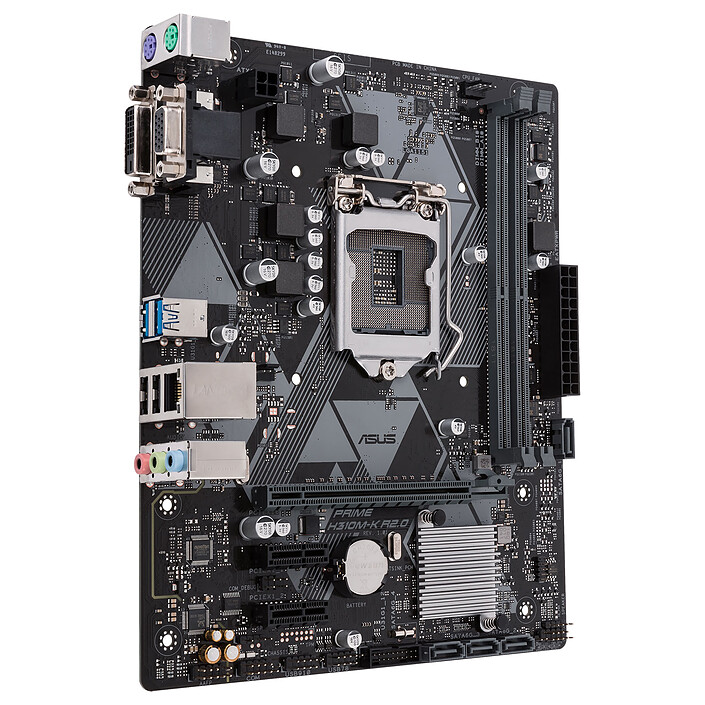

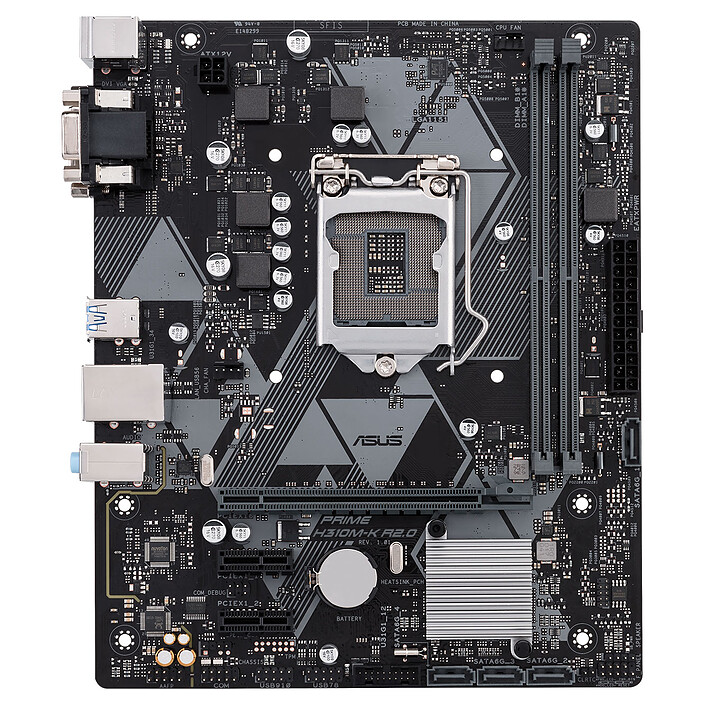

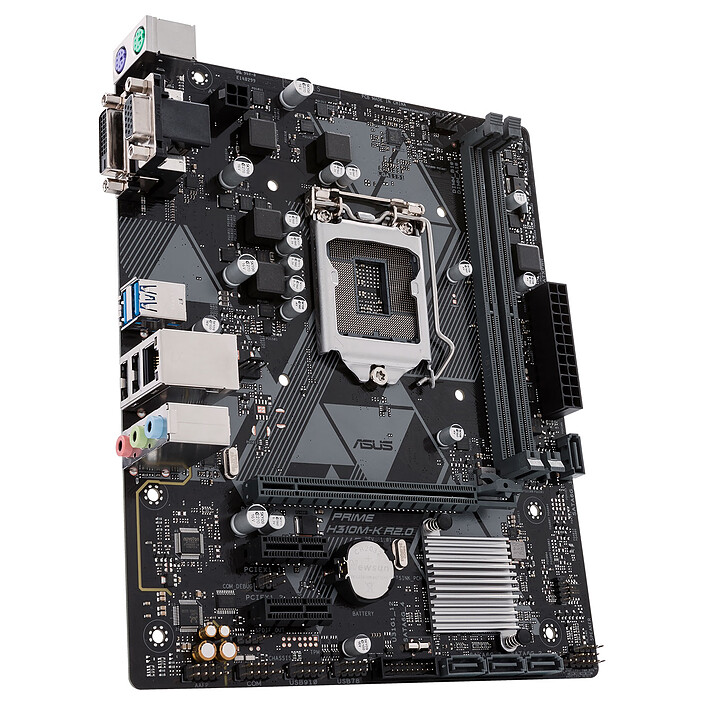

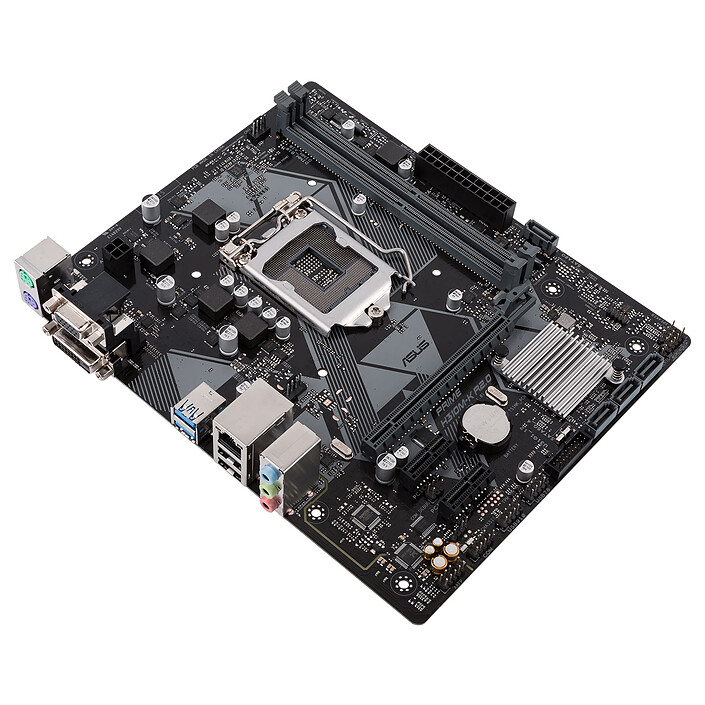

ASUS PRIME H310M-K R2.0

Micro ATX Socket 1151 Intel H310 Express motherboard - 2x DDR4 - SATA 6Gb/s - USB 3.0 - 1x PCI-Express 3.0 16x

Last price 74€95
Holy Moly!
Overview

ASUS PRIME H310M-K R2.0: Affordable and functional

TheASUS PRIME H310M-K R2.0 is a latest generation motherboard ready to host the 8th generation Intel Core processors(Intel Coffee Lake). Based on the Intel H310 Express Chipset, it will ensure optimal performance for a high-end configuration with a powerful processor. It supports 8th generation Intel Core "Coffee Lake" processors, PCI-Express 3.0 16x graphics cards, SATA 6 Gbps and M.2 disks, DDR4 RAM as well as USB 3.0 devices.

ASUS PRIME H310M-K R2.0 Motherboard pluses:

ASUS Prime Series motherboards are designed and engineered for the consumer market, incorporating the best components and exclusive features to ensure performance. Overclocking and high efficiency allow users to get the most out of their system.

  • Intel Socket 1151 for 8th generation(Coffee Lake) and 9th generation(Coffee Lake Refresh) Intel Core processors
  • 2 DDR4 2133/2400/2666 MHz Dual-Channel memory slots (max. 32 GB)
  • 4 SATA 6Gb/s ports
  • 1 PCI-Express 3.0 16x port
  • USB 3.0 ports
  • ASUS OptiMem for improved memory performance
  • Management software Fan Xpert and intuitive UEFI BIOS
  • Audio: Realtek ALC887
  • Gigabit LAN networking: Realtek 8111H

Intel H310 Express Chipset

The Intel H310 Express Chipset is packed with advanced features to help you get the most out of your Intel Coffee Lake platform. Affordable and powerful, it is designed for users looking for versatility and efficiency in all areas. Whether it's a gaming PC, workstation or advanced multimedia setup, the Intel H310 Express chipset is a great value for money.

The Intel H310 Express chipset-based platforms support DDR4 RAM, SATA 6Gb/s drives, PCI-Express 3.0 16x graphics cards, USB 3.0 and USB 3.1 peripherals, and SATA Express, M.2, and U.2 (depending on model).

Information provided by our tech department Masterboards based on Intel Sries 300 chipsets (Intel Z370/H370/B360 Express ... etc.) are not compatible with 6th and 7th generation Intel Core processors. If in doubt, refer to the chipset compatibility statements in the datasheets of the processors sold on the site.
Specifications
Select your criteria

General information

Product name

ASUS PRIME H310M-K R2.0

Brand

ASUS

Model

90MB0Z30-M0EAY0

Processor

Processor support

Intel 1151

Number of CPUs supported

1

Chipset

Chipset

Intel H310 Express

Memory

Memory format

2 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz

Memory type

DDR4

Memory technology

Dual Channel

Maximum RAM capacity per slot

16 GB

Maximum RAM capacity

32 GB

Graphic

Integrated graphics controller

No

Compatible graphics core integrated in the CPU

Yes

Expansion slots

Graphic connector(s)

1 X PCI Express 3.0 x16

Number and Type of slots

2 X PCI Express 2.0 x1

Multi-GPU type

None

Audio

Audio Chipset

Realtek ALC887

Number of audio channels

8

Network

Number of ports/Ethernet controler

Realtek RTL8111H

Network standard(s)

10/100/1000 Mbps

Storage

RAID supported

No

Hard drives connectors

4 X Serial ATA 6Gb/s (SATA Revision 3)

Connectivity

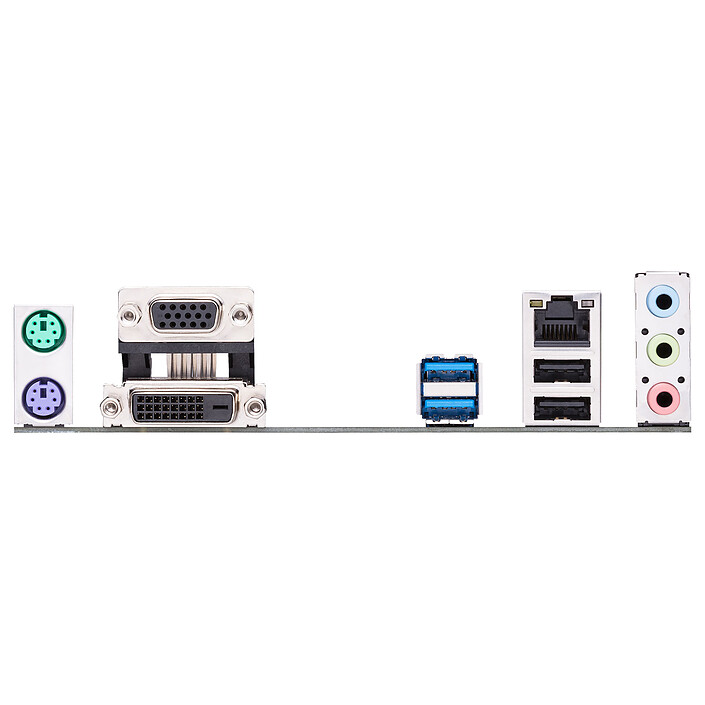

Rear panel connectors

1 X VGA (D-sub 15 Female)
1 X DVI Female
2 X USB 3.0
2 X USB 2.0
1 X RJ45 Female
2 X MiniDin 6 Female (PS/2)
3 X 3.5mm Jack Female Stereo

Additional connectors

Internal S/PDIF
Front panel audio
1 X +12V (Power supply P8)
1 X ATX 24 Pin
Serial (RS-232)
4 X Internal USB 2.0
2 X Internal USB 3.0
1 X TPM

Physical characteristics

Motherboard format

Micro ATX

Length

226 mm

Width

185 mm

Equipment

Advanced overclocking features

No

Use

Office
Multimedia

LED

No

Warranties

Commercial warranty

Seller 2 years

Legal warranty

See terms & conditions

Product referenced on 23 Mar 2020
