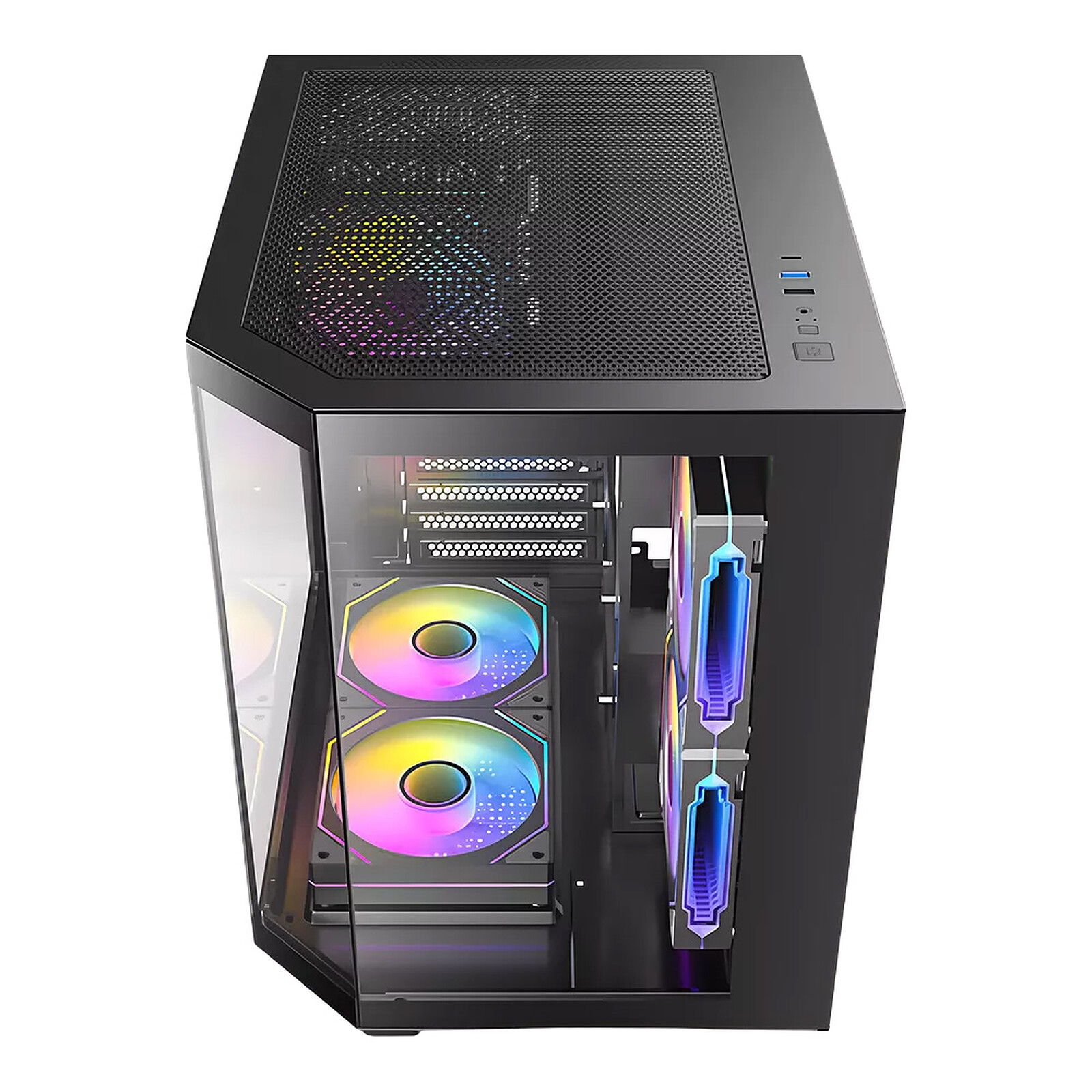

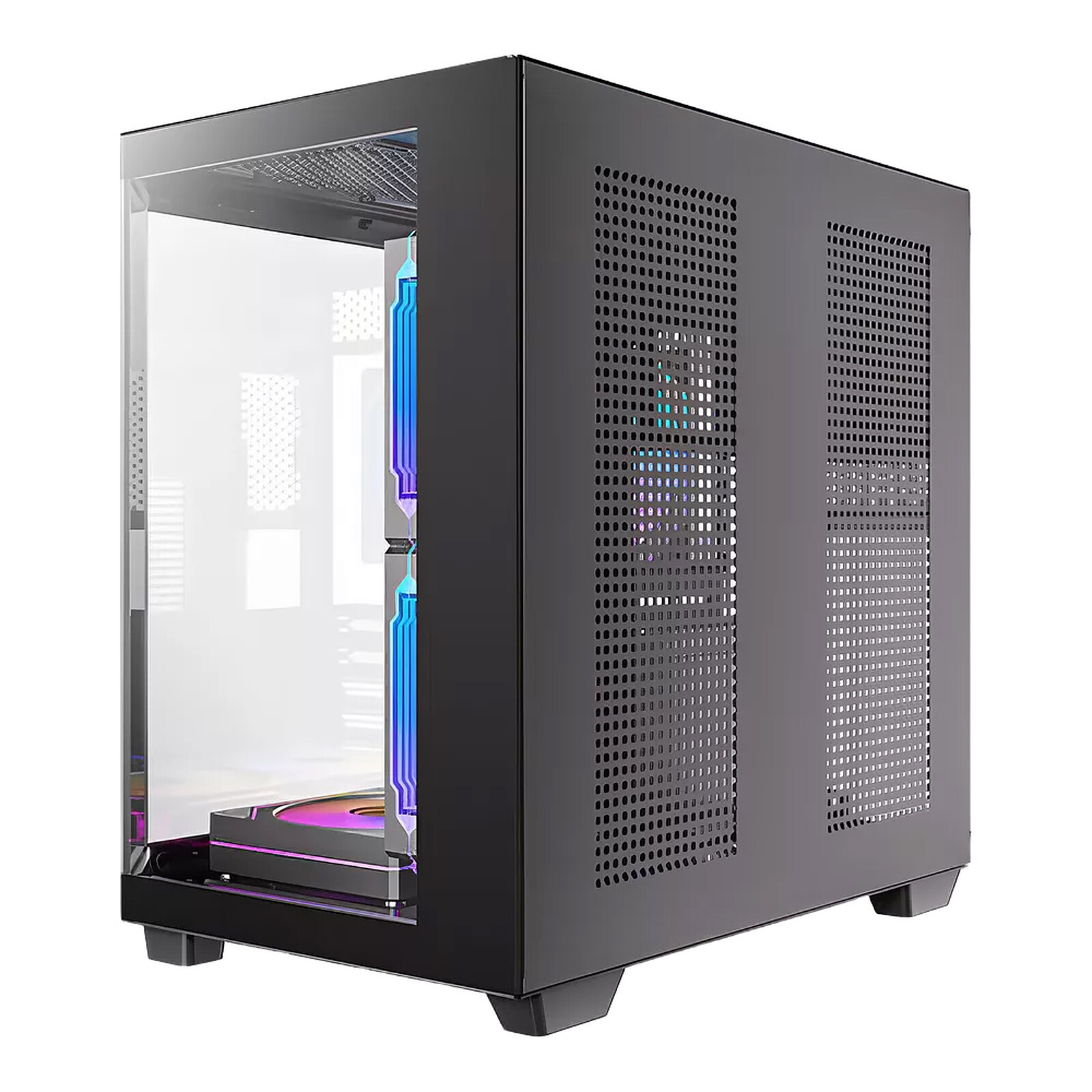

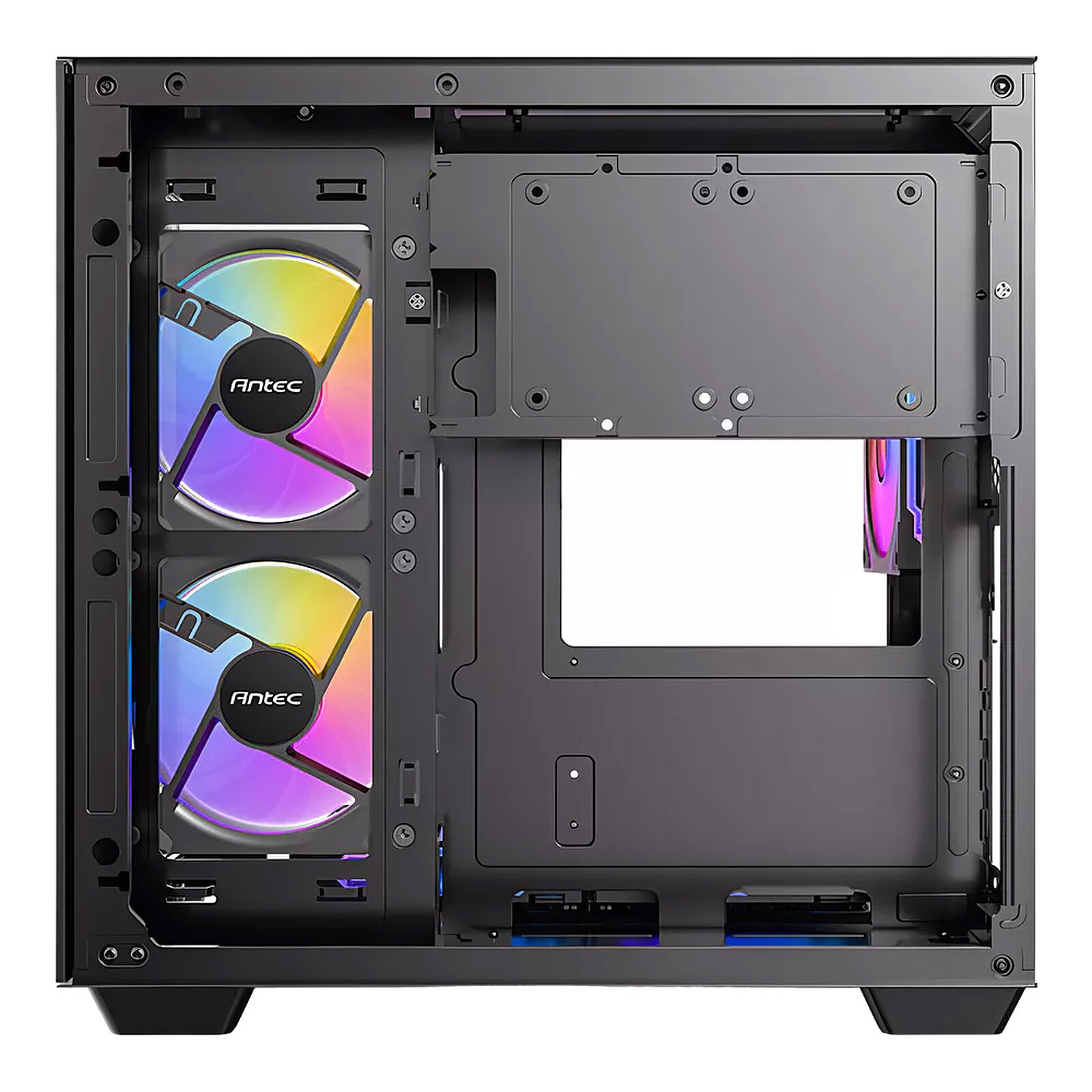

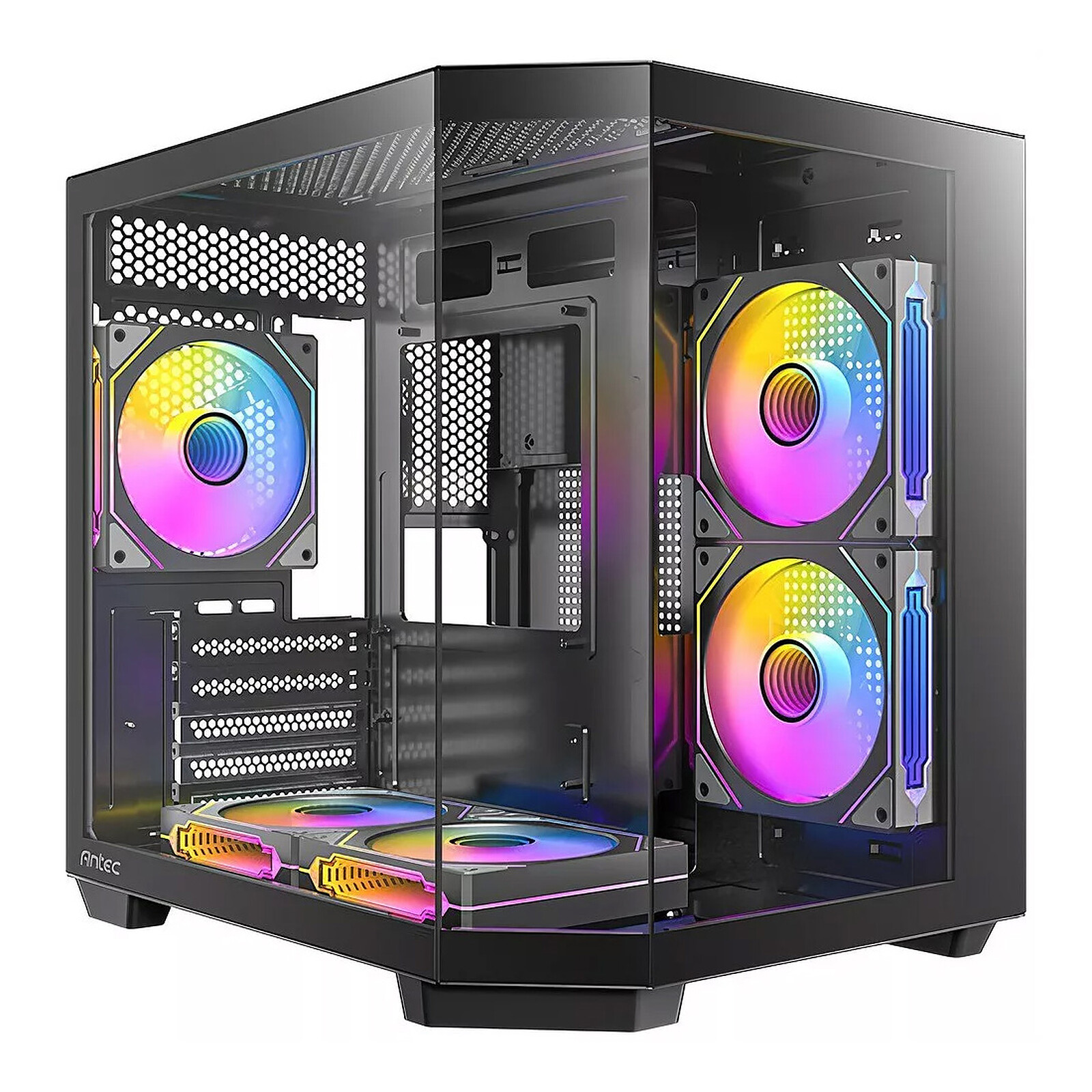

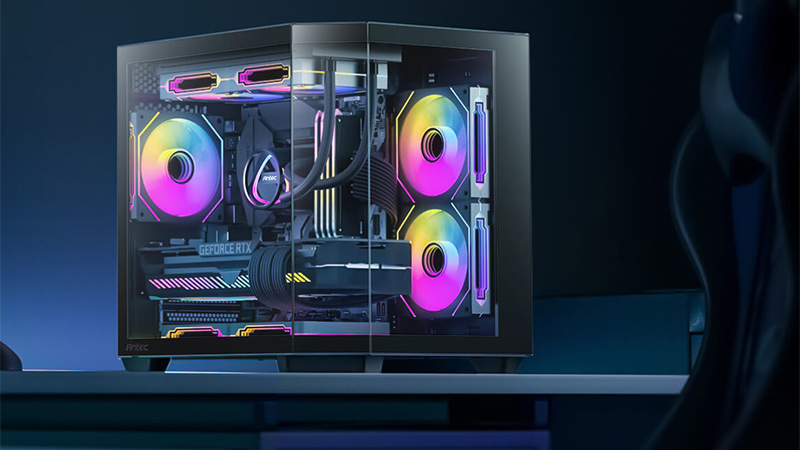

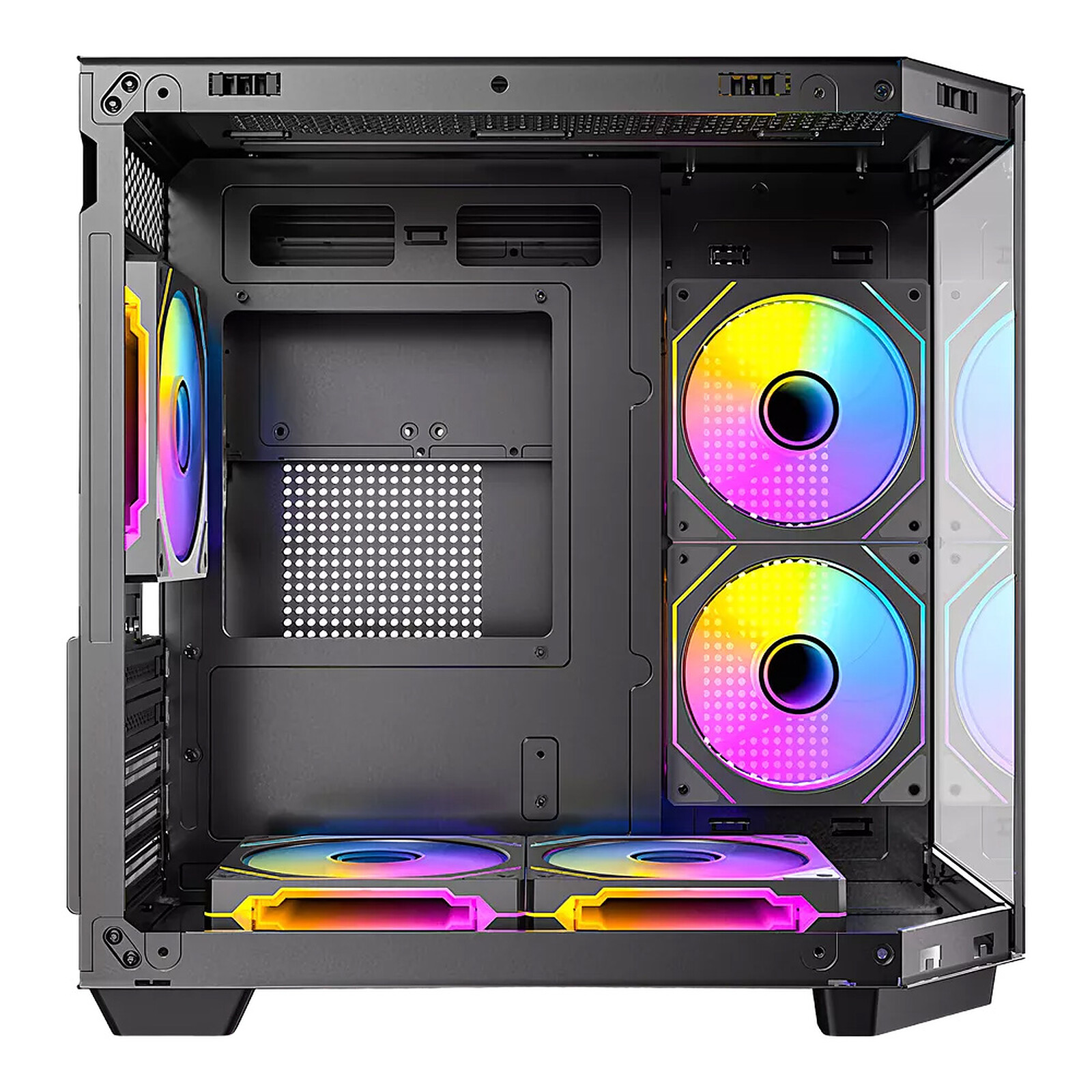

Antec CX M2 ARGB Black
Mini Tower case with window and tempered glass front panel
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
An ARGB showcase for a small-form-factor Gaming PC
With its modern Mini Tower architecture and its three tempered glass panels, the Antec CX M2 ARGB offers a striking panoramic view of all components. Its compact design perfectly showcases a gaming setup while maintaining excellent integration potential: a graphics card up to 345 mm, CPU cooler up to 155 mm and power supply up to 160 mm can all fit into a chassis measuring just 370 x 275 x 356 mm. The lighting from the five pre-installed ARGB fans instantly enhances the interior, while the tool-free removable panels simplify assembly, maintenance and future upgrades. Elegant, functional and generously equipped, the CX M2 ARGB is aimed at users looking for a Micro-ATX case capable of combining a compact footprint, premium presentation and efficient cooling.
The dual-chamber design separates the area dedicated to the processor and graphics card from the area housing the power supply and storage drives. This layout improves airflow, makes cable management easier and preserves a particularly neat presentation behind the glass panels. Vertical cooling relies on large side and bottom air intakes, complemented by five factory-installed 120 mm ARGB fans, including four reverse models that bring in fresh air without hiding their lit side. The chassis can accommodate up to seven fans simultaneously as well as a 240 mm water cooling radiator on the top. Its current connectivity, including a USB-C 3.0 port at 5 Gbit/s, its LED control button and its top and bottom dust filters, complete a platform that is as pleasant to build as it is to use.
Key features
- Mini Tower PC case
- Compatible motherboard formats: Micro-ATX with a maximum width of 220 mm and Mini-ITX
- Dual chamber (left chamber for CPU and GPU and right chamber for power supply and storage drives)
- Panoramic design: three-panel glass construction / Side panel: 4 mm tempered glass
- Number of expansion slots: 5
- Maximum graphics card length: 345 mm
- Maximum CPU cooler height: 155 mm
- Maximum power supply length: 160 mm, cables not included
- Storage drive bays: 1 x 3.5-inch bay and 3 x 2.5-inch bays
- Maximum fan capacity: 7 x 120 mm fans
- Fan mounts: Top: 2x 120 mm / Bottom: 2x 120 mm / Right side: 2x 120 mm / Rear: 1x 120 mm
- Included fans: 2x inverted ARGB 120 mm (bottom) / 2x inverted ARGB 120 mm (right) / 1x 120 mm ARGB (rear)
- Total number of pre-installed fans: 5
- Radiator compatibility: Top: 120 or 240 mm / Rear: 120 mm
- Air intake: side mesh air intakes and bottom openings
- Dust filters: Top / Bottom
Select your criteria
General information |
Product name |
Antec CX M2 ARGB Black |
Brand |
Antec | |
Model |
0-761345-10333-6 | |
Main characteristics |
Graphic card max. length |
345 mm |
Max height CPU fan |
155 mm | |
Power supply max. length |
160 mm | |
Power format |
ATX/EPS | |
Case format |
Mini tower | |
Use |
Gamer | |
Material |
Steel | |
| Tempered glass | ||
Motherboard format |
Micro ATX | |
| Mini ITX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
Black | |
Front color |
Black | |
Dust filters |
2 | |
Integrated display |
No | |
Mesh front |
No | |
Glass |
Yes | |
Tempered glass |
Yes | |
Fish tank (panoramic view) |
Yes | |
LED RGB |
Yes | |
ARGB LED |
Yes | |
Water cooling compatible |
Yes | |
Motherboard connector location |
Standard connectors (on the motherboard) | |
Expansion slots |
Number of PCI slots |
5 |
Low profile |
No | |
Number of invisible 3.5" slots |
1 | |
Number of 2.5" slots |
3 | |
Front connectivity |
Location of expansion ports |
Top |
Connector(s) available |
1 X 3.5mm Jack Female Stereo | |
| 1 X USB 2.0 Type A Female | ||
| 1 X USB 3.0 Type A Female | ||
| 1 X USB 3.0 Type C | ||
Cooling |
Fan(s) included |
Yes |
Number of rear fan(s) slots |
1 X 120mm | |
Quantity of rear fan(s) supplied |
1 | |
Number of side fan(s) slots |
2 X 120mm | |
Quantity of side fan(s) supplied |
2 | |
Number of above fan(s) slots |
2 X 120mm | |
Quantity of above fan(s) supplied |
0 | |
Number of underneath fan(s) slots |
2 X 120mm | |
Quantity of underneath fan(s) supplied |
2 | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 240mm radiator | ||
Front AIO slot(s) |
N/A | |
Above AIO slot(s) |
240mm radiator | |
| 120mm radiator | ||
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
275 mm |
Height |
356 mm | |
Depth |
370 mm | |
Weight |
4.92 kg | |
Volume |
36.22 l | |
