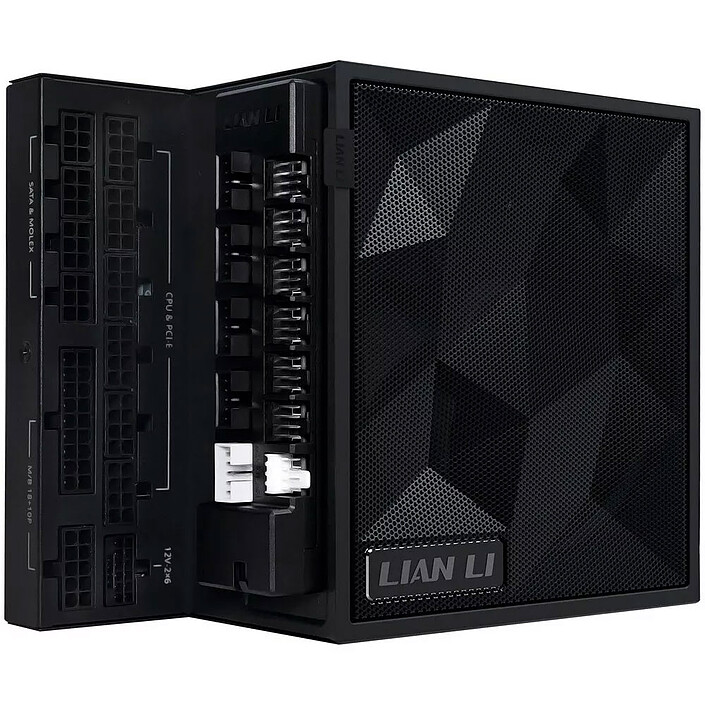

Lian Li Edge 1000W 80PLUS Gold with Hub (Black)
1000W ATX12V 3.1 power supply with integrated USB 2.0 Hub - 80PLUS Gold / Cybenetics Gold
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Power and modularity
This Lian Li Edge 1000W 80PLUS Gold power supply is aimed at enthusiasts of neat, high-performance configurations. Its unique L-shape format makes it easy to wire into dual-chamber enclosures, while its 80 PLUS Gold certification guarantees high performance and optimum energy efficiency. Designed for aesthetics and functionality, it also incorporates a detachable USB/PWM hub for extended connectivity.
An ingenious format for easy installation

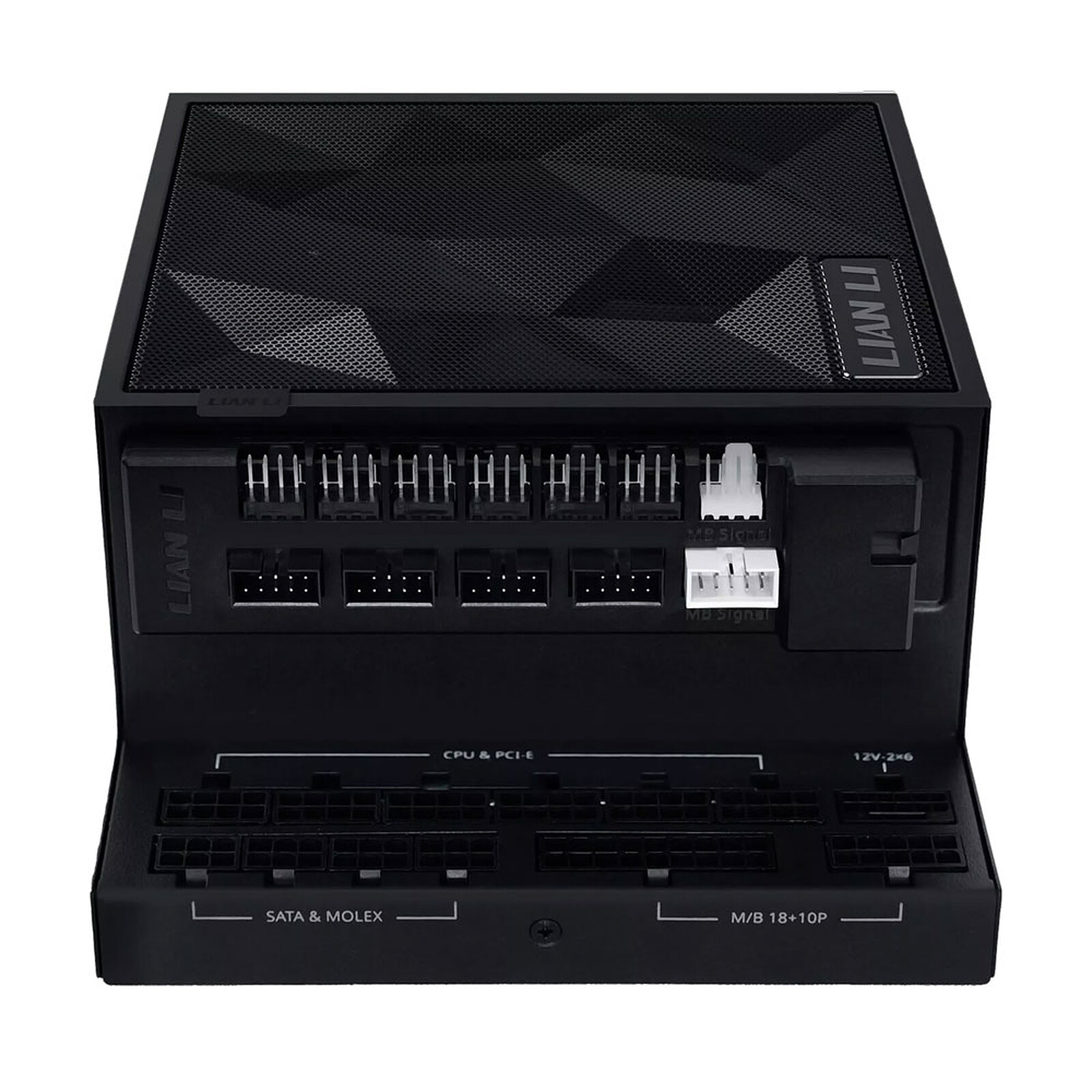

The L-shaped design completely rethinks the layout of the connectors by orientating them towards the outside of the unit. The result is much easier cable organisation, ideal for enclosures like LIAN LI's O11. This approach reduces angle constraints and enables cleaner routing of power cables.
The complete modularity and long cables provided enhance this flexibility, while the removable USB/PWM hub allows you to extend your internal connections (up to 4 USB and 6 fans). A perfectly thought-out solution for complex and aesthetically pleasing setups.
Key features:
- Power: 1000W for high-end configurations
- 80 PLUS Gold certification: high efficiency up to 90
- L-shape design: oriented connectors for double-chamber enclosures
- 100% modular: optimised cabling and preserved airflow

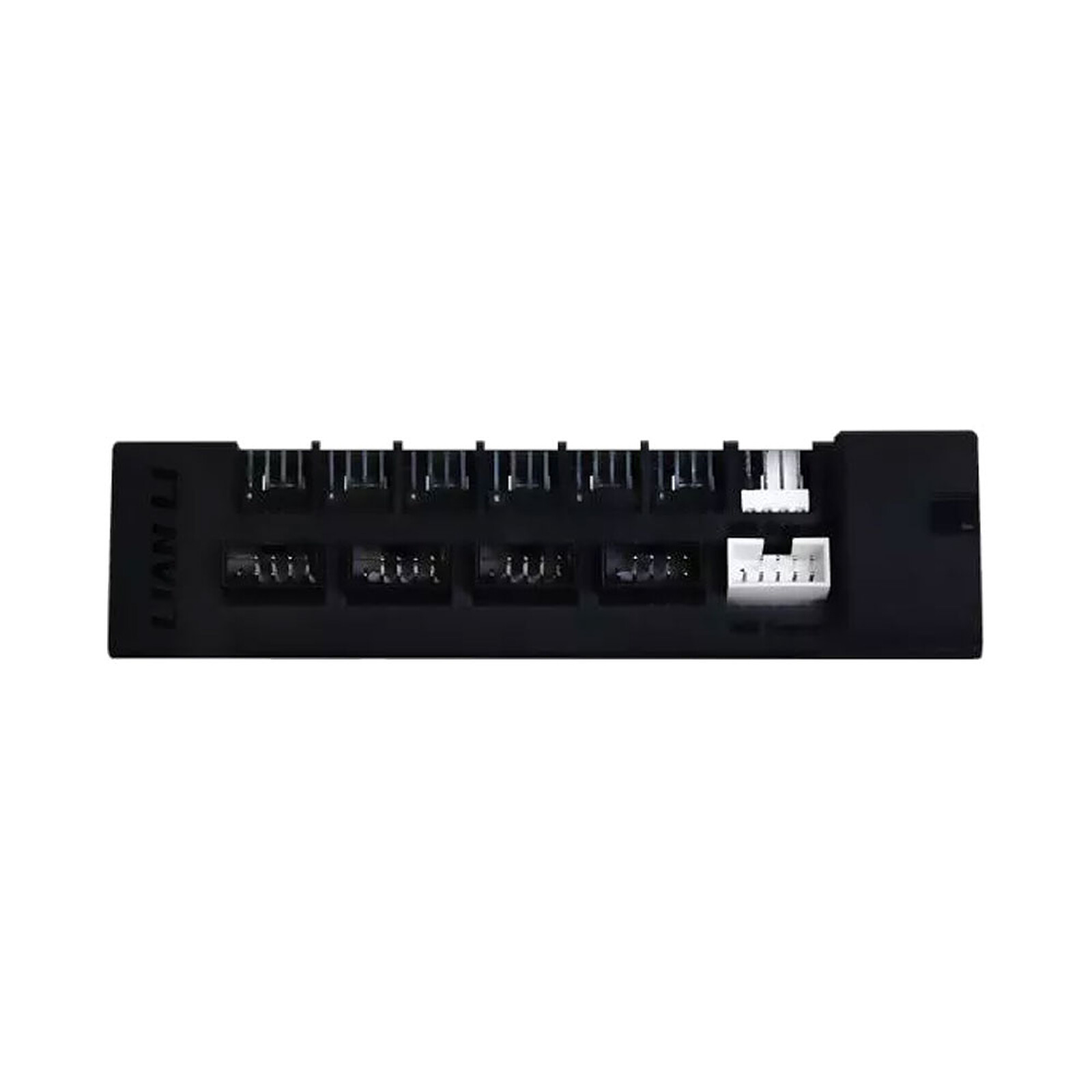

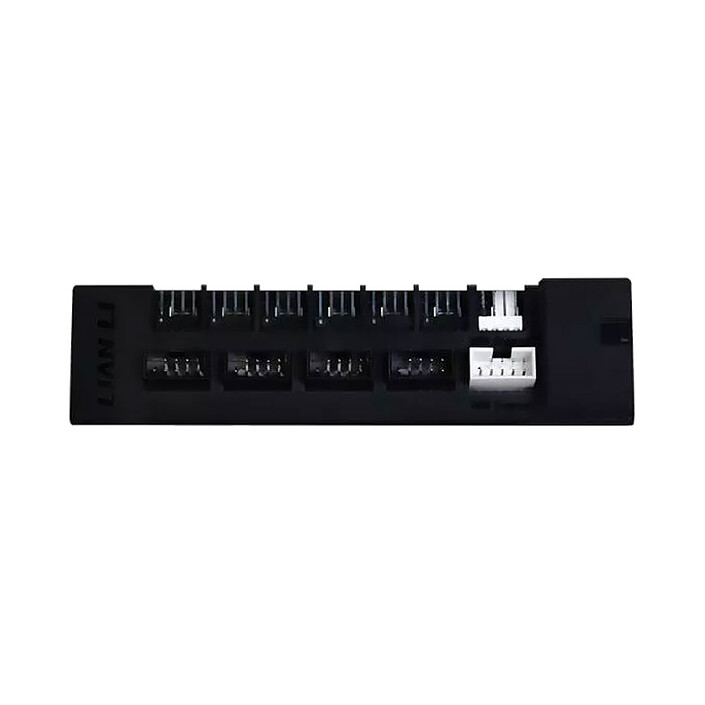

- Detachable USB/PWM hub: up to 4 USB ports + 6 fans
- Magnetic dust filters: simplified maintenance
- Top-of-the-range Japanese components (EPCOS)
- Full protection: OCP, OVP, SCP, OPP, UVP, OTP
- Dimensions: 182 x 86 x 150 mm
Select your criteria
General information |
Product name |
Lian Li Edge 1000W 80PLUS Gold with Hub (Black) |
Brand |
Lian Li | |
Model |
G9P.EG1000G.BH00.EU | |
Power and Efficiency |
Power |
1000 W |
80 PLUS certification |
Yes | |
Cybenetics certification |
Yes | |
80 PLUS / Cybenetics certification |
80 PLUS Gold | |
| Cybenetics Gold | ||
Connectivity |
Modular |
Yes |
Modularity |
100% modular | |
Power connector(s) |
1 X +12V (Power supply P8 - 2 x P4) | |
| 12 X Serial ATA power supply | ||
| 1 X ATX 20 + 4 Pin | ||
| 4 X PCI Express 6 + 2 Pin | ||
| 1 X PCI Express 16 Pin (12V-2x6) | ||
| 1 X +12V (Power supply P8) | ||
| 4 X Molex (4 Pin) Female | ||
Configurator |
PSU-CM compatibility |
+12V P4 |
| +12V P8 | ||
| +12V P4 and +12V P4 | ||
| +12V P8 and +12V P4 | ||
| +12V P8 and +12V P8 | ||
Cooling |
Fan size |
120mm |
Silent |
Yes | |
Power supply type (PC) |
Active | |
Design |
Power format |
ATX/EPS |
Power supply standard |
EPS12V | |
| ATX12V | ||
ATX 3.0 |
Yes | |
ATX 3.1 |
Yes | |
Multi-GPU |
None | |
Typical use |
Desktop computer | |
Physical characteristics |
Color |
Black |
LED RGB |
No | |
Height |
86 mm | |
Width |
150 mm | |
Length |
182 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
