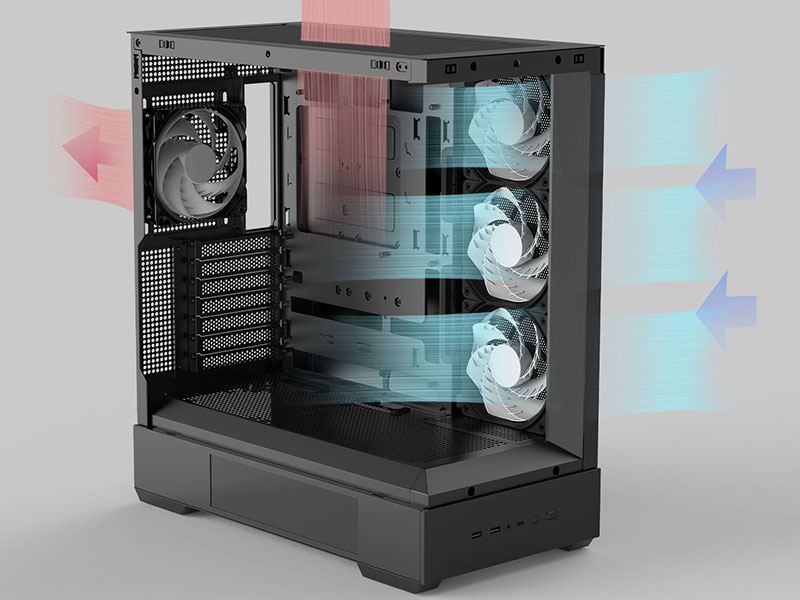

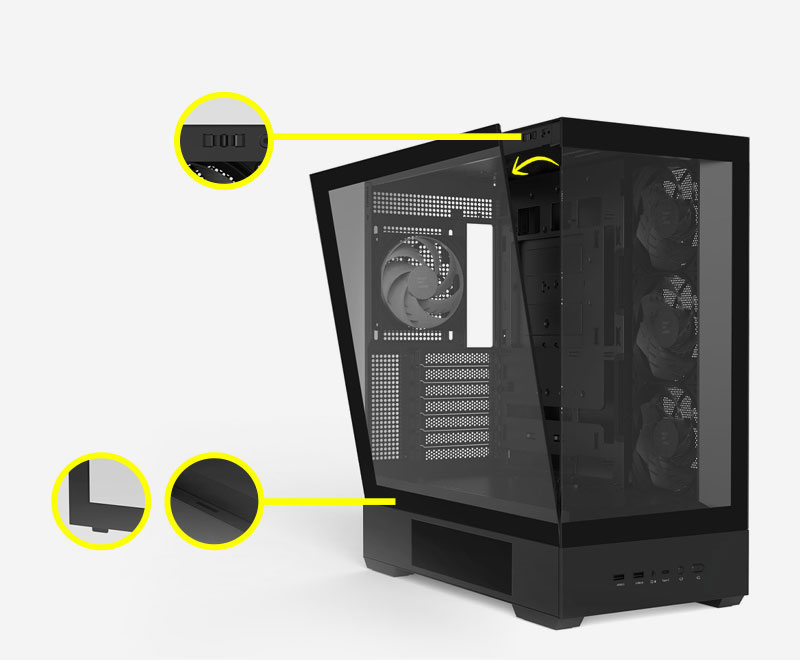

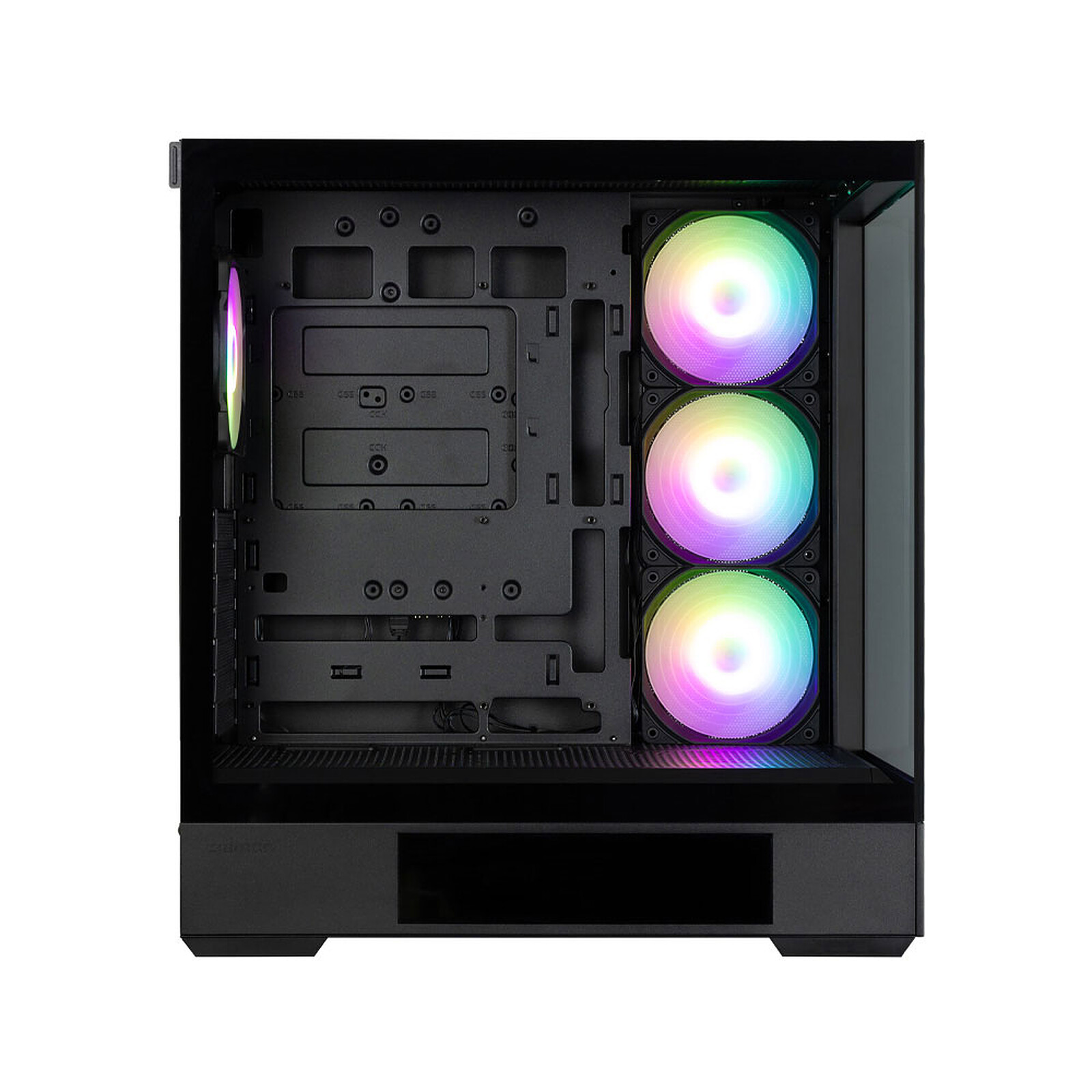

The Zalman P40 DS features a premium design for high-performance PC enthusiasts. Featuring two frameless 4mm tempered glass panels on the front and side, it offers a spectacular panoramic view of the interior of the configuration. Its design provides optimised space for extremely efficient cooling, with compatibility for up to ten fans and 360 mm radiators at the top and side. It also supports motherboards with inverted connectors for cleaner cable management and minimalist aesthetics. Easy access to components is ensured thanks to a tool-free system for the side panel, as well as a maintenance-friendly internal design.

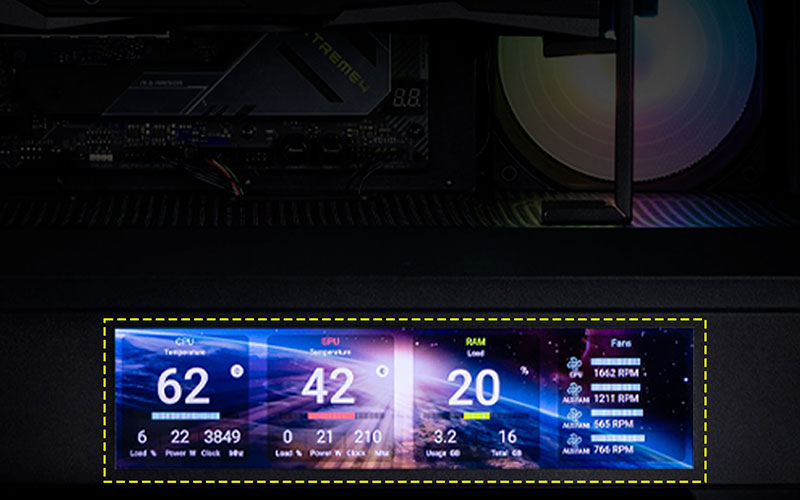

The highlight of the P40 DS is its integrated 9.1-inch LCD screen, displaying at 1920x462 with 400cd/? brightness and an intuitive interface. Controlled via Zalman's OZ-Wide software, it allows real-time monitoring of system performance (CPU, GPU, RAM, storage, etc.), while customising the display with rotating widgets, personalised backgrounds, or even videos.
Front I/O ports include USB 3.0, USB-C and audio jacks, while ARGB lighting, managed by an integrated controller, offers up to 26 lighting effects. Finally, the ZM-AF120 fans supplied provide optimum airflow and are silent thanks to their hydro bearings and anti-vibration design.
With 34 mm of dedicated space for cable management , magnetic dust filtration (top and bottom) , and optimised ventilation, the ZM-AF120 is the perfect choice for your home.and an adjustable GPU bracket to prevent sagging, this case aims for maximum efficiency without neglecting aesthetics or maintenance.
Select your criteria
General information |
Product name |
Zalman P40 DS Black |
Brand |
Zalman | |
Model |
P40 DS BLACK | |
Main characteristics |
Graphic card max. length |
420 mm |
Max height CPU fan |
165 mm | |
Power supply max. length |
180 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Material |
Steel | |
| Plastic | ||
| Tempered glass | ||
Motherboard format |
Micro ATX | |
| Mini ITX | ||
| ATX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
Yes |
Case color |
Black | |
Front color |
Black | |
Integrated display |
Yes | |
Mesh front |
No | |
Glass |
Yes | |
Tempered glass |
Yes | |
Fish tank (panoramic view) |
Yes | |
LED RGB |
Yes | |
ARGB LED |
Yes | |
Water cooling compatible |
Yes | |
Motherboard connector location |
Connectors under the motherboard | |
| Standard connectors (on the motherboard) | ||
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of 2.5" slots |
1 | |
Number of 2.5"/3.5" slots |
2 | |
Front connectivity |
Location of expansion ports |
Front |
Connector(s) available |
1 X USB Type C | |
| 3.5mm Jack Female Stereo | ||
| 2 X USB 3.0 | ||
Cooling |
Fan(s) included |
Yes |
Number of rear fan(s) slots |
1 X 120mm | |
Quantity of rear fan(s) supplied |
1 | |
Number of side fan(s) slots |
3 X 120mm | |
Quantity of side fan(s) supplied |
3 | |
Number of above fan(s) slots |
1 X 120mm | |
| 2 X 120 or 140mm | ||
Quantity of above fan(s) supplied |
0 | |
Number of underneath fan(s) slots |
3 X 120mm | |
Quantity of underneath fan(s) supplied |
0 | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Front AIO slot(s) |
N/A | |
Above AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Side AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
| 360mm radiator | ||
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
235 mm |
Height |
492 mm | |
Depth |
452 mm | |
Weight |
8.7 kg | |
Volume |
52 l | |
