Perfect card.
Asus quality is well established.
This card is designed for high-end configurations, particularly with inverted connectors, making it easy to install and ensuring a clean installation.
.
Review automatically translated
Pictures may differ from actual products

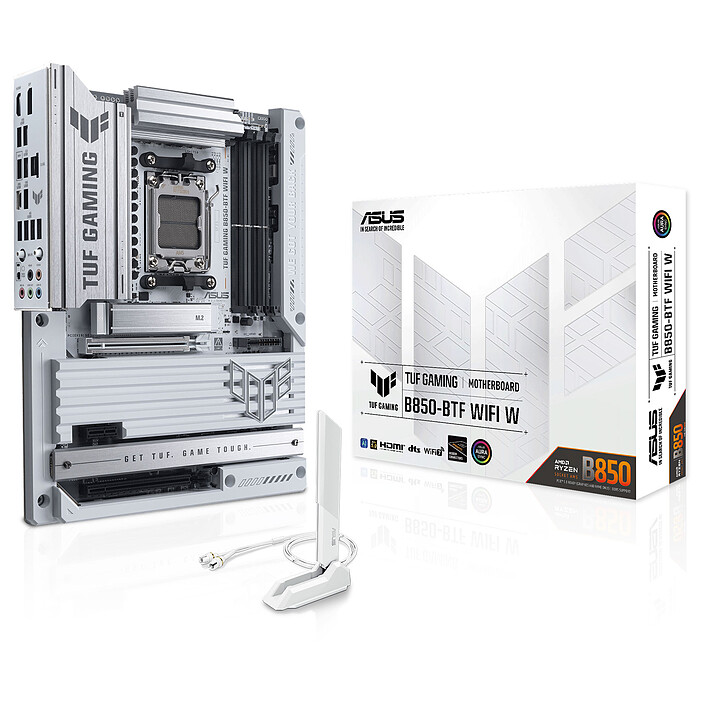

ASUS TUF GAMING B850-BTF WIFI W
ATX Socket AM5 motherboard AMD B850 - 4x DDR5 - M.2 PCIe 5.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE + Wi-Fi 7/Bluetooth 5.4
279€95
Recycling charge of 0€50
Lowest selling price: 279€95*
Create a price drop alert
1
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
279€95
In stock
* Lowest selling price on LDLC during the last 30 days.
Overview

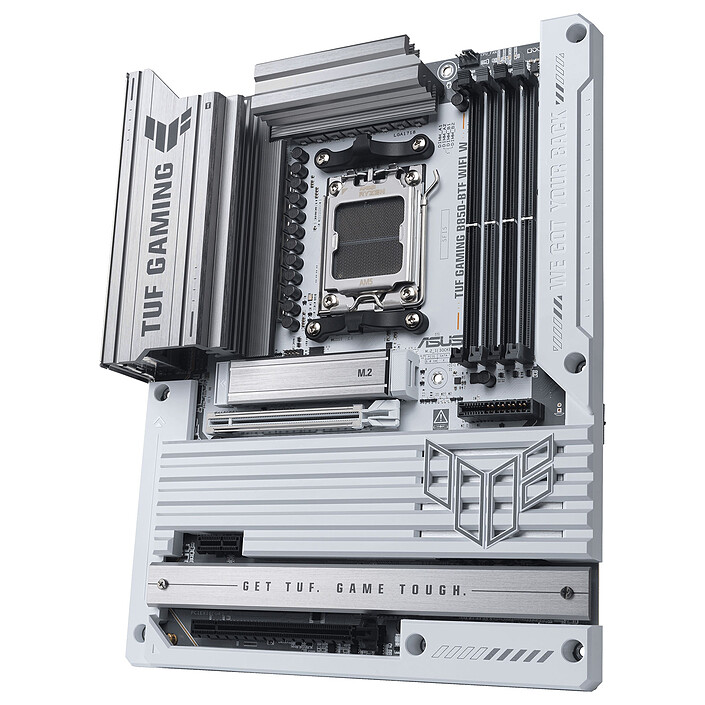

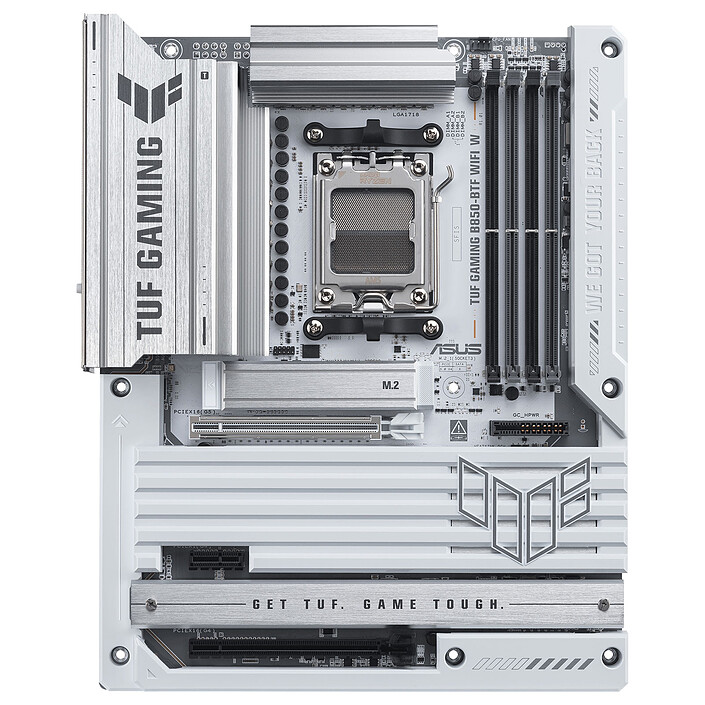

Gaming AM5 motherboard with PCI-Express 5.0
TheASUS TUF GAMING B850-BTF WIFI W is a gaming motherboard designed for the AMD Ryzen 7000, 8000 and 9000 processors. It features military-grade components and a complete cooling system, with oversized heatsinks, to guarantee constant performance during your gaming sessions.
The ASUS TUF GAMING B850-BTF WIFI W motherboard is an ideal choice for gamers looking for top performance and advanced features. Designed for the AMD Ryzen 7000, 8000 and 9000 processors, it supports DDR5 memory and incorporates modern technologies such as PCIe 5.0, allowing full use of the latest generation graphics cards and SSDs.
Benefits of the ASUS TUF GAMING B850-BTF WIFI W
- Socket AMD AM5 for AMD Ryzen 9000/8000/7000 processor
- 4 Dual-Channel8000 MHz memory slots
- PCI-Express 5.0 16x port
- 1 x M.2 PCIe 5.0 x4 + 2 x M.2 PCIe 4.0 x4
- 1 USB 3.2 port
- Realtek 2.5 GbE LAN + Wi-Fi 7 and Bluetooth 5.4
Gaming in the best conditions
The high frequencies of AMD Ryzen processors are a real advantage when it comes to gaming. Choose the right components and design a super-powerful Gaming PC, with no latency and ready to serve when you need it. Get the edge over your opponents and reach new heights with AMD Ryzen 9000/8000/7000 processors and AMD AM5 motherboards.
The AMD Ryzen 9000 processors deliver performance in every area. They will enable you to create faster, achieve your objectives more quickly and save time all the time. From 3D rendering to exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Information provided by our tech department

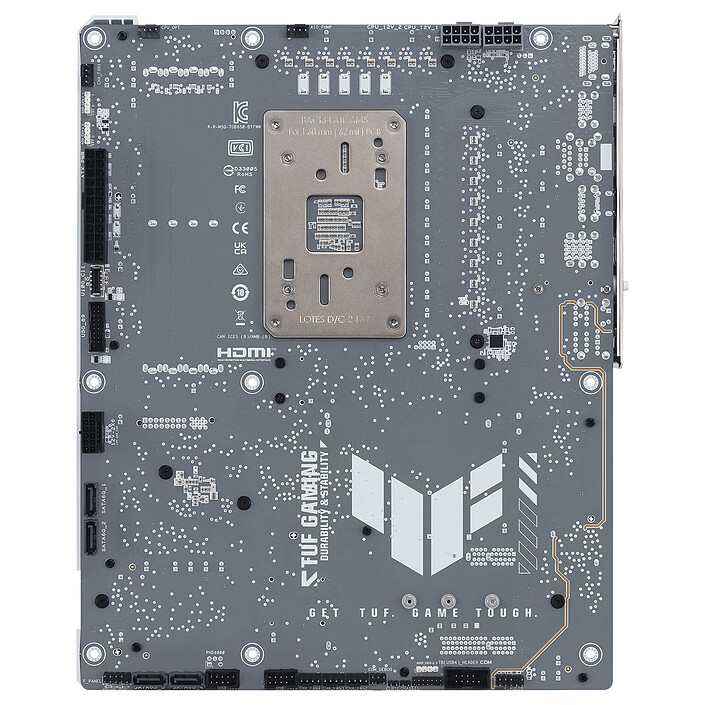

Motherboard with "hidden" connectors (on the back of the board). Only compatible with the following cases: Click here.
Specifications
Select your criteria
General information |
Product name |
ASUS TUF GAMING B850-BTF WIFI W |
Brand |
ASUS | |
Model |
90MB1KW0-M0EAY0 | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B850 |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8000 MHz | |
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 4800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 4.0 x1 | |
| 1 X PCI Express 4.0 x16 (x4) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1220P |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Realtek 2.5 GbE |
Network standard(s) |
Wi-Fi 7 | |
| Bluetooth 5.4 | ||
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Connectors under the motherboard |

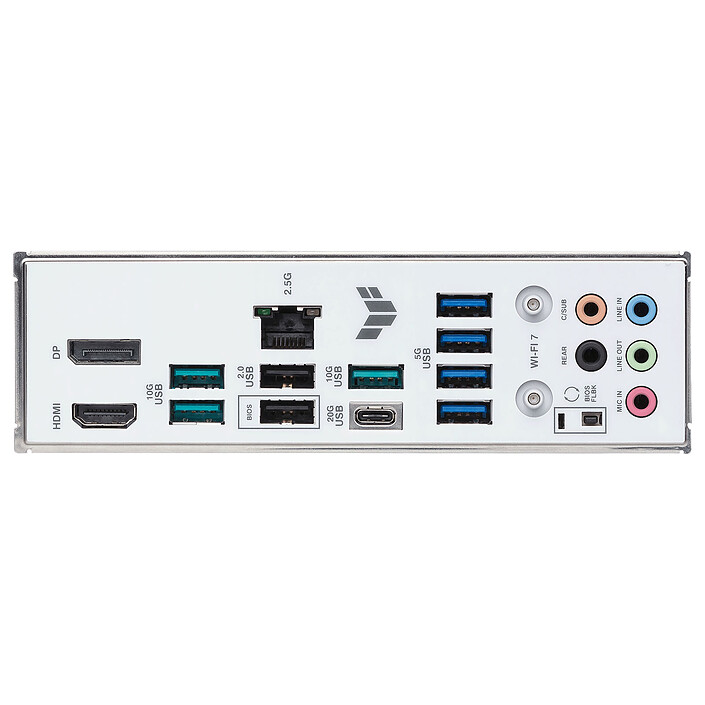

Rear panel connectors |
4 X USB 3.0 | |
| 1 X DisplayPort Female | ||
| 2 X USB 2.0 | ||
| BIOS Flash Update | ||
| 1 X HDMI Female | ||
| 1 X USB 3.2 Type C | ||
| 3 X USB 3.1 | ||
| 1 X RJ45 Female | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
3 X Addressable LED RGB connector(s) | |
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.1 Type C | ||
| Chassis intrusion | ||
| 1 X Serial (RS-232) | ||
| 1 X PCI Express 16 Pin (12V-2x6) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
ASUS Computer GmbH |
Postal address |
Harkort STR. 21-23, 40880 RATINGEN, GERMANY | |
Electronic Address |
ProducSafety@asus.com |
See all ASUS products
Product referenced on 15 May 2025
