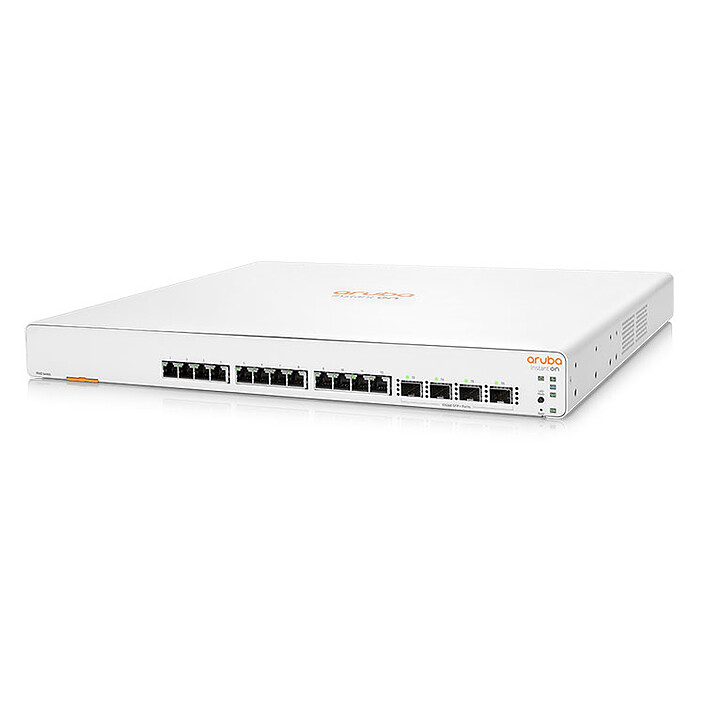

Aruba Instant On 1960 12XGT 4SFP+ (JL805A)
12-port 10 GbE + 4 SFP+ manageable switch
Pictures may differ from actual products
The Aruba Instant On 1960 12XGT 4SFP+ (JL805A) is an aggregation switch with 10 GbE ports and 4 SFP+ 10 Gbps uplinks. As such, it forms the basis of a network for small businesses.
12-port 10 GbE + 4 SFP+ manageable switch
Aruba Instant On 1960: High Performance Stackable Switches
Aruba Instant On 1960 switches are advanced, intelligently managed, stackable Gigabit switches for businesses that require peak performance to support bandwidth-intensive applications. With the Instant On mobile app or cloud-based web portal, you can quickly configure, monitor and manage the 1960 series switches from anywhere at any time.
The Aruba Instant On 1960 12XGT 4SFP+ (JL805A ) is an aggregation switch with 10 GbE ports and 4 SFP+ 10 Gbps uplinks. As such, it forms the basis of a network for small businesses.
OPTIMISED USER EXPERIENCE
- Configure your switch in minutes: Get step-by-step instructions with the Aruba Instant On mobile app.
- Monitor and manage performance with the Aruba Instant On mobile app or cloud-based web portal
- Save time, money and get the flexibility you need with Power over Ethernet (PoE Class 4 and Class 6)(model dependent)
- Secure your business with evolving security measures and protocols: Protect your business data and keep unauthorised users off your network with advanced security features such as IEEE 802.1X, MAC authentication, VLAN, network access control (ACL), port security, DHCP browsing, ARP attack prevention and RADIUS authentication.
- Stack up to four switches : Stackable switches allow you to adapt to changes in your business. Automatic failover ensures that if one switch in a stack fails, the other switches won't stop working.
easy management
The web interface hosted in the Cloud and the mobile application make it easy to manage networks incorporating Instant On access points and switches. This intuitive interface also makes it easy to manage individual switches, and requires no technical expertise.The Aruba Instant On mobile application provides common workflows for Instant On switches and access points, allowing you to remotely configure, monitor and manage your network without the need for additional hardware (such as Cloud keys or VPNs). You can update the firmware of your Instant On devices directly in the Cloud at any time, wherever you are.
Key features :
- Aruba Intant On 1960 12-port 10 Gigabit aggregation switch with four 10 Gigabit SFP+ uplinks
- ARM Cortex-A9 2 GHz / 1 GB DDR3
- Throughput: 238 Mpps
- Switching capacity: 320 Gbit/s
- MAC address table size: 16,000 entries
- Configuration, management and troubleshooting via mobile app or web user interface
- No additional licence or subscription fees
- Compatible SFP modules: Aruba Instant On 1G SFP LC SX 500 m OM2 MMF (R9D16A), Aruba 1G SFP LC LX 10 km SMF (J4859D), Aruba 1G SFP RJ45 T 100 m Cat5e (J8177D)
- Compatible SFP+ modules: Aruba Instant On 10G SFP+ LC SR 300 m OM3 MMF (R9D18A), Aruba 10G SFP+ LC LR 10 km SMF (J9151E)
- Direct-attach cables compatible: Aruba 10G SFP+ to SFP+ 1 m DAC (J9281D), Aruba 10G SFP+ to SFP+ 3 m DAC (J9283D)
Select your criteria
General information |
Product name |
Aruba Instant On 1960 12XGT 4SFP+ (JL805A) |
Brand |
Aruba | |
Model |
JL805A | |
Technical specifications |
Number of ports |
12 |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
Number of GBIC ports |
4 | |
Rackable |
Yes | |
Manageable |
Yes | |
Administration level |
Level 2 | |
SNMP |
Yes | |
PoE (Power over Ethernet) |
No | |
IPv6 compatible |
Yes | |
Width |
442.5 mm | |
Depth |
350.5 mm | |
Height |
43.95 mm | |
Weight |
4.3 kg | |
Consumption |
160 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
