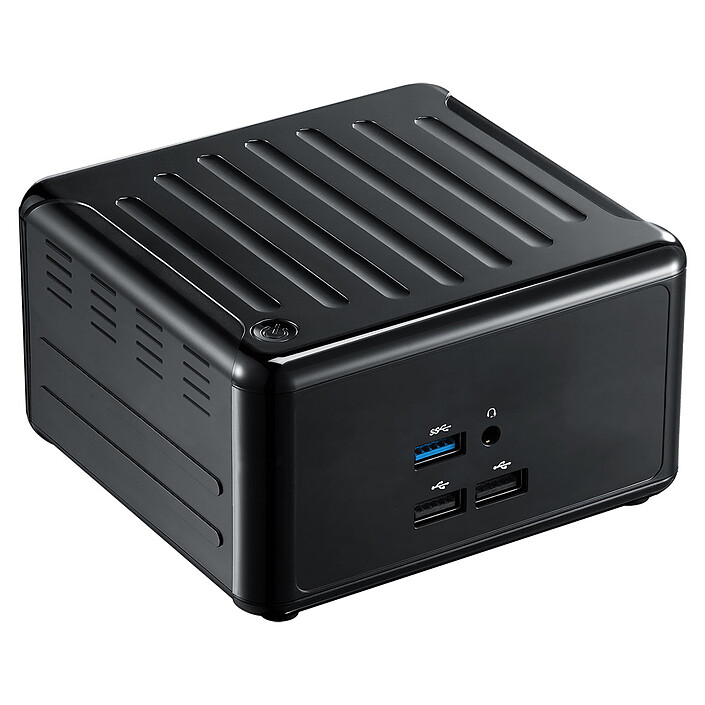

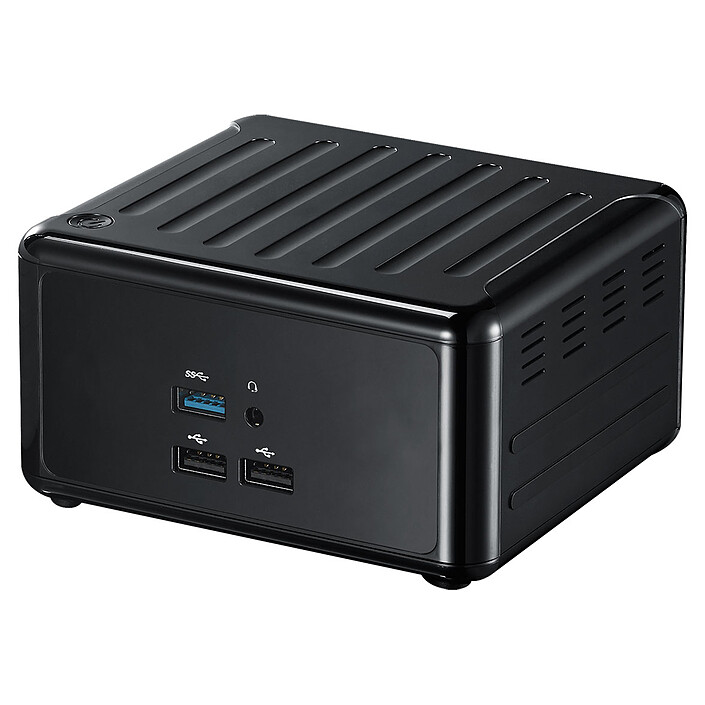

ASRock 4X4 BOX-R1000V
AMD Ryzen Embedded R1505G Wi-FiAC/Bluetooth Mini-Barebone (no notch/memory/hard drive)
Pictures may differ from actual products
The ASRock 4X4 BOX-R1000V barebone with AMD Ryzen Embedded R1505G processor will allow you to assemble a low-power mini-PC or thin client while allowing for smooth office and internet use once DDR4 memory (SO-DIMM) and an SSD are added.
AMD Ryzen Embedded R1505G Wi-FiAC/Bluetooth Mini-Barebone (no notch/memory/hard drive)

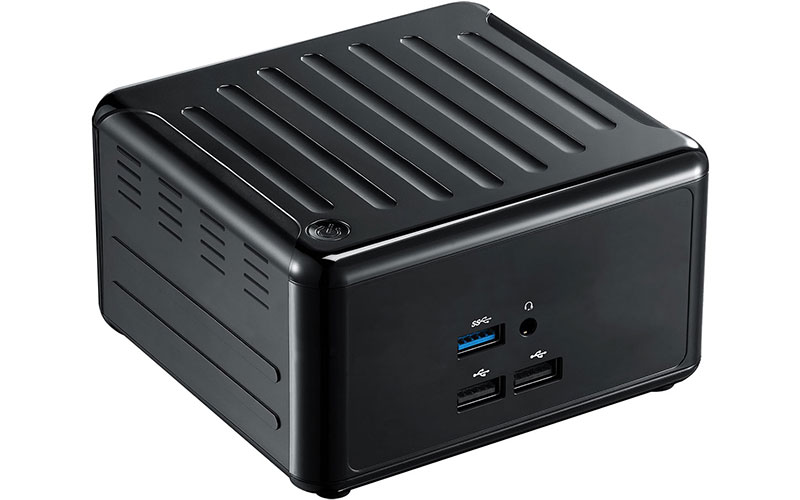

ASRock 4X4 : Low Power Barebone PC
The ASRock 4X4 BOX-R1000V barebone with AMD Ryzen Embedded R1505G processor will allow you to assemble a low-power mini-PC or thin client while allowing smooth office and internet use once DDR4 memory (SO-DIMM) and an SSD are added. It offers three simultaneous video outputs and multiple USB ports (3.0 and 3.1) for your peripherals.
A concentrate of performance
The ASRock 4X4 BOX-R1000V 's ultra-compact case will be discreet! Embedded with a Ryzen Embedded R1505G Dual-Core processor, it will allow you a smooth use in your daily tasks. Up to 32GB of DDR4 SO-DIMM memory and 2 storage units (including a PCIe 3.0 4x M.2 SSD) can be installed in this mini-PC. Moreover, thanks to the 3 video connectors (HDMI 2.0 and 2x DisplayPort 1.2a), you will be able to connect up to 3 displays simultaneously.
Main features :
- AMD Ryzen Embedded R1505G processor (Dual-Core 2.4 GHz / 3.3 GHz Turbo - 4 Threads - 4 MB Cache)
- 2 SO-DIMM DDR4 2400 MHz memory slots (maximum 32 GB)
- 1 2.5" SATA 3 6 Gbps slot
- M.2 2242/2260 PCIe 3.0 x4 / SATA 3 6Gbps slot
- Dual Gigabit Ethernet + Wi-Fi AC and Bluetooth 4.2 connection
- HDMI 2.0 and 2 x DisplayPort 1.2a connectors (up to 3 displays connected simultaneously)
- External power supply: 96 Watt / 12 Volt power adapter
Select your criteria
General information |
Product name |
ASRock 4X4 BOX-R1000V |
Brand |
ASRock | |
Model |
4X4 BOX-R1000V | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
AMD Ryzen Embedded R | |
CPU frequency |
2.4 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2400 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
16 GB | |
Maximum RAM capacity |
32 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
AMD Radeon Vega 3 Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X Serial ATA 6Gb/s (SATA Revision 3) |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Realtek ALC233 |
Network |
Number of ports/Ethernet controler |
2 X Realtek RTL8111G |
Network standard(s) |
10/100/1000 Mbps | |
Wireless network standard(s) |
Bluetooth 4.2 | |
| Wi-Fi AC | ||
Connectivity |

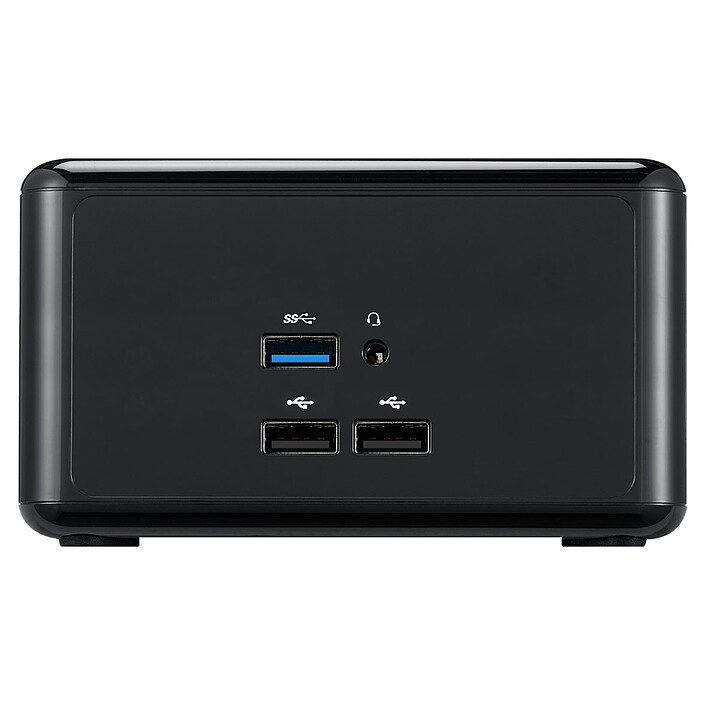

Front panel connectors |
1 X USB 3.1 |
| 2 X USB 2.0 | ||
| 1 X 3.5mm Jack Female Stereo | ||

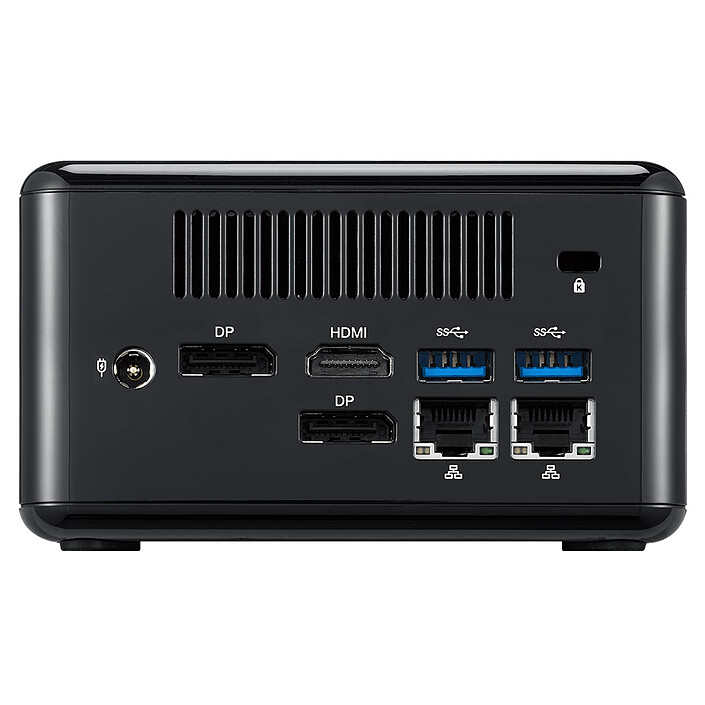

Rear panel connectors |
1 X HDMI Female | |
| 2 X DisplayPort Female | ||
| 2 X USB 3.1 | ||
| 2 X RJ45 Female | ||
Case |
Number of 2.5" slots |
1 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Power |
96 W | |
Compatibility |
Supported OS |
Windows 10 Pro 64-bit |
| Windows 10 Home 64-bit | ||
Max CPU TDP |
25 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
118.5 mm | |
Height |
67.3 mm | |
Depth |
110 mm | |
Weight |
1 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ASRock products
Product referenced on 8 Sep 2020
