Shuttle XPC nano NC10U5
Intel Core-i5 8265U - SATA 6Gb/s - M.2 - USB 3.0 - Wi-Fi N - Gigabit LAN (no notch/memory/hard drive)
Last price 579€95
Big machine power in a small PC
The Shuttle NC10U5 series is equipped with an Intel Whiskey Lake low-power processor. Featuring a quad-core Intel Core i5-8265U processor, this barebone can be equipped with up to 64 GB of DDR4 memory, an M.2 SSD (PCIe 3.0 x4 or SATA 6 Gbit/s) and a 2.5" storage drive (HDD or SSD). Its wide connectivity will allow you to use this machine according to all your needs: professional, office or multimedia.
A barebone with the latest technology

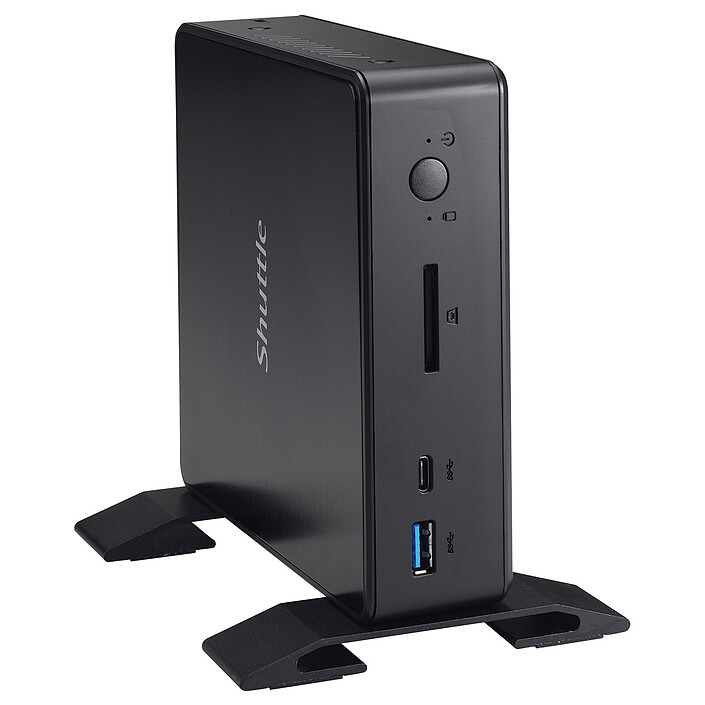

The Shuttle XPC nano NC10U5 is a small-format barebone that combines design, small size and good office performance. In its sleek, black case, it can be attached to the back of your monitor, for example, using its VESA mounting system.
This model is equipped with USB-3.0 type A and C ports offering a transfer rate of up to 5 Gbps. This means that external devices such as USB hard drives can be transferred at almost the same speed as internal hard drives. As USB 3.0 is backwards compatible, it will of course also work with USB 2.0 devices.
M.2 PCIe and 2.5" SSD compatibility
With M.2 PCIe 3.0 x4 connectivity, you can enjoy a storage drive with much higher speeds than a standard SATA 6 Gbps interface. This makes your Shuttle XPC nano NC10U5 a state-of-the-art machine with a high level of responsiveness.
This Shuttle barebone can also accommodate a 2.5" and 15mm high disk for high storage capacity.
Select your criteria
General information |
Product name |
Shuttle XPC nano NC10U5 |
Brand |
Shuttle | |
Model |
NC10U5 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i5 | |
CPU frequency |
1.6 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel UHD Graphics 620 | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X Serial ATA 6Gb/s (SATA Revision 3) |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
M.2 support |
M.2 2280 | |
| M.2 2260 | ||
| M.2 2242 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Realtek ALC662 |
Number of audio channels |
6 | |
Network |
Number of ports/Ethernet controler |
1 X Intel i211 |
Network standard(s) |
10/100/1000 Mbps | |
Wireless network standard(s) |
Wi-Fi N 150 Mbps (IEEE 802.11n) | |
Connectivity |

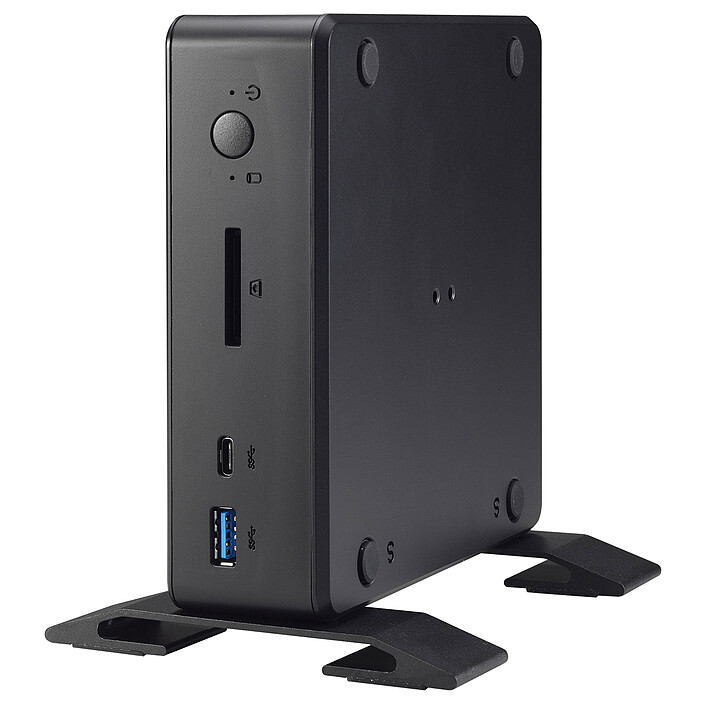

Front panel connectors |
SD (Secure Digital) |
| SDHC | ||
| 1 X USB 3.0 | ||
| SDXC | ||
| 1 X USB 3.0 Type C | ||

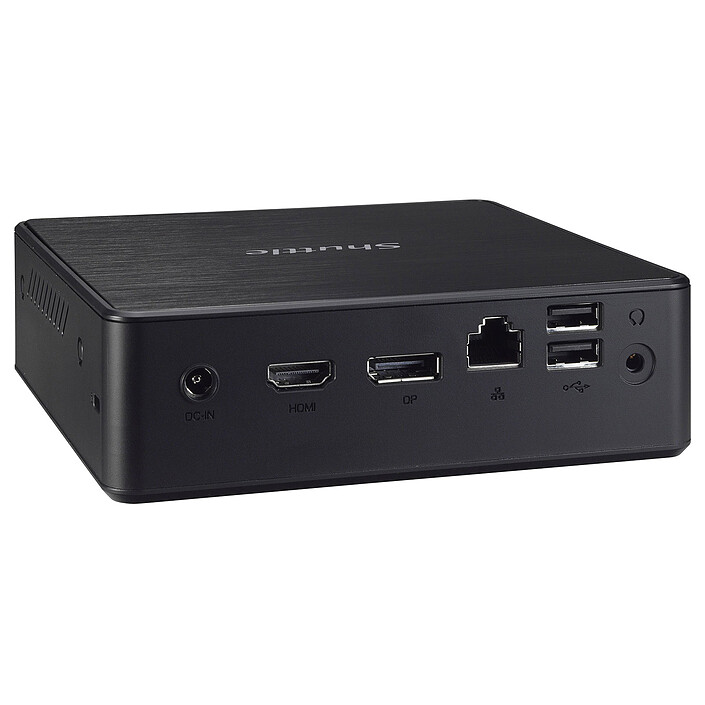

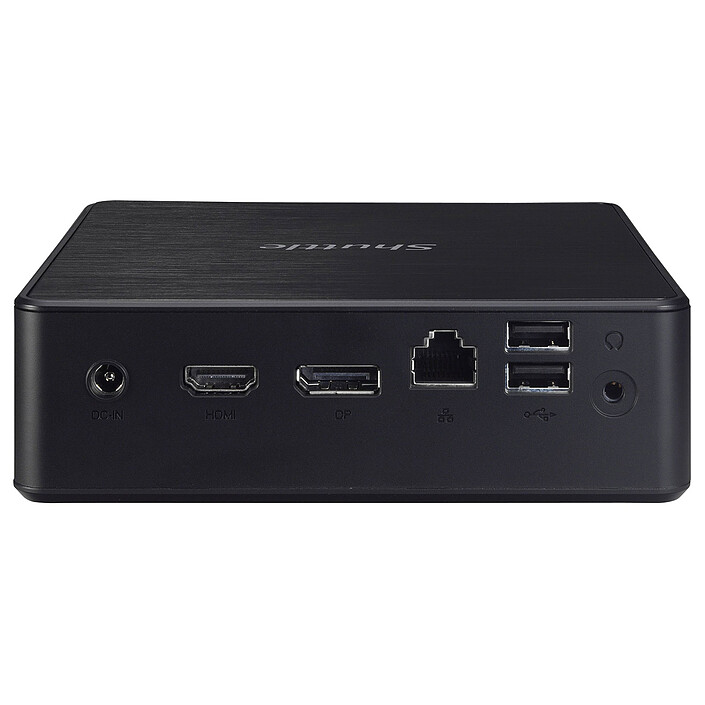

Rear panel connectors |
1 X 3.5mm Jack Female Stereo | |
| 1 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
Case |
Number of 2.5" slots |
1 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Power |
65 W | |
Compatibility |
Supported OS |
Windows 10 Pro 64-bit |
| Windows 10 Home 64-bit | ||
| Linux | ||
Max CPU TDP |
15 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
142 mm | |
Height |
42 mm | |
Depth |
142 mm | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
