Dexlan 1U double rail server rack console
17" TFT screen - 8 port KVM with 8 VGA-USB/PS2 cables supplied - French AZERTY keyboard with touchpad
Pictures may differ from actual products

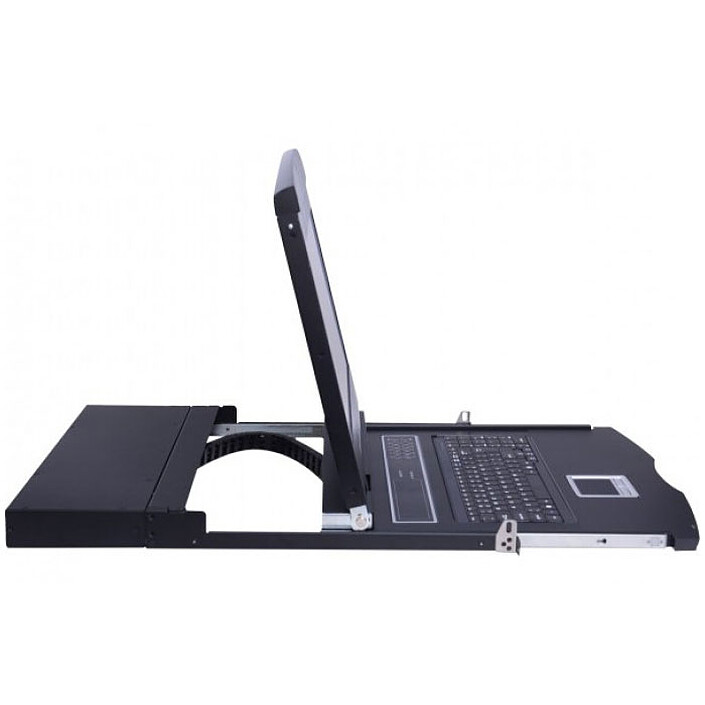

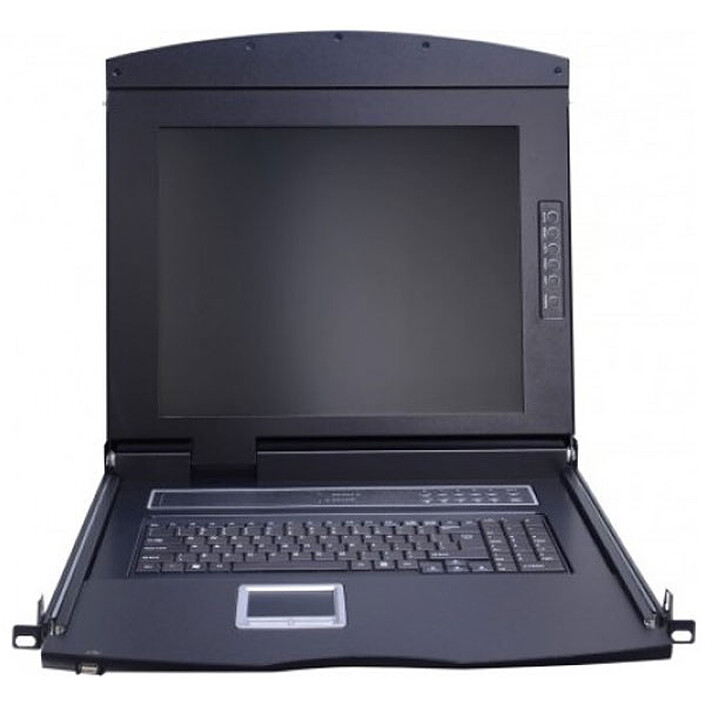

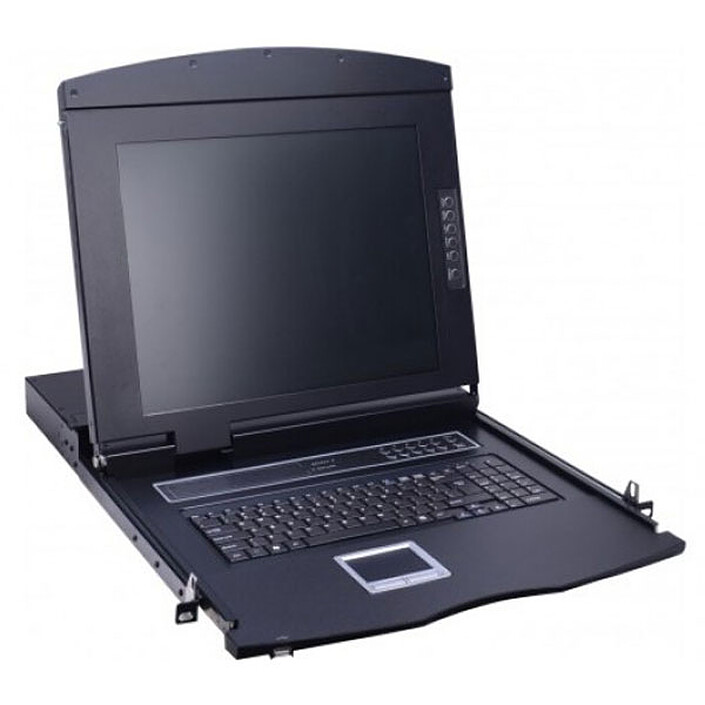

This 19" rackmount KVM console has 2 independent drawers. While the first one is equipped with a French keyboard (replaceable by a AZERTY keyboard as an option) and a touchpad type pointing device, the second one integrates a high resolution TFT-LCD screen.
17" TFT screen - 8 port KVM with 8 VGA-USB/PS2 cables supplied - French AZERTY keyboard with touchpad
The console you need for your installation
This Dexlan 19'' Double Rail KVM rackable console has 2 independent drawers. While the first one is equipped with a French keyboard (replaceable by a AZERTY keyboard as an option) and a touchpad type pointing device, the second one integrates a high resolution TFT-LCD flat screen with a diagonal of 17''. The console is the same thickness as a network switch (1U), saving space in your cabinet or rack.

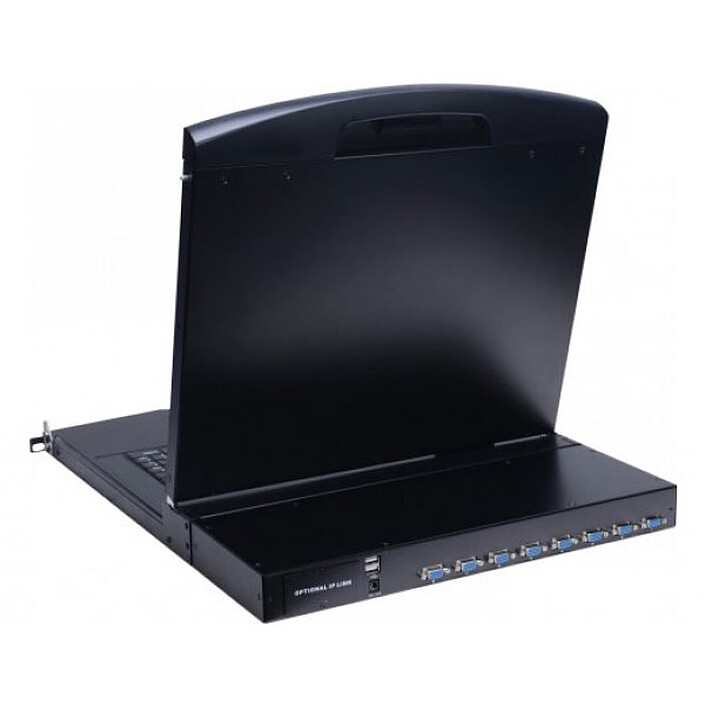

Its integrated KVM switch allows you to control 8 computers connected using the 8 combined keyboard-mouse cables supplied with the device. In addition to the Dexlan LCD console, it is possible to connect another USB keyboard/mouse set to the 2 rear ports of the KVM. In addition, a specific slot is provided for an Ethernet IP module in order to remotely control the console and the servers connected to the 8 ports of the KVM switch, via the local network or the Internet.
Main features :
- Switching: Push button / OSD menu
- Keyboard: 105-key USB type (AZERTY) removable without tools (AZERTY US/UK/DE optional)
- Pointing: 2-button TouchPad
- Indicators : Power - CPU online
- Buttons : Power - OSD menu - CPU 1 to 8
- LCD resolution: 1280 x 1024 pixels 75 Hz - visible area 338 x 270 mm
- Maximum resolution: 2048 x 1536 75 Hz
- External power supply: 12 volts 4A
- Compatible with 19'' rack, 800 to 1200mm deep (requires rear posts)
- Supplied with 19" Front and Rear Mounting Bars
- Includes 8 x 1.80m VGA-USB/PS2 cables
- Compatible with IP remote control module
- Multi-platform: Windows 2000/XP/Vista/7/8/8.1/10, MacOS 10.6 and above, Linux, Unix...
- Dimensions : 446 x 636 x 42 mm
- Weight : 19 kg
Select your criteria
General information |
Product name |
Dexlan 1U double rail server rack console |
Brand |
Dexlan | |
Model |
DX1708-VUP2 | |
Technical specifications |
Product type |
Console |
Number of computers |
8 | |
Number of cable kits supplied |
8 | |
Rackable |
Yes | |
Video output(s) |
VGA | |
Peripheral input(s) |
PS/2 + USB | |
Audio function |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Dexlan products
Product referenced on 31 May 2019
For the moment, there are no customer reviews.Write a review
