Aten CS782DP

2-Port USB DisplayPort KVM Switch with 4K UHD Support

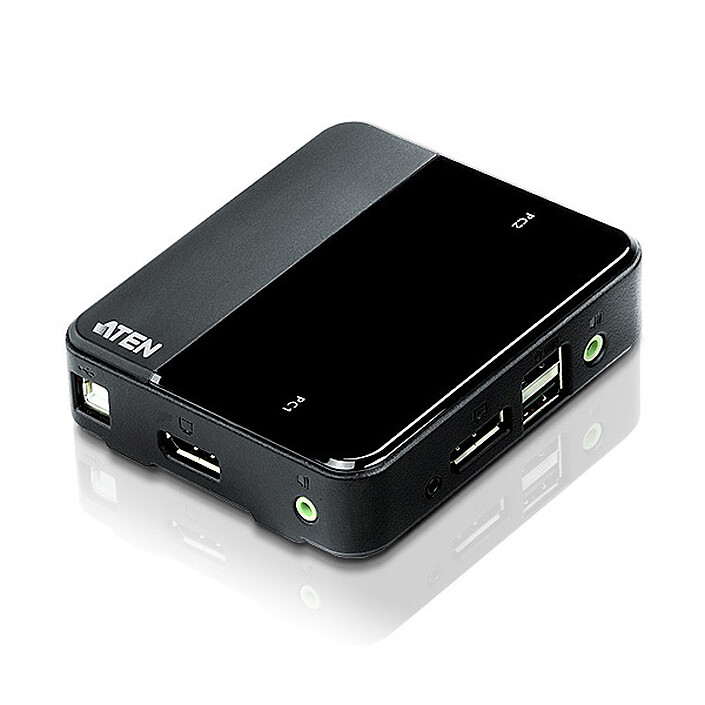

Aten CS782DP 2-Port USB DisplayPort KVM Switch with 4K UHD Support
KVM
Review Aten CS782DP

Pictures may differ from actual products

One customer review

With the growing demand for higher video quality and the evolution of DisplayPort technology, 4K-capable computers and monitors are now widely adopted in commercial and visually intense applications.

2-Port USB DisplayPort KVM Switch with 4K UHD Support

Available from 152€95 on the outlet deals

Overview

Supported 4K UHD USB DisplayPort KVM Switch


With the growing demand for higher video quality and the evolution of DisplayPort technology, 4K compatible computers and displays are now widely adopted in commercial and visually intense applications. Offering up to 4K UHD resolution, theATEN CS782DP is at home among these demanding scenarios and technological advances.

The ATEN CS782DP 2-port USB DisplayPort KVM switch features 4K UHD video resolution and allows users to access two 4K-compatible computers from a single USB keyboard, USB mouse and DisplayPort video console.


High Quality DP KVM Switch


The CS782DP provides three convenient switching methods - with a remote port selector, mouse or hotkeys for flexible access to all computers connected to the system. The product even offers high-end audio support for a complete multimedia solution. To complete the overall experience, the CS782DP 's streamlined, space-saving design makes it an ideal solution for any work environment.

With its rich feature set, the CS782DP is designed to exceed all requirements in graphic design, animation and video editing applications.


Key Features:

  • One DisplayPort video consolecontrols two USB computers (fully DisplayPort 1.2 compatible)
  • Computer selection via remote port selector, hotkeys and USB mouse
  • Superior video quality - Up to 4K UHD (3840 × 2160@60 Hz)
  • Multi-platform support - Windows, Mac, Sun, Linux
  • HDCP compliant
  • Supports MST (Multi-stream Transport), allowing multiple monitors to be used via a single DisplayPort connector
  • Supports DisplayPort Dual Mode (DP++) to directly generate single-link DVI and/or HDMI signals via an externally powered DisplayPort to HDMI/DVI DP++ adapter
  • Compatible with widescreen LCD monitors
  • Power-on detection - if one computer is powered on, the CS782DP automatically switches to the other computer
  • Audio compatible - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Supports HD audio via DisplayPort playback
  • Independent KVM and audio target switching enables multi-tasking for added convenience Supports multimedia keyboards
  • Supports multimedia keyboards
  • Supports wireless keyboards and mice
  • Console mouse port emulation/contouring supports most mouse drivers and multi-function mice
  • Supports and emulates Mac/Sun keyboards
  • USB 2.0 mouse port can be used for USB hub and share USB devices
  • Bus powered
  • Upgradeable firmware
Specifications
Select your criteria

General information

Product name

 Aten CS782DP

Brand

 Aten

Model

 CS782DP

Technical specifications

Product type

 KVM switch

Connector(s)

 3 X 3.5mm Jack Female Stereo
2 X USB Type A Female
2 X USB Type B Female
3 X DisplayPort Female

Number of computers

 2

Number of cable kits supplied

 1

Switching method

 Buttons

Rackable

 No

Video output(s)

 DisplayPort

Peripheral input(s)

 USB

Network port (RJ45)

 No

Audio function

 Yes

Warranties

Commercial warranty

 Seller 3 years

Legal warranty

 See terms & conditions

See all Aten products

See Aten KVM section

Product referenced on 14 Apr 2016

Customer review
Global rating
3/10
based on 1 review Editorial and moderation guide
  • 0%
  • 0%
  • 0%
  • 100%
    1 review
  • 0%
  • by Sylvain C
    Posted on 1 Feb 2020
    Product bought from LDLC on 2 Jan 2020
    Number of reviews: 5 Average rating: 8

    Disappointed: no screen

    The product works perfectly for the mouse and keyboard. However, the screen is hopelessly black. Is this due to its age and the fact that it only supports DVI and VGA? I don't think so: with a DisplayPortDVI cable between the PC and the screen, it works; whereas if I put the same cable between the ATEN and the screen and a full DisplayPort cable between the PC and the ATEN, nothing.
