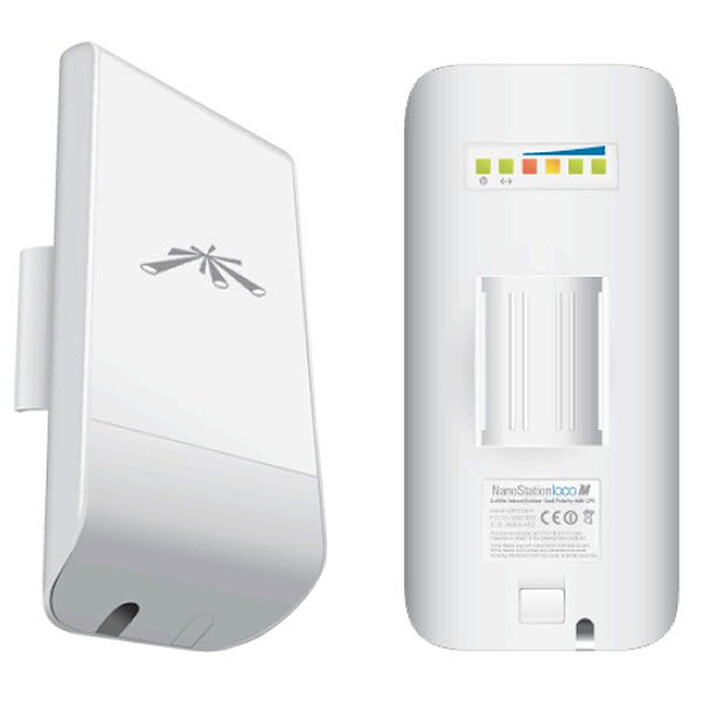

Ubiquiti Loco M5
Outdoor Wi-Fi B/G 5 GHz PoE access point/CPE with built-in antenna
Pictures may differ from actual products
The Ubiquiti Loco M5 is a 5GHz outdoor access point with built-in antenna. It provides data rates up to 150Mbps LAN! The built-in dual polarised antenna has a new design that increases its gain to 13 dBi.
Outdoor Wi-Fi B/G 5 GHz PoE access point/CPE with built-in antenna
Ubiquiti AirMax NanoStation Loco M5 outdoor access point/CPE with built-in antenna
The Ubiquiti Loco M5 is a 5 Ghz outdoor access point with integrated antenna. It allows data rates up to 150Mbps LAN! The integrated dual polarised antenna benefits from a new design that increases its gain to 13 dBi.
Key features :
- Output power up to 23 dBm +/-2dB
- Receive sensitivity -96 dBm +/-2dB
- Panel antenna up to 13 dBi with integrated dual polarisation (H/V angle 55°/53°)
- Frequency range: 5.4-5.8 GHz
- Adaptive Antenna Polarity (AAP) technology, automatic selection of antenna polarisation
- Extreme operating temperature from -30° to +80
- Watchdog soft and hard: automatically restarts in case of internal malfunction (e.g. crash after storm)
- Easy to install thanks to its passivePoE 15V, 0.8Apower supply (included)
- Optimal wireless security with WPA and WPA2 encryption
- Atheros MIPS 24KC chipset, 400MHz, 32MB SDRAM, 8MB Flash
- WiFi modes: Access Point, Client, Access Point + WDS, Client + WDS
- Modes: Router, NAT, PPPoE Client, QoS, DHCP Server
- Bandwidth management (up and down limiting)
- Reception level indication with LEDs
- Maximum power consumption: 5.5 W
- Dimensions: 16.3 cm x 8 cm x 3.1 cm
- Weight: 0.18 kg (excluding accessories)
Select your criteria
General information |
Product name |
Ubiquiti Loco M5 |
Brand |
Ubiquiti | |
Model |
LOCOM5 | |
Technical specifications |
Transfer rate |
300 Mbit/s |
Wi-Fi standard |
Wifi G | |
Network standard(s) |
Wi-Fi B (IEEE 802.11b) | |
| Wi-Fi G (IEEE 802.11g) | ||
Mesh Wi-Fi (mesh/multiroom network) |
No | |
Dual-Band |
No | |
Connector(s) |
Fast Ethernet - RJ45 Female | |
PoE (Power over Ethernet) |
Yes | |
Use |
Outdoor | |
Operating mode |
Access point | |
| Client | ||
| WDS (Wireless Distribution System) | ||
Multimedia function |
No | |
IPv6 compatible |
No | |
Encryption |
WPA | |
| WPA2 | ||
MU-MIMO compatible |
No | |
Number of Multi-SSID |
4 | |
Removable antenna(s) |
No | |
Antenna(s) power |
23 dBi | |
Color |
White | |
Width |
80 mm | |
Height |
163 mm | |
Depth |
31 mm | |
Weight |
180 g | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Ubiquiti products
Product referenced on 6 Apr 2013
