ASRock A620AI WiFi
Mini ITX motherboard Socket AM5 AMD A620A - 2x DDR5 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE - Wi-Fi 6E
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

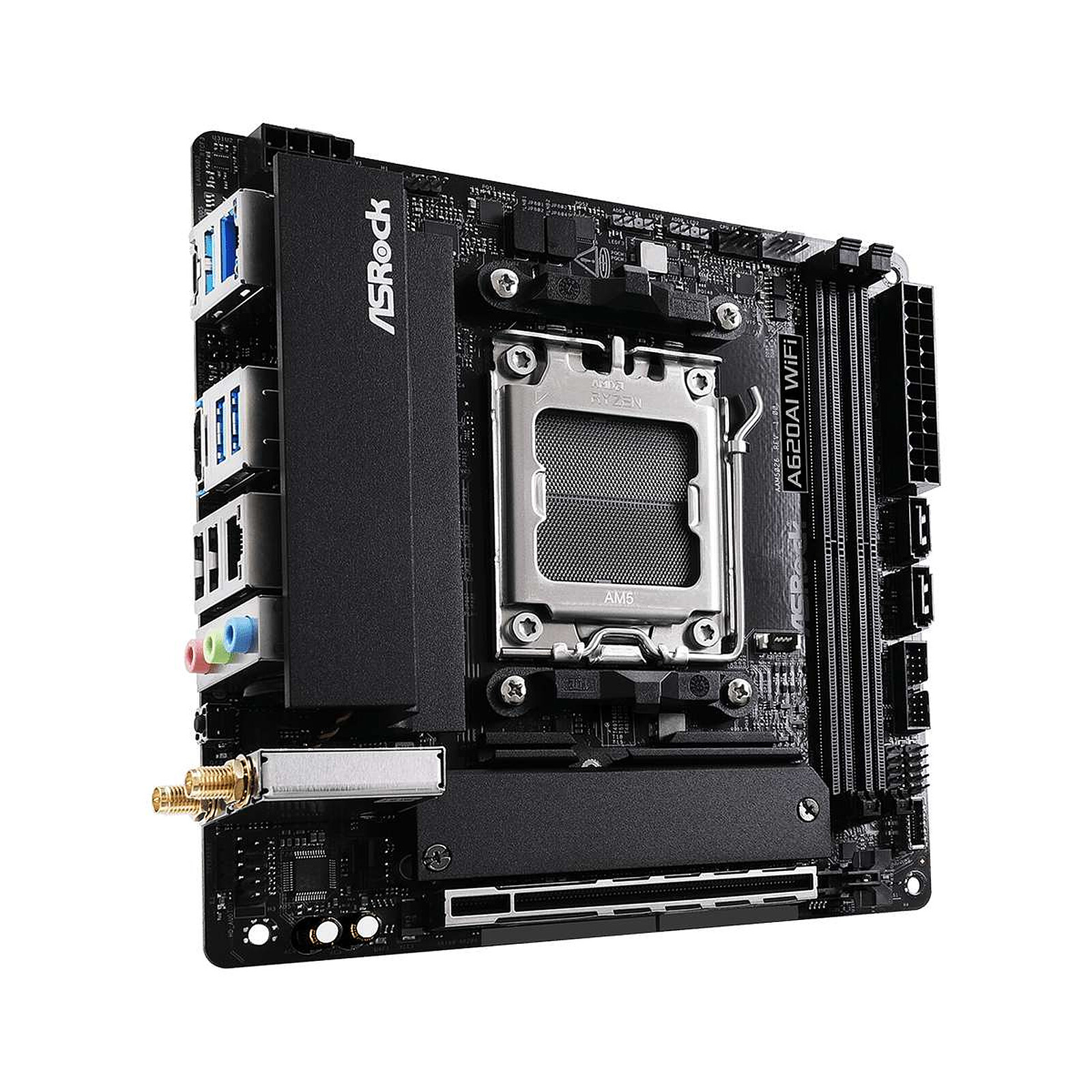

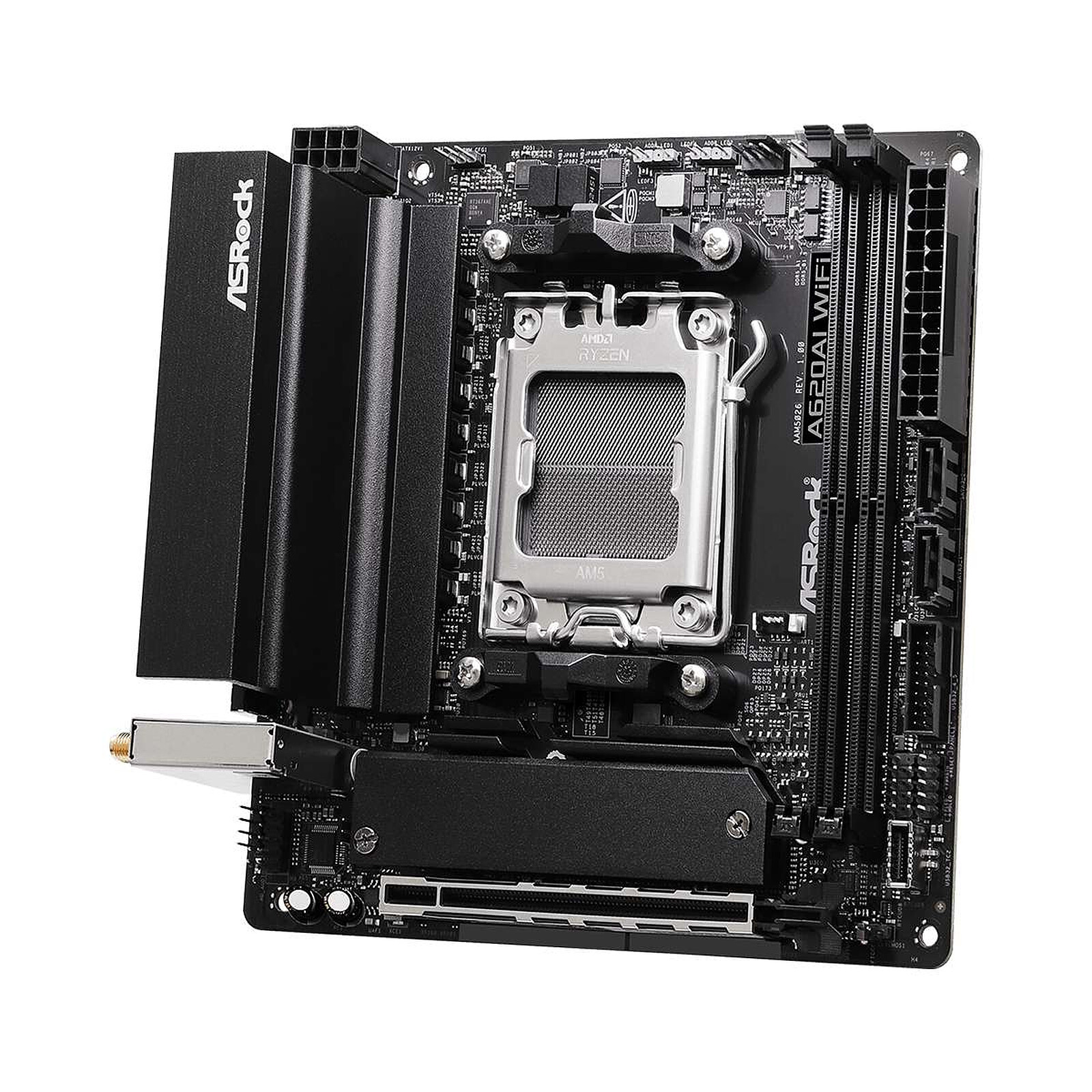

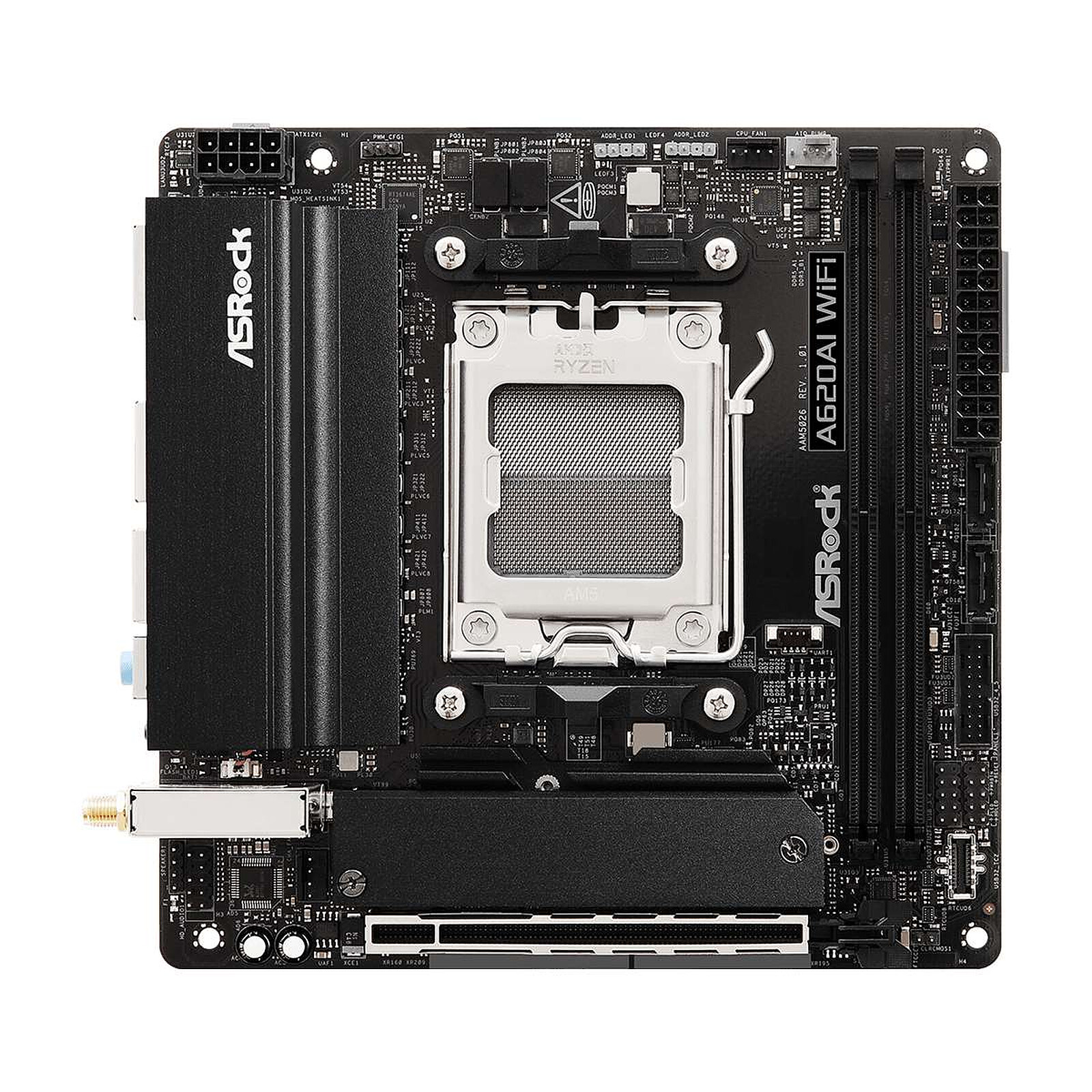

A compact, fully featured AM5 motherboard
The ASRock A620AI WiFi motherboard is designed for home users and professionals looking to build a reliable PC around the AMD AM5 platform. Compatible with AMD Ryzen 9000, 8000 and 7000 processors, it supports DDR5 memory and offers modern connectivity with Wi-Fi 6E, Bluetooth and a USB Type-C port. Its Mini ITX form factor is suitable for both an office setup and an ultra-compact gaming PC.
Power delivery and memory under control
The power delivery circuit features an 8+2+1 phase configuration with Dr.MOS 80A components, allowing you to get the most out of recent Ryzen processors. The high-density power connector supports higher currents than standard CPU and ATX connectors, ensuring system stability during overclocking sessions. The 8-layer PCB ensures clean signals and stable power curves, while reducing temperatures and improving energy efficiency. For memory, the board supports two DDR5 modules in Dual Channel, up to 8200+ MHz (OC), with pre-tested AMD EXPO and Intel XMP profiles for one-click overclocking. An aluminium heatsink covers critical components and keeps temperatures under control, even under sustained workloads.
Connectivity and ease of use
Storage is handled by a Hyper M.2 PCIe Gen4 x4 slot, which doubles throughput compared with a Gen3 SSD, complemented by an Ultra M.2 PCIe Gen3 x4 slot and two SATA3 ports. Network connectivity combines Realtek 2.5G LAN and Gigabit LAN for useful redundancy in professional environments, while Wi-Fi 6E on the 6 GHz band reduces latency and increases wireless throughput. The front panel features a reversible USB 3.2 Gen1 Type-C port, and audio is powered by the Realtek ALC897 7.1 codec with Nahimic technology for immersive sound. Customisation is made possible by POLYCHROME RGB and addressable headers, compatible with SignalRGB. Finally, BIOS Flashback and automatic driver installation simplify setup, while the ASRock Claw Quickset utility makes it easy to deploy local AI models.
Key features:
- Supports AMD Ryzen 9000, 8000 and 7000 processors on the AM5
- socket8+2+1 phase power delivery with Dr.MOS 80A components and high-density power connector
- 8-layer PCB for stable signals and power delivery
- 2 x DDR5 DIMM Dual Channel, up to 8200+ MHz (OC), AMD EXPO and Intel XMP
- profilesHyper M.2 PCIe Gen4 x4 slot and Ultra M.2 PCIe Gen3 x4
- slotWi-Fi 6E 802.11axe, Bluetooth, Realtek 2.5G LAN and Gigabit LAN
- (Dual LAN)Front USB 3.2 Gen1 Type-C port and rear USB 3.2 Gen2 Type-C
- portRealtek ALC897 7.1 audio with Nahimic, addressable POLYCHROME RGB headers and BIOS Flashback
Select your criteria
General information |
Product name |
ASRock A620AI WiFi |
Brand |
ASRock | |
Model |
A620AI WIFI | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD A620 |
Memory |
Memory format |
2 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8200 MHz | |
| DDR5 6800 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 4400 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 7200 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8125BG |
Number of ports/Ethernet controler N°2 |
Integrated - 10/100/1000 Mbps | |
Network standard(s) |
10/100/1000 Mbps | |
| Bluetooth 5.2 | ||
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Wi-Fi 6E | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

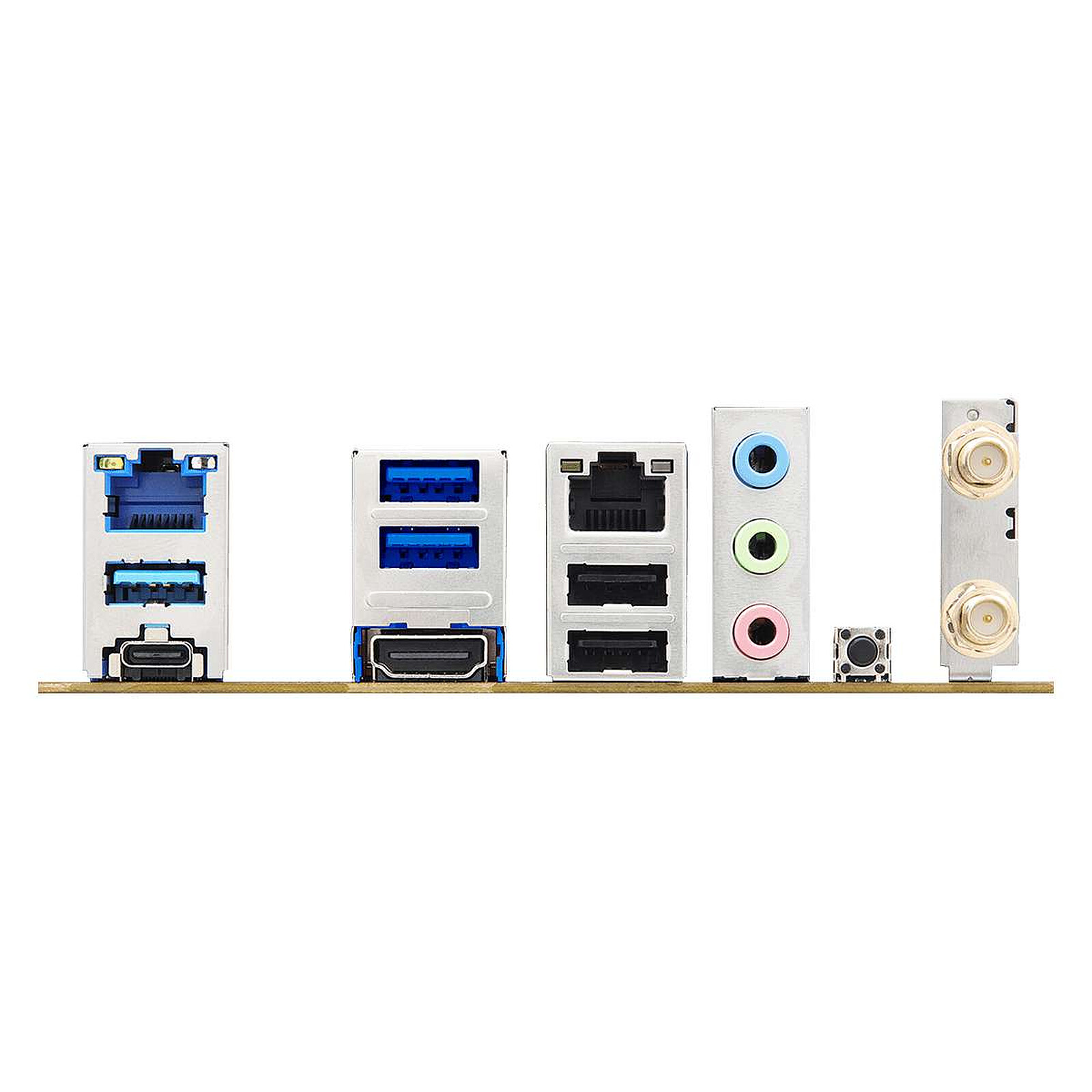

Rear panel connectors |
3 X 3.5mm Jack Female Stereo | |
| 2 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 1 X USB 3.0 | ||
| 1 X HDMI Female | ||
| BIOS Flash Update | ||
| 2 X SMA Female | ||
| 2 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
Additional connectors |
Front panel audio | |
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X +12V (Power supply P8) | ||
| 2 X Addressable LED RGB connector(s) | ||
| 1 X Internal USB 3.0 Type C | ||
Physical characteristics |
Motherboard format |
Mini ITX |
Length |
211 mm | |
Width |
211 mm | |
Colour |
Black | |
Equipment |
Advanced overclocking features |
No |
Use |
Gaming | |
| Office | ||
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
Harmonised legal guarantee notice
|
|
Safety Information |
Responsible person |
ASRock EUROPE B.V. |
Postal address |
Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands | |
Electronic Address |
sales@asrock.nl |
See all ASRock products
