Jonsbo CR-1200E
CPU cooler for Intel and AMD sockets
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

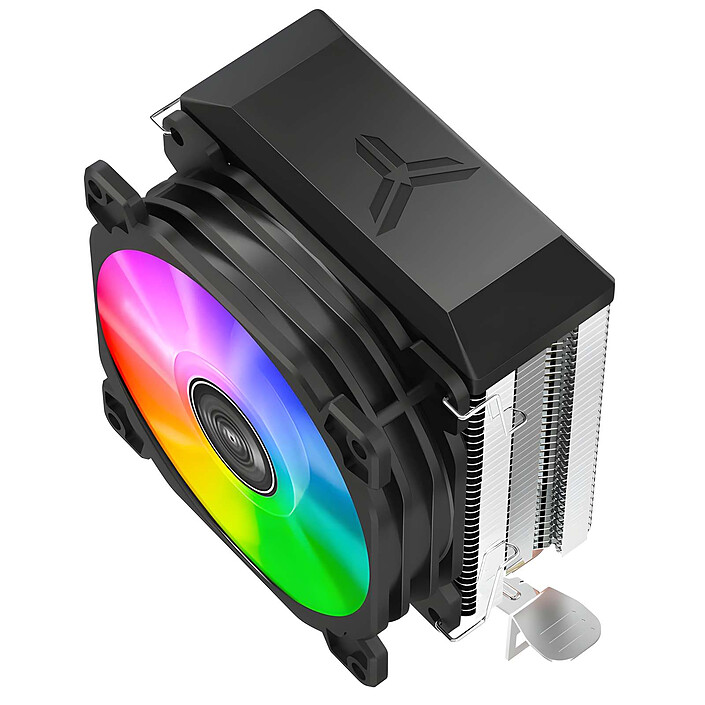

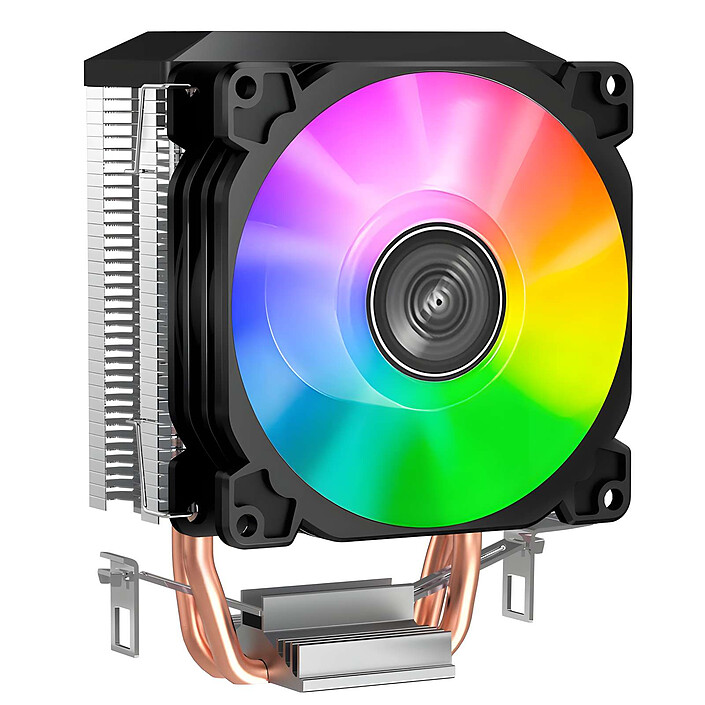

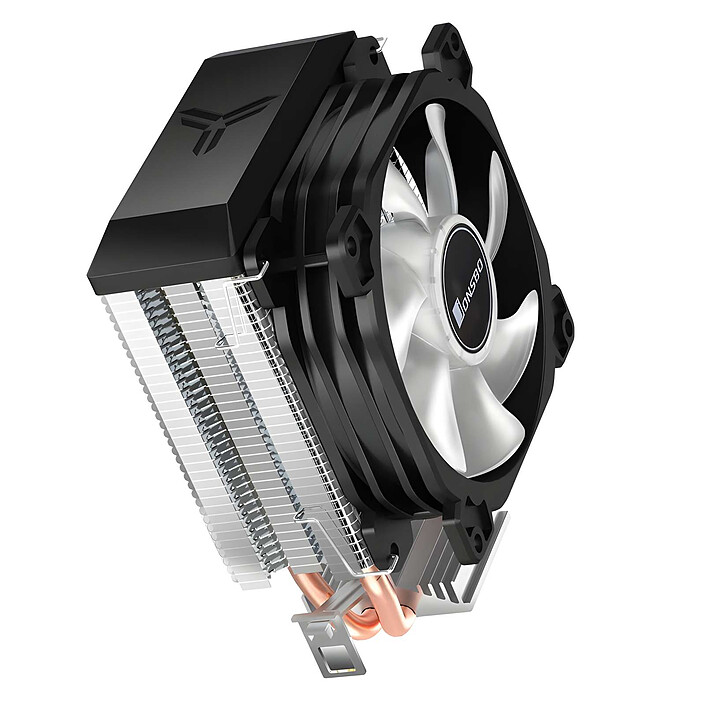

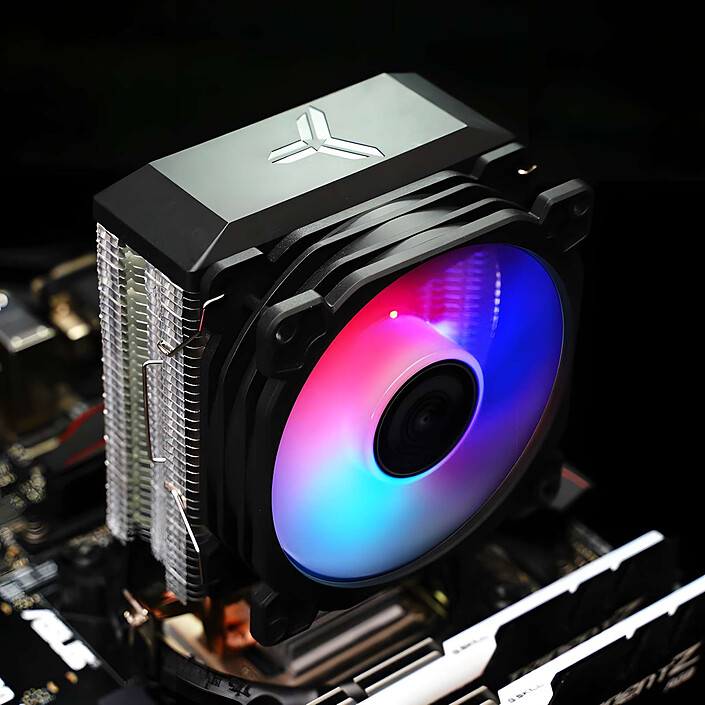

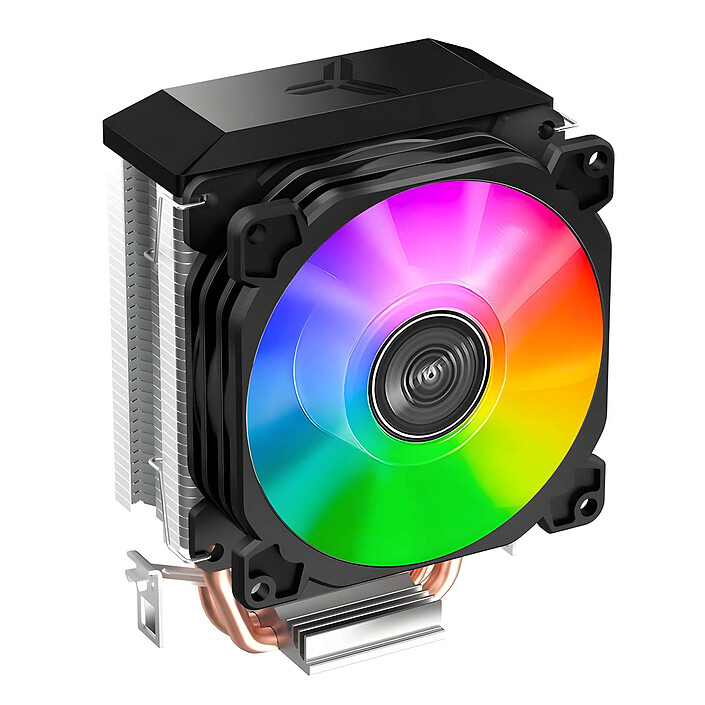

A compact CPU cooler for Intel and AMD processors
The Jonsbo CR-1200E is a CPU cooler designed for Intel and AMD platforms. Its 128 mm height and its 350 g weight provide a compact and efficient cooling solution. It consists of an aluminium heatsink, two copper heat pipes and a 92 mm fan. It supports processors up to a maximum TDP of 95W.
The cooling system is based on 2 heat pipes and a 92 × 92 × 25 mm fan. It operates at a speed of 2000 rpm and delivers an airflow of 36 CFM. The maximum noise level is 26.5 dB(A). Powered at 12 V, the fan uses a 3-pin connector. The overall dimensions are 93 mm in length, 67 mm in width and 128 mm in height.
The Jonsbo CR-1200E supports several generations of desktop processor sockets. On the Intel side, it is compatible with the LGA 115X, LGA 1200, LGA 1700 and LGA 1851 platforms. For AMD configurations, it supports AM4 and AM5 sockets. This compatibility allows the cooler to be used with various platforms, both when building a new PC and as part of a compatible existing configuration.
Key features:
- 92 × 92 × 25 mm fan
- Rotation speed: 2000 rpm (±10%)
- Airflow: 36 CFM
- Maximum noise level: = 26.5 dB(A)
- Maximum CPU TDP: 95 W
- 12 V power supply with a 3-pin connector
- Compatibility: Intel LGA 115X / 1200 / 1700 / 1851 and AMD AM4 / AM5
- Weight: 350 g
Select your criteria
General information |
Product name |
Jonsbo CR-1200E |
Brand |
Jonsbo | |
Model |
6970620551487 | |
Technical specifications |
Use |
Processor |
Color |
Black | |
| Silver | ||
Luminous |
Yes | |
LED color |
Multicolored | |
Connector(s) |
3-pin Female | |
Integrated display |
No | |
Ball bearing |
Yes | |
PWM |
No | |
Heat Pipe |
Yes | |
Cooling type |
Ventirad (active) | |
Top Flow |
No | |
Dual tower |
No | |
Max CPU TDP |
95 W | |
Fan diameter |
92 mm | |
Max sound level |
26.5 dB | |
Maximum rotation speed |
2000 RPM | |
Max airflow |
36 CFM | |
Material(s) |
Aluminum | |
| Copper | ||
Use |
Office | |
| Multimedia | ||
AIO radiator compatibility |
N/A | |
Dimensions |
Low profile |
No |
Height (fan included) |
128 mm | |
Width (fan included) |
93 mm | |
Depth (fan included) |
67 mm | |
Weight |
350 g | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
Harmonised legal guarantee notice
|
|
Safety Information |
Responsible person |
Caseking GmbH |
Postal address |
Logistikcenter Gaußstraße 1 10589 Berlin, Allemagne (UE) | |
Electronic Address |
info@caseking.de |
