Gigabyte B760M H V2
Micro-ATX Socket 1700 Intel B760 Express Motherboard - 2x DDR5 - M.2 PCIe 4.0 - USB 3.0 - PCI-Express 4.0 16x
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

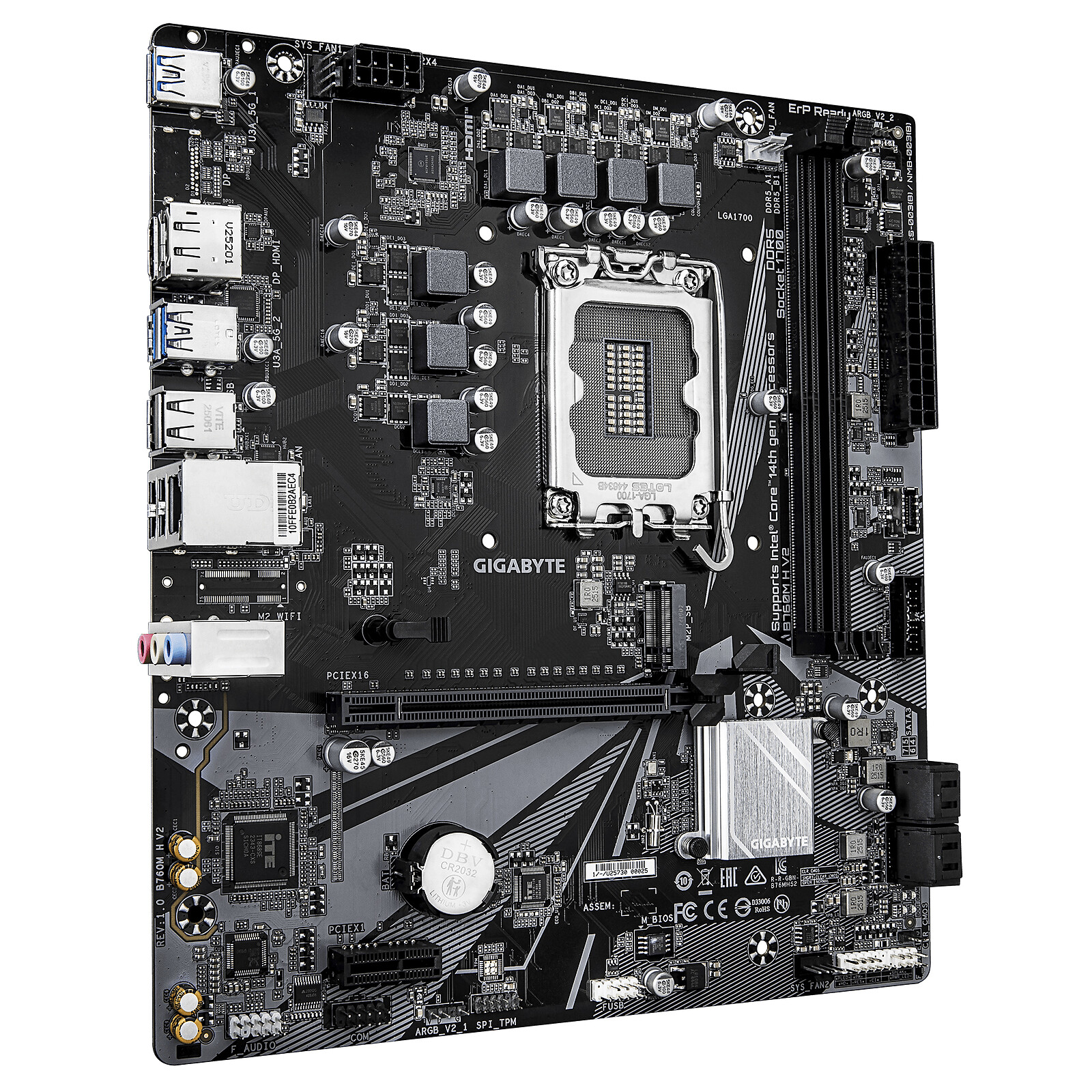

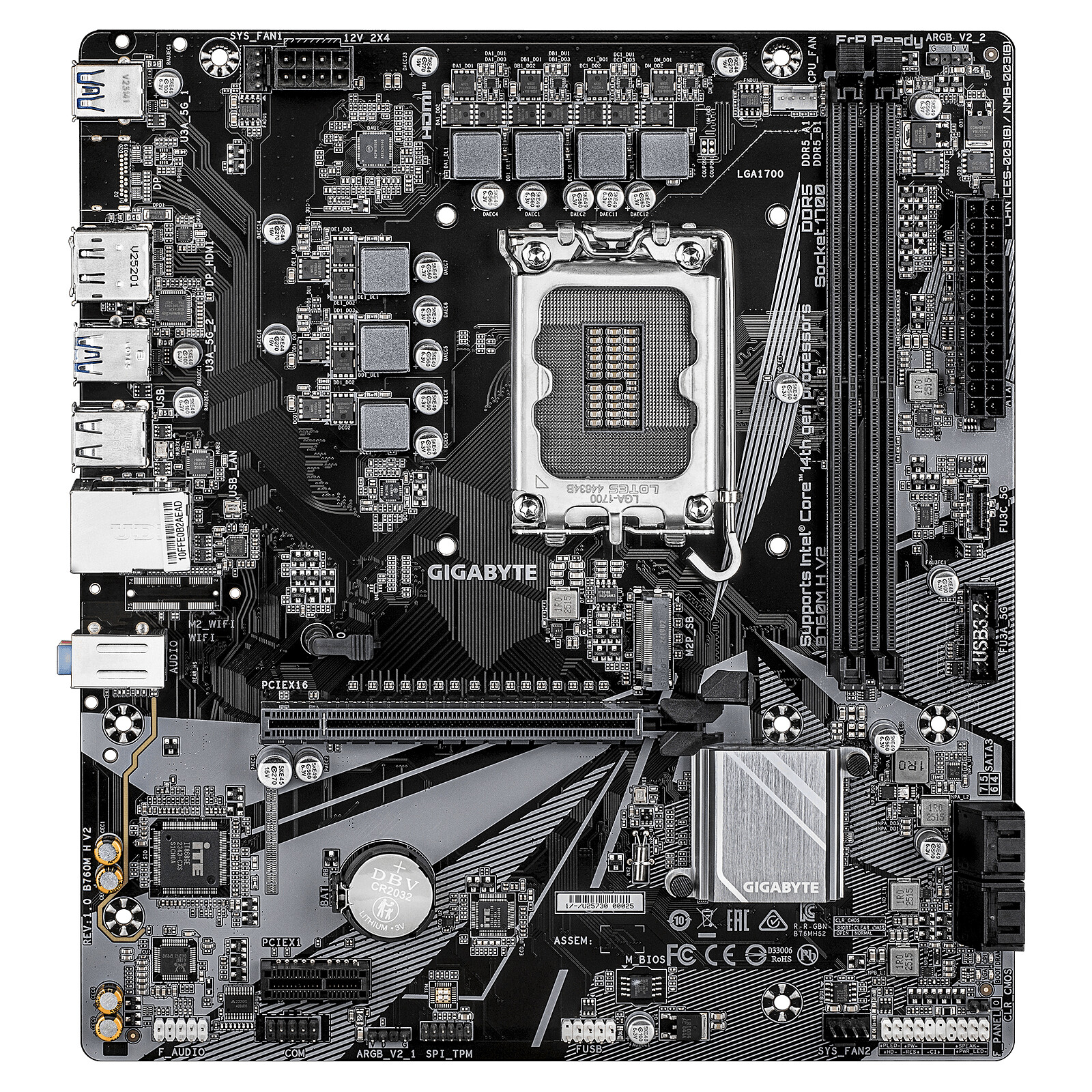

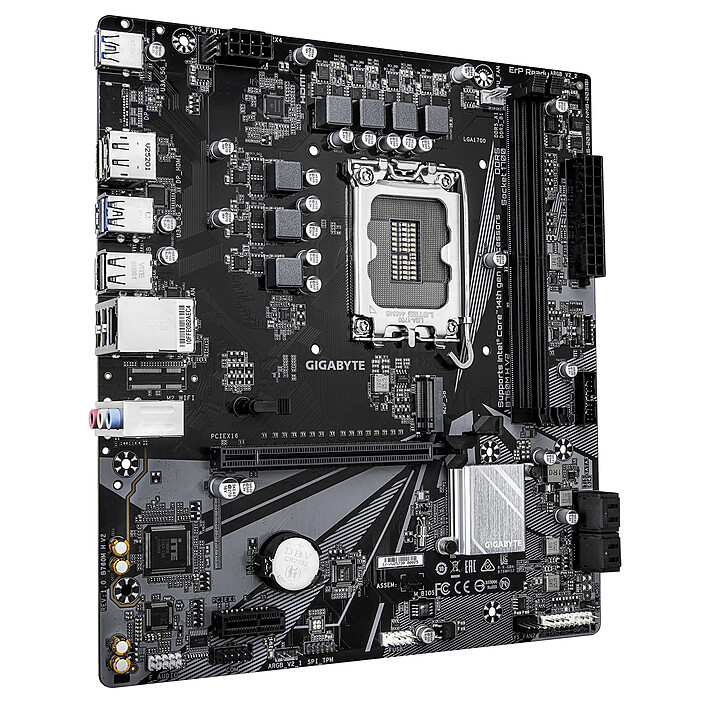

Gigabyte B760M H V2 micro-ATX motherboard
The Gigabyte B760M H V2 motherboard, designed for 12th, 13th and 14th generation Intel Core hybrid processors, is ideal for building a powerful configuration at a reasonable cost. It supports 12th, 13th and 14th generation Intel Core processors, PCI-Express 4.0 16x graphics cards, M.2 PCIe 4.0 SSDs, DDR5 RAM and USB 3.0 and USB 3.1 peripherals.
Gigabyte B760M H V2
- Supports 12th, 13th and 14th generation Intel Core processors on LGA 1700 socket
- Support for 8000 MHz DDR5 memory
- 5+1+1 Phase Digital VRM Solution
- 1 M.2 PCIe 4.0 4x slot + 4 SATA 6 Gbps ports
- PCI-Express 4.0 16x port
- 10/100/1000 Mbps LAN
- Q-Flash Plus: BIOS update without installing a processor, memory or graphics card
All the power of Intel processors
Achieve high performance in games thanks to high frequencies. Take on your opponents with confidence or explore new worlds thanks to a revolutionary processor architecture that focuses on the essentials. The 12th/13th/14th generation Intel processors are simply designed for the new generation of video games.
Select your criteria
General information |
Product name |
Gigabyte B760M H V2 |
Brand |
Gigabyte | |
Model |
B760M H V2 | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B760 Express |
Memory |
Memory format |
2 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 4000 MHz | |
| DDR5 5400 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 4400 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7400 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 4800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Realtek 2.5 GbE |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
1 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

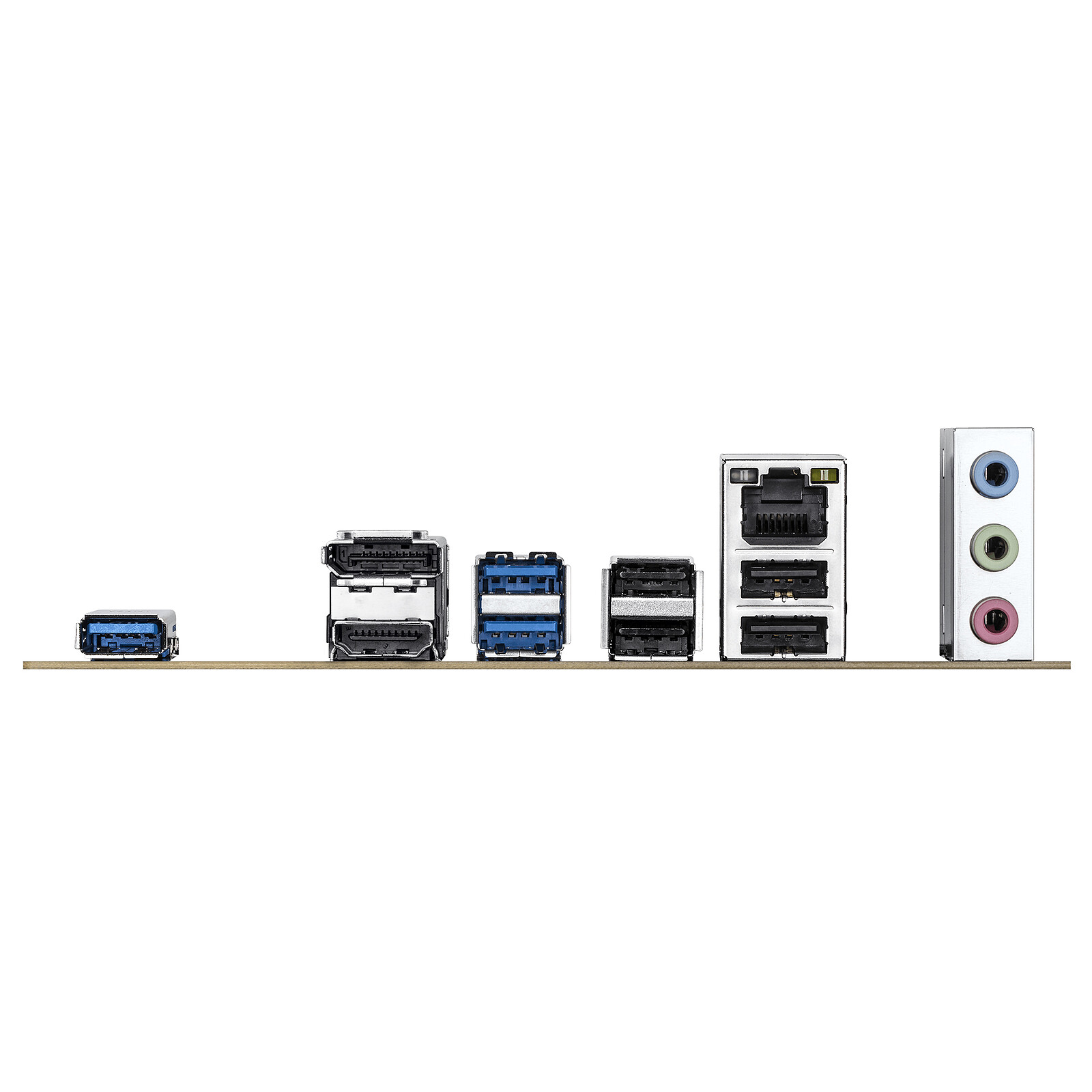

Rear panel connectors |
3 X USB 3.0 | |
| 1 X HDMI Female | ||
| 1 X DisplayPort Female | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
Front panel audio | |
| 2 X Addressable LED RGB connector(s) | ||
| 2 X Internal USB 3.0 | ||
| 2 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 1 X +12V (Power supply P8) | ||
| 1 X Internal USB 3.0 Type C | ||
| 1 X Serial (RS-232) | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
220 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
See all Gigabyte products
Product referenced on 13 Feb 2026
