Pictures may differ from actual products
Jonsbo T9 Black
Mini Tower Case
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Premium design mini tower case
The Jonsbo T9 case is an ultra-compact Mini-ITX solution designed for demanding PC enthusiasts who want to combine refined design, high-end materials and true hardware compatibility in a minimal footprint. Designed to accommodate a powerful configuration without clutter, the T9 imposes its minimalist style with a robust structure and ergonomics designed to facilitate every step of the assembly process.

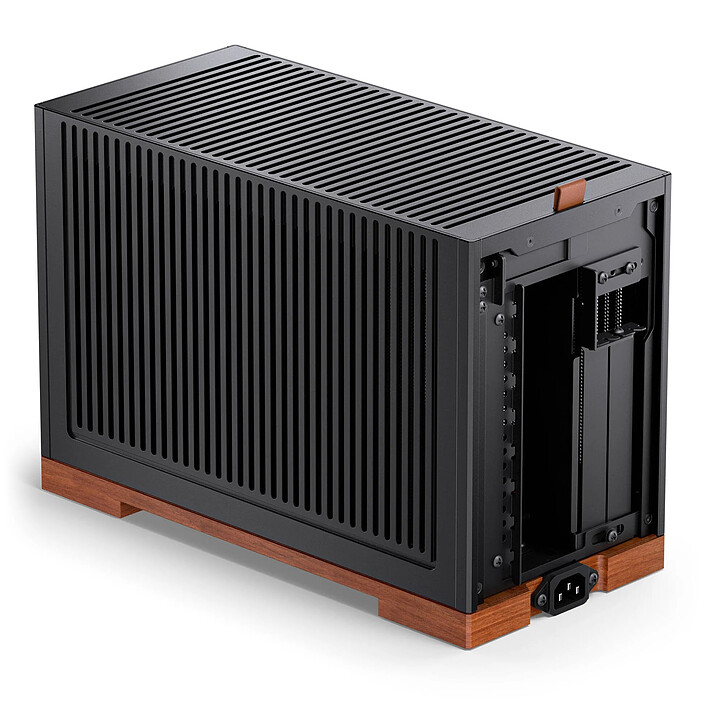

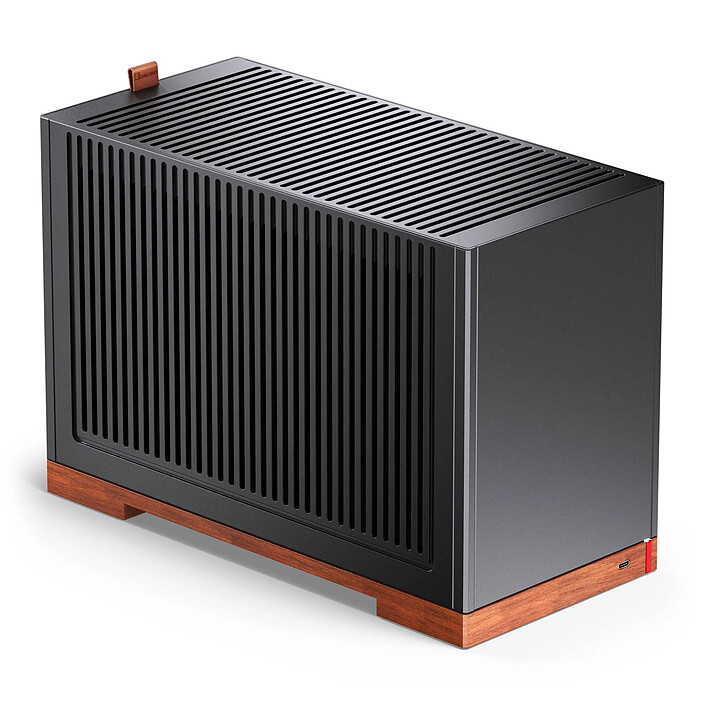

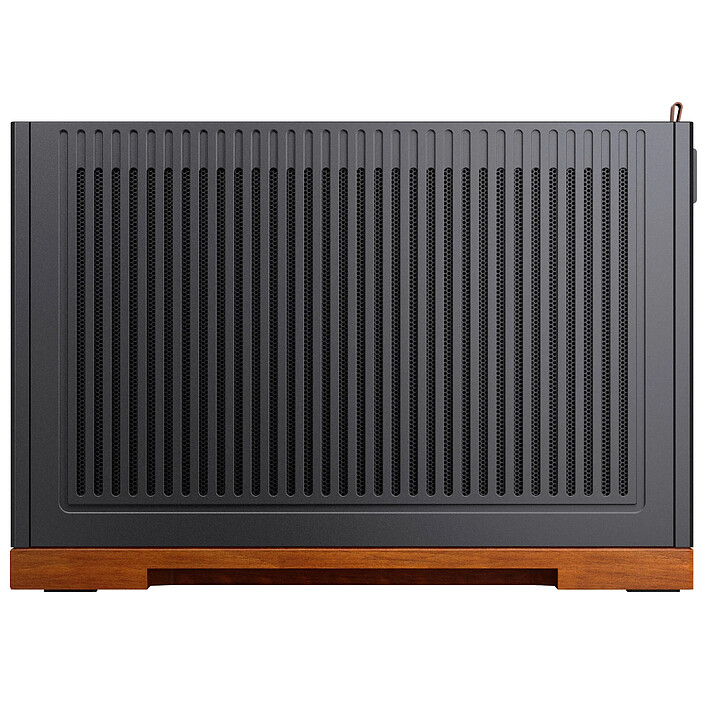

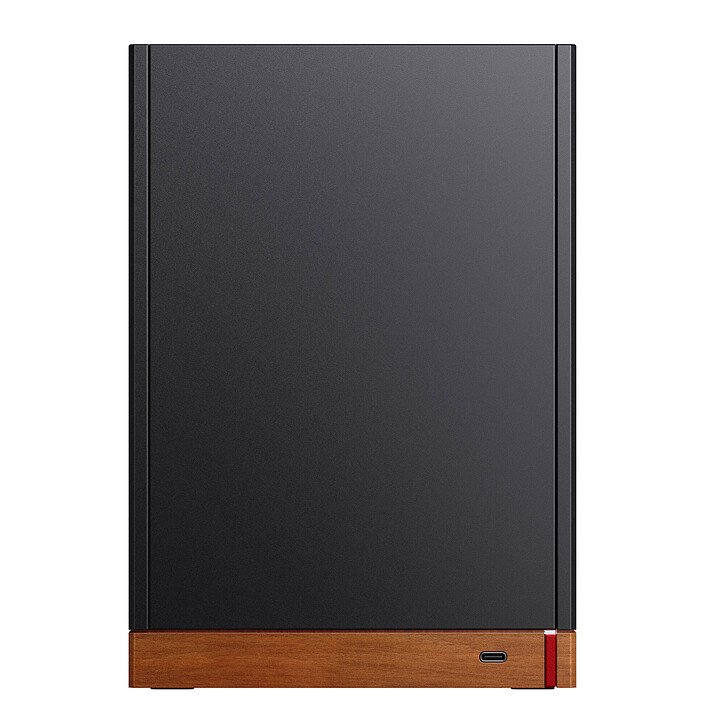

The Jonsbo T9 immediately impresses with its premium construction: 4 mm thick aluminium alloy panels, steel reinforcements and a base made of fine wood (walnut), giving the whole unit a unique, elegant and durable aesthetic. Despite its ultra-compact dimensions (155 x 325 x 224 mm) and featherweight 3.85 kg, it offers surprising compatibility with modern components: support for Mini-ITX motherboards, SFX power supplies up to 100 mm, and graphics cards up to 310 mm in length (with riser cable included), allowing powerful GPUs to be housed in a small form factor. Designed for neat assembly, it also features flexible storage slots (2.5" SSD and 3.5" HDD), modern connectivity with a USB-C port on the front, and optimised ventilation options via a 120 mm fan slot. Every detail of the T9 is designed to offer a high-performance, aesthetic experience that is perfectly suited to compact configurations.
Advantages of the Jonsbo T9 case
- Mini Tower case 224 x 325 x 155 mm (Volume: 11L)
- Compatible with Mini ITX motherboards
- Chassis material: 0.4 mm aluminium
- Drive bays: 1x 2.5" + 1x 2.5"/3.5"
- Fan slots: 1x 120 mm on top
- Compatible with graphics cards up to 202-310 mm
- Front connectors: 1x USB-C 3.0
Select your criteria
General information |
Product name |
Jonsbo T9 Black |
Brand |
Jonsbo | |
Model |
T9 BLACK | |
Main characteristics |
Graphic card max. length |
310 mm |
Max height CPU fan |
78 mm | |
Power supply max. length |
100 mm | |
Power format |
SFX | |
Case format |
Mini tower | |
Use |
Office | |
| Gamer | ||
Material |
Steel | |
Motherboard format |
Mini ITX | |
Power supply supplied |
No | |
Design |
Case color |
Black |
Front color |
Black | |
Integrated display |
No | |
Mesh front |
No | |
Glass |
No | |
Tempered glass |
No | |
Fish tank (panoramic view) |
No | |
LED RGB |
No | |
ARGB LED |
No | |
Water cooling compatible |
No | |
Motherboard connector location |
Standard connectors (on the motherboard) | |
Expansion slots |
Number of PCI slots |
2 |
Low profile |
No | |
Number of 2.5" slots |
1 | |
Number of 2.5"/3.5" slots |
1 | |
Front connectivity |
Location of expansion ports |
Front |
Connector(s) available |
1 X USB 3.0 Type C | |
Cooling |
Fan(s) included |
No |
Number of above fan(s) slots |
1 X 120mm | |
Quantity of above fan(s) supplied |
1 | |
Quantity of underneath fan(s) supplied |
0 | |
Water cooling |
AIO radiator compatibility |
N/A |
Front AIO slot(s) |
N/A | |
Above AIO slot(s) |
N/A | |
Rear AIO slot(s) |
N/A | |
Physical characteristics |
Width |
155 mm |
Height |
224 mm | |
Depth |
325 mm | |
Weight |
3.85 kg | |
Volume |
11 l | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Caseking GmbH |
Postal address |
Logistikcenter Gaußstraße 1 10589 Berlin, Allemagne (UE) | |
Electronic Address |
info@caseking.de |
See all Jonsbo products
Product referenced on 3 Feb 2026
