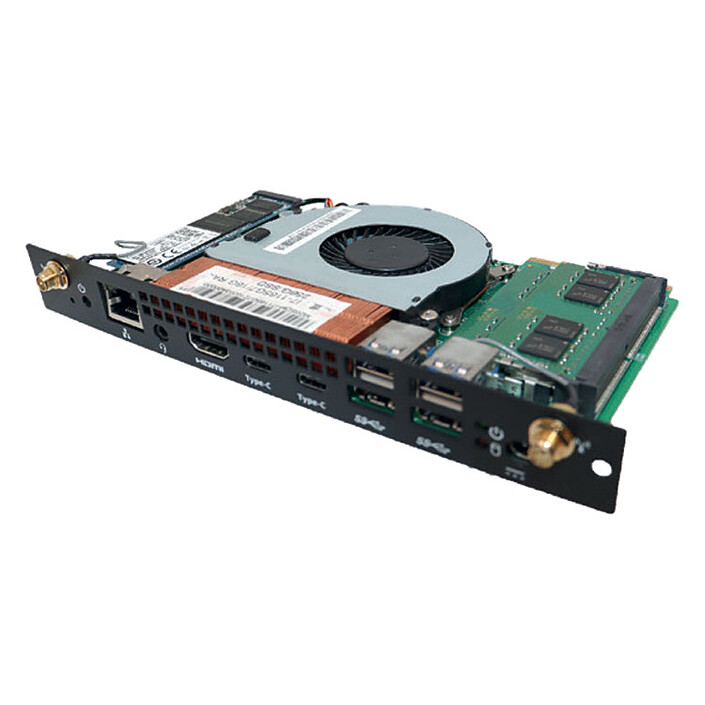

Newline SDM-L (WB7SXI20J)
Newline Flex Display PC Module - Intel Core i7-1165G7 - 16 GB - 256 GB SSD - Gigabit Ethernet - Wi-Fi AC/Bluetooth - USB-C - USB 3.0 Hub
Last price 1 399€94
Holy Moly!
Equivalent products suggestions:
Overview
Newline
Add a standalone solution to your display
The Newline SDM-L embedded computer (WB7SXI20J) adds to your Newline Flex display to give it superior performance! This module features an Intel Core i7 processor with 16GB of RAM, a 256GB M.2 SSD and efficient networking features (Gigabit Ethernet, Wi-Fi and Bluetooth). A Windows 10 Pro license is installed and active to give you an optimal working environment.
Main features:
- PC slot for Newline Flex display
- Intel Core i7-1165G7 processor (Quad Core, 1.2/2.8 GHz, 4.7 GHz Turbo, 8 Threads, 12 MB Cache)
- 2 x 8 GB DDR4 2133 MHz RAM (2 slots - 32 GB maximum)
- 256 GB M.2 SSD
- Network: Gigabit Ethernet, Wi-Fi AC, Bluetooth 5.0
- Connectors: 4x USB 3.0, 2x USB-C 3.1, 1x HDMI 2.0, microphone input (3.5 mm jack), line output (3.5 mm jack)
- TPM 2.0 compatible
- Windows 10 Pro license included
Specifications
Select your criteria
General information |
Product name |
Newline SDM-L (WB7SXI20J) |
Brand |
Newline | |
Model |
WB7SXI20J | |
System |
Processor |
Intel Core i7 |
Capacity |
16 GB | |
Memory type |
DDR4 | |
Hard drive format |
M.2 | |
Hard drive |
SSD 256GB | |
Number of discs |
1 | |
Max number of discs |
1 | |
Display |
Graphics chipset |
Intel Iris Xe Graphics |
Connectivity |
Rear panel connectors |
1 X Line OUT (3.5mm Jack Female) |
| 1 X Microphone (3.5mm Jack Female) | ||
| 1 X Gigabit Ethernet - RJ45 Female | ||
| 4 X USB 3.0 | ||
| 2 X USB Type C Female | ||
| 1 X HDMI 2.0 Female | ||
Communication |
Integrated network controller |
Yes |
Network connector(s) |
1 X RJ45 Female | |
Network standard(s) |
10/100/1000 Mbps | |
Wireless network standard(s) |
Bluetooth 5.0 | |
| Wi-Fi AC | ||
Physical characteristics |
Width |
175 mm |
Height |
25 mm | |
Depth |
110 mm | |
Weight |
0.3 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Newline products
Product referenced on 9 Nov 2022
