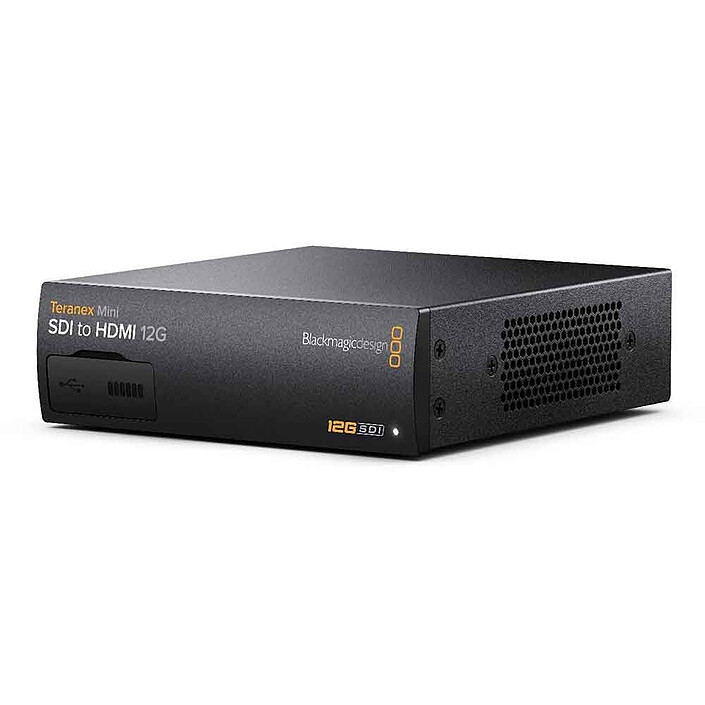

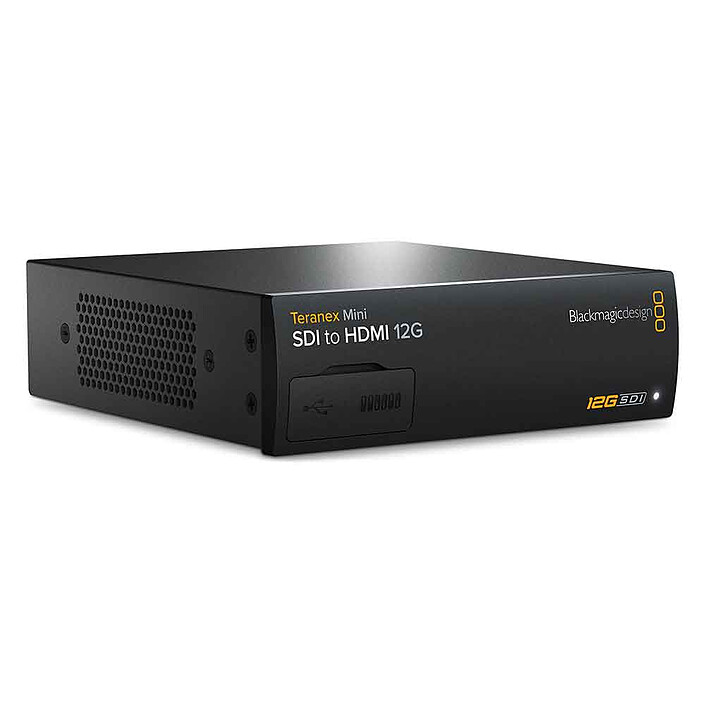

Blackmagic Design Teranex Mini SDI to HDMI 12G
Mini SD, HD and Ultra HD standards converter
Pictures may differ from actual products
Introducing the Teranex Mini SDI to HDMI 12G featuring award-winning Teranex quality and support for SD, HD and Ultra HD up to 2160p60! This Teranex Mini features a continuous power supply, professional analogue XLR and AES/EBU connections and an Ethernet port...
Mini SD, HD and Ultra HD standards converter
The mini converter with state-of-the-art technology and features!
Introducing the Teranex Mini SDI to HDMI 12G with award-winning Teranex quality and support for SD, HD and Ultra HD up to 2160p60! This Teranex Mini has a built-in DC power supply, professional XLR and AES/EBU connections and an Ethernet port for remote control and PoE. With the Teranex Mini, you get all the features of a classic converter plus a host of new and innovative features.
The Reinvention of the Mini Converter
This new Teranex Mini converter is easy to install in video systems and supports all types of equipment. The Teranex Mini is the ideal solution for broadcast installations as it can be rack mounted and the optional front panel display allows viewing of the video being converted. It can also be remotely controlled via Ethernet. It also features professional XLR connections to connect your unit to mixing consoles or other audio equipment!
Thanks to the Instant Lock function, the image is displayed without interruption on the screen because this function sends a continuously active HDMI signal, even when the SDI signal is disconnected. If an SDI input in the same format as the previous signal is reconnected, the signal is instantly synchronised, so you can connect a Teranex Mini SDI to HDMI 12G to the output of the switcher grid for virtually invisible switching.
Unlike conventional converters, the Teranex Mini can be fitted with a separately sold LCD display. The optional Teranex Mini Smart Panel allows the video fed to the converter to be viewed using this integrated LCD display.
12G-SDI technology for SD, HD and Ultra HD, amazingly fast!
The Teranex Mini converter features state-of-the-art 12G-SDI multi-rate technology, which is eight times faster than conventional HD-SDI. The 12G-SDI multi-rate interface automatically detects and switches between SD, HD and Ultra HD, so you can connect Teranex Mini to all your existing SD and HD equipment. The 12G-SDI supports high frame rate Ultra HD formats up to 2160p60 using a single BNC cable.

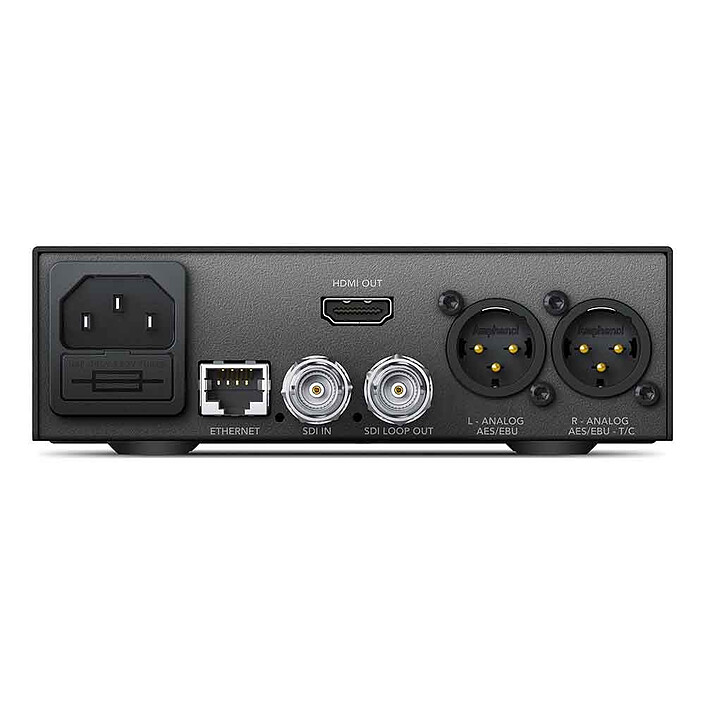

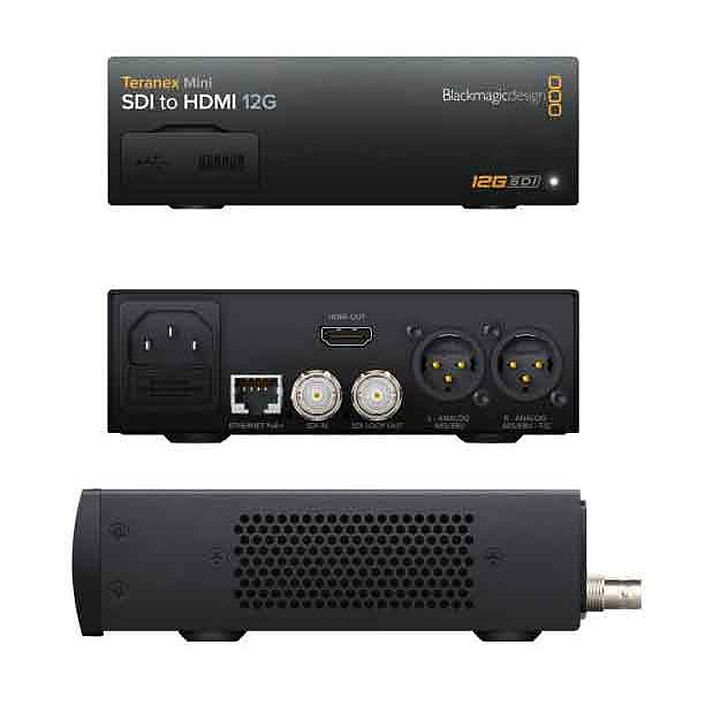

This Teranex Mini converter features professional-grade connectors, including professional XLR connections and high-speed BNC connectors that support the high bandwidth of 12G-SDI. It also includes a 90V-240V multivolt DC power supply and an IEC-compliant power connector compatible with standard cables. The integrated Ethernet port allows the converter to be remotely controlled and powered by the PoE switch.
Finally, the Teranex Mini SDI to HDMI includes a 33-point 3D scan table to provide highly accurate colour conversion.
Main features:
- Mini SD, HD and Ultra HD standards converter
- HDMI video outputs: 1 x HDMI 2.0 Type A connector with support for 2160p60 resolution.
- Analogue audio outputs: 2 channels of professional analogue balanced audio via XLR connectors. The right XLR connector can be configured to carry timecode.
- AES/EBU audio outputs: 4 channels of 110Ω professional balanced digital audio via XLR connectors. The right XLR connector can be configured to carry timecode.
- Integrated audio support: 8 channels
- Multiple data rate support: 270MB, 1.5G, 3G, 6G and 12G.
- Updates and configuration: USB or Ethernet
- Resynchronisation
- SDI input video standards: SD / HD / 2K / Ultra HD / 4K video
- SDI standards compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
- SDI video sampling: 4:2:2 and 4:4:4
- SDI audio sampling: 48 kHz and 24-bit TV standards sampling rate.
- SDI colour accuracy: 4:2:2 and 4:4:4
- SDI colour space: YUV and RGB. 33-point LUTs can be loaded via the Teranex utility.
- SD format support: 525i59.94 NTSC, 625i50 PAL
- HDMI output video standards: SD / HD / Ultra HD / 4K
- HDMI colour space: REC 601, REC 709
- HDMI colour accuracy: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
- Power supply: 1 x built-in universal AC power supply with IEC C14 input. IEC cable required. AC input 100 - 240V.
- Power Over Ethernet: Can be powered via DC 48V using PoE+ (Power over Ethernet).
- Power consumption: 16 Watts
- Operational voltage range AC 100 - 240V
- SD, HD and Ultra HD standards converters
- SDI video inputs: 1 x 12G-SDI automatic switchable between SD/HD/2K/4K.
- SDI video outputs: 1 x 12G-SDI loop-through output.
- Dimensions: 140 x 170 x 44 mm
- Weight: 580 g
- Manufacturer's warranty: 3 years
- Teranex Mini SDI to HDMI 12G
- Welcome pack with QR code to download the software
Select your criteria
General information |
Product name |
Blackmagic Design Teranex Mini SDI to HDMI 12G |
Brand |
Blackmagic Design | |
Model |
CONVNTRM/AA/SDIH | |
Technical specifications |
Accessory type |
Deck / Controller |
Compatibility |
Mac OS X | |
| Microsoft Windows 10 | ||
Length |
140 cm | |
Width |
170 cm | |
Height |
44 cm | |
Weight |
580 g | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 28 Jun 2022
For the moment, there are no customer reviews.Write a review
