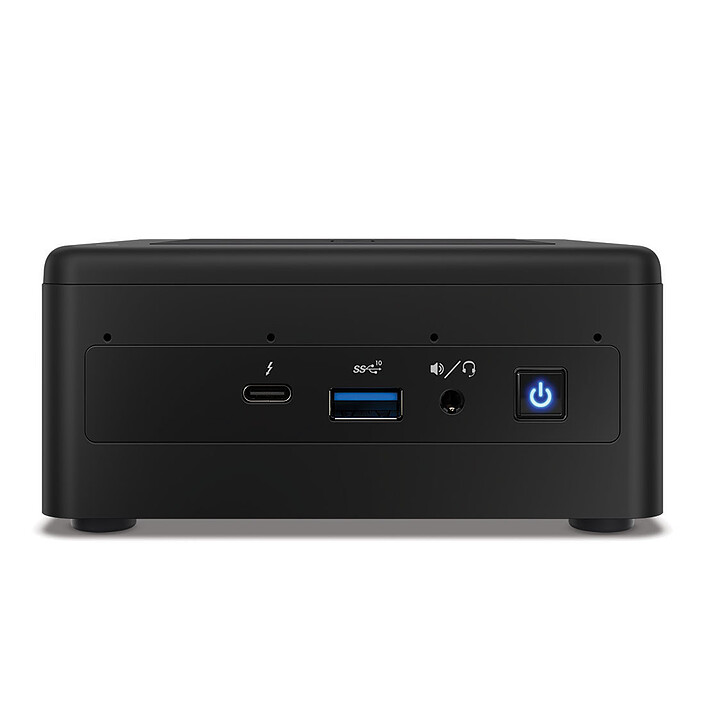

Intel NUC NUC11PAHi5
Intel Core i5-1135G7 Intel Iris Xe Graphics Wi-Fi 6 AX/Bluetooth - LAN 2.5 GbE + M.2 PCIe and SATA 2.5" slots (without display/memory/hard drive/system)
Last price 599€95
All the power of a standard PC in the palm of your hand
TheIntel NUC NUC11PAHi5 is a barebone in mini PC format that offers an 11th generation Intel Core i5 processor with 4 cores. Thanks to its rich connectivity (Thunderbolt 3, USB 3.1, Wi-Fi 6 AX) and the addition of DDR4 3200 MHz RAM (SO-DIMM format) as well as a PCIe 4.0 x4 M.2 SSD, you can enjoy a complete and responsive PC in a small format.
Intel Core performance
Thanks to its 11th generation Intel Core processor, the Intel NUC offers both outstanding performance and low power consumption. The 11th generation Intel Core processors are packed with advanced features to improve productivity and entertainment quality. With an M.2 PCIe SSD slot and two RAM slots (up to 64GB), this NUC will deliver smooth and fast operation.
Uncompromisingly compact
The Intel Panther Canyon NUC offers a compact form factor that allows it to be installed in many different environments.Its small size does not prevent it from being efficient for office and multimedia use thanks to its Intel Core i7 processor and its numerous connectivity possibilities: USB 3.1 10 Gbit/s, Thunderbolt 3, Wi-Fi 6 AX, LAN 2.5 GbE... nothing is missing.
Select your criteria
General information |
Product name |
Intel NUC NUC11PAHi5 |
Brand |
Intel | |
Model |
RNUC11PAHI50000 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i5 | |
CPU frequency |
2.4 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel Iris Xe Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 |
| 1 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel i225-V |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wireless network standard(s) |
Wi-Fi 6 AX | |
| Bluetooth | ||
Connectivity |
Front panel connectors |
SD (Secure Digital) |
| SDHC | ||
| 1 X 3.5mm Jack Female Stereo | ||
| SDXC | ||
| 1 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
Rear panel connectors |
1 X RJ45 Female | |
| 2 X USB 3.1 | ||
| 2 X Thunderbolt 3 | ||
| 1 X USB 3.1 Type C | ||
Case |
Number of 2.5" slots |
1 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Compatibility |
Supported OS |
Windows 10 Pro 64-bit |
| Windows 10 Home 64-bit | ||
Max CPU TDP |
28 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
117 mm | |
Height |
51 mm | |
Depth |
112 mm | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all Intel products
