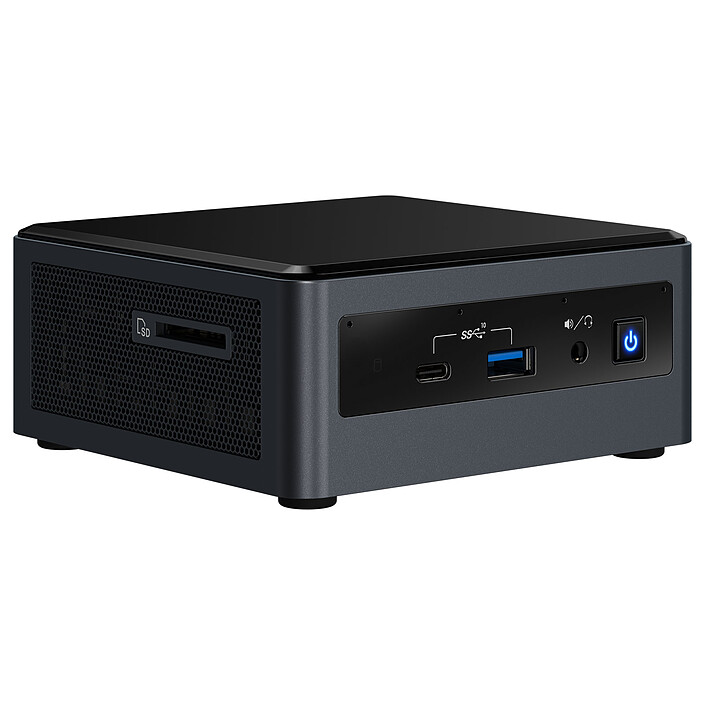

TheIntel NUC10I7FNH2 is a barebone in mini PC format that offers a 10th generation Intel Core i7 processor with 6 cores. Thanks to its rich connectivity (Thunderbolt 3, HDMI 2.0, USB 3.1, Wi-Fi 6 AX) and the addition of DDR4 2666 MHz RAM (SO-DIMM format) as well as a PCIe 3.0 x4 M.2 SSD, you can enjoy a complete and reactive PC in a reduced format.
Thanks to its Intel Comet Lake processor, the NUC10 Frost Canyon offers both outstanding performance and low power consumption. The 10th generation Intel Core processors are packed with advanced features to enhance productivity and entertainment quality. With an M.2 PCIe SSD slot and two RAM slots (up to 64GB), this NUC will deliver smooth and fast operation.
The Intel Frost Canyon NUC offers a compact form factor that allows it to be installed in many different environments. Its small size does not prevent it from being efficient for office and multimedia use thanks to its Intel Core i7-10710U processor and its numerous connectivity options: USB 3.1 10 Gbit/s, Thunderbolt 3, HDMI 2.0, Wi-Fi 6 AX... nothing is missing.
Select your criteria
General information |
Product name |
Intel NUC NUC10I7FNH |
Brand |
Intel | |
Model |
BXNUC10I7FNH | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i7 | |
CPU frequency |
1.6 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2666 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel UHD Graphics | |
Video memory size |
4 GB | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X Serial ATA 6Gb/s (SATA Revision 3) |
| 1 X M.2 - PCI-E 3.0 x4 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Intel I219-V |
Network standard(s) |
10/100/1000 Mbps | |
Wireless network standard(s) |
Bluetooth | |
| Wi-Fi 6 AX | ||
Connectivity |

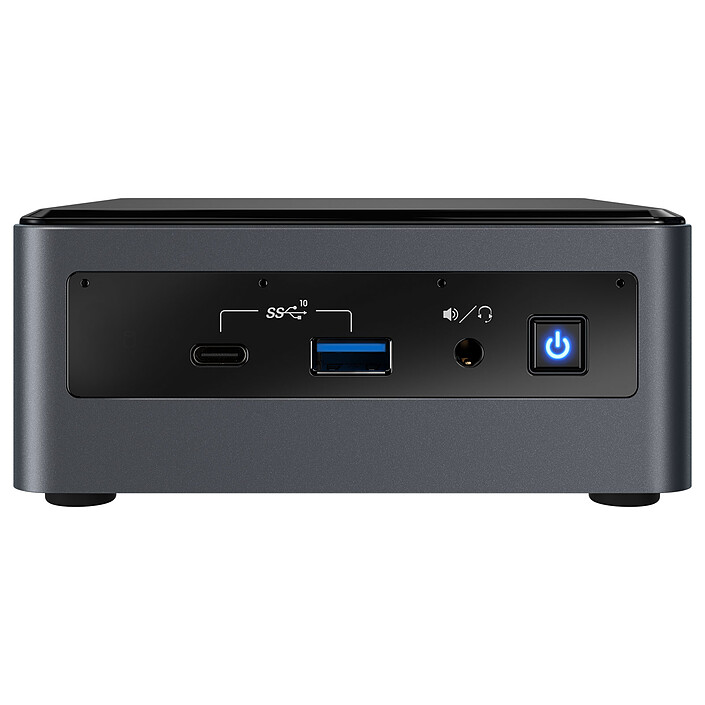

Front panel connectors |
1 X 3.5mm Jack Female Stereo |
| 1 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| SD (Secure Digital) | ||
| SDHC | ||
| SDXC | ||

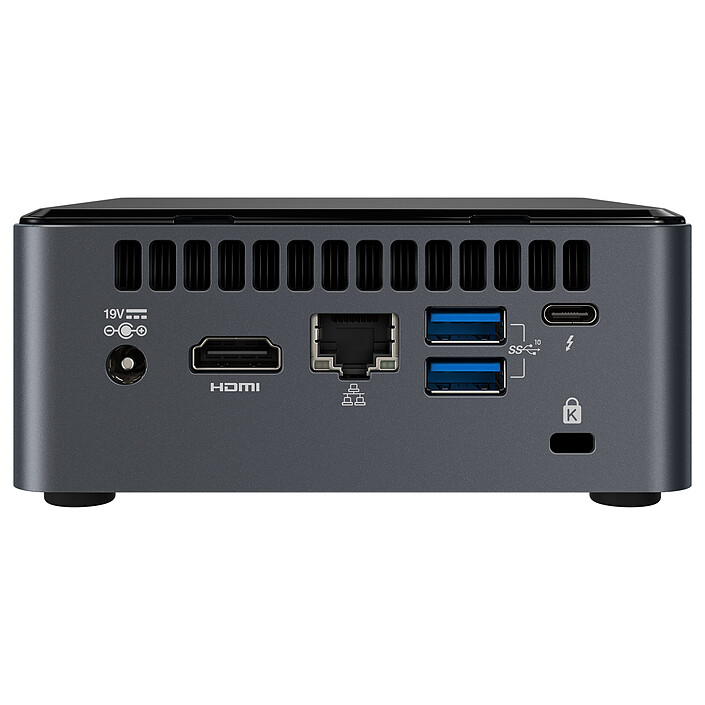

Rear panel connectors |
1 X Gigabit Ethernet - RJ45 Female | |
| 2 X USB 3.1 | ||
| 1 X Thunderbolt 3/USB-C | ||
| 1 X HDMI 2.0 Female | ||
Case |
Number of 2.5" slots |
1 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Power |
230 W | |
Compatibility |
Supported OS |
Windows 10 Pro 64-bit |
| Windows 10 Home 64-bit | ||
Max CPU TDP |
25 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
117 mm | |
Height |
51 mm | |
Depth |
112 mm | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
