ZOTAC ZBOX edge MI623
Intel Core i3-10110U Intel UHD Graphics USB 3.1 Wi-Fi AC / Bluetooth (no notch/memory/hard drive)
Last price 479€95
Holy Moly!
Overview
ZOTAC
ZOTAC ZBOX edge MI623: a Mini-PC that fits your image!
The ZOTAC ZBOX edge MI623 has it all: compact, attractive and powerful. It's a barebone that will satisfy you and allow you to design your Mini-PC for multimedia entertainment, Internet and everyday applications. Whether you want to install it in your living room or in your bedroom, discretion will always be the order of the day thanks to its small size, its silence and its sober and elegant design. Choose the MI623 mini PC for compactness and performance! This is a mini PC that has a lot going for it thanks to its 10th generation Intel Core i3 Comet Lake processor.
The ZOTAC ZBOX edge MI623 is easy to use and just needs the compatible hardware you need to run it. Simply add an M.2 SSD, DDR4 SO-DIMM memory and the operating system of your choice to get the most out of your multimedia entertainment. With its low-power Intel Core i3-10110U processor, it will have no trouble performing the most common computing and entertainment tasks.
It doesn't get any more complete than this
Turn yourZOTAC ZBOX edge MI623 Mini-PC into a multimedia platform. With its comprehensive connectivity, you can turn your ZOTAC ZBOX edge MI623 Mini-PC into a high-performance multimedia platform. With its 4 USB 3.1 ports , you can easily connect peripherals such as USB mice and keyboards and enjoy high transfer rates for external storage devices.
Enjoy super fast internet connection with its Gigabit connection and quality entertainment with HDMI, DisplayPort, combo jack, not to mention the 3-in-1 memory card reader (microSD/microSDHC/microSDXC).
Main features :
- Intel Core i3-10110U processor (Dual-Core 2.1 GHz / 4.1 Ghz Turbo - 4 Threads - 4 MB Cache)
- Up to 64 GB DDR4 SO-DIMM 2400/2666 MHz RAM (2 slots)
- 2 x M.2 PCIe 3.0 x4 / SATA 6 Gbit/s (one in 2242 format)
- Video outputs : HDMI 2.0 and DisplayPort 1.2 - 4K @ 60 Hz compatible
- 4 USB 3.1 ports
- microSD/microSDHC/microSDXC card reader
- Full network connectivity: Wi-Fi AC, Bluetooth 5.0 and 2 x Gigabit Ethernet LAN
Information provided by our tech department
The second M.2 slot only accepts 2242 SSDs.
Specifications
Select your criteria
General information |
Product name |
ZOTAC ZBOX edge MI623 |
Brand |
ZOTAC | |
Model |
ZBOX-MI623-BE | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i3 | |
CPU frequency |
2.1 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2666 MHz | |
| DDR4 2400 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel UHD Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
2 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s |
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
2 X Integrated - 10/100/1000 Mbps |
Network standard(s) |
10/100/1000 Mbps | |
| Bluetooth 4.2 | ||
| Wi-Fi AC | ||
Wireless network standard(s) |
Wi-Fi AC | |
Connectivity |

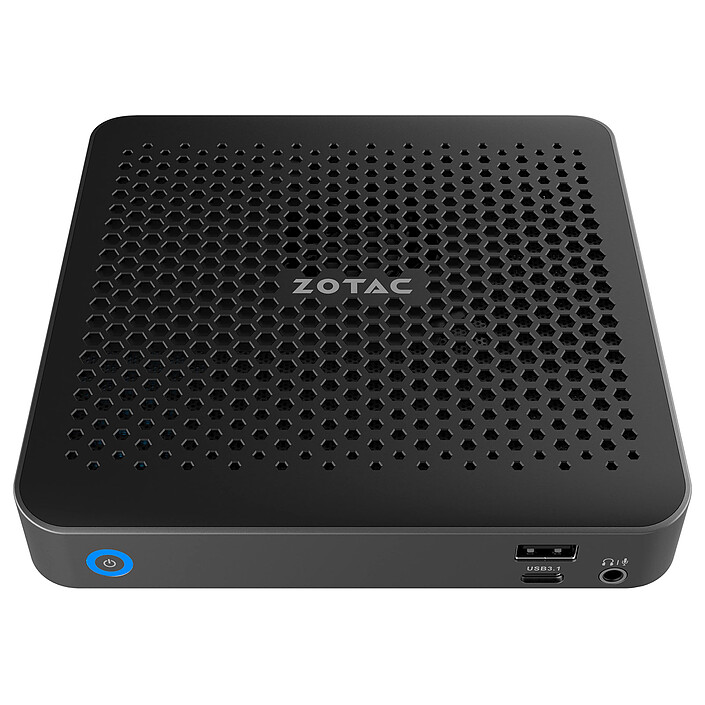

Front panel connectors |
micro SDXC |
| micro SDHC | ||
| micro SD | ||
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.1 | ||
| 1 X 3.5mm Jack Female Stereo | ||

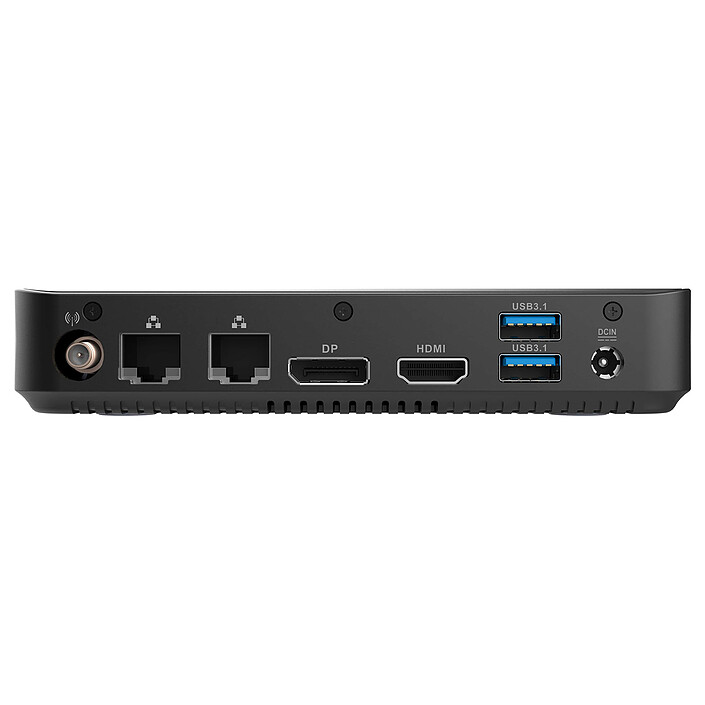

Rear panel connectors |
1 X HDMI Female | |
| 1 X DisplayPort Female | ||
| 2 X USB 3.1 | ||
| 2 X RJ45 Female | ||
| 1 X SMA Female | ||
Case |
Number of 2.5" slots |
0 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Power |
65 W | |
Compatibility |
Supported OS |
Windows 10 Home 64-bit |
| Windows 10 Pro 64-bit | ||
Max CPU TDP |
15 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
149.5 mm | |
Height |
149.5 mm | |
Depth |
28.5 mm | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
