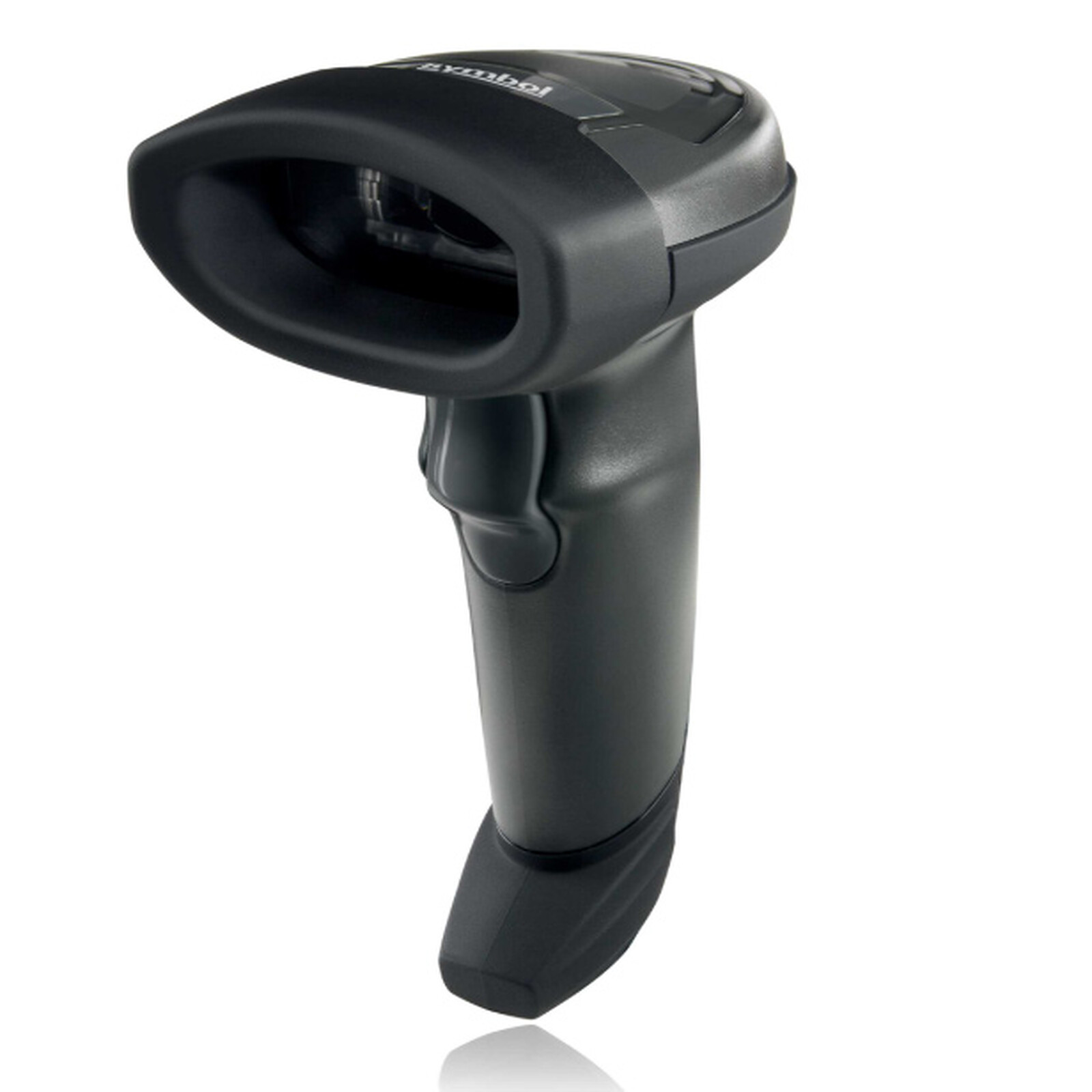

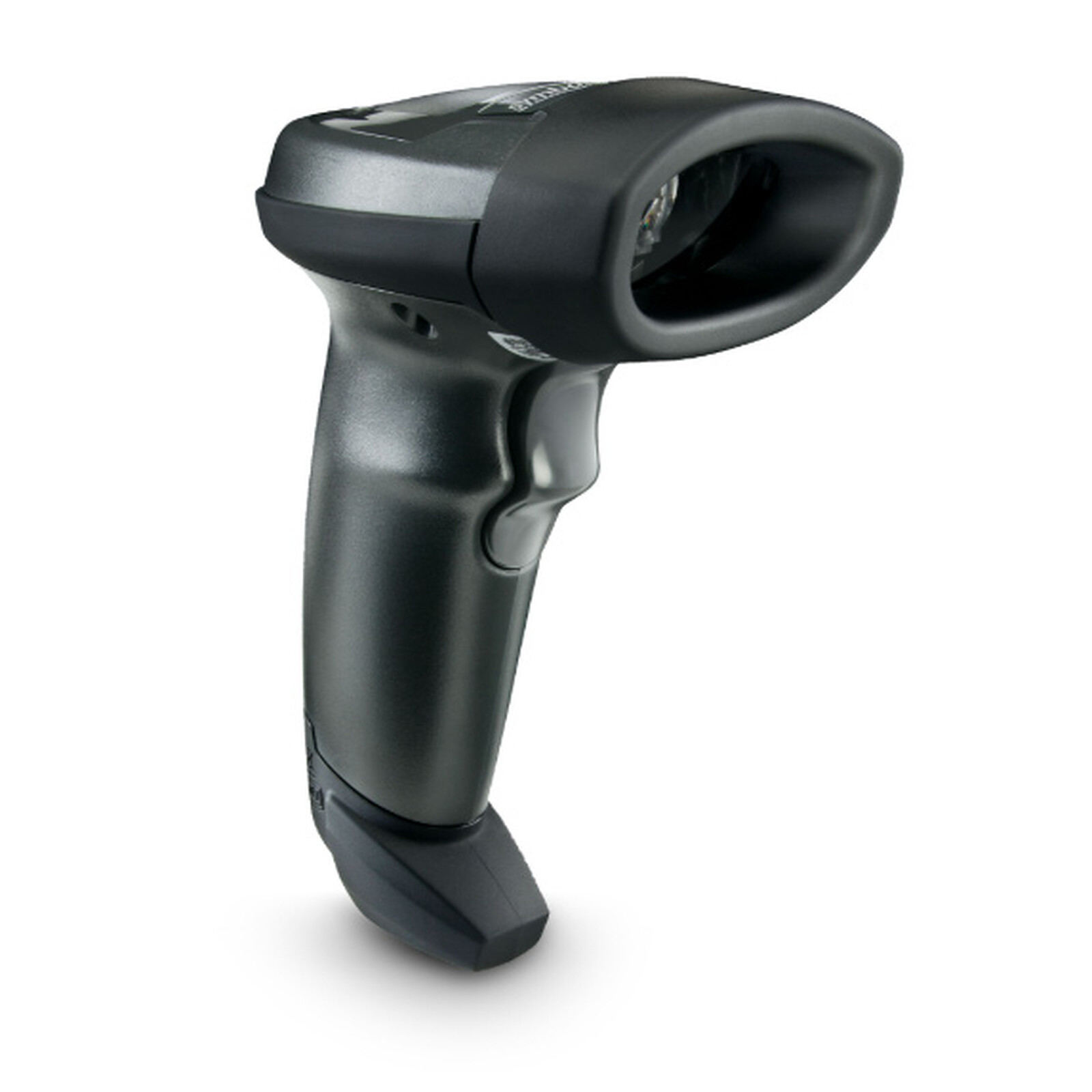

Zebra LS2208 Black

Fast, extended 1D scanning suited to intensive use

The Zebra LI2208 takes 1D barcode scanning to the next level by combining speed, ergonomics and great versatility. This wired linear imager captures practically all 1D codes, whether printed on a paper label or displayed on a smartphone, tablet or computer screen. It also supports high-density codes used in particular in specialty retail and electronic component manufacturing. Its extended scanning range, speed of up to 547 scans per second and excellent motion and angle tolerance make every operation easier, from the point of sale to the warehouse, including production, hotel reception or event check-in. Lightweight and robust, the LI2208 is a reliable solution for increasing productivity every day.

Innovative technologies serving reliability

The LI2208 benefits from a patented optical design offering remarkable depth of field: it can read a 13 mil UPC-A code from 2.5 to 78.7 cm and a 26 mil UPC-A code up to 140 cm. Its patented single circuit board eliminates the connectors and internal flex cables that are among the usual points of failure, helping increase durability and reduce downtime. Smart cables with automatic host detection recognize the interface used and simplify deployment, while support for more than 90 international keyboards makes installation easy worldwide. Compatible with Zebra 123Scan, Scanner Management Service and the Zebra Scanner SDK, it can be configured, monitored and integrated easily into business applications. With the optional Intellistand, it automatically switches between handheld and hands-free modes.

Technical specifications:


• Wired linear imager scanner for 1D barcodes
• Scanning technology: linear imager
• Supported codes: printed, screen-displayed and high-density 1D codes
• Power supply voltage: 5 V DC ± 10 %
• Scanning consumption: less than 165 mA
• Standby consumption: less than 40 mA
• USB suspend consumption: less than 2.5 mA
• Low-power mode: less than 4 mA when enabled, with RS-232 and keyboard emulation
• Power source: host-powered or external power supply
• Supported interfaces: USB, RS-232, keyboard emulation and IBM RS-485
• Scan rate: 547 scans per second
• Aiming pattern: single bright aiming line
• Horizontal scan angle: 35°
• Motion tolerance: 63.5 cm per second
• Skew tolerance: ± 65° / Pitch tolerance: ± 65° / Roll tolerance: ± 45°
• Light source: 617 nm amber LED, class 1
• Minimum print contrast: 15 % MRD
• Minimum resolution: 3 mil
• Ingress protection rating: IP42
• Drop resistance: more than 100 consecutive drops from 1.5 m at room temperature
• Declared maximum durability: 1.8 m drops onto concrete
• Tumble test: 1,000 cycles, equivalent to 2,000 drops, in a 0.5 m drum
• Dimensions: 16 x 6.7 x 9.9 cm
• Weight: 140 g
