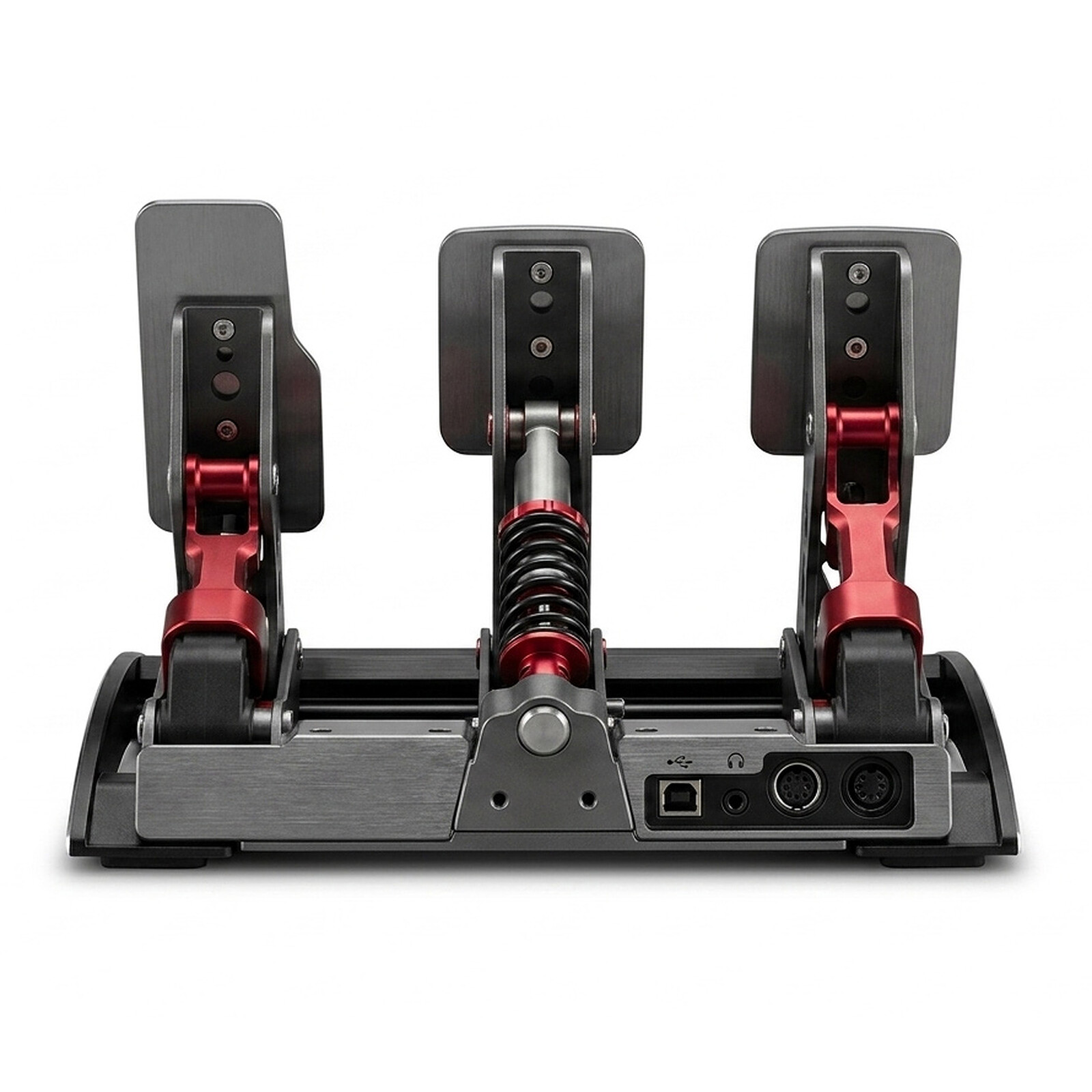

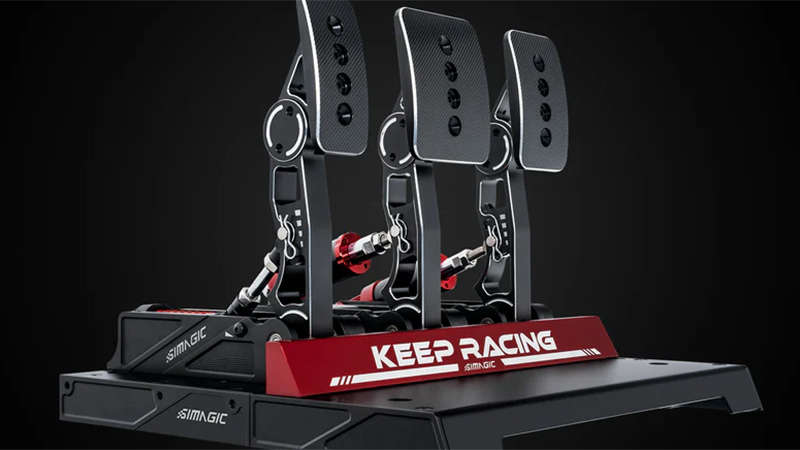

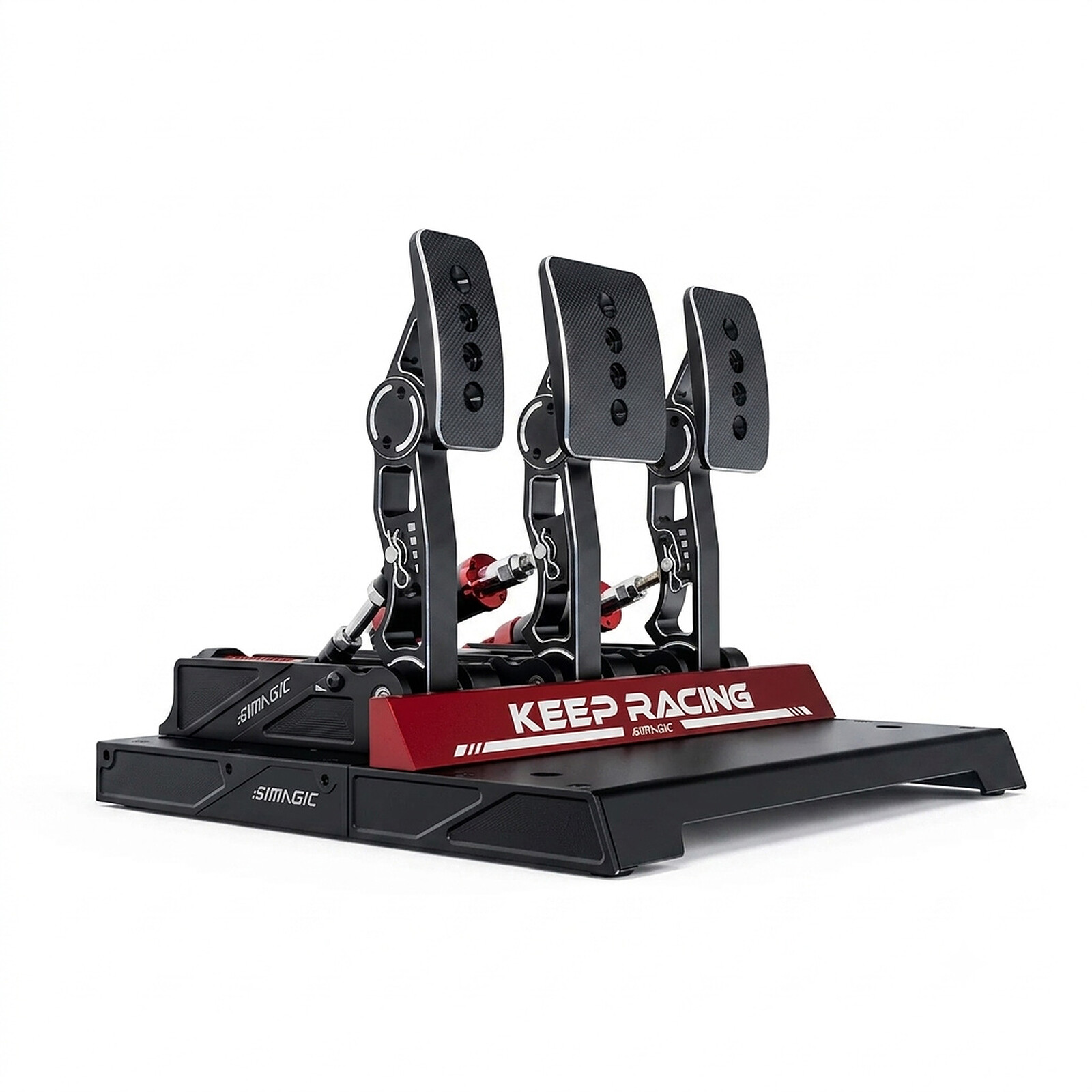

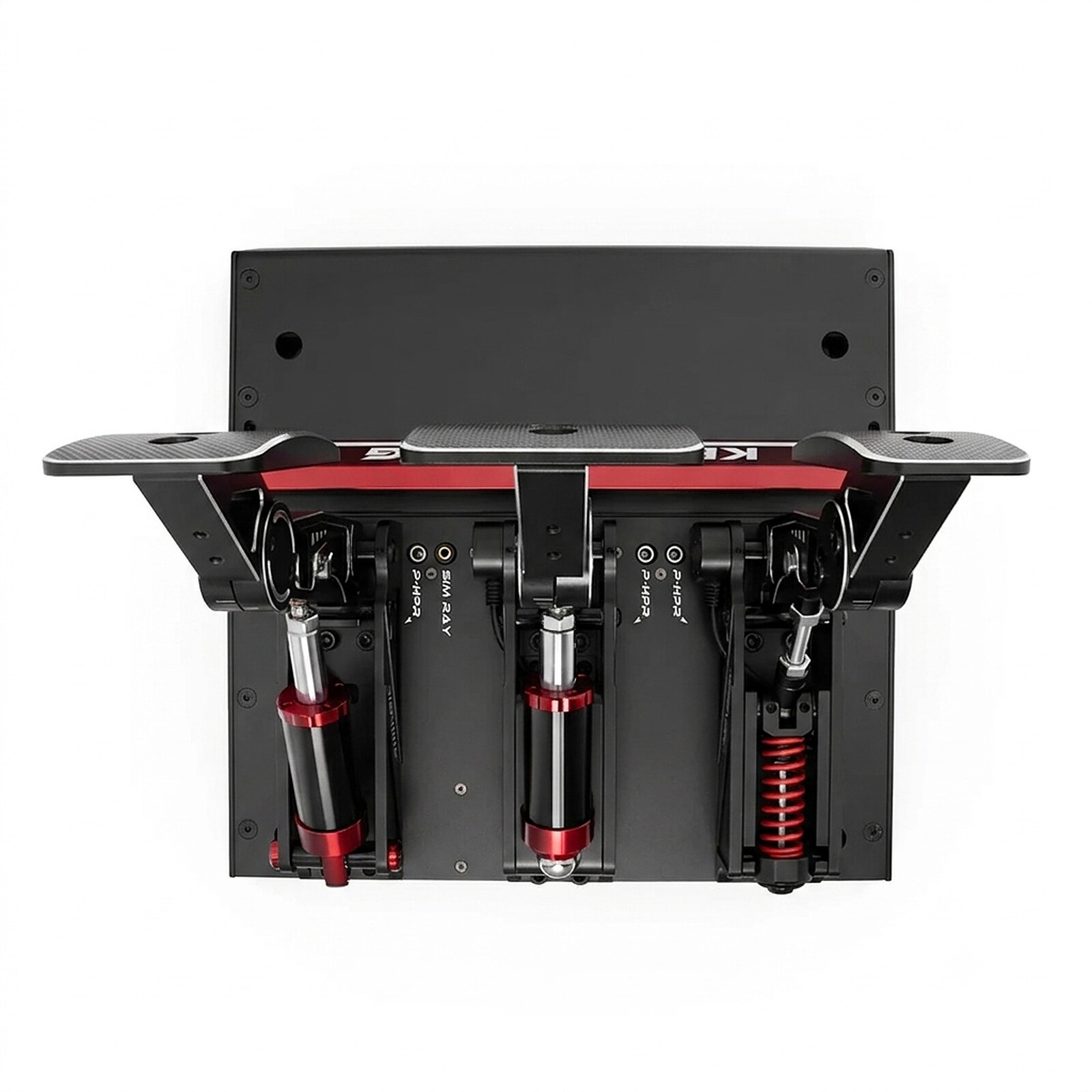

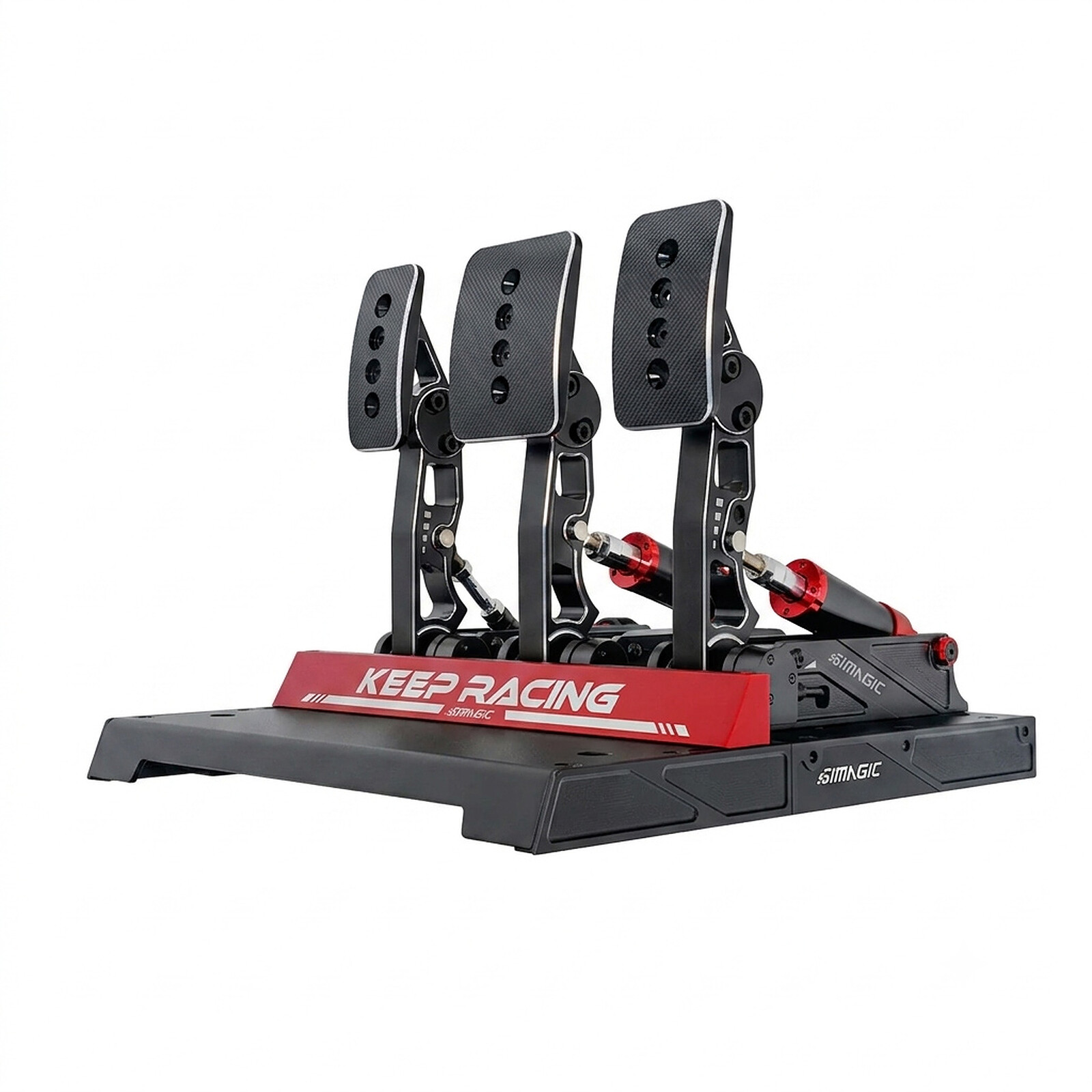

Simagic P1000
3-pedal hydraulic pedal set - aluminum alloy frame - 100 kg force sensor
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
A modular pedal set designed for performance
The Simagic P1000 is a simulation pedal set designed for virtual drivers looking for an exceptional level of precision and customization. Developed in collaboration with motorsport engineers, it combines a modular design with CNC-machined aluminum construction to deliver precise control and great durability. Its 100 kg Load Cell brake, high-precision Hall sensors and numerous adjustments make it possible to perfectly adapt driving sensations to each discipline, from GT to rally and single-seater racing. Compatible with a PC via USB or directly with a Simagic base thanks to the CAN-Bus port, the P1000 is a scalable solution capable of accommodating many accessories, such as a hydraulic system, haptic motors or an inversion kit.
Advanced customization for total immersion
Designed to evolve with the demands of simracers, the Simagic P1000 offers particularly extensive adjustment freedom. The position, angle, travel, linearity and resistance of the pedals can be precisely adjusted in order to achieve a feel perfectly suited to your driving style. The Hall and Load Cell sensors can be configured according to your needs, while the different brake elastomers allow you to customize braking feel. The pedal set also supports several optional modules, such as the brake or accelerator hydraulic system, the Haptic Pedal Reactor for realistic haptic feedback or the inverted mounting kit. Thanks to its 12-bit resolution and robust design, the P1000 guarantees a fast, smooth and accurate response, even during the most intensive driving sessions.
Main features:
- Modular Simagic P1000 pedal set
- 3-pedal configuration: accelerator, brake and clutch
- Chassis entirely made from CNC-machined aluminum
- Anodized aluminum alloy pedal faces
- 12-bit resolution (4096 points)
- Brake equipped with a 100 kg Load Cell sensor
- Accelerator and clutch with high-precision Hall sensors
- Adjustable pedal travel, Adjustable pedal position, Adjustable pedal angle, Adjustable pedal linearity, Adjustable braking force
- Configurable dead zones
- Adjustment of brake and clutch spring stiffness
- PC compatible via USB / Compatible with Simagic bases via CAN-Bus port
- Included pedal control box
- Compatible with Sim Ray accessories (Heel Stop and Bar)
- Dimensions (standard version): 334,8 x 336 x 267 mm
- Net weight: 5,65 kg
Select your criteria
General information |
Product name |
Simagic P1000 |
Brand |
Simagic | |
Model |
P1000 | |
Technical specifications |
Gaming device type |
Steering wheel / Pedals |
Compatibility |
PC | |
Wireless |
No | |
Length |
334.8 cm | |
Height |
267 cm | |
Width |
336 cm | |
Weight |
5.65 kg | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
