ASRock Intel Arc Pro B60 Passive 24GB
24 GB GDDR6 - Quad DisplayPort - PCI Express (Intel Arc Pro B60)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
GPU for AI-dedicated workstations

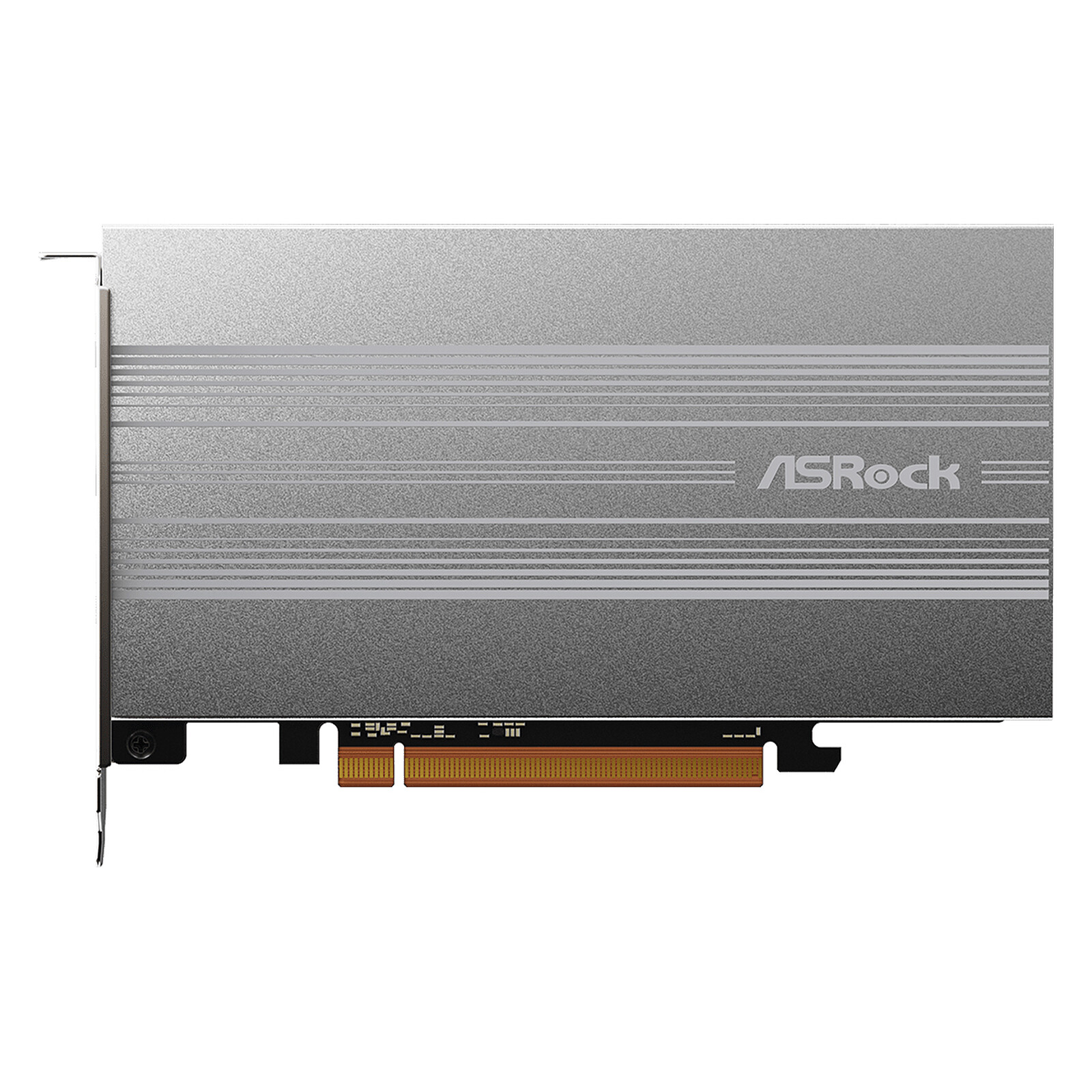

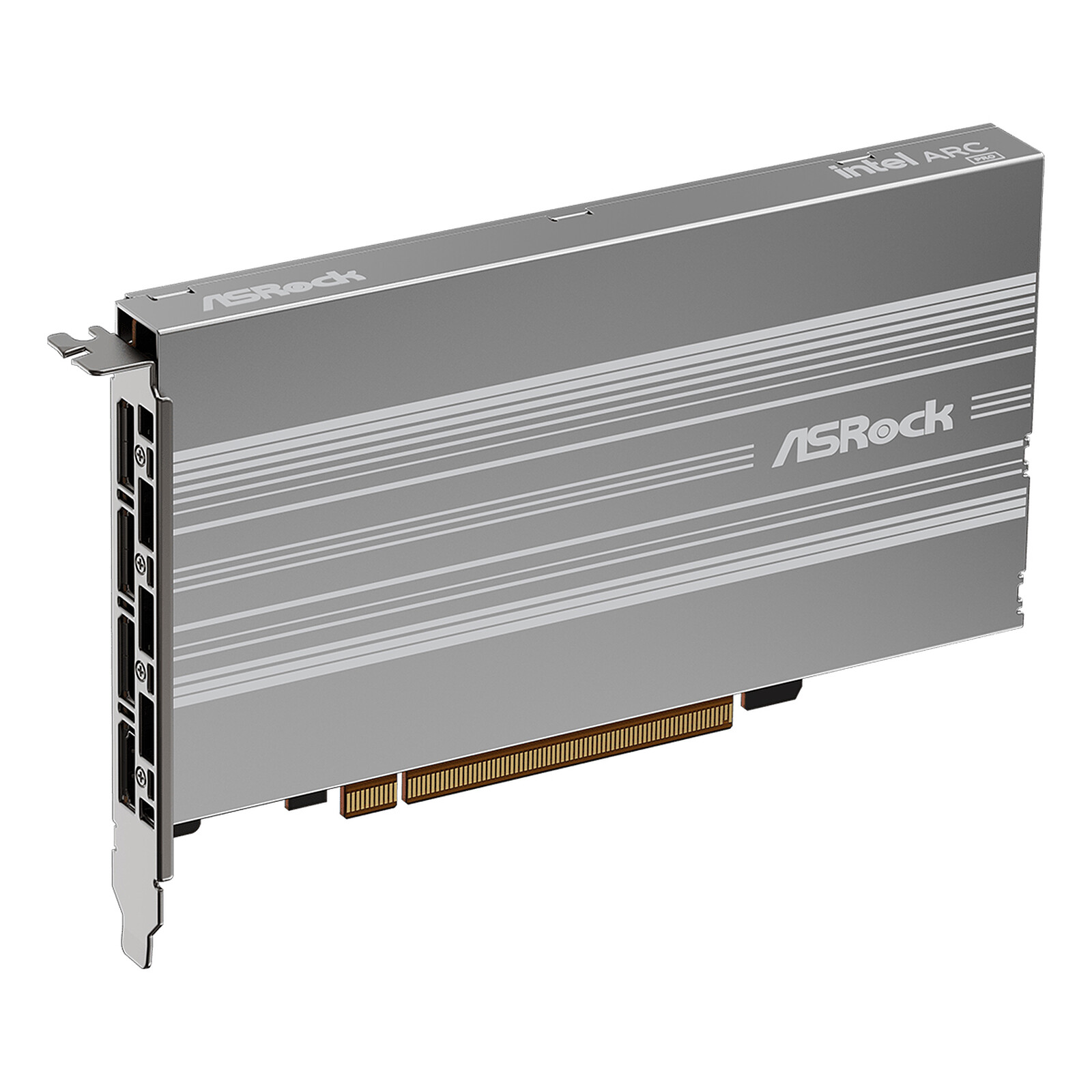

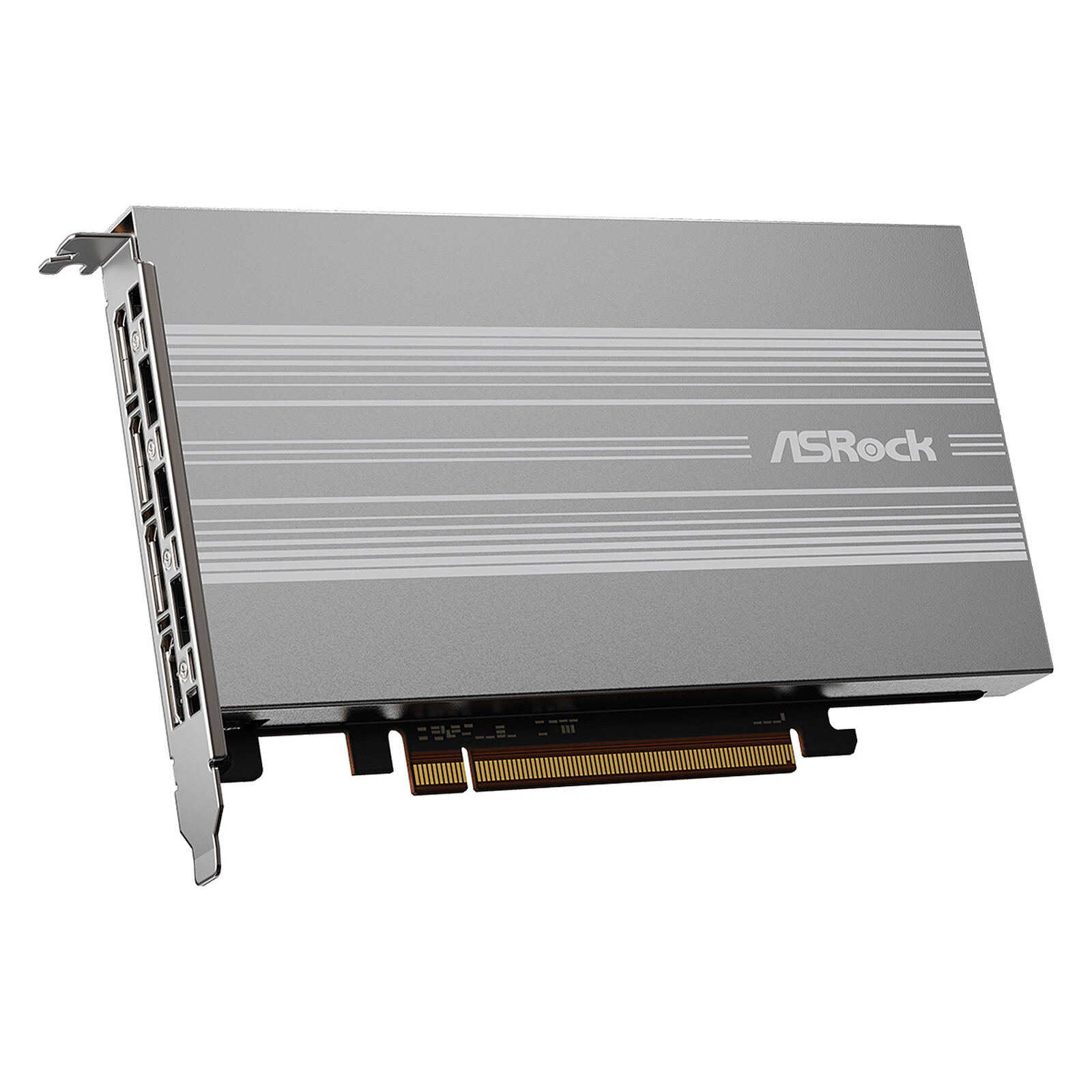

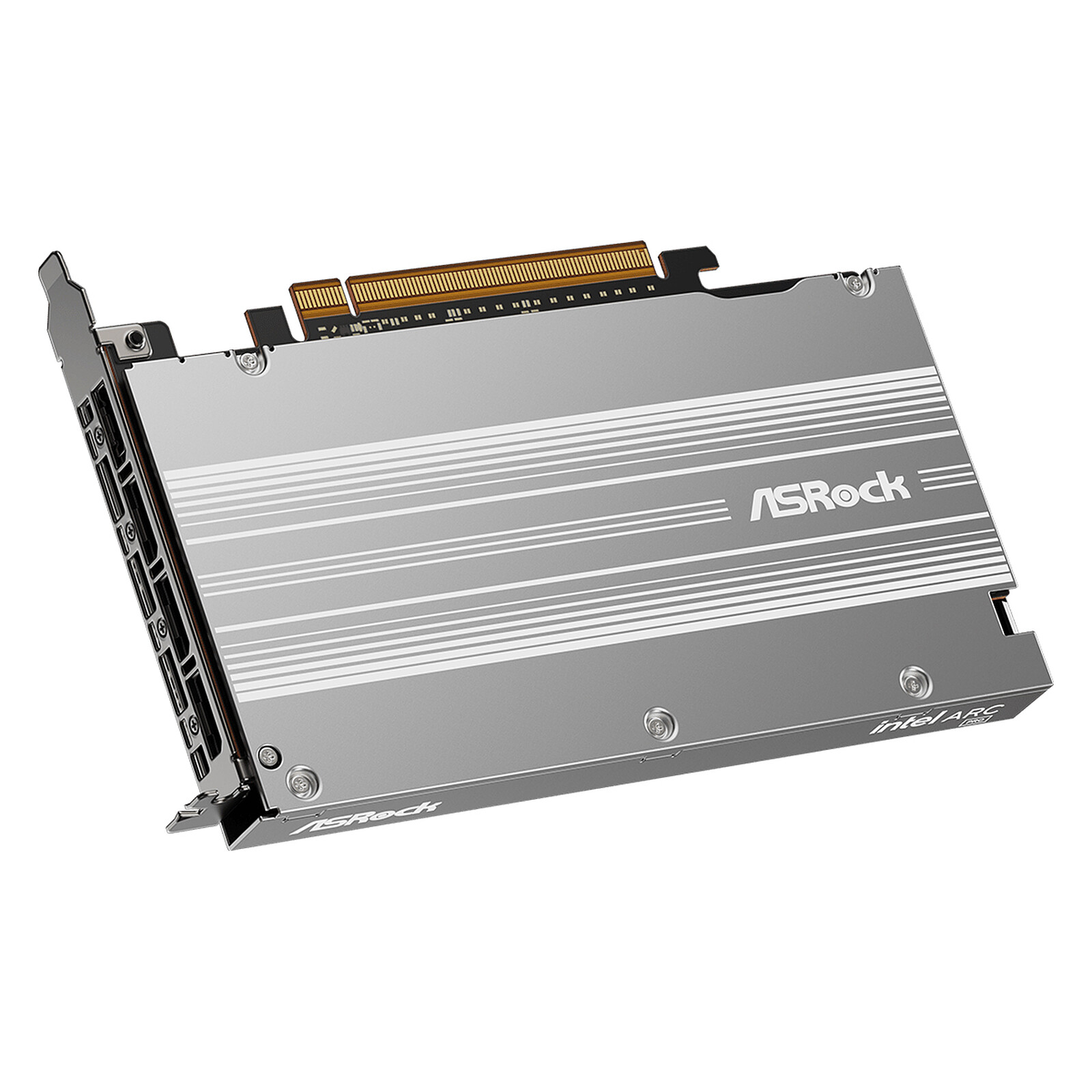

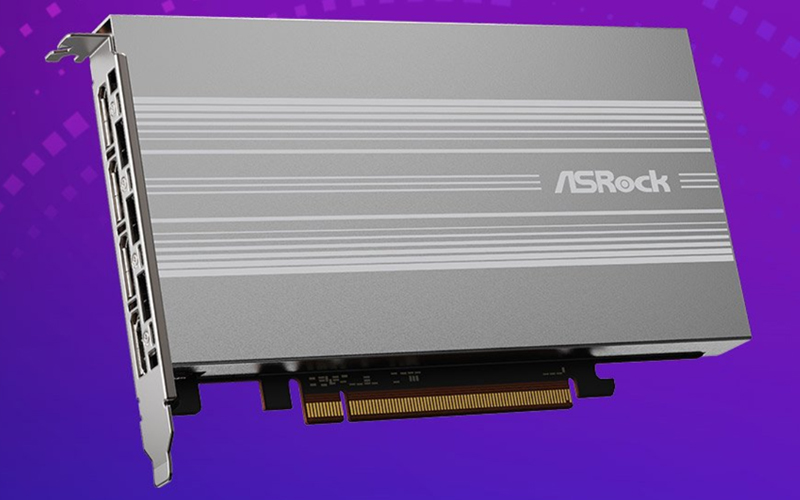

The ASRock Intel Arc Pro B60 Passive 24GB professional graphics card is positioned as a highly specialised solution dedicated to the needs of professional workstations. Designed around the Intel Arc Pro B60 GPU and equipped with 24GB of GDDR6 memory, this card meets the growing demands of modern applications such as artificial intelligence, complex 3D simulations, ray tracing and intensive video editing.
Intended solely for professionals, this ASRock graphics card will fit perfectly into environments that demand reliability, performance and quiet operation.
Optimised power for professionals
The ASRock Intel Arc Pro B60 Passive 24GB graphics card is based on the Intel Xe 2-HPG architecture and offers a PCI Express 5.0 interface with a GPU frequency of up to 2400 MHz and 24 GB of GDDR6 memory at 19 Gbps on a 192-bit bus, ensuring a maximum bandwidth of 456 GB/s suitable for intensive workloads.
Its passive cooling single-slot design uses a robust metal casing, a nickel-plated copper base and high-efficiency heat pipes, ensuring optimised heat dissipation in directed airflow chassis. In terms of connectivity, the card offers 4 DisplayPort 2.1 ports, an 8-pin power connector and support for resolutions up to 7680 × 4320 pixels, while benefiting from ISV-certified drivers for increased stability and performance in professional software.
Select your criteria
General information |
Product name |
ASRock Intel Arc Pro B60 Passive 24GB |
Brand |
ASRock | |
Model |
B60 PS 24G | |
Graphics chipset |
Graphics chipset |
Intel Arc Pro B60 |
Chipset frequency |
2400 MHz | |
Bus |
PCI Express 4.0 x16 | |
Memory |
Video memory size |
24 GB |
Memory interface |
192 bit(s) | |
Memory type |
GDDR6 | |
Architecture |
Stream processors |
160 |
Applications |
Direct X support (version) |
12 |
Connectivity |
Video outputs |
4 X DisplayPort Female |
Design |
Cooling type |
Passive (fanless) |
Consumption |
200 W | |
Low profile |
No | |
Format |
Single Slot | |
Power connector(s) |
1 X PCI Express 8 Pin | |
Length |
190 mm | |
