StarTech.com 9U 4-post wall-mounted server cabinet
9U cabinet - payload 90 kg - black
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
A 9U cabinet for simplified wall installation
This 9U network or server cabinet has been designed by StarTech.com. It allows you to wall-mount your EIA-310-compliant equipment in a secure enclosure. The enclosure has an adjustable mounting depth from 5.08 cm to 48.2 cm to provide a robust storage solution for your rack-mounted equipment. To ensure the stability of your heaviest equipment, this rack offers a four-post mounting solution. It supports more weight per unit than two-post racks, with a total load capacity of up to 90 kg.
for easy installation of your equipment
The wall-mounted design makes this enclosure the ideal solution for optimising equipment storage in your classroom, shop, server room or office.

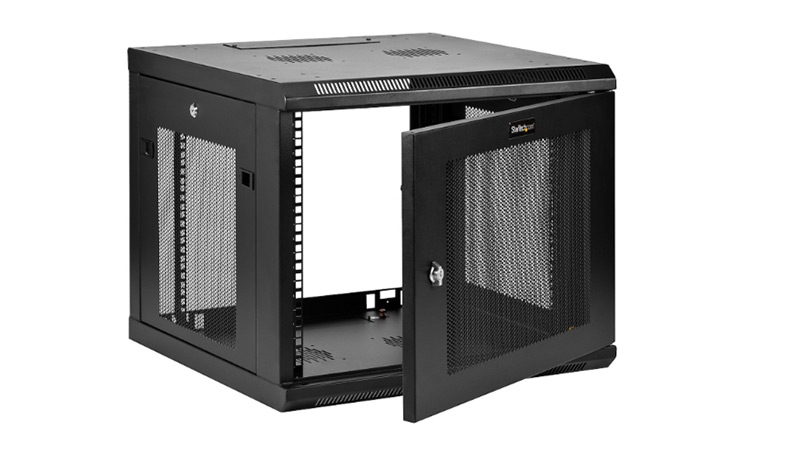

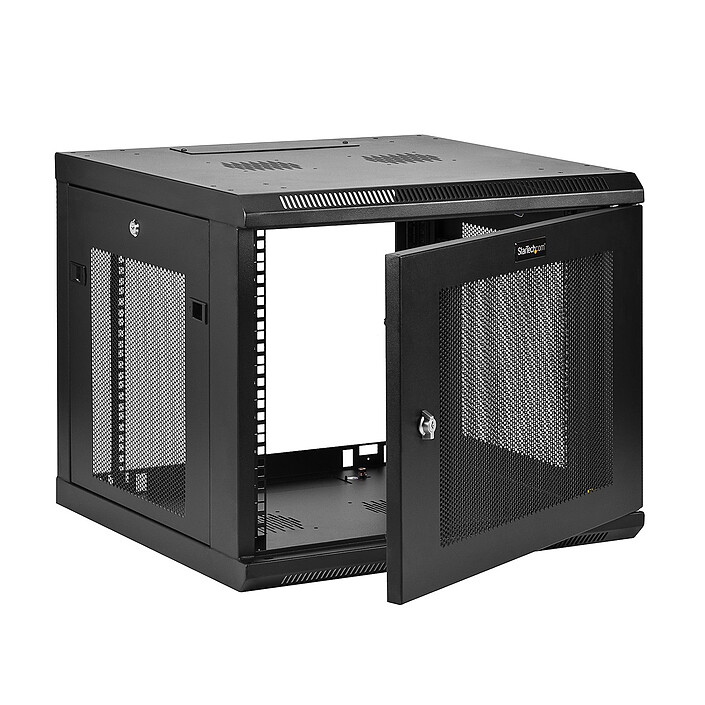

The wall-mount network rack simplifies the installation of your equipment thanks to the included cage nuts and mounting screws. The rack includes all the hardware needed to mount your equipment, saving you time and trouble with mounting hardware. The9U network enclosure has a removable and reversible front door and removable side panels, each with quick-release locking mechanisms, so you can easily access your equipment. What's more, the rack doors and panels are fitted with an independent lock for the security of your equipment. To simplify cable management, the rack includes a roll of 3 m hook-and-loop cable ties.
This server rack enclosure has a heavy-duty steel construction, with lockable doors for all entrances. The server cabinet uses passive cooling. It is equipped with mesh doors and ventilated top and bottom panels to optimise air circulation. Finally, for simple, robust assembly, the rack's mounting holes are 40 cm apart, so you can easily fix it to the wall.
Key features :
- 9U, 4-post wall-mountedrack with adjustable mounting depth (6-48 cm)
- Made from high-quality SPCC cold-rolled steel for strength, with a maximum weight capacity of 90 kg
- Supplied fully assembled with all rack screws and cage nuts required for assembly
- Includes shelf and roll of hook-and-loop fasteners
- Complies with EIA/ECA-310-E standard
- Ventilated enclosure with mesh front doors and side panels for cool airflow
- Supports active cooling with up to 4 optional 120 mm fans
- External dimensions (L x W x H): 552 x 600 x 505 mm
- Weight: 21 Kg

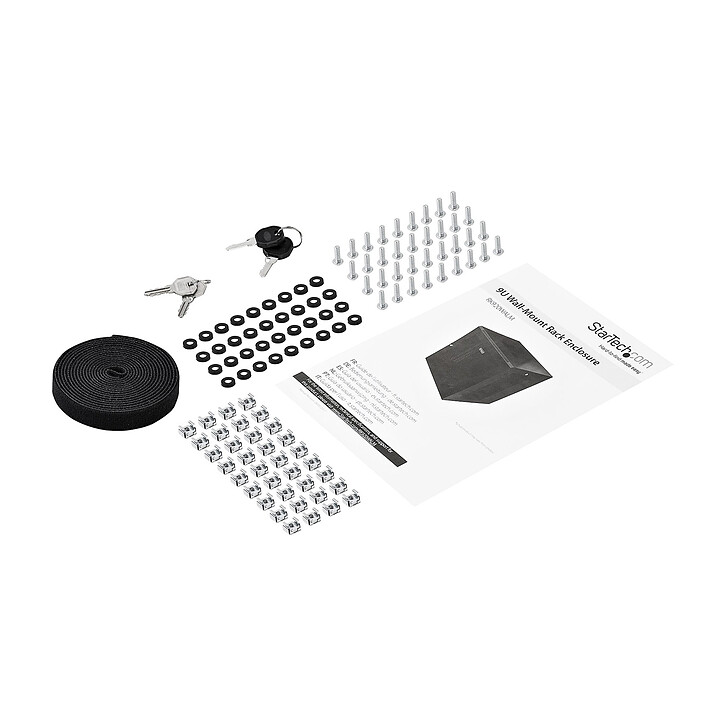

- 1x Wall-mounted enclosure
- 1x 1U shelf
- 1x Roll of hook-and-loop fasteners
- 36x Cage nuts 12-24
- 36x Screws 12-24
- 2x Door spanners
- 2x Side panel keys
- 1x Instruction manual
Select your criteria
General information |
Product name |
StarTech.com 9U 4-post wall-mounted server cabinet |
Brand |
StarTech.com | |
Model |
RK920WALM | |
Technical specifications |
Product type |
Cabinet |
Rack format |
9U rack | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
StarTech.com Limited |
Postal address |
Laarderhoogtweg 25, 1101 EB Amsterdam, The Netherlands | |
Electronic Address |
Click here
|
See all StarTech.com products
Product referenced on 23 Jun 2025
For the moment, there are no customer reviews.Write a review
