The Gigabyte GeForce RTX 5060 WINDFORCE 8G graphics card delivers next-generation performance with DLSS4, hardware ray tracing and advanced AI capabilities. Powered by theNVIDIA Blackwell architecture and featuring 3840 CUDA cores, this card offers remarkable computing power combined with optimum energy efficiency. The RTX 5060 delivers smooth, lifelike rendering in the most demanding games and professional applications, while OpenGL 4.6 and DirectX 12 Ultimate support ensure broad compatibility with the latest rendering technologies. The RTX 5060 is optimised for AI performance and is ready for the future.

Powered by the NVIDIA Blackwell architecture, GeForce RTX 50 series GPUs deliver revolutionary capabilities for gamers and creators. The phenomenal AI power of the RTX 50 series models help you experience new things with unparalleled graphics fidelity. Accelerate visual performance with NVIDIA DLSS 4, generate images at unprecedented speeds and express your creativity with NVIDIA Studio.


DLSS is a revolutionary suite of neural rendering technologies that uses AI to accelerate frame rates, reduce latency and improve visual quality. The breakthrough DLSS 4 leverages the phenomenal power of GeForce RTX 50-series GPUs and 5th generation Tensor cores to deliver a new generation of neural rendering functionality. Tensor cores to deliver new multi-image generation functionality, Ray Reconstruction and even higher quality Super Resolution. The combination of DLSS and GeForce RTX delivers the ultimate gaming experience by giving you access to a true NVIDIA AI supercomputer in the cloud, constantly enhancing the gaming capabilities of your PC.


Reflex technologies optimise the graphics pipeline for ultimate responsiveness, delivering faster target acquisition, quicker reaction times and improved aiming accuracy in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the last mouse click.
NVIDIA Studio gives you the creative edge. GeForce RTX 50 series GPUs deliver transformative performance for 3D rendering, video editing and graphic design. Take advantage of the acceleration and feature-rich capabilities of the RTX platform in industry-leading creative applications, constantly updated NVIDIA StudioTake advantage of the acceleration and feature-rich capabilities of the RTX platform in industry-leading creative applications, industry-leading NVIDIA Studio drivers that are constantly updated for maximum stability, and a suite of exclusive tools that harness the power of RTX to enrich AI-assisted digital creative workflows.

Select your criteria
General information |
Product name |
Gigabyte GeForce RTX 5060 WINDFORCE 8G |
Brand |
Gigabyte | |
Model |
GV-N5060WF2-8GD | |
Graphics chipset |
Graphics chipset |
NVIDIA GeForce RTX 5060 |
GPU series |
NVIDIA GeForce RTX 50 series | |
GPU brand |
NVIDIA | |
Boosted frequency |
2497 MHz | |
Overclocked |
No | |
Bus |
PCI Express 5.0 x8 | |
Memory |
Video memory size |
8 GB |
Memory interface |
128 bit(s) | |
Video memory speed |
28 Gbps | |
Memory type |
GDDR7 | |
Architecture |
Stream processors |
3840 |
AI Ready |
Yes | |
Direct X support (version) |
12 | |
Technical specifications |
Multi-GPU |
None |
Display |
Optimal in-game resolution |
Full HD 1080p |
4K UHD resolution(s) |
Yes | |
VR Ready (virtual reality) |
Yes | |
Connectivity |

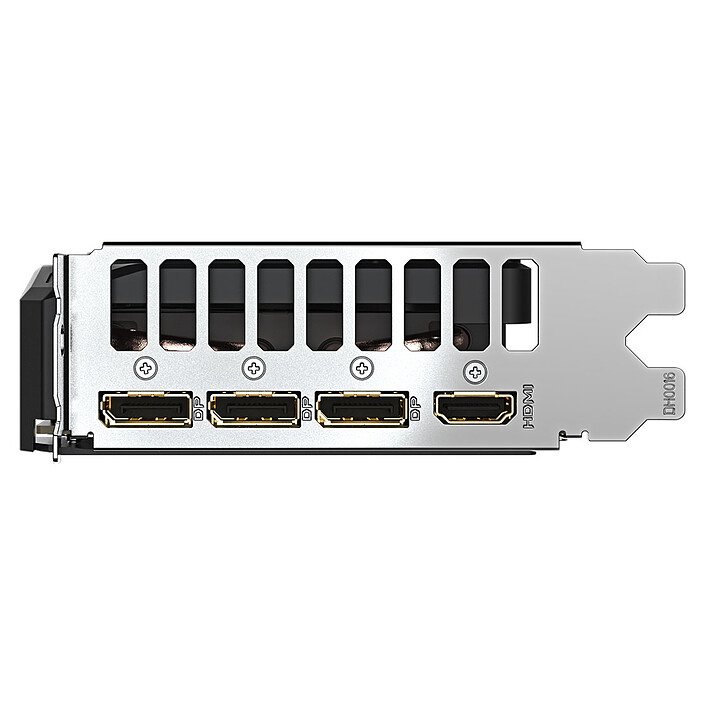

Video outputs |
3 X DisplayPort Female |
| 1 X HDMI Female | ||
Number of monitor |
4 | |
HDMI standard |
HDMI 2.1b | |
DisplayPort standard |
DisplayPort 2.1b | |
Power connector(s) |
1 X PCI Express 8 Pin | |
Design |
Cooling type |
Active (fansink) |
Consumption |
145 W | |
Low profile |
No | |
Format |
Dual Slot | |
Number of PCI slots |
2 | |
LED |
No | |
LED RGB |
No | |
Length |
199 mm | |
Width |
116 mm | |
Thickness |
40 mm | |
Use |
NVIDIA RTX Gamer | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
See all Gigabyte products
Product referenced on 15 May 2025
