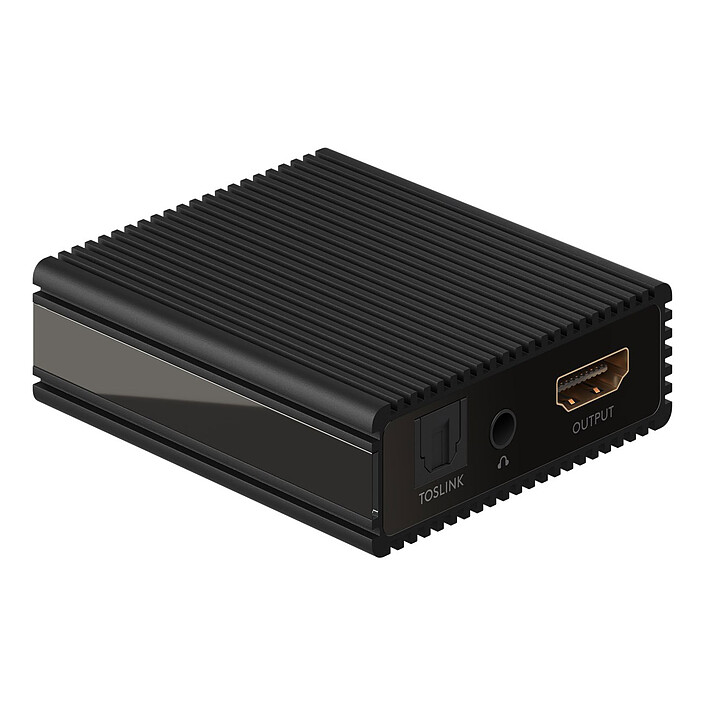

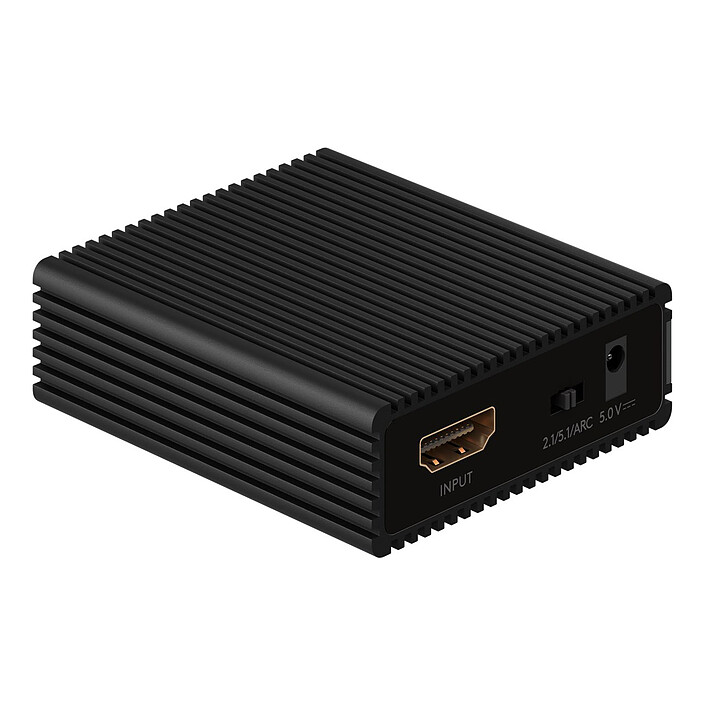

Goobay HDMI Audio Extractor 4K@60Hz
Multi-channel audio signal extractor over HDMI
Pictures may differ from actual products
This signal extractor designed by Goobay allows the separation of audio and video from an incoming HDMI signal. This allows the audio signal to be routed over a Toslink cable or standard analogue 3.5mm jack cords to a sound processing device (such as an amp).
Multi-channel audio signal extractor over HDMI
To extract audio signals from an HDMI source device and transmit them to another device
This signal extractor designed by Goobay separates the audio and video from an incoming HDMI signal, allowing the audio signal to be routed over a Toslink cable or standard 3.5mm analogue jack cords to a sound processing device (such as an amp) while retaining a digital video signal. It supports 4K@60Hz; 4K@30Hz; 2K@60Hz or Full HD (with 3D) video resolution.
Features:

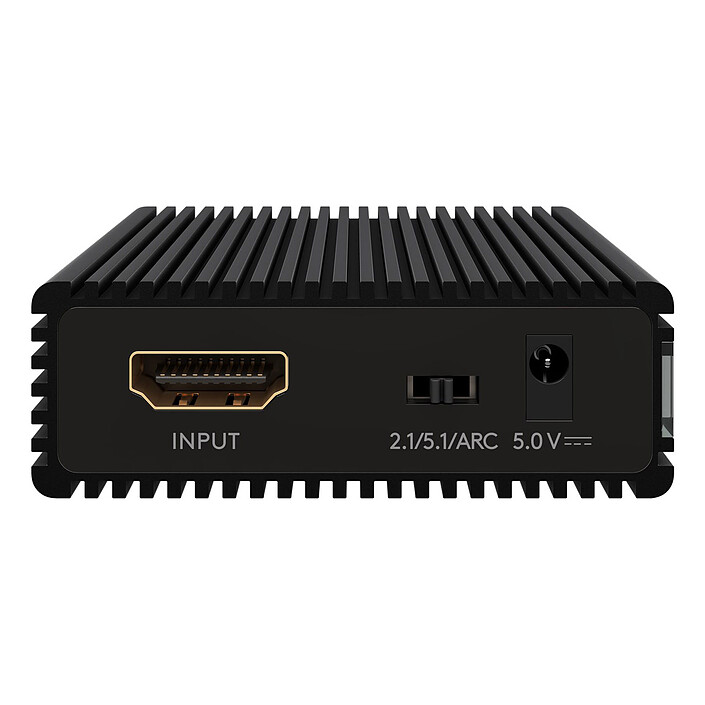

- Input: HDMI (audio-video)

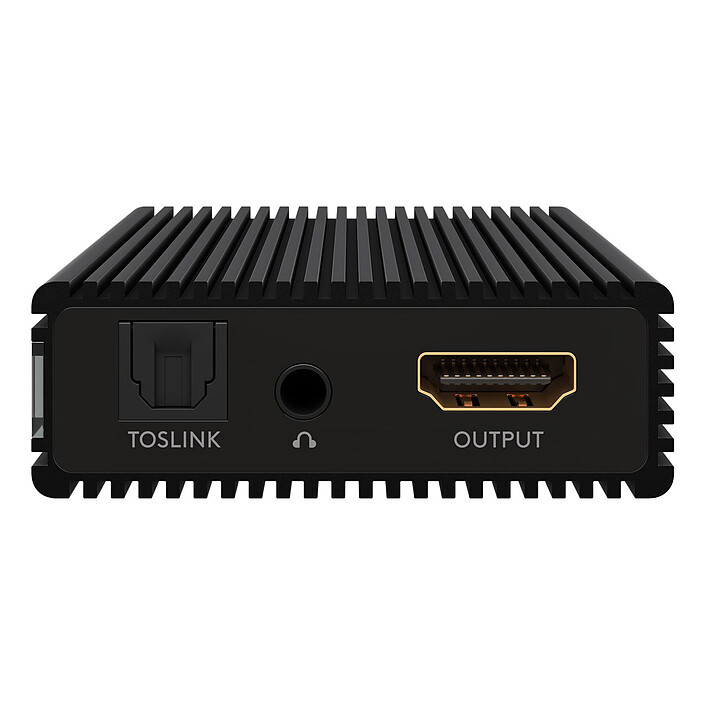

- Outputs: HDMI (video only) + Toslink + 4x 3.5 mm jack
- Video resolution 4K@60Hz; 2K@60Hz or Full HD (with 3D)
- Compliant with HDMI, HDCP 1.2
- Compatible with High Bit Rate (HBR) audio
- Compatible with HDMI audio sample rates up to 192 KHz
- Supports Optical S/PDIF audio sample rates up to 192 KHz
- Audio formats: Dolby Digital 5.1 (AC-3), Dolby Digital Plus, DTS-HD HR, 4K 3D, LPCM 2.0, LPCM 5.1, LPCM 7.1, DTS-HD MA

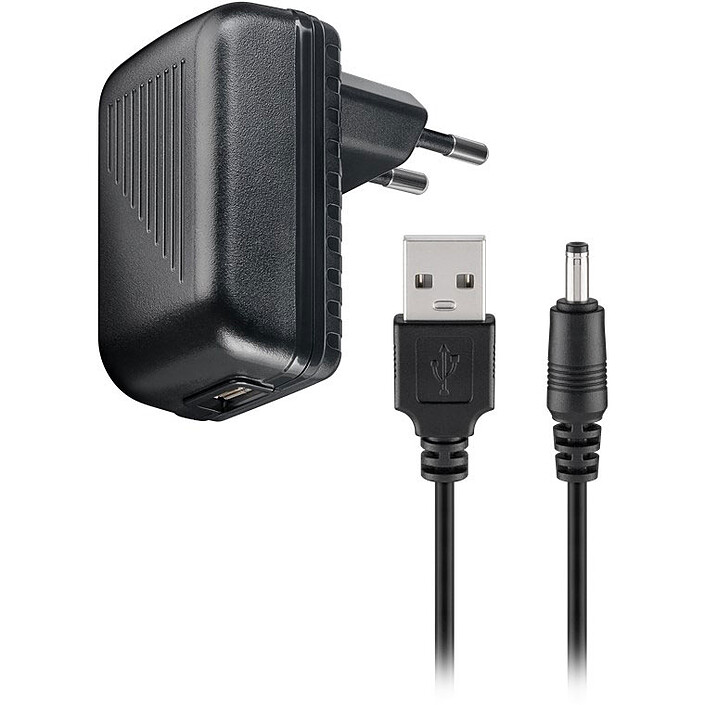

- 5V power supply included
- Dimensions: 95 x 81.80 x 24 mm
- Weight: 66 g
Select your criteria
General information |
Product name |
Goobay HDMI Audio Extractor 4K@60Hz |
Brand |
Goobay | |
Model |
58477 | |
Main characteristics |
Cable type |
Splitter |
| Splitter | ||
HDMI standard |
HDMI 1.4 | |
| HDMI 1.4 | ||
Connectivity |
Connector |
HDMI Female |
| HDMI Female | ||
Connector (other side) |
1 X 3.5mm Jack Female Stereo | |
| 1 X Digital audio S/PDIF Optical | ||
| 1 X HDMI Female | ||
| 1 X 3.5mm Jack Female Stereo | ||
| 1 X Digital audio S/PDIF Optical | ||
| 1 X HDMI Female | ||
Aspect |
Color |
Black |
| Black | ||
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Goobay products
Product referenced on 7 Apr 2023
For the moment, there are no customer reviews.Write a review
