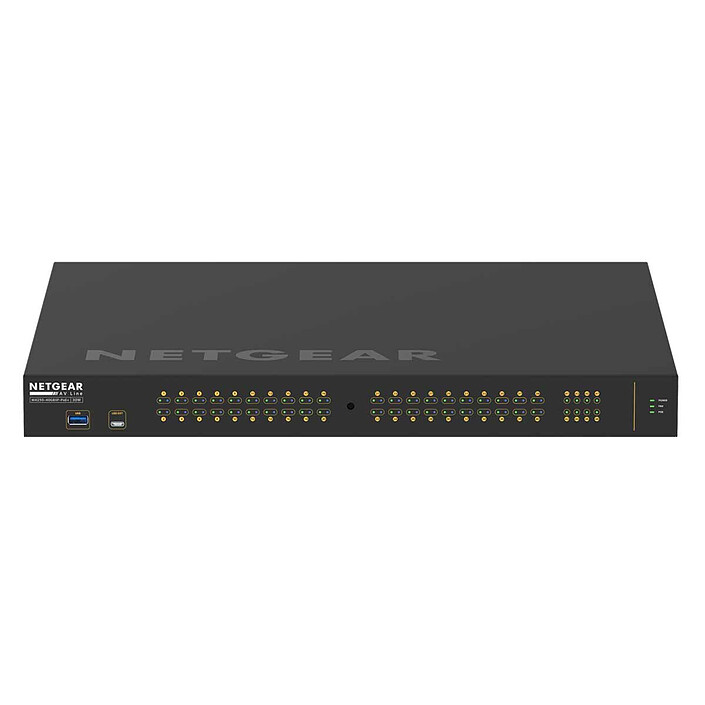

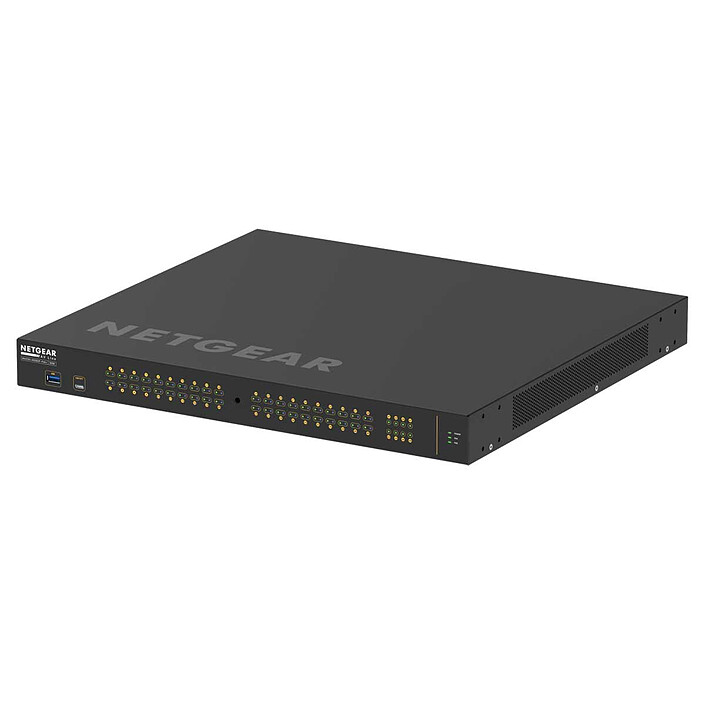

Netgear M4250-40G8XF-PoE+
40 Port Gigabit 10/100/1000 Mbps PoE+ 960W Manageable Switch with 8 SFP+ Ports
Pictures may differ from actual products
The NETGEAR M4250-40G8XF-PoE+ switch is designed for AV over IP. It features PoE+ ports on the rear panel to ensure seamless integration into AV racks. The M4250 switch is pre-configured for standard audio and video signals.
40 Port Gigabit 10/100/1000 Mbps PoE+ 960W Manageable Switch with 8 SFP+ Ports
PoE+ Switch designed for AV over IP
The NETGEARM4250-40G8XF-PoE+ switch is designed for AV over IP. It features PoE+ ports on the rear panel to ensure seamless integration into AV racks. The M4250 switch is pre-configured for standard audio and video signals. Where specific requirements exist, an AV user interface allows customisation with pre-defined profiles. Dante, Q-SYS and AES67 audio profiles are available, the AVB profile requires an AVB license sold separately. For video, the M4250 offers NVX, SVSI, Q-SYS, NDI, Dante, etc. as well as mixed audio/video/control profiles. When multiple switches are connected, NETGEAR IGMP Plus technology allows you to automate connections.
Full support for Audio Video Bridging
One of the many features of the new M4250 Series is full support for Audio Video Bridging (AVB), the standard for transporting content over the network. AVB is most often used where low latency is required, such as in live transmission where synchronisation is essential. All M4250 AV switches can be licensed to support AVB.
Key Features :
- Swtich 40 Gigabit 10/100/1000 Mbps PoE+ Ethernet ports for audio or video deployments
- 40 Gigabit PoE+ ports with a total budget of 960 W and 8 SFP+ 10 G fibre ports for uplinks
- Maximum noise of 29 dB at 25ºC when all ports are in use
- 1U rack mount 400mm deep. Front panel port control. Ports are located at the rear of the switch.
- Reverse mountable with ports on the front
- Universal off-rack mounting options
- Pre-configured for IP-based audio and video output
- Dedicated AV GUI for more specific AV installations
- Colour AV profiles can be applied to individual ports
- Dante, Q-SYS, AES67 and AVB audio profiles
- AVB requires an AVB4248P-10000S licence (sold separately)
- NVX, SVSI, Q-SYS, NDI and Dante video profiles
- Audio / video / mixed profile control
- Automatic swicth interconnection with NETGEAR IGMP Plus technology
- Layer 2 and 3 switching matrix on all M4250 models
- Web-based graphical user interface, console, Telnet and SSH compatible with other NETGEAR M4xxx series switches
Select your criteria
General information |
Product name |
Netgear M4250-40G8XF-PoE+ |
Brand |
Netgear | |
Model |
GSM4248PX-100EUS | |
Technical specifications |
Number of ports |
40 |
Network standard(s) |
10/100/1000 Mbps | |
Number of 10/100/1000 Mbps ports |
32 | |
Number of SFP combo (RJ45/Fiber) ports |
8 | |
Rackable |
Yes | |
Manageable |
No | |
SNMP |
No | |
PoE (Power over Ethernet) |
Yes | |
PoE standard |
PoE+ (30W) | |
Number of PoE ports |
32 | |
Max. PoE budget |
960 W | |
Width |
440 mm | |
Depth |
400 mm | |
Height |
43.2 mm | |
Weight |
6.31 kg | |
Consumption |
1197 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Netgear products
Product referenced on 19 Jul 2021
