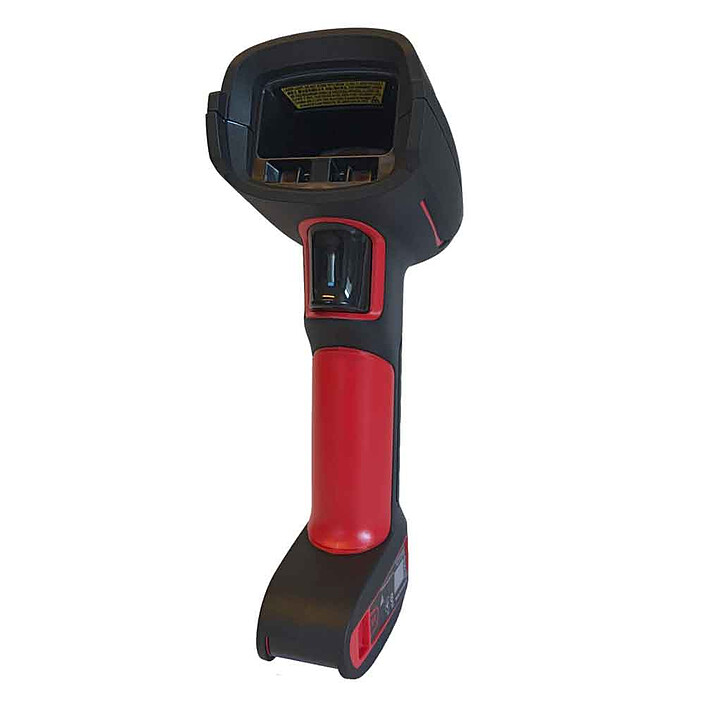

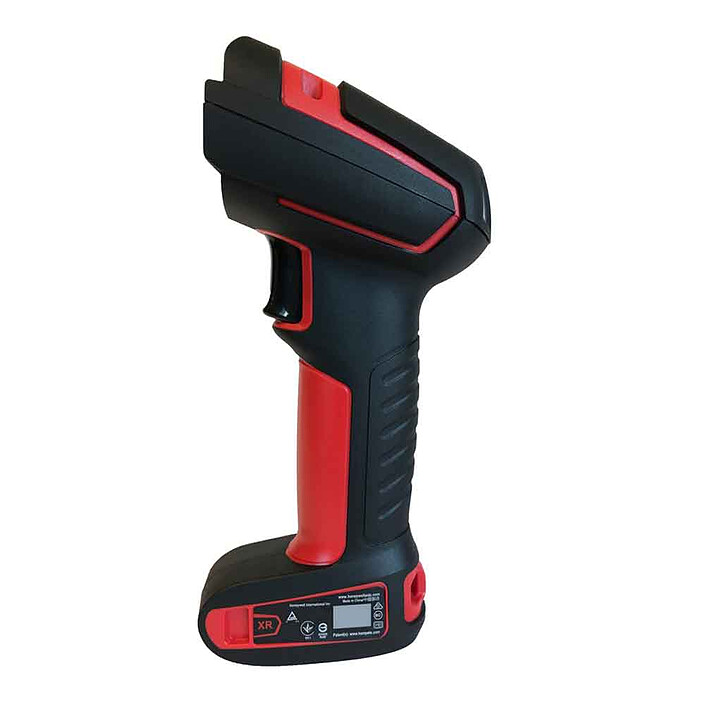

Honeywell Granit XP 1990iSR
Wired barcode scanner, imager (standard distance), 1D and 2D, UBS, IP65/IP67
Pictures may differ from actual products
The Granit XP 1990iSR has been designed to continue operating after impact from a loading bay, forklift or collection truck (up to 3m). Tested and approved, this wired reader is designed to work for a long time...
Wired barcode scanner, imager (standard distance), 1D and 2D, UBS, IP65/IP67
For applications where high-speed reading is required
The Granit XP 1990iSR has been designed for maximum durability and will continue to function after a fall from a loading dock, forklift or collection truck (up to 3m). Tested and approved, this wired reader is ready for long-term operation in demanding environments, and is designed with small, scratch and impact resistant windows recessed deep into the housing to prevent these failures. Waterproof and IP67 rated, this Granit reader prevents dust and moisture from entering the housing and degrading reading efficiency or causing premature failure. Barcodes make data capture faster and more accurate, maximising the productivity of your business. However, damaged and poor quality barcodes can slow down and complicate operations. Degraded labels are common in warehouse, distribution centre and industrial environments due to poor print quality or damage during item handling. Built on Honeywell's next generation imaging platform, the Granit XP 1990iSR incorporates a high resolution sensor and improved decoding algorithms to quickly and accurately read barcode symbols. The Granit XP 1990iSR ensures that degraded labels do not create a bottleneck in the process. The Granit XP 1990iSR offers highly accurate, durable reading performance for standard range operations. Created for applications where high-speed reading is required to maximise productivity or where durability is essential for a low total cost of ownership, the Granit XP 1990iSR is the optimal solution.
Highlights :
- Wired model: enjoy the security of a USB or serial connection.
- Built to withstand hazards including 3m drops, 7000 drops with 1m rollover, operating temperatures from -30°C to 50°C and IP67 sealing.
- The Granit provides high performance reading, even on damaged and poor quality barcodes. Faster reading and transmission of high quality barcodes than ever before.
- The SR model is ideally suited for normal near-field reading operations on 1D and 2D barcodes. For longer ranges, see the other models in the Granit range.
- Honeywell's functional intelligence software provides on-demand reading information, improving employee productivity and performance.
- Honeywell's Scanner Management Utility (SMU) creates a holistic solution that automates the deployment and updating of scanners in your environment.
Features:
- Read Mode: Raster image (1280 x 800 pixels)
- Minimum width / extended range: 5 mils Code 39 / 20 to 220 mm; 13 mils UPC / 0 to 504 mm; 20 mils Code 39 / 0 to 837 mm; 6.7 mils PDF 417 / 20 to 209 mm; 10 mils Data Matrix / 30 to 220 mm; 20 mils QR Code / 33 to 475 mm; Min. resolution 1D Code 39 / 3 mils (0.076 mm); Min. resolution 2D Data Matrix / 6 mils (0.152 mm)
- Movement tolerance : Up to 4500 mm/s
- Scan angle: horizontal: 40°, vertical: 30
- Print Contrast: 20% minimum reflection difference
- Rolling/leading/tilting angle: -360°, 45°, 65
- Decoding functions: reads 1D, PDF, 2D, postal, Digimarc, Dot Code and standard OCR symbologies
- Operating temperature with wire: -30 to 50°C
- Storage temperature: -40°C to 70°C
- Drop and roll: 7000 drops from 1m
- Waterproofing: IP67 and IP65
- Brightness: 0 to 100,000 lux
- Air discharge ±20 kV, contact discharge ±8 kV
- Dimensions (L × W × H): 192 x 76 x 100 mm
- Weight - With wire: 320 g
- 3-year factory warranty
Select your criteria
General information |
Product name |
Honeywell Granit XP 1990iSR |
Brand |
Honeywell | |
Model |
1990ISR-3USB-R | |
Technical specifications |
Type |
Mobile |
Wireless |
No | |
Interface with the computer |
Serial (RS-232) | |
| USB | ||
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Honeywell products
Product referenced on 28 Jan 2021
For the moment, there are no customer reviews.Write a review
