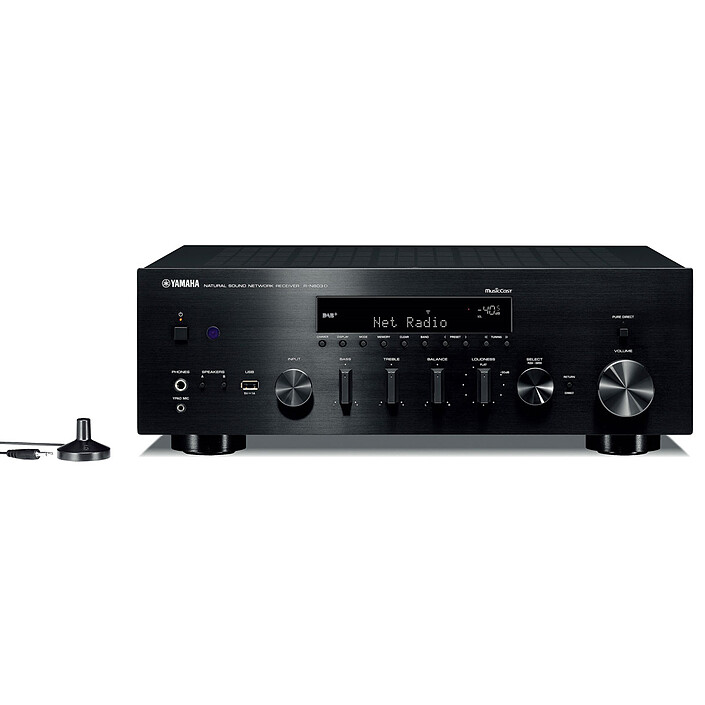

Yamaha MusicCast R-N803D Black

2 x 100 W - FM DAB/DAB - DLNA - AirPlay - Wi-Fi - Bluetooth - Multiroom - YPAO calibration

Last price 859€94
Holy Moly!
Overview

Turn up your ear for superior audio quality



With the Yamaha R-N803D amplifier, you'll be transported to a powerful and faithful music environment. Enjoy 100 Watts RMS power per channel, superior design and YPAO auto-calibration technology. This model also features an FM/DAB+ tuner, wireless Wi-Fi, Bluetooth, DLNA, AirPlay and MusicCast multi-room support to extend the experience throughout your home.


A superior experience

Designed for superior performance, this amplifier features a ToP-ART design that respects sonic integrity. It features a symmetrically arranged left/right circuit with direct signal routing and a resin Art Base chassis that absorbs and blocks unnecessary vibration.

This Yamaha unit is equipped with a powerful power supply and offers a maximum power of 145 Watts per channel.


YPAO Calibration

Usually found on Yamaha A/V amplifiers, YPAO technology is introduced on the Hi-Fi amplifier to provide the best possible music experience. The room in which your device is located is analysed and the sound is automatically adjusted to suit your environment.

The YPAO-RSC and YPAO Volume functions will further refine the sound for intense everyday moments.


Experience the best of both worlds

The Yamaha R-N803D features an FM tuner with DAB/DAB+ function and Wi-Fi, Bluetooth, DLNA, Bluetooth and AirPlay wireless capabilities. The R-N803D is a great way to listen to high resolution audio sources thanks to the 192 kHz/24-bit ESS DAC, and has a full range of connectivity for all your needs.

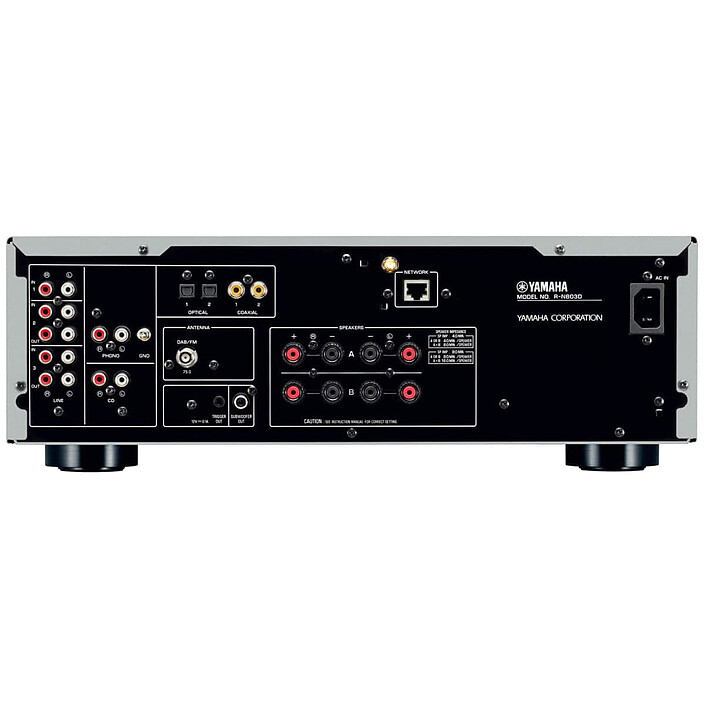

In addition to two optical and coaxial inputs, connect your turntable via the phono input and a subwoofer with the dedicated output. This model has a brushed aluminium front panel that will blend in perfectly with the rest of your audio equipment.


Music throughout the house

MusicCast is a revolution in the world of audio, allowing you to use all your MusicCast products together or separately. Control your setup from an intuitive, quick and easy application. Enjoy your sound bar, multiroom speaker, home cinema amplifier, hi-fi or any other product according to your needs and desires. Created by Yamaha, MusicCast is audio everywhere, for everyone!

With MusicCast, you have access to all the music available on your network for unlimited musical pleasure. You enjoy the ability to play the same or different music in different rooms of the house.




Main features :


  • Receiver with ToP-ART concept
  • Minimum RMS power: 2 x 100 W
  • Powerful low impedance amplifier
  • YPAO self-calibration technology
  • ESS SABRE 9006AS 192 kHz/24-bit DAC
  • Supports 5.6 MHz DSD / AIFF, WAV, FLAC 192 kHz/24bits / Apple Lossless 96 kHz/24bits
  • Pure Direct Mode
  • FM / DAB / DAB+ Tuner
  • Network: Wi-Fi, Bluetooth, DLNA, AirPlay
  • MusicCastcompatible
  • Phono input and subwoofer output
  • Optical and coaxial inputs
  • MusicCast CONTROLLER application
Specifications
Select your criteria

General information

Product name

Yamaha MusicCast R-N803D Black

Brand

Yamaha

Model

RN803DBL

Technical specifications

Amplifier type

Amplifier Tuner

Tube amplification

No

Number of amplification channels

2

Power per channel

100 W

Signal-to-noise ratio

100 dB

Bandwidth (Min frequency)

20 Hz

Bandwidth (Max frequency)

20 kHz

Tuner type

DAB
DAB+
FM

Connectivity

Front panel connectors

Headphone (6.35mm Jack)
USB

Audio input

4 X Line IN (2x RCA Female)
1 X PHONO (2x RCA Female)
2 X Coaxial S/PDIF digital audio
2 X Digital audio S/PDIF Optical

Audio outputs

2 X Line OUT (2x RCA Female)
1 X Subwoofer (1x RCA)

Additional connectors

Bluetooth
Fast Ethernet - RJ45 Female
Wi-Fi

Connectivity

Bluetooth

Yes

Wi-Fi

Yes

DLNA certification

Yes

Physical characteristics

Color

Black

Remote control

Yes

Width

435 mm

Height

151 mm

Depth

392 mm

Weight

11 kg

Power supply

Consumption

250 W

Standby consumption

0.1 W

Warranties

Commercial warranty

Seller 2 years

Legal warranty

See terms & conditions

Product referenced on 14 Sep 2018
