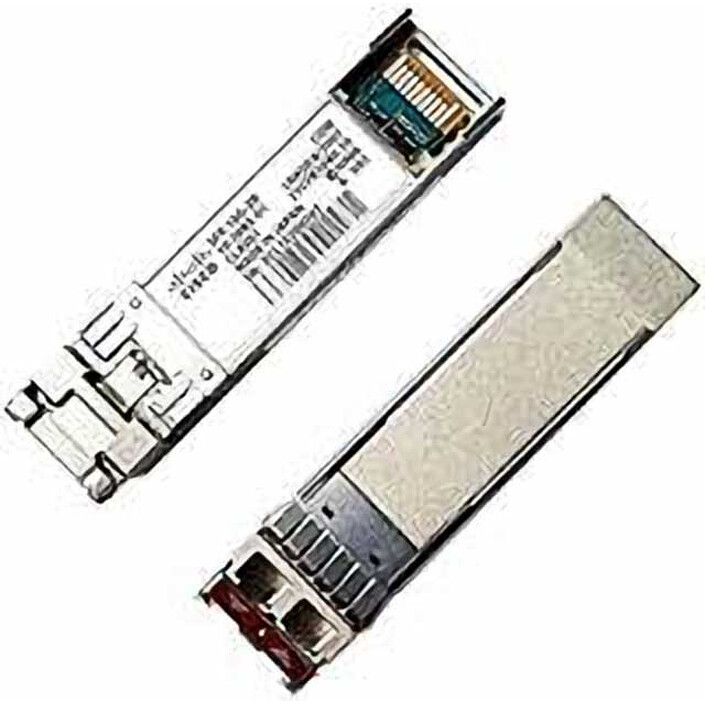

Cisco SFP-10G-SR-S
Cisco 10 Gigabit SFP+ module on MMF class S multimode fibre
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Go fibre
Cisco 10GBASE SFP+ Class S modules enable a variety of 10 Gigabit Ethernet connections and are optimised for enterprise and data centre applications. Class S interfaces are available in the equipment most commonly found in these areas, so please refer to the compatibility matrix to ensure you have compatible equipment.
Cisco SFP-10G-SR-S module
The Cisco 10GBASE-SR module provides a link of at least 26 metres over a multimode fibre(MMF) FDDI (Fiber Distributed Data Interface). Using 2000 MHz MMF (OM3) modulation links of up to 300 metres are possible, and up to 400 metres using 4700 MHz MMF (OM4) modulation.
Key features:
- Small size
- 10GBASE Ethernet connectivity
- Can be hot-plugged in and out of a compatible SFP+ port
- Allows optical digital monitoring
- Cisco quality identification (ID ) enables your platform to verify the authenticity of your equipment
- 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interoperability on the same link
- Cable type: MMF
- Transmission power: -1.2 dBm to -7.3 dBm
- Receive power: -1.0 dBm to -9.9 dBm
- Wavelengths: 840 to 860 nm
- Operating temperature: 0 to 70°C
- Power consumption: 1 W
- Cable length / Fibre size / Bandwidth :
- 026 m / 62.5 microns / 160 MHz (FDDI)
- 033 m / 62.5 microns / 200 MHz (OM1)
- 066 m / 50.0 microns / 400 MHz
- 082 m / 50.0 microns / 500 MHz (OM2)
- 300 m / 50.0 microns / 2000 MHz (OM3)
- 400 m / 50.0 microns / 4700 MHz (OM4)
- Colour: beige
Select your criteria
General information |
Product name |
Cisco SFP-10G-SR-S |
Brand |
Cisco Systems | |
Model |
SFP-10G-SR-S= | |
Technical specifications |
Product type |
SFP module |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Cisco International Limited |
Postal address |
9-11 New Square Park, Bedfont Lakes TW14 8HA Feltham, Middlesex, GB | |
Electronic Address |
Click here
|
Product referenced on 23 Oct 2015
