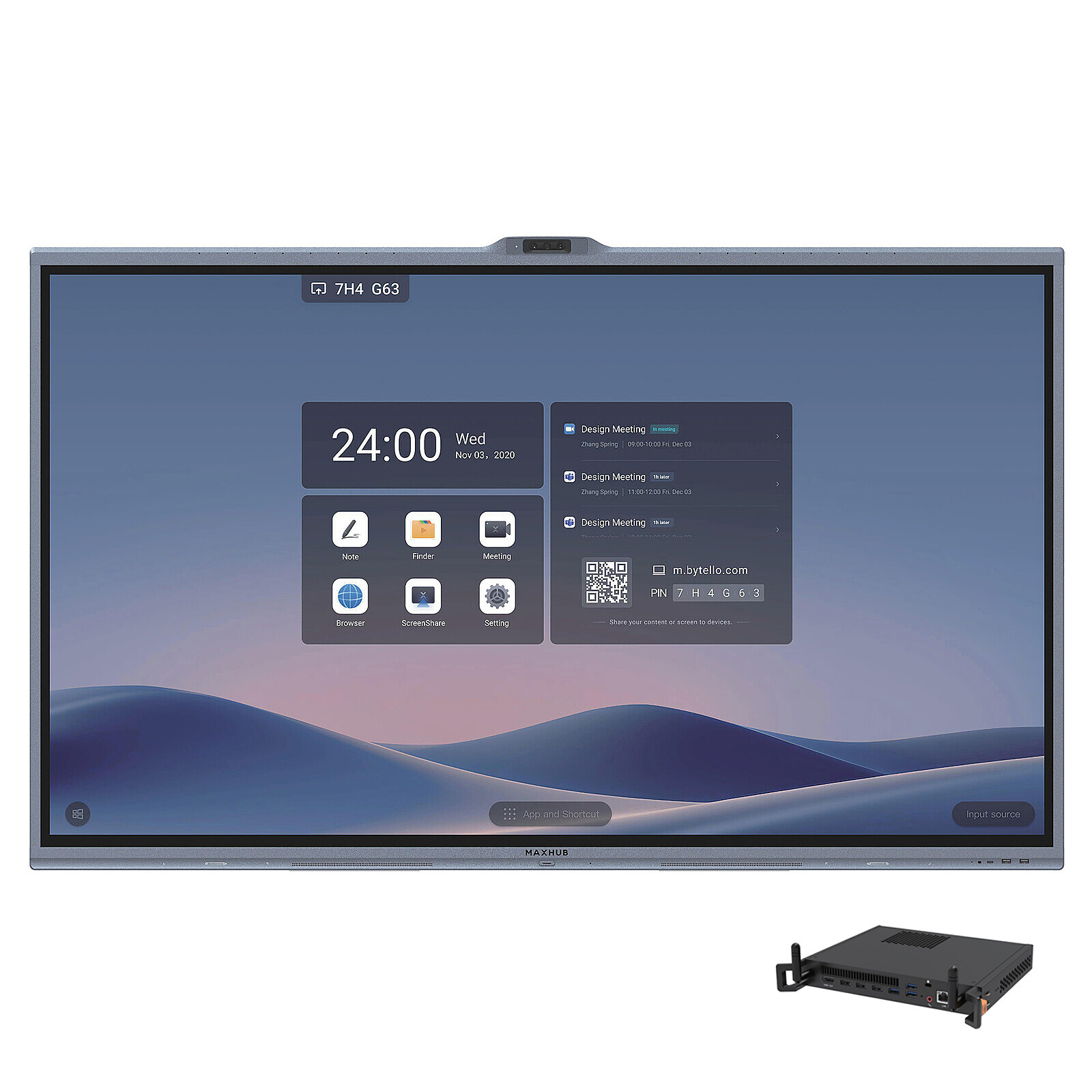

MAXHUB 55" LED - XBoard V7 V5550 + MT71E PC Module
Interactive D-LED display 55" - 4K UHD - 8 ms - Matte panel, Haze 25% - 350 cd/m² - HDMI/USB - Ethernet - OPS Slot - 2.1 audio system - Styluses included - MAXHUB OS 7.0 + MT71E PC Module for dynamic display
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Transform your meetings with a premium interactive solution
Enjoy secure, seamless collaboration for superior-quality video conferences thanks to the high-end all-in-one interactive display XBoard V7 V5550 and the MT71E Module that will greatly expand all your capabilities.
The MAXHUB XBoard V7 V5550 display is an all-in-one solution designed to revolutionize meetings and business collaboration. Combining 4K display, intelligent audio and video features, and cross-platform compatibility, this interactive display is aimed at professionals looking for an immersive, seamless, and intuitive experience for in-person or remote exchanges.
The MAXHUB PC Module MT71E is a PC module designed to greatly expand the capabilities of MAXHUB interactive displays. Easy to integrate directly into a compatible display, it offers all the power of a professional computer thanks to its processor Intel Core i5-12450H of the 12th generation, supported by 16 GB of DDR4 memory and 256 GB SSD storage. Pre-installed with Windows 11 Pro and MAXHUB OS, it lets you quickly launch your collaborative applications, video conferences, and presentations in a smooth and secure environment. Its Intel UHD Graphics graphics chipset delivers display up to 4K at 60 Hz, while its comprehensive connectivity (HDMI, USB, RJ45 and microphone input) makes it easy to connect all your peripherals. Compact and reliable, the MT71E is the ideal solution for turning a MAXHUB interactive display into a high-performance workstation, perfectly suited to meeting rooms and collaborative spaces.
Advanced technology: optimized meetings
The XBoard V7 V5550 stands out thanks to its Trident Lens camera system equipped with 50 MP sensors, 2x optical zoom and 5x hybrid zoom, as well as intelligent features such as auto framing, speaker tracking and smart focus. These technologies ensure optimal visibility for all participants, while AI noise reduction and adaptive spatial sound deliver impeccable audio quality, even in noisy environments.
Its 4K screen with 90% NTSC color gamut and anti-glare technology delivers sharp, accurate images, ideal for professional presentations or creative brainstorming sessions.
Intuitive collaboration and simplified connectivity
With 50 touch points, the XBoard V7 V5550 allows multiple users to write or annotate simultaneously, encouraging dynamic exchanges. The BYOM (Bring Your Own Meeting) function lets you host meetings directly from your own device while benefiting from the display’s audiovisual equipment.
Content sharing, wired or wireless, is made easy thanks to technologies such as Sonic Share (ultrasonic sharing) or P2P connection, which require neither Wi-Fi nor complex setup. Finally, its Windows compatibility and MAXHUB OS system ensure perfect integration with existing tools.

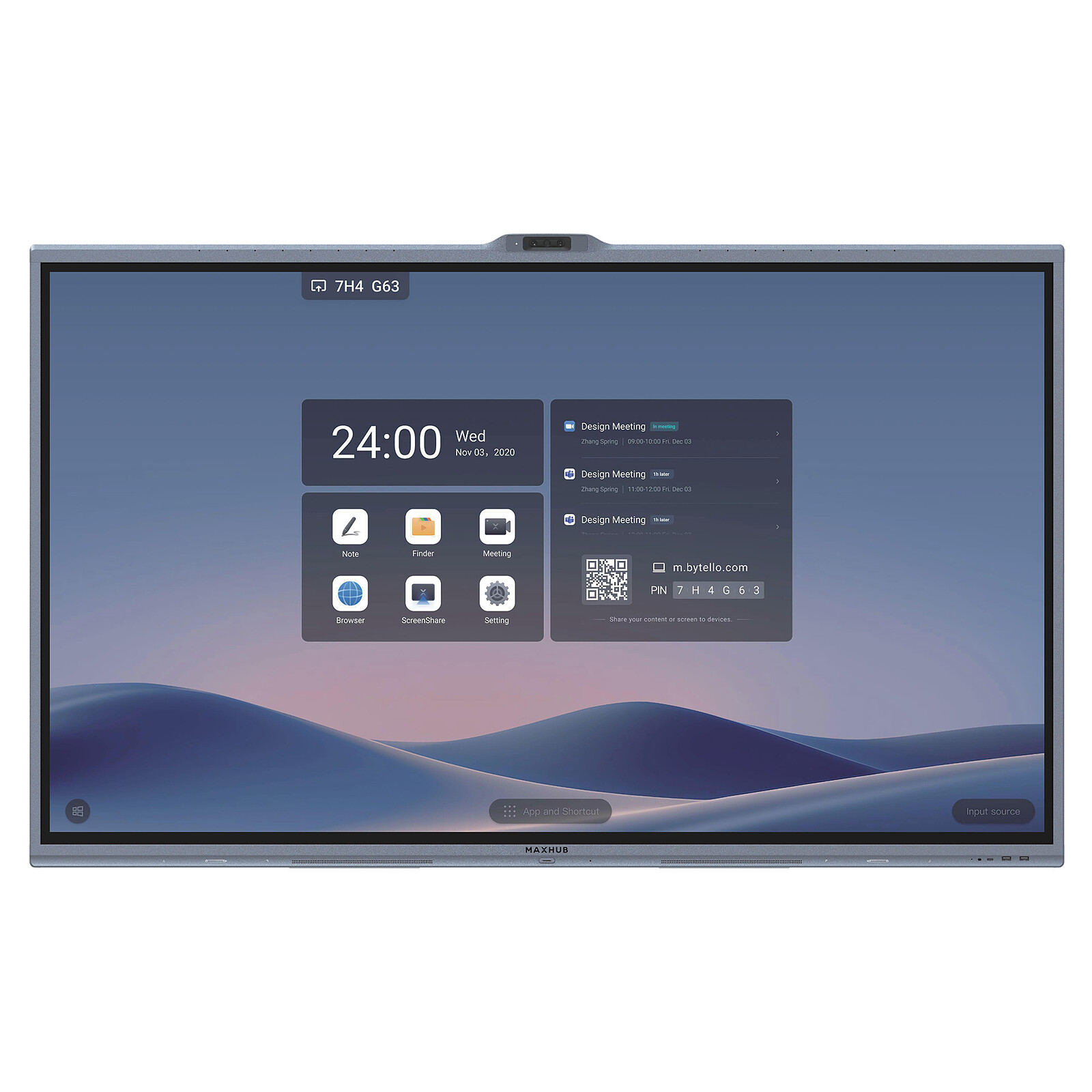

Features of the MAXHUB 55" LED - XBoard V7 V5550 :
- 55-inch display with 3840 × 2160 (4K) resolution and DLED technology
- 90% NTSC color gamut and 1.07 billion colors (10 bits) for accurate rendering
- 50 touch points with infrared technology for multi-user interaction
- 50 MP Trident Lens camera system with 2x optical zoom and 5x hybrid zoom
- 16-array microphones with AI noise reduction and a 15-meter range
- Adaptive spatial sound and Audio Fence for optimal sound isolation
- Comprehensive connectivity: 2 HDMI ports, 2 USB 3.0 ports, 1 USB-C port, 1 RS232 port
- Smart features: auto framing, speaker tracking, smart focus, Video Fence
- Multi-OS compatibility: Windows 11/10/8/7, Android, Linux, Mac OS X, Chrome OS
- ENERGY STAR certification for optimized power consumption

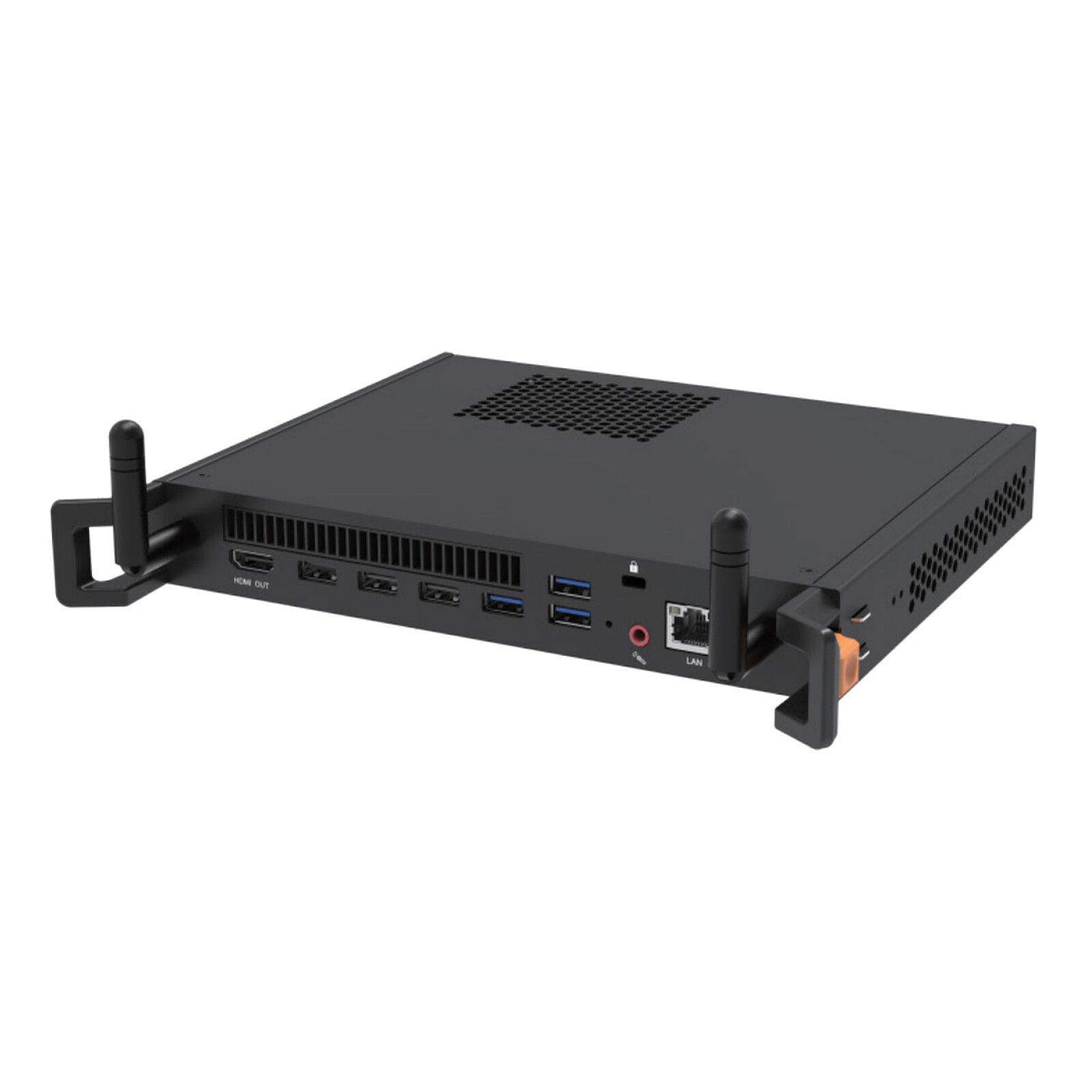

Features of the MAXHUB MT71E PC Module :
- Pluggable PC Module
- Compatibility: MAXHUB interactive displays
- Operating system: Windows 11 Pro
- Pre-installed MAXHUB OS interface
- Processor: 12th-generation Intel Core i5-12450H
- RAM: 16 GB DDR4
- Internal storage: 256 GB SSD
- Graphics chipset: Intel UHD Graphics
- Supported graphics resolution: up to 4K at 60 Hz
- Touch compatibility
- Integrated TPM 2.0 module
- Video output: 1 x HDMI 2.0 (up to 4K at 30 Hz)
- USB 3.0 Type-A ports: 3
- USB 2.0 Type-A ports: 3
- Network port: 1 x RJ45 Gigabit Ethernet (1000 Mb/s)
- Microphone input: 1
- Kensington security slot
- Product dimensions (W x H x D): 244.5 x 207.2 x 32 mm
- Net weight: 1.2 kg
Select your criteria
General information |
Product name |
MAXHUB 55" LED - XBoard V7 V5550 + MT71E PC Module |
Brand |
MAXHUB | |
Model |
MAXHUB XBOARD V7 V5550 + MT71E PC MODULE I5 256G | |
Display |
Use |
Collaboration/videoconference |
Screen size |
55 inch | |
Screen size |
55 inches | |
Screen format |
16:9 | |
Panel type |
IPS display | |
LCD technology |
IPS-ADS | |
Max resolution |
3840 x 2160 pixels | |
Dot Pitch |
0.315 mm | |
Brightness |
350 cd/m² | |
Contrast |
1200 /1 | |
Response time |
8 ms | |
Angle of vision (horizontal) |
178 Degree(s) | |
Angle of vision (vertical) |
178 Degree(s) | |
Screen |
Screen type |
Touch LED |
Matte/anti-glare panel |
Yes | |
Glossy panel |
No | |
Max vertical frequency |
60 Hz | |
Ergonomics |
Height adjustable stand |
No |
Removable stand |
No | |
Wall mount |
Yes | |
VESA mount |
400 x 200mm (M8) | |
Use |
Indoor | |
Connectivity |
Video inputs |
2 X HDMI Female |
Audio input |
1 X Line IN (3.5mm Jack Female) | |
Audio outputs |
1 X Line OUT (3.5mm Jack Female) | |
Additional connector(s) |
1 X USB Type C | |
| 2 X USB 3.0 | ||
| 1 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X Serial (RS-232) | ||
Audio system |
Sound power |
2 X 10 W |
| 1 X 20 W | ||
Network |
Wi-Fi |
No |
Bluetooth |
No | |
DLNA certification |
No | |
Physical characteristics |
Color |
Gray |
Width |
1269.5 mm | |
Height |
792.9 mm | |
Depth |
102.7 mm | |
Weight |
26.85 kg | |
Power supply |
Operation |
16h/24h |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
Product referenced on 29 Jun 2026
For the moment, there are no customer reviews.Write a review
