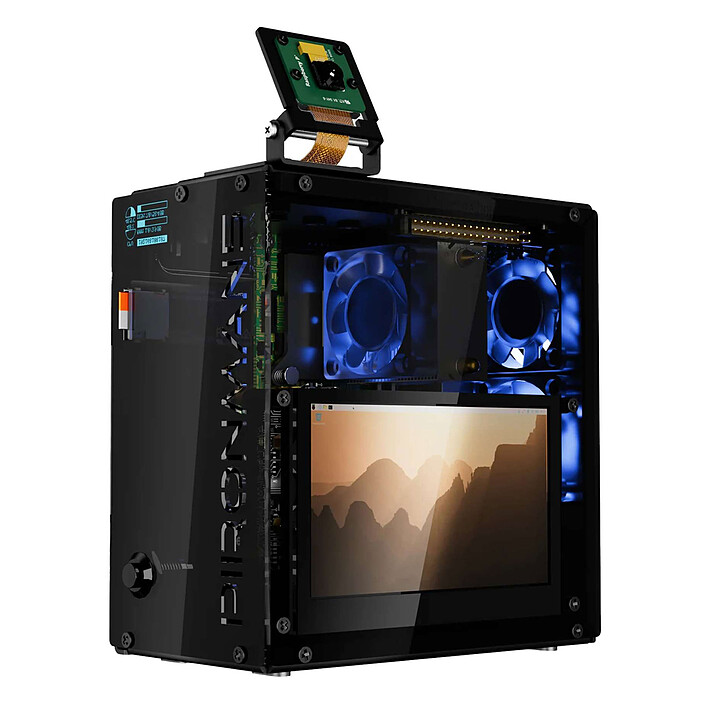

SunFounder Pironman 5 Pro Max
Transparent acrylic case (compatible Raspberry Pi 5)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Transform your Raspberry Pi 5 into a versatile, high-performance station
The SunFounder Pironman 5 Pro Max is a high-performance aluminum case designed for the Raspberry Pi 5, offering a complete solution for home users, developers, and technology enthusiasts. Ideal for a wide range of applications such as NAS, AI development, media centers, or advanced projects, this case combines a robust design, optimized cooling, and extensive connectivity.
A case designed for performance and expansion
The Pironman 5 Pro Max stands out for its Dual NVMe & AI expansion hub, integrating a PCIe Gen 2 switch with two M.2 M-key slots (compatible with 2230/2242/2260/2280). This allows flexible configurations, such as RAID 0/1 for a high-performance NAS, or the addition of an AI accelerator such as the Hailo-8/8L.

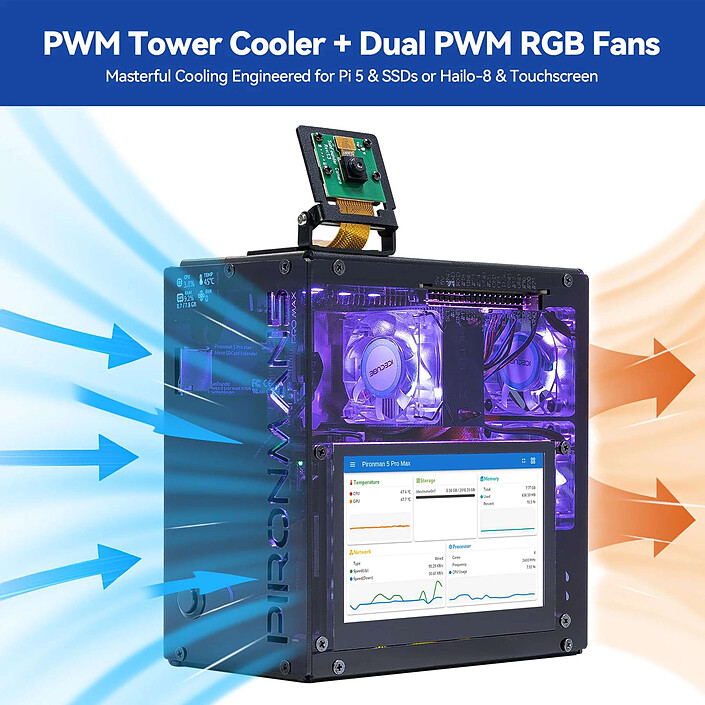

Its complete cooling system, made up of a large tower cooler and three addressable RGB fans, ensures optimal thermal management, even under heavy load.
An enhanced user experience

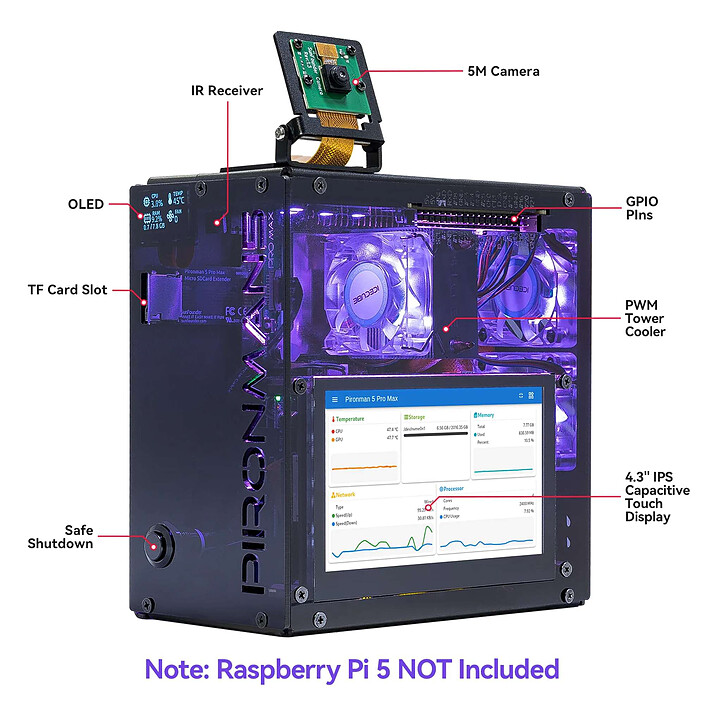

This case features a 4.3-inch DSI touchscreen (800x480) for a secondary display or a custom dashboard, as well as a 0.96-inch OLED screen for real-time monitoring of system status (CPU, memory, temperature, etc.).
It also includes 3W stereo speakers and a 5MP camera, ideal for multimedia or video conferencing. Its industrial design, with a chassis in anodized aluminum alloy and dark acrylic panels, combines durability with modern aesthetics.
Main features:
- Exclusive compatibility with the Raspberry Pi 5
- 2 M.2 M-key PCIe 2.0 x1 slots for NVMe SSDs or AI accelerators (2230/2242/2260/2280)
- Cooling system: 1 tower cooler + 3 addressable RGB fans controlled by PWM
- Display: 4.3-inch touchscreen (800x480) + 0.96-inch OLED screen (128x64)
- Multimedia: 3W stereo speakers, 5MP camera, USB microphone

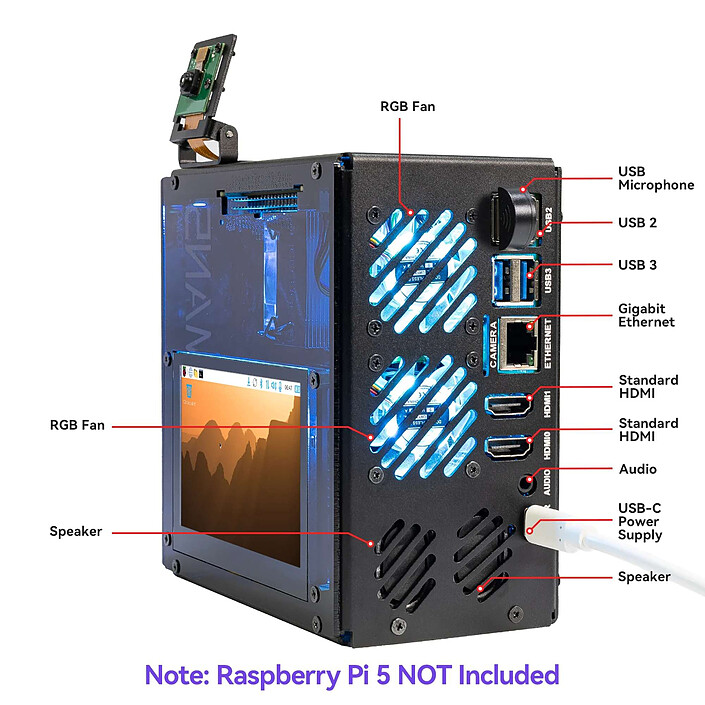

- Connectivity: 2 standard HDMI ports (4Kp60), Gigabit LAN, 2x USB 3.0, 2x USB 2.0, extended 40-pin GPIO
- Customizable lighting: 18 WS2812B addressable RGB LEDs (6 on the board + 12 in the fans)
- Other features: IR receiver, metal power button, RTC battery holder (CR1220)
- Recommended power supply: USB Type-C 5V/5A (27W minimum)
- Dimensions: 140.9 x 77.0 x 138.7 mm
Select your criteria
General information |
Product name |
SunFounder Pironman 5 Pro Max |
Brand |
Sunfounder | |
Model |
PIRONMAN-PRO | |
Specificities |
Case type |
Classic |
With display |
Yes | |
Compatibility |
Raspberry Pi 5 | |
Compatible with expansion card |
Yes | |
Case color |
Transparent | |
On / off button |
Yes | |
Reset button |
No | |
Material |
Acrylic | |
Width |
77 mm | |
Height |
140.9 mm | |
Depth |
138.7 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
Product referenced on 19 Jun 2026
