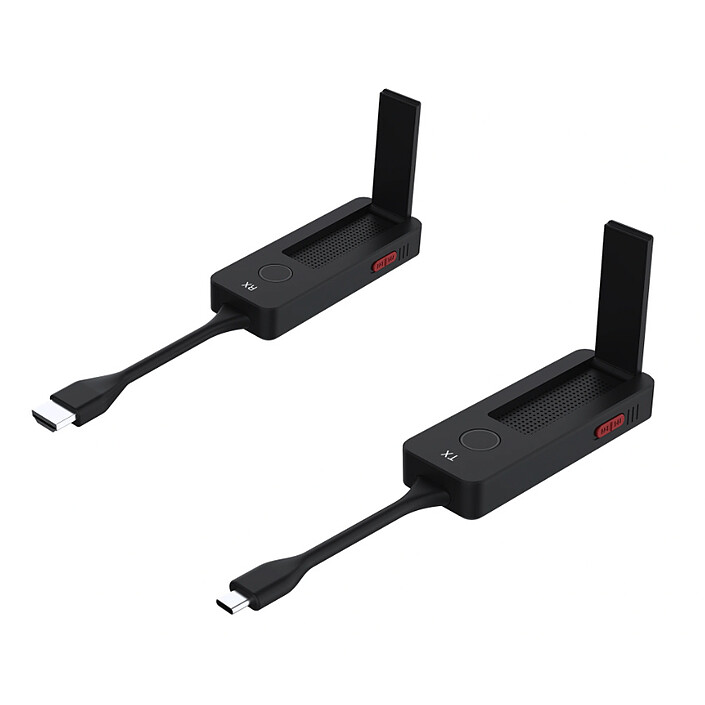

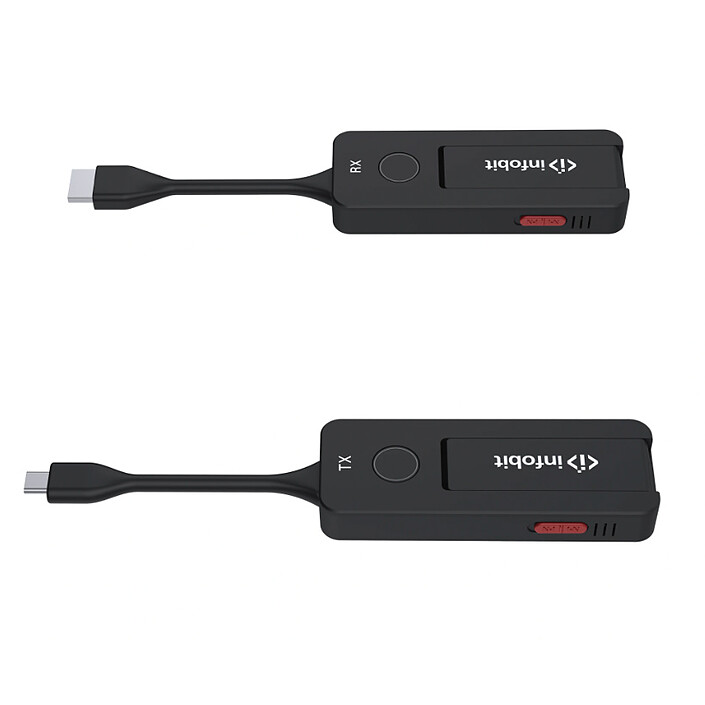

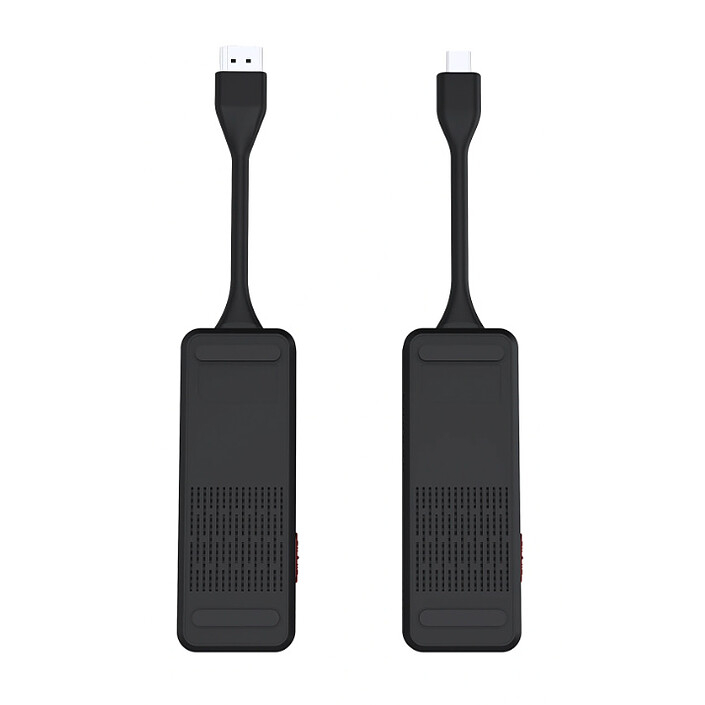

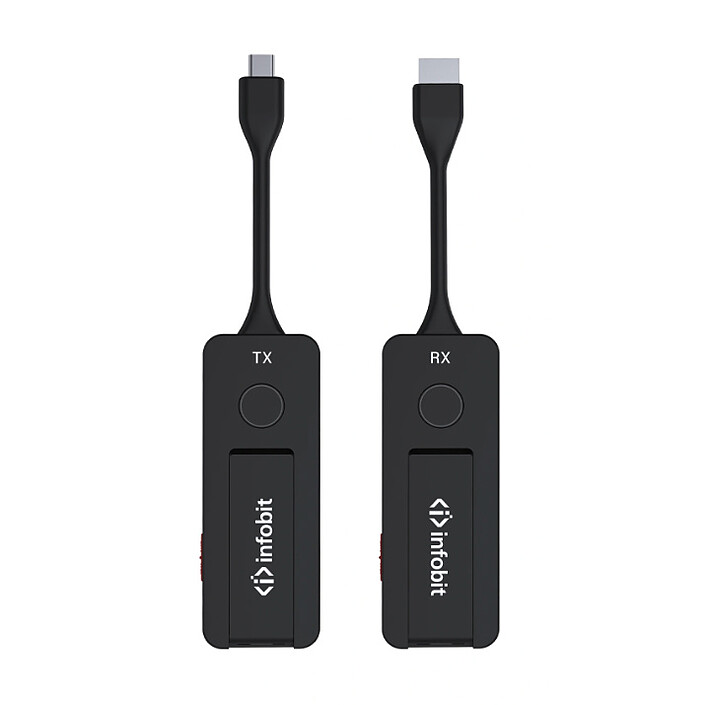

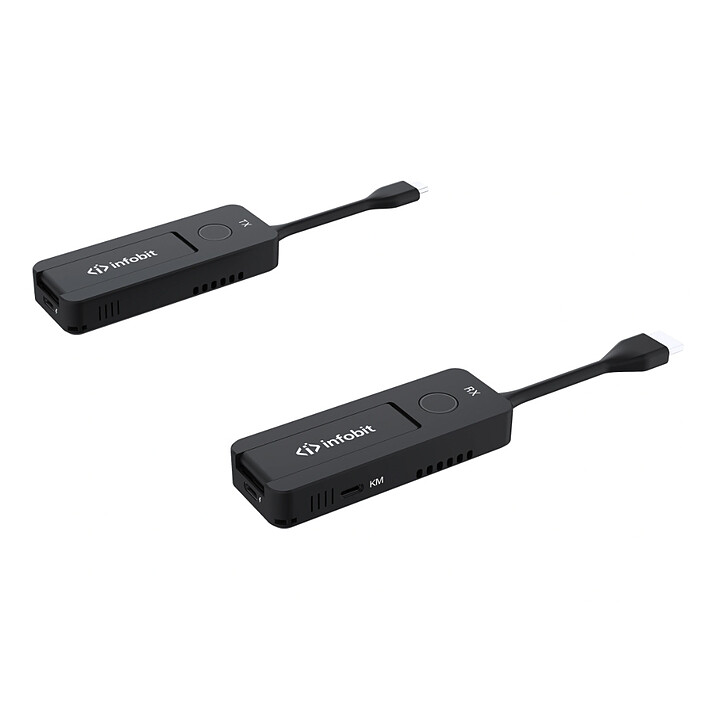

Infobit iShare Flip-CT (x1) + Flip-HR (x1)

The next-generation wireless presentation

Designed to simplify modern collaborative environments, the Infobit iShare Flip-CT wireless presentation dongle instantly transforms any screen into a high-performance, interactive broadcasting tool. Thanks to its USB-C connection (DisplayPort 1.4), it lets you project content in ultra-high-definition 4K at 60 frames/second, with no software, no network configuration, and no cumbersome cable. Just plug in and press to share. Its proprietary technology ensures smooth playback with no perceptible latency (100 ms), while automatic pairing optimizes the Wi-Fi connection for maximum stability. Suitable for meeting rooms, educational spaces or BYOD/BYOM installations, it supports multi-user (N-1) or multi-screen (1-N) modes, making dynamic exchanges easier. Compact, lightweight and powered directly via USB, the Flip-CT combines ease of use and professional performance for a reliable and intuitive wireless presentation experience.

The Infobit iShare Flip-HR wireless presentation dongle revolutionizes content sharing in business as well as in meeting rooms. Designed to deliver an intuitive, high-performance experience, this HDMI 2.0 receiver supports ultra-high-definition streaming up to 4K at 60 frames per second, ensuring exceptional image quality and perfect smoothness thanks to proprietary Seamless technology. Easy to deploy, it works without an app or complex configuration: simply connect the transmitter to your source and press a button to instantly share your screen. Featuring smart automatic pairing, an optimized Wi-Fi connection and low latency, the Flip-HR ensures dynamic, uninterrupted presentations. Its compatibility with multi-user modes (1 to N or N to 1) makes it an ideal solution for modern collaborative environments, while integrating advanced functions such as KVM touch control for enhanced interactivity.

Features :


• iShare Flip-CT dongle (transmitter)
• USB-C wireless transmitter (DisplayPort 1.4)
• Maximum resolution: up to 4K UHD (2160p) at 60 Hz
• Supported resolutions: 2160p, 1080p, 720p, 480p (multi-format)
• Latency: about 100 ms
• Technology: hardware codec + proprietary wireless protocol
• Connection: automatic pairing, no software or network required
• Wi-Fi standards: IEEE 802.11 a/b/g/n/ac (5 GHz band)
• Wi-Fi throughput: up to 866 Mbps
• Frequencies: 5.150 GHz to 5.825 GHz
• Video bitrate: up to 70 Mbps
• Range: up to 30 m (up to 100 m in open field depending on configuration)
• Broadcast modes: 1 transmitter → multiple receivers (1-N) / multiple transmitters → 1 receiver (N-1)
• Audio: PCM, 2 channels
• HDCP: version 2.2
• Control: touch-back function (PC control from touchscreen)
• Interfaces: 1 USB-C port (power + data)
• Broadcast button
• Power supply: 5 V / 2 A via USB
• Power consumption: 10 W
• Antenna: 1 high-sensitivity 3 dBi antenna
• Security: WPA2-AES 128-bit encryption
• Indicators: status and power LED
• Dimensions: 195 x 37 x 16,5 mm
• Weight: 64 g



• iShare Flip-HR dongle (receiver)
• HDMI wireless receiver (model: iShare Flip-HR)
• Quad-core Cortex-A53 processor clocked at 1,5 GHz
• HDMI 2.0 video output compatible with HDCP 2.2
• Output resolution up to 4K UHD (2160p) at 60 fps
• Resolutions: 2160P/60fps; 1080p/60fps; 1080p/30fps; 1080p/24fps; 1080i/50fps; 1080i/60fps; 720p/30fps; 720p/60fps; 480p/60fps
• Smooth video streaming with Seamless technology
• Low latency of about 100 ms
• PCM stereo audio transmission (2 channels)
• Wi-Fi standards: IEEE 802.11 a/b/g/n/ac (5 GHz)
• Wi-Fi frequencies: 5,15 GHz to 5,825 GHzWi-Fi throughput up to 866 Mbps
• Configurable bandwidth (20 / 40 / 80 MHz)
• Network security: WPA2-AES 128-bit encryption
• HDMI OUT port for screen / projector connection
• USB-C port for power supply (5V / 2A)
• USB KVM function (control via touchscreen)
• Automatic pairing and smart connection to the best Wi-Fi channel
• Multi-user modes: 1 transmitter to multiple receivers (up to 4) / Multiple transmitters to 1 receiver
• Transmission distance up to 30 m (open field recommended)
• Plug & Play installation without software or network configuration
• Ideal use: meeting rooms, teaching, collaborative display
• Dimensions: 195 x 37 x 16,5 mm
• Weight: 50 g
