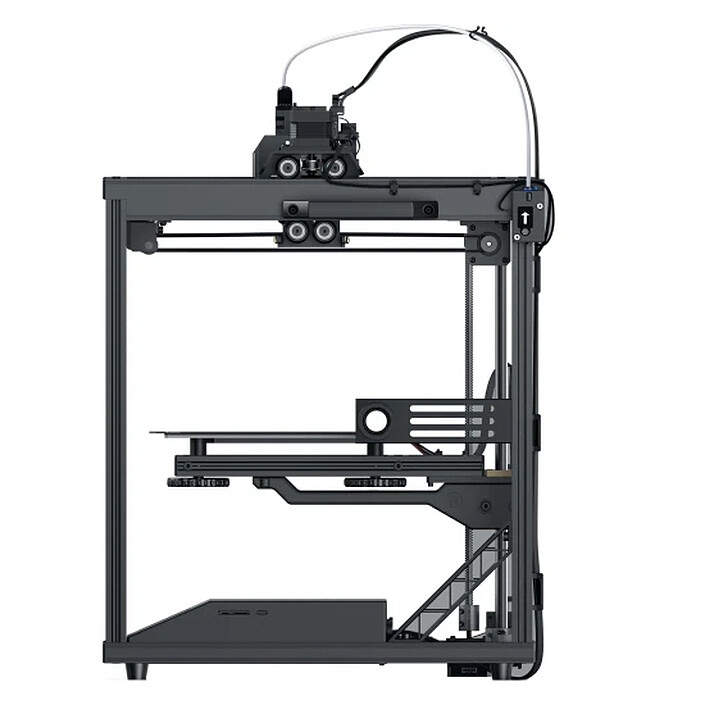

Creality Ender 5 S1
3D printer with 1 print head PLA / TPU / ABS / PETG - (USB / micro-SD card)
Pictures may differ from actual products
The Ender 5 S1 is simply Creality's top-of-the-line model with exceptional features. This printer offers incredible 3D printing possibilities. It is incredibly heat resistant and has an improved motion system...
3D printer with 1 print head PLA / TPU / ABS / PETG - (USB / micro-SD card)
Creality Ender 5 S1: The high speed, high temperature Ender
TheEnder 5 S1 is simply Creality's top-of-the-line, feature-packed model, offering incredible 3D printing capabilities. It is incredibly heat resistant and has an improved motion system for 2000 mm/s² acceleration. Its printing speed is up to 250 mm/s. Feel the speed and excitement of 3D printing with it now. Each X/Y/Z axis is driven by a high precision stepper motor. A steel drive shaft synchronises the two Y-axis belts. The Ender 5 S1 also features a high-torque 42-48 Y-axis motor for responsive and precise movement.
Much better quality 3D prints
- Direct extrusion for soft filaments: The all-metal "Sprite" direct extruder has two gears with a 1:3.5 ratio. It delivers a powerful and uniform extrusion force of 80N. Quality printing with flexible filaments such as TPU.
- Titanium alloy heat breaker: low thermal conductivity to block heat flow. Able to withstand up to 300?.
- Corrugated heat sink: 2.5 times the surface area which is quickly air cooled by a quiet axial flow fan.
- Large 50 mm³ melting chamber surrounded by a large 4000 mm³ heating block.
- Urus" air ducts channel fan ventilation to directly cool the printed pattern.
- Ready for high temperature filaments: ABS, PC, ASA, HIPS.
- CR Touch auto levelling and auxiliary levelling (shift Z-axis height with 0.01mm accuracy)
- 4.3 inch touch screen with wide viewing angle
- PID temperature control page is also added for easy adjustment.
- Sticky and foldable PC construction surface: the model can be removed immediately with a slight bend.
- Electrical safety and reliability: 350W power adapter under case
Features:
- Printing volume of 220 x 220 x 280 mm
- Max. printing speed: 250 mm/s
- Layer thickness: 0.05 - 0.35 mm
- Nozzle diameter: 0.4 mm
- Max. nozzle temperature: 300°C
- Max. heating plate temperature: 110°C
- 4.3 inch colour display
- Improved user interface
- Connectivity : USB / SD card
- Supported files : OBJ, STL, AMF
- OS compatibility : Windows / Mac OS / Linux
- Normal filaments : PLA - TPU - PETG
- High temperature filaments : ABS - PC - ASA - HIPS
- Filament diameter : 1.75 mm
- Technology : FFF - FDM (filament deposition) - LPD
- Machine size : 425 x 460 x 570 mm
- Weight : 12.1 Kg
Select your criteria
General information |
Product name |
Creality Ender 5 S1 |
Brand |
Creality | |
Model |
6971636403289 | |
Technical specifications |
3D printer type |
Filament |
Interface with the computer |
USB | |
| SD (Secure Digital) | ||
Print head(s) |
1 print head | |
Printing speed |
250 mm/sec | |
Consumable material(s) |
ABS | |
| PETG | ||
| PLA | ||
| TPU | ||
| HIPS | ||
| Polycarbonate - PC | ||
Number of simultaneous colors |
1 | |
Number of color(s) |
1 | |
Nozzle diameter |
0.4 mm | |
Nozzle temperature |
300 °C (Degree Celsius) | |
Heated bed |
Yes | |
Bed temperature |
110 °C (Degree Celsius) | |
3D filament diameter |
1.75mm | |
Supported OS |
Mac OS X | |
| Linux | ||
| Microsoft Windows | ||
Physical characteristics |
Height |
570 mm |
Width |
425 mm | |
Depth |
460 mm | |
Weight |
12.1 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
