Those were the good old days! This product is no longer on sale

Pictures may differ from actual products

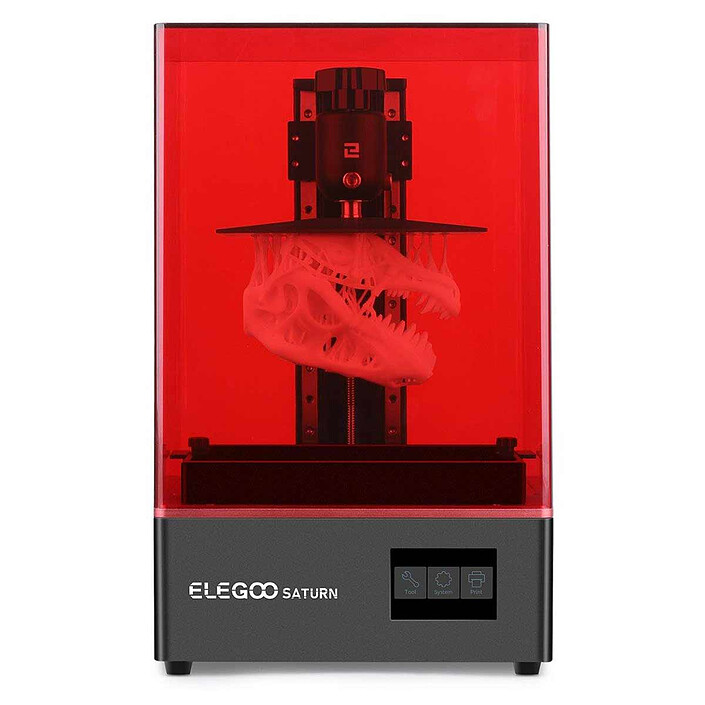

Elegoo Saturn

3D printer with UV LCD technology - USB/Ethernet - Windows/Mac

Last price 449€95
Holy Moly!
Overview

The 3D printer that takes you to another planet

With the Saturn, Elegoo introduces an 8.9" LCD 3D printer with UV LCD technology that offers a huge printing area of 192 x 120 x 200 mm for your unlimited creative spirit. The Saturn is Elegoo's first LCD 3D printer with a monochrome LCD screen. This monochrome LCD screen is much more resistant to wear and tear and allows a much higher exposure intensity.

Greater precision and easier printing


TheElegooSaturn 3D printer comes with an 8.9 inch 4K monochrome LCD screen that gives you an HD resolution of 3840 x 2400, reducing the time to print layers to 1.5 s-2 s, while offering exceptional printing results.

The Saturn gives you a large print volume of 192 x 120 x 200 mm, and allows you to print multiple full-size models at the same time, which can significantly improve your productivity.

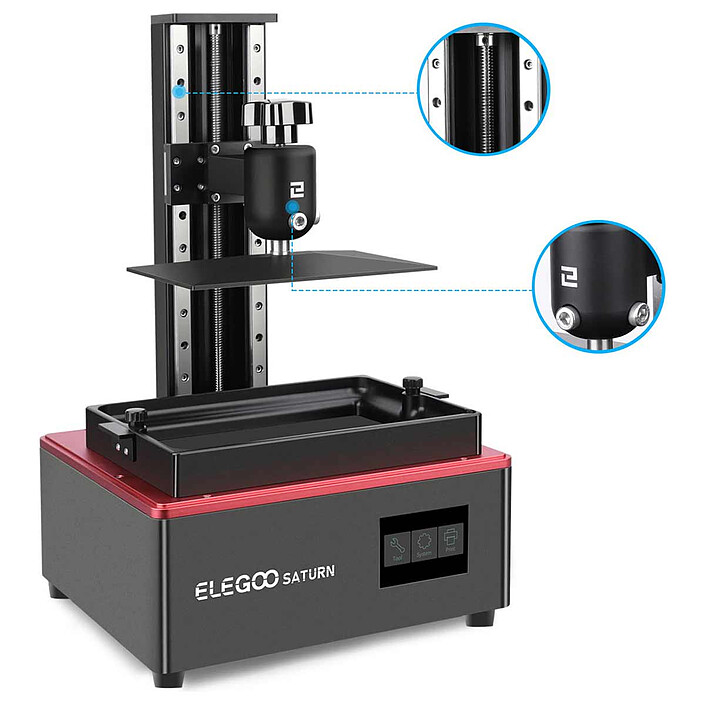

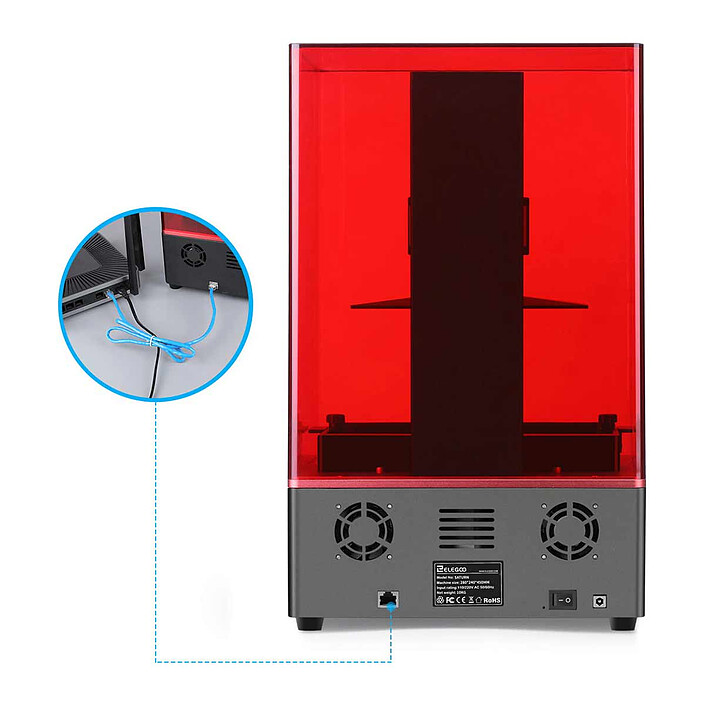

The Z-axis uses a dual linear guide structure, which benefits from more stable movement and greatly improved accuracy of movement. With the Ethernet port on the back and the built-in 4GB memory, this Saturn 3D printer now supports file transfer via your local network, which is very convenient for fast printing.

The matrix light source consists of 54 UV LED lamps with uniform light emission, ensuring superior print results and a more accurate print size. Adjustment screws on the build plate ensure durable levelling, no need for frequent calibration, and the sanded surface offers much stronger adhesion, especially when printing large 3D models.

features :

  • UV LCD technology
  • Operation: 3.5 inch touch screen
  • Slicer software: Chitu DLP Slicer

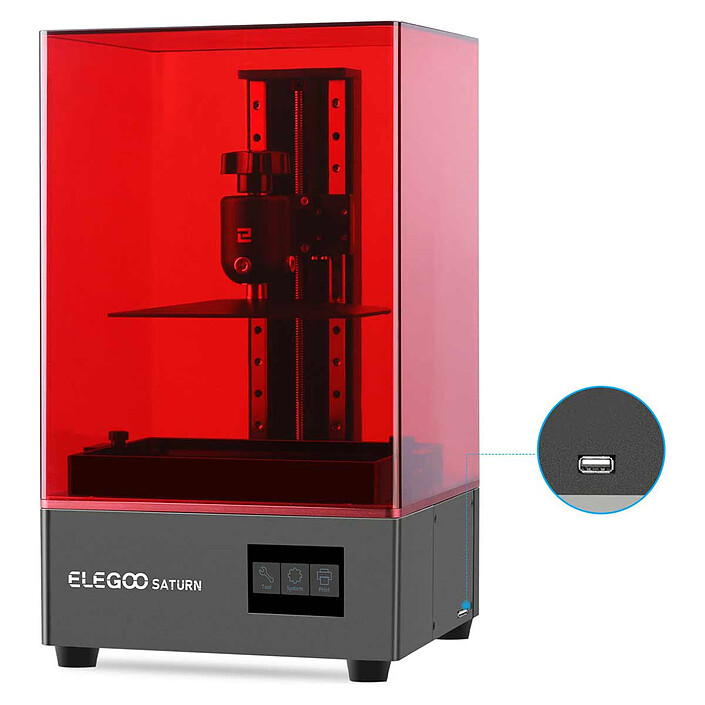

  • Connectivity: USB/Ethernet
  • Built-in 4GB memory
  • Light source: Built-in UV LED lights (405 nm wave)
  • XY resolution: 0.05 mm (3840 x 2400)
  • Z-axis accuracy: 0.00125 mm
  • Layer thickness: 0.01-0.15 mm
  • Printing speed: 30-40mm / h
  • Power supply: 110-240V 50 / 60Hz 24V4A 96W
  • Printer dimensions (L x W x H): 28 x 24 cm x 44.6 cm
  • Construction volume (L x W x H) : 192 x 120 x 200 mm
  • Weight : 10 Kg
Specifications
Select your criteria

General information

Product name

Elegoo Saturn

Brand

Elegoo

Model

14000928

Technical specifications

3D printer type

Resin

Interface with the computer

Ethernet - RJ45 Female
USB

Printing speed

0.01 ppm

Consumable material(s)

Photopolymer

Layer thickness

150 Micron

Supported OS

Mac OS X
Microsoft Windows 10
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 8.1

Physical characteristics

Height

446 mm

Width

280 mm

Depth

240 mm

Weight

10 kg

Warranties

Commercial warranty

Seller 2 years

Legal warranty

See terms & conditions

Product referenced on 31 May 2021

Customer review
Global rating
10/10
based on 1 review Editorial and moderation guide
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • 0%
  • by MathiasJ
    Posted on 7 Jun 2022
    Product bought from LDLC on 17 May 2022
    Number of reviews: 1 Average rating: 10

    Overall opinion

    Being already used to filament 3D printers, I wanted to test the resin, because its details are far superior.
    I was looking at this Elegoo saturn, on the advice of a friend.
    Unfortunately, the printer arrived with a slightly recessed foot, which made it wobbly and therefore unusable.
    I immediately contacted LDLC customer service.
    Between my observation and LDLC's proposal of two solutions, it took barely 4 hours.
    I would like to salute their reactivity. I really do.
    The printer works well. It's harder to get used to than a filament printer, but the results are great.
    The starter kit supplied with it is light. You need extra gloves, masks and a funnel system to collect the resin.
    I opted for a manicure system instead of a uv lamp... it's functional but not great.
    The elegoo wash n dry I ordered here will arrive soon. I can't wait.
    I'm very pleased with the quality of the product and the quality of the service I received. It's nice not to have to deal with merchants who sell and then basta.

    Review automatically translated
