SilverStone RM42-502
4U rackable server case
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

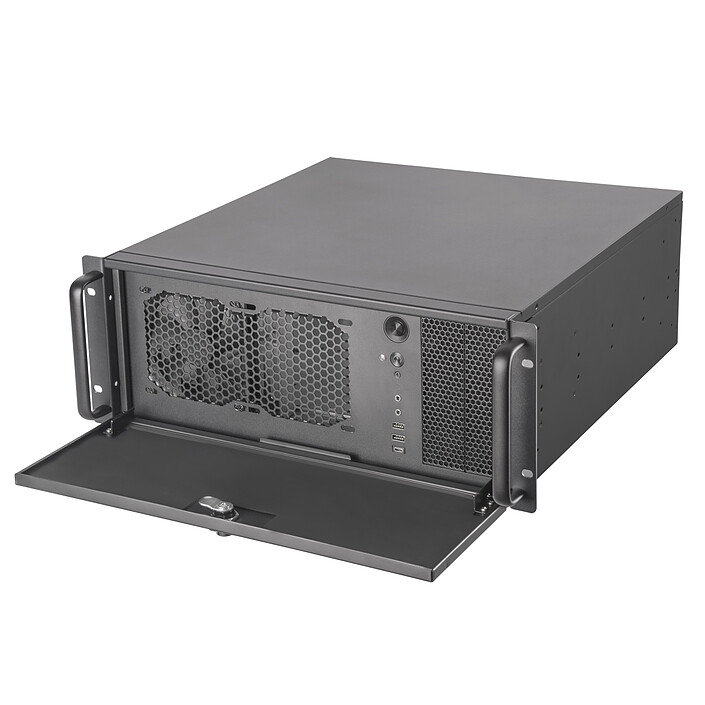

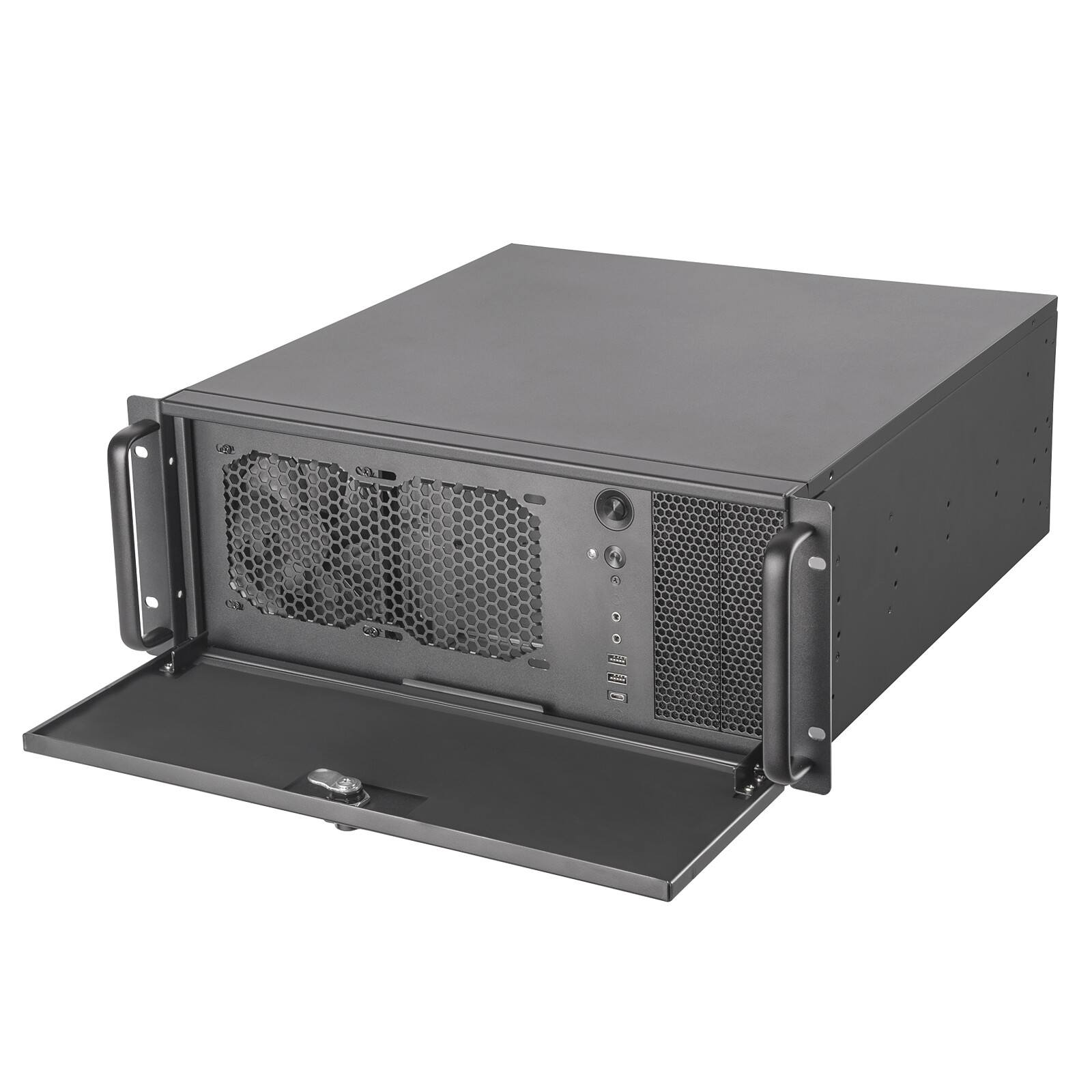

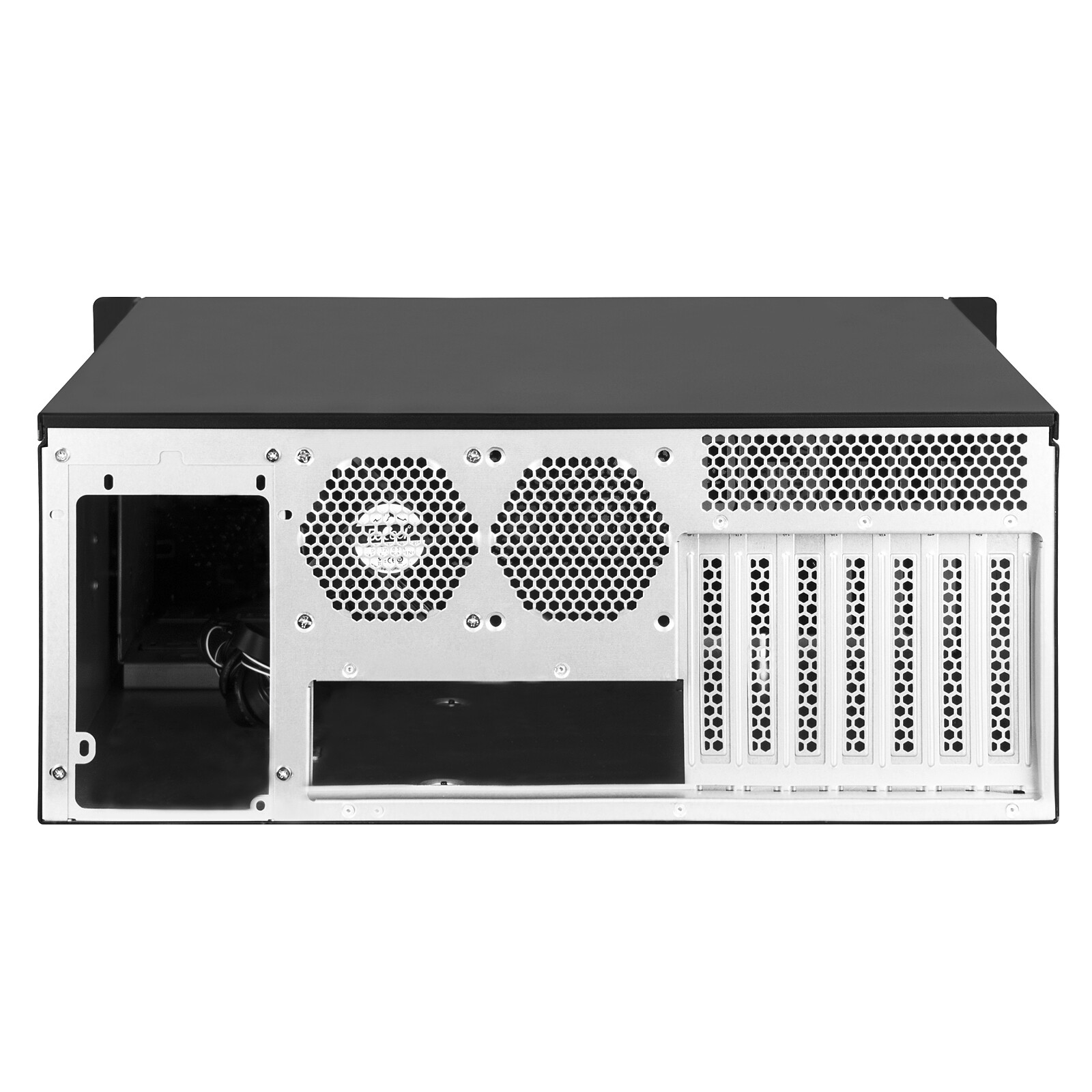

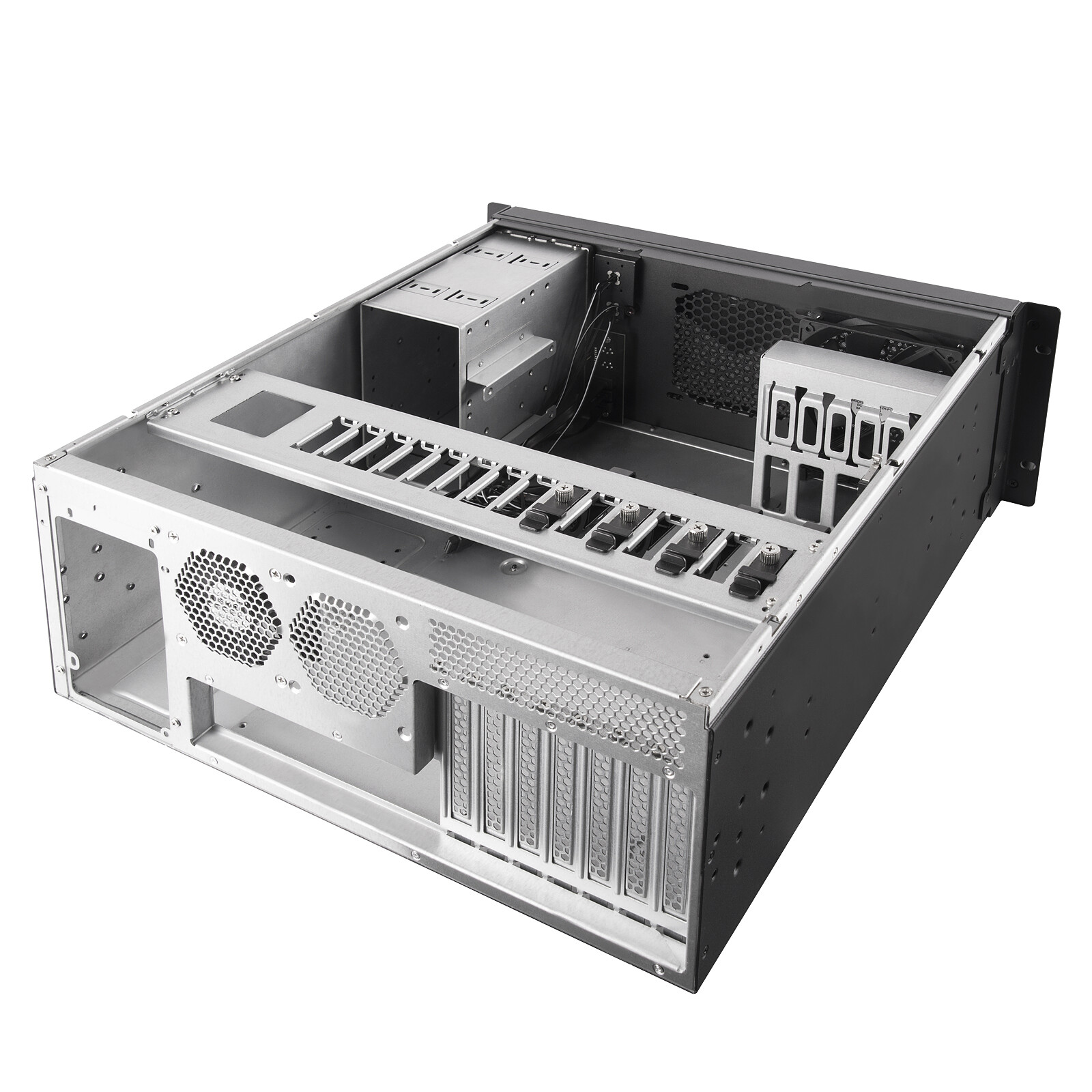

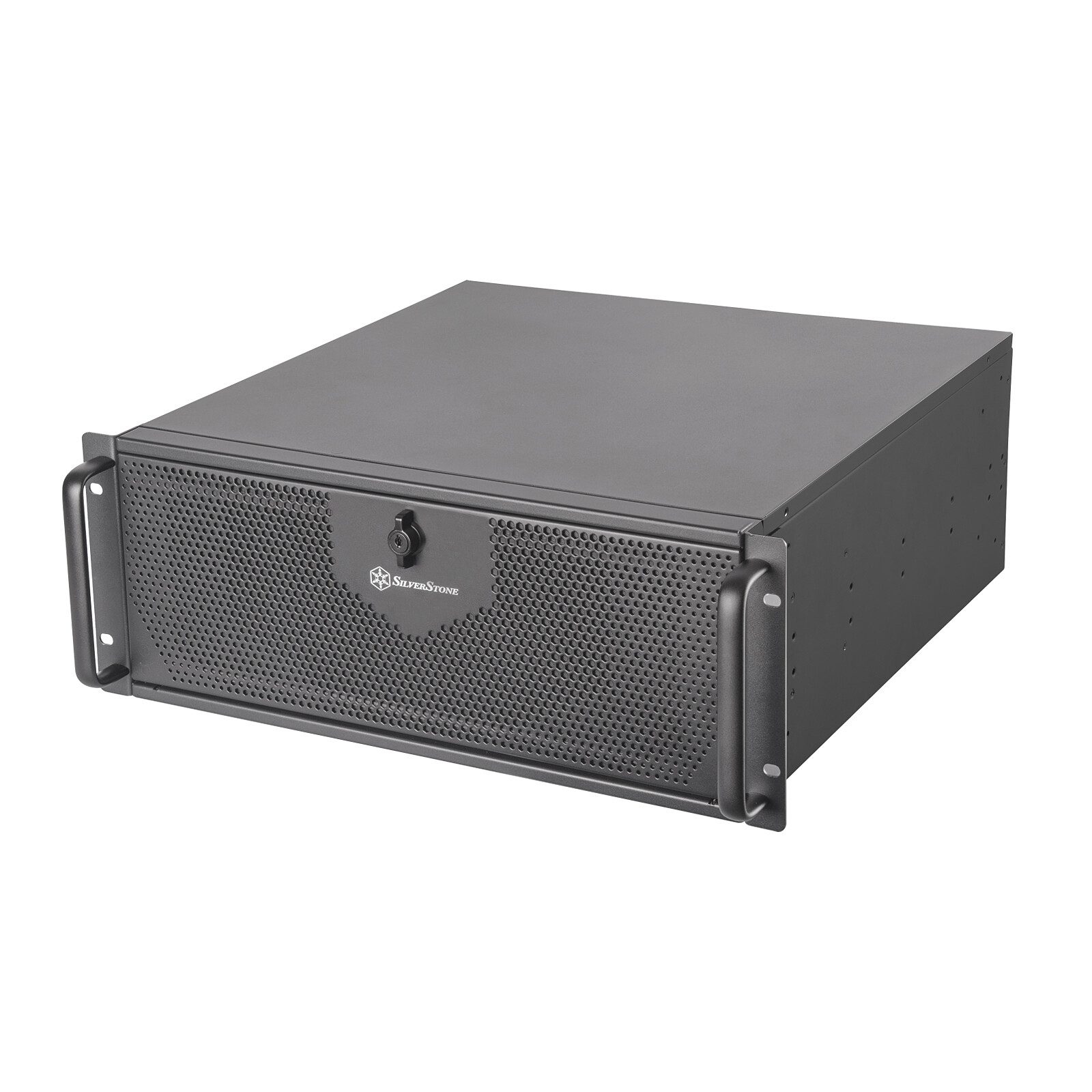

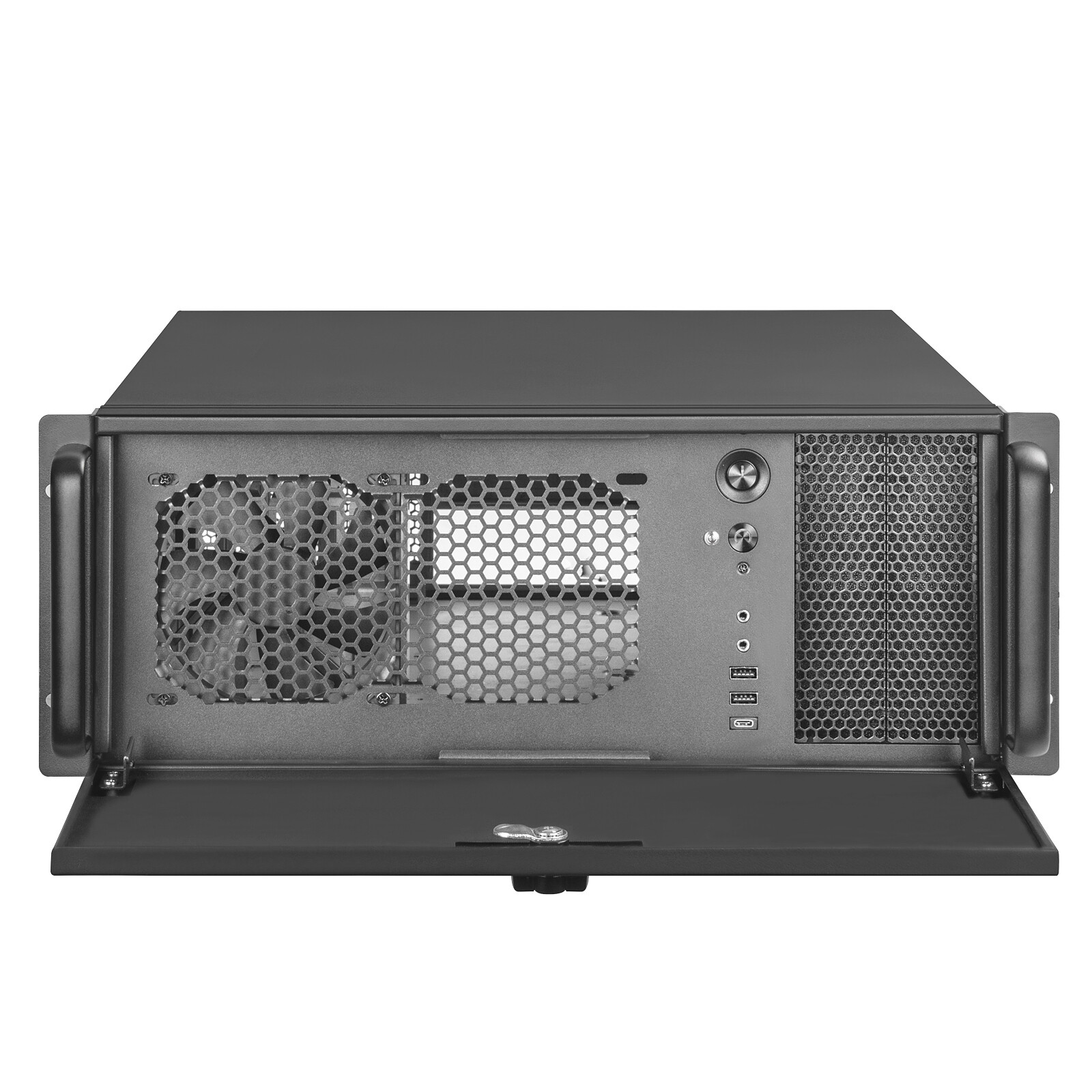

A high-performance rack-mount PC case with watercooling compatibility
The SilverStone RM42-502 4U rack-mount PC case is designed to accommodate a motherboard in SSI-EEB, SSI-CEB, ATX, Micro ATX or Mini ITX format. It enables you to assemble a rackable PC that can be installed in a 19" bay. Efficient, it supports up to 5 2.5" hard disks. Its anti-theft lockable design and compatibility means you can protect all your confidential data.
For excellent functionality and performance, it comes with 7 standard-sized PCI / PCIe expansion slots. Pre-drilled mounting holes allow for easy installation of sliding rails (such as the RMS06-22).
Features :
- Compatible with SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX and Mini-ITX motherboards
- ATX/EPS power supply slot
- 7 standard PCI / PCIe expansion slots
- External bays: 5.25" x 2 (compatible with 4x 2.5" or 2x 3.5")
- Internal bays: 2.5" x 1
- Compatible with watercooling radiators (2x120 mm or 240 mm on front)
- Max. CPU fan height: 148 mm (130 mm with GPU support)
- Max. graphics card length: 426 mm (337 mm with GPU support)
- Max. graphics card width: 154 mm (116 mm with GPU support)
- Dimensions (W x H x D): 430 x 176 x 468 mm
Select your criteria
General information |
Product name |
SilverStone RM42-502 |
Brand |
SilverStone | |
Model |
SST-RM42-502 | |
Main characteristics |
Graphic card max. length |
426 mm |
Max height CPU fan |
148 mm | |
Power format |
ATX/EPS | |
Case format |
4U rack | |
Use |
Server | |
Material |
Metal | |
| Steel | ||
Motherboard format |
ATX | |
| Micro ATX | ||
| Mini ITX | ||
| SSI CEB | ||
| E-ATX | ||
| SSI EEB | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
Black | |
Front color |
Black | |
Integrated display |
No | |
Mesh front |
No | |
Glass |
No | |
Tempered glass |
No | |
Fish tank (panoramic view) |
No | |
LED RGB |
No | |
ARGB LED |
No | |
ARGB hub included |
No | |
Water cooling compatible |
Yes | |
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of visible 3.5" slots |
0 | |
Number of invisible 3.5" slots |
0 | |
Number of 2.5" slots |
1 | |
Number of 2.5"/3.5" slots |
0 | |
Number of visible 5.25" slots |
2 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Front connectivity |
Location of expansion ports |
Front |
Connector(s) available |
1 X Headphone (3.5mm Jack Female) | |
| 1 X Microphone (3.5mm Jack Female) | ||
| 2 X USB 3.0 | ||
| 1 X USB 3.0 Type C | ||
Cooling |
Fan(s) included |
Yes |
Number of rear fan(s) slots |
2 X 80mm | |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
2 X 120mm | |
Quantity of front fan(s) supplied |
1 | |
Number of side fan(s) slots |
None | |
Number of above fan(s) slots |
None | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 240mm radiator | ||
Front AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
Physical characteristics |
Width |
430 mm |
Height |
176 mm | |
Depth |
468 mm | |
Weight |
9.9 kg | |
Volume |
35 l | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
See all SilverStone products
Product referenced on 17 Oct 2025
