Gigabyte H410M S2 V3
Micro ATX Socket 1200 Intel H410 Express Motherboard - 2x DDR4 - M.2 PCIe 3.0 - USB 3.0 - PCI-Express 3.0 16x
Last price 87€90
Gigabyte Motherboard for 10th Generation Intel Core Processor
This motherboard is part of theUltra DurablefromGigabyte. A range designed to last, with tough, proven materials and a unique 2oz copper based PCB. This improved PCB helps to cool chips and components, resist electromagnetic interference and deliver optimum performance. The Gigabyte H410 S2 V3 motherboard is designed to support 10th generation Intel Core processors(Intel Comet Lake-S).
Based on the Intel H410 Express chipset, the Gigabyte H410M S2 V3 motherboard will serve as the foundation for your desktop and multimedia PC with a high-performance processor and Gigabyte-exclusive features such as Smart Fan 5 and RGB Fusion. It supports 10th generation Intel Core "Comet Lake-S" processors, PCI-Express 3.0 16x graphics cards, SATA 6 Gbps drives, DDR4 RAM as well as USB 3.0 devices.
Gigabyte H410M S2 V3
- Support for 10th generation Intel Core processors on socket LGA 1200
- DDR4 memory support, up to 2933 MHz
- 4 SATA 6 Gbps ports + M.2 PCIe 3.0 x4
- Realtek 8118 Gigabit network with bandwidth management
- Smart Fan 5 temperature and fan management
- RGB Fusion with RGB LED connector
10th Generation Intel Core Processor
High performance in games, virtual reality without slowing down, intensive multitasking, the 10th generation Intel Core processors are ultra versatile and at ease in all situations. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
Select your criteria
General information |
Product name |
Gigabyte H410M S2 V3 |
Brand |
Gigabyte | |
Model |
H410M S2 V3 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel H410 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2933 MHz | |
| DDR4 2666 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2133 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC887 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Intel - 100/1000 Mbps |
Network standard(s) |
100/1000 Mbps | |
Storage |
RAID supported |
No |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Connectivity |

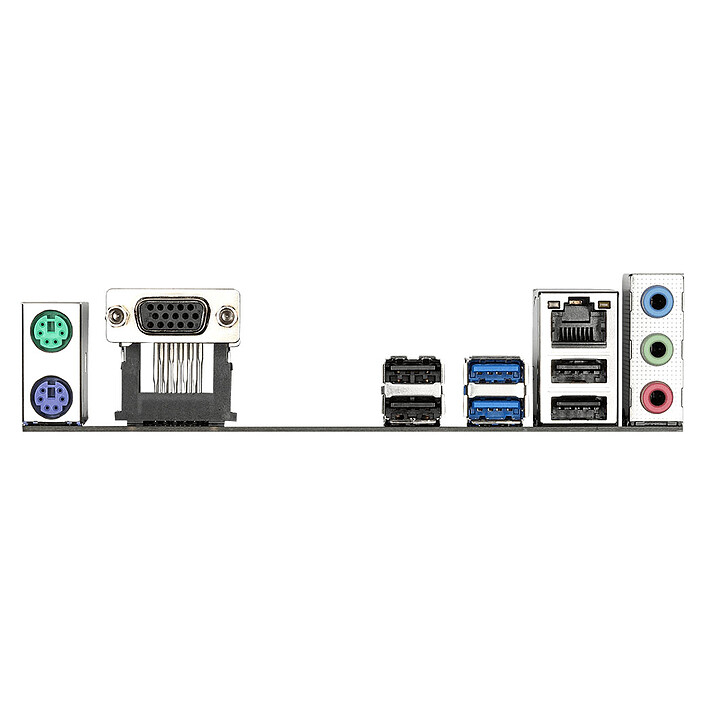

Rear panel connectors |
2 X USB 3.0 |
| 3 X 3.5mm Jack Female Stereo | ||
| 1 X RJ45 Female | ||
| 1 X VGA (D-sub 15 Female) | ||
| 2 X MiniDin 6 Female (PS/2) | ||
| 4 X USB 2.0 | ||
Additional connectors |
1 X LED RGB connector(s) | |
| Front panel audio | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| Serial (RS-232) | ||
| 1 X Internal USB 2.0 | ||
| 1 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
226 mm | |
Width |
185 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Multimedia | |
| Office | ||
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Gigabyte products
Product referenced on 21 Oct 2021
