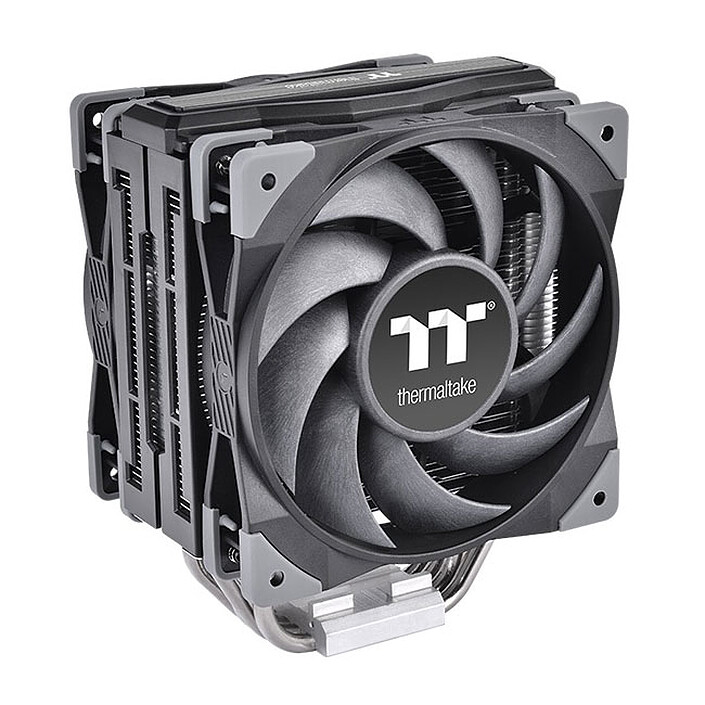

The Thermaltake TOUGHAIR 510 is a processor fan in a 2x 120 mm push-pull configuration. The design and materials used ensure that the latest processors are cooled efficiently. The improved heatsink, the copper contact surface and the two 120 mm fans ensure optimal airflow and heat dispersion. Capable of cooling processors up to a TDP of 180W, it is ideal for powerful configurations such as gaming, streaming or multimedia entertainment PCs.

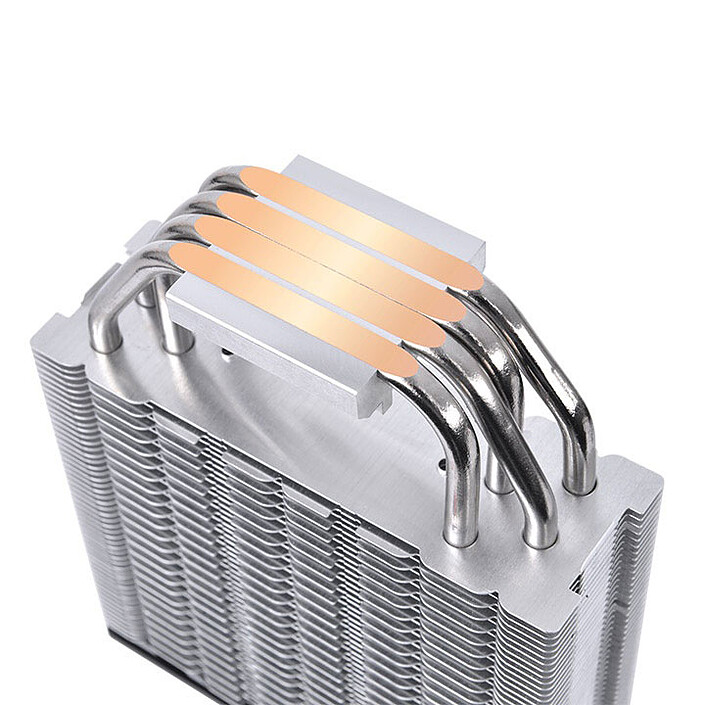

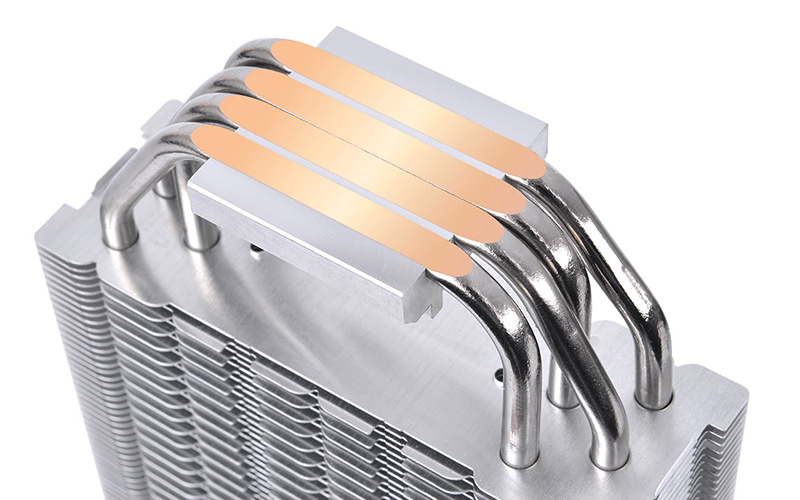

The TOUGHAIR 510 is a single tower fan with two 120mm high static pressure fans and an innovative heatsink design, which guarantees excellent cooling performance. It is also equipped with 4 x 6mm heatpipes running through the fins designed with an asymmetric structure that ensures greater air intake. Arranged in a U-shape, they facilitate heat circulation and optimise heat dissipation within your system. The TOUGHAIR 510 has a cooling capacity of 180 W.
The TOUGHAIR series is compatible with Intel and AMD sockets, including the following models:
Select your criteria
General information |
Product name |
Thermaltake TOUGHAIR 510 |
Brand |
Thermaltake | |
Model |
CL-P075-AL12BL-A | |
Technical specifications |
Use |
Processor |
Processor support |
AMD AM2 | |
| AMD AM2+ | ||
| AMD AM3 | ||
| AMD AM3+ | ||
| AMD AM4 | ||
| AMD FM1 | ||
| AMD FM2 | ||
| Intel 1150 | ||
| Intel 1151 | ||
| Intel 1155 | ||
| Intel 1156 | ||
| Intel 1200 | ||
Color |
Black | |
Luminous |
No | |
Connector(s) |
4-pin Female | |
Ball bearing |
Yes | |
PWM |
Yes | |
Heat Pipe |
Yes | |
Adjustable speed |
No | |
Cooling type |
Ventirad (active) | |
Top Flow |
No | |
Dual tower |
No | |
Max CPU TDP |
180 W | |
Fan diameter |
120 mm | |
Max sound level |
23.6 dB | |
Minimum rotation speed |
500 RPM | |
Maximum rotation speed |
2000 RPM | |
Max airflow |
58.35 CFM | |
Material(s) |
Aluminum | |
| Copper | ||
Use |
Gamer | |
Dimensions |
Height (fan included) |
159.5 mm |
Width (fan included) |
123.6 mm | |
Depth (fan included) |
98.8 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
See all Thermaltake products
Product referenced on 31 May 2021
A big fan, quiet indeed, but incredibly difficult to assemble. There are only about ten parts to assemble but everything is badly designed, everything is made not to fall straight.
Only for those who like to struggle for hours for a simple fan...
