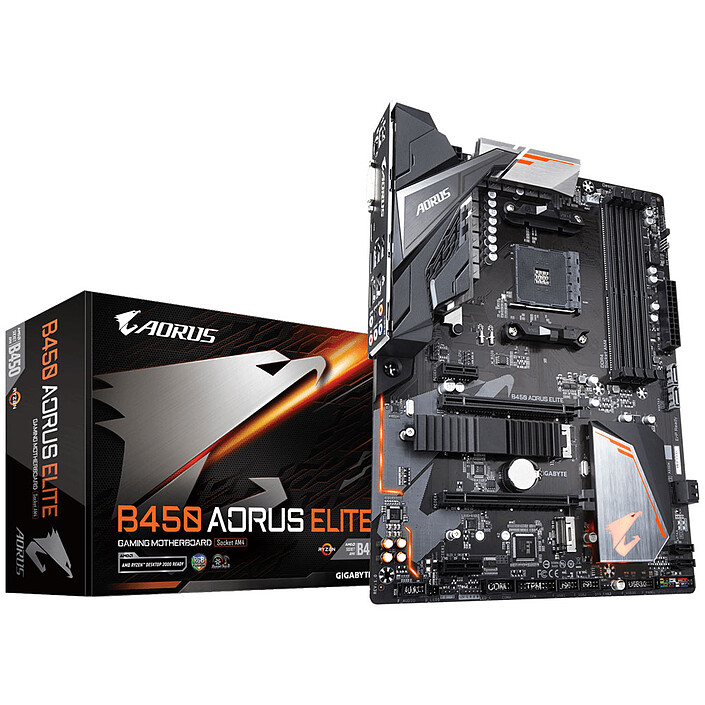

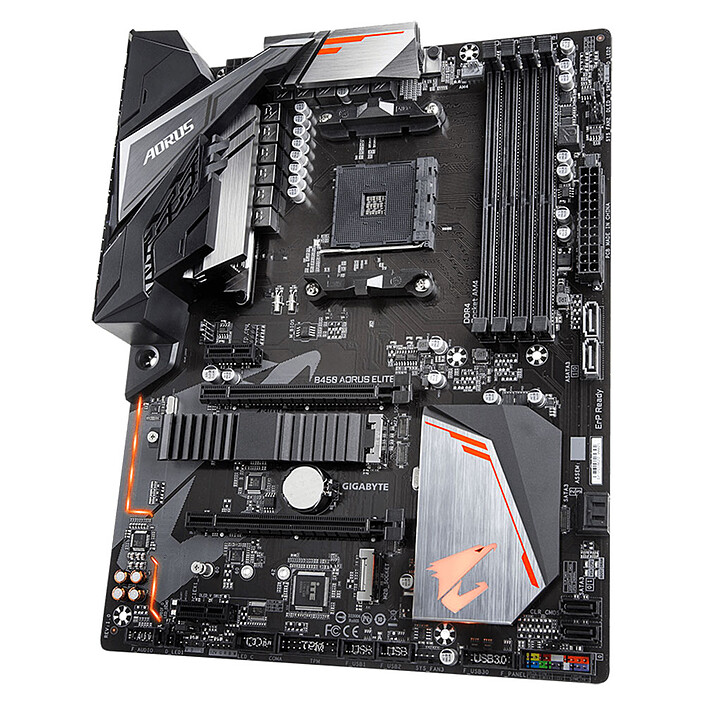

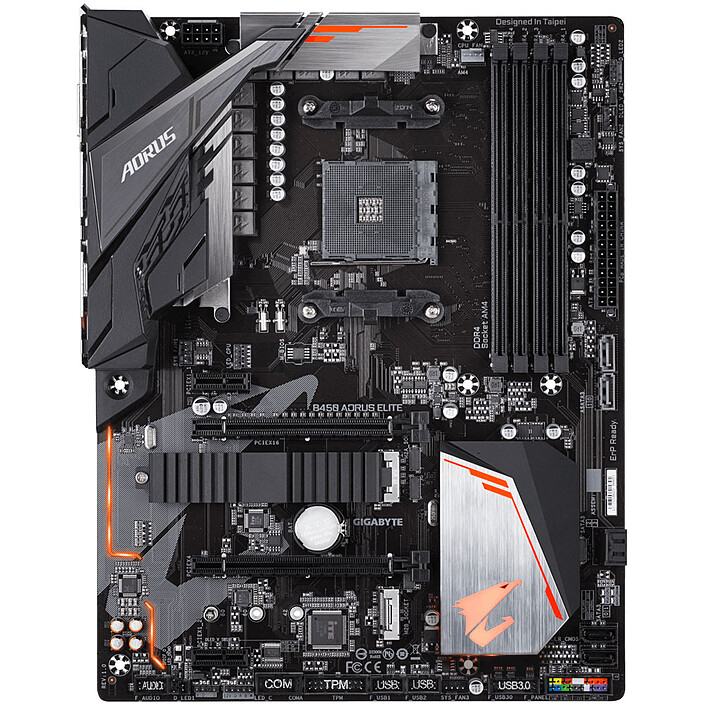

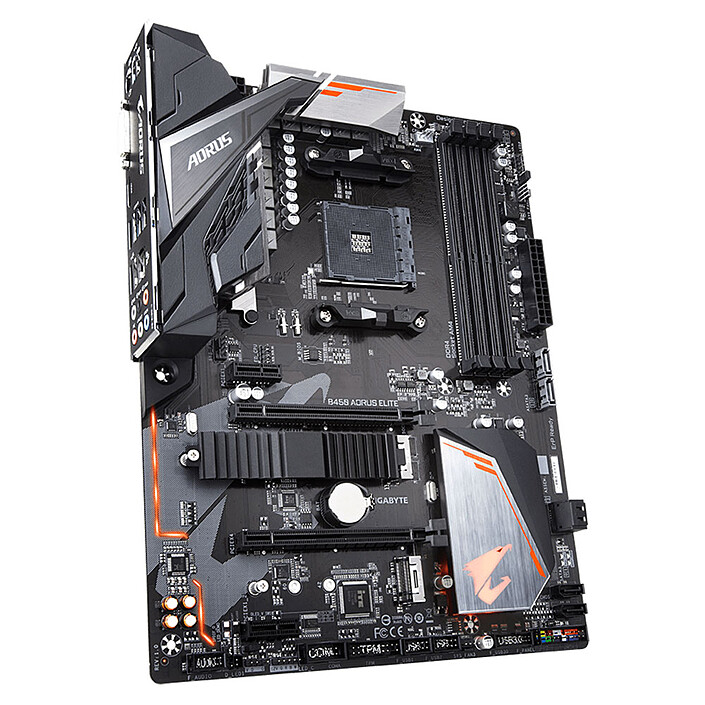

Gigabyte B450 AORUS ELITE
ATX Socket AM4 AMD B450 motherboard - 4x DDR4 - SATA 6Gb/s M.2 - USB 3.0 - 2x PCI-Express 3.0 16x
Last price 109€94
Holy Moly!
Equivalent products suggestions:
Overview
Gigabyte B450 AORUS ELITE: No compromise
Featuring the AMD B450 chipset , the Gigabyte B450 AORUS ELITE motherboard will be the cornerstone of a next-generation gamer setup! Compatible with AMD Ryzen processors on AMD AM4 socket, it supports DDR4 RAM, PCI-Express 3.0 graphics cards or SATA 6Gb/s and M.2 PCIe-NVMe drives. The Gigabyte B450 AORUS ELITE motherboard also benefits from the brand's high quality manufacturing and the latest technological innovations. Ultra Durable The Gigabyte B450 AORUS ELITE motherboard also benefits from the quality of manufacture and the latest technological innovations of the brand in terms of software and utilities. It is also equipped with an RGB LED connector compatible with the in-house RGB Fusion solution.
The advantages of the Gigabyte B450 AORUS ELITE motherboard :The Gigabyte B450 AORUS ELITE motherboard allows you to assemble a first-class gaming configuration. It has a lot of possibilities to assemble a PC that will allow you to play the latest titles in the best possible conditions.
|
 |
 |
Control your cooling performanceWith Smart Fan 5, control your PC with finesse. Smart Fan 5 allows you to manage the fan connectors through the different connectors on the PCB. Smart Fan 5 is compatible with PWM fans for optimal management of liquid cooling systems.
Finally, theBIOS interface has been redesigned to offer a number of innovations similar to those of the Smart Fan 5 UI: active stages according to temperature scenarios, definition of ventilation curves, reduction of noise pollution following sudden temperature changes... all this without leaving Windows! |
RGB FUSION: Choose your colours to suit your styleGigabyte motherboards feature the RGB Fusion LED lighting system. With numerous customisation options as well as an ergonomic GUI and Android/iOS app, you can have a unique motherboard. The B450 AORUS ELITE can handle up to 300 RGB LEDs and you can apply 10 different effects.
|
 |
Specifications
Select your criteria
General information |
Product name |
Gigabyte B450 AORUS ELITE |
Brand |
Gigabyte | |
Model |
GAB45ARSE-00-G | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B450 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 2.0 x16 (x4) |
| 1 X PCI Express 3.0 x16 | ||
Number and Type of slots |
1 X PCI Express x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC892 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8118 |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
| 1 X M.2 - PCI-E 3.0 x2 | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
Connectivity |

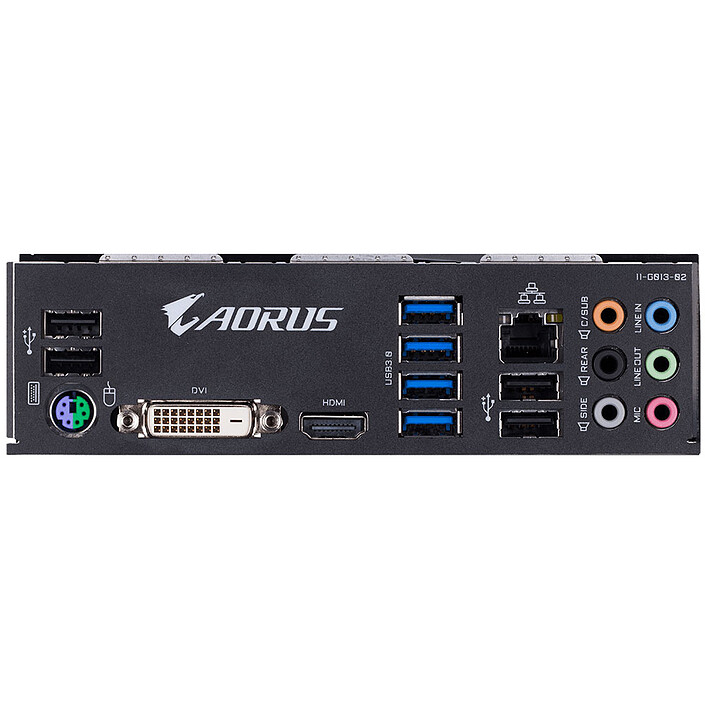

Rear panel connectors |
1 X HDMI Female |
| 1 X DVI Female | ||
| 4 X USB 3.0 | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 6 X 3.5mm Jack Female Stereo | ||
Additional connectors |
1 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| 1 X TPM | ||
| 1 X Internal S/PDIF | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
235 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
See all Gigabyte products
Product referenced on 29 Nov 2018
Customer reviews
Global rating
8/10
based on 15 reviews
Editorial and moderation guide
-
53%8 reviews
-
40%6 reviews
-
0%
-
0%
-
7%1 review
-
Number of reviews: 8 Average rating: 7
-
Number of reviews: 1 Average rating: 10
PArfait
This card has lasted since I received it at an infernal rate.
I recommend it without RGB, it works very well.Review automatically translated -
Number of reviews: 7 Average rating: 9
Excellent, but...
Excellent motherboard for AMD processor but I couldn't find an application to manage RGB. You have to go through the BIOS/UEFI. I've owned it for 3 years and I've only had 1 problem with it (Windows update that did anything). The BIOS/UEFI changed my BOOT options so I couldn't boot without changing them again.
Review automatically translated -
Number of reviews: 15 Average rating: 10
Very good motherboard
The product was just what I was looking for.
Easy to assemble, robust motherboard with an ideal lighting effect.Review automatically translated -
Number of reviews: 9 Average rating: 7
Good product
Very good cm works very well with nice rgb but I give it a 9/10 compared to the B450 Aorus Pro
Review automatically translated -
Number of reviews: 6 Average rating: 8
Blue screen on repeat
What a problem with it,
I've been using it for a while now, but it's not really working, it's just going to blue screen as soon as I put the manufacturer's drivers on (windows10).
I'm not sure what to do with it, but I'm sure it'll be fine if it's working properly.Review automatically translated -
Number of reviews: 2 Average rating: 10
GIGABYTE B450 AORUS ELITE
No problem when installing in the old tower.
Update done by LDLC: nothing to say.....all works...Review automatically translated -
Number of reviews: 3 Average rating: 5
Functional
The card is not really in ATX format, so the whole inside part (24-pin connectors) is not supported by anything, so be careful when mounting. We also regret the absence of RGB on the top part. The BIOS is not very ergonomic and I miss my old MSI in this respect.
The Nvme SSD cooling is a nice addition.Review automatically translated -
Number of reviews: 11 Average rating: 10
Very good motherboard for its price
This is a very good motherboard with RGB LEDs, two M.2 slots, an LED connector for the CPU and you can do CrossFire for its price for a Gamer PC.
Review automatically translated -
Number of reviews: 2 Average rating: 9
Well
Good value for money. The card does its job well. Positive points: 2 M.2 slots, 4 fan connectors, aesthetics and integrated LEDs. Minuses: a soldering point on the beeper failed. The SIV application for controlling the CM from Win10 does not work even when taking the latest version from the manufacturer's website.
Review automatically translated
